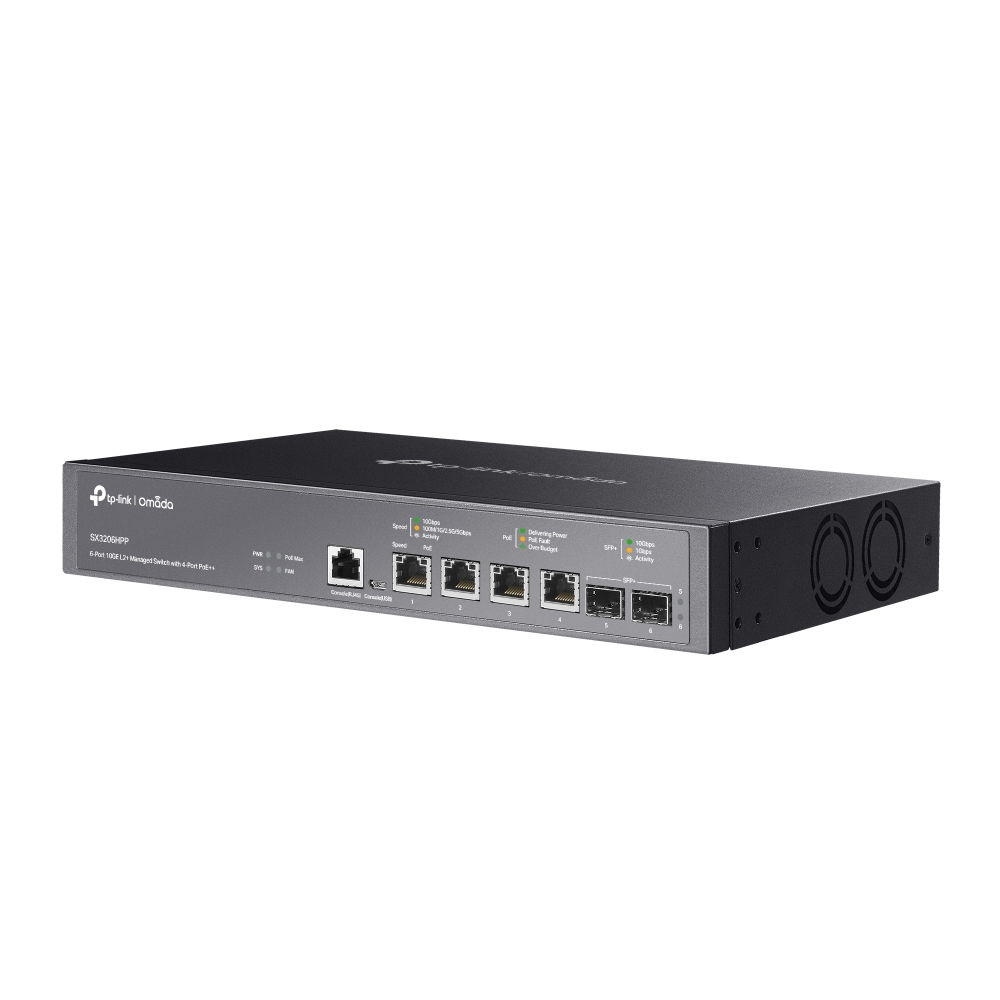

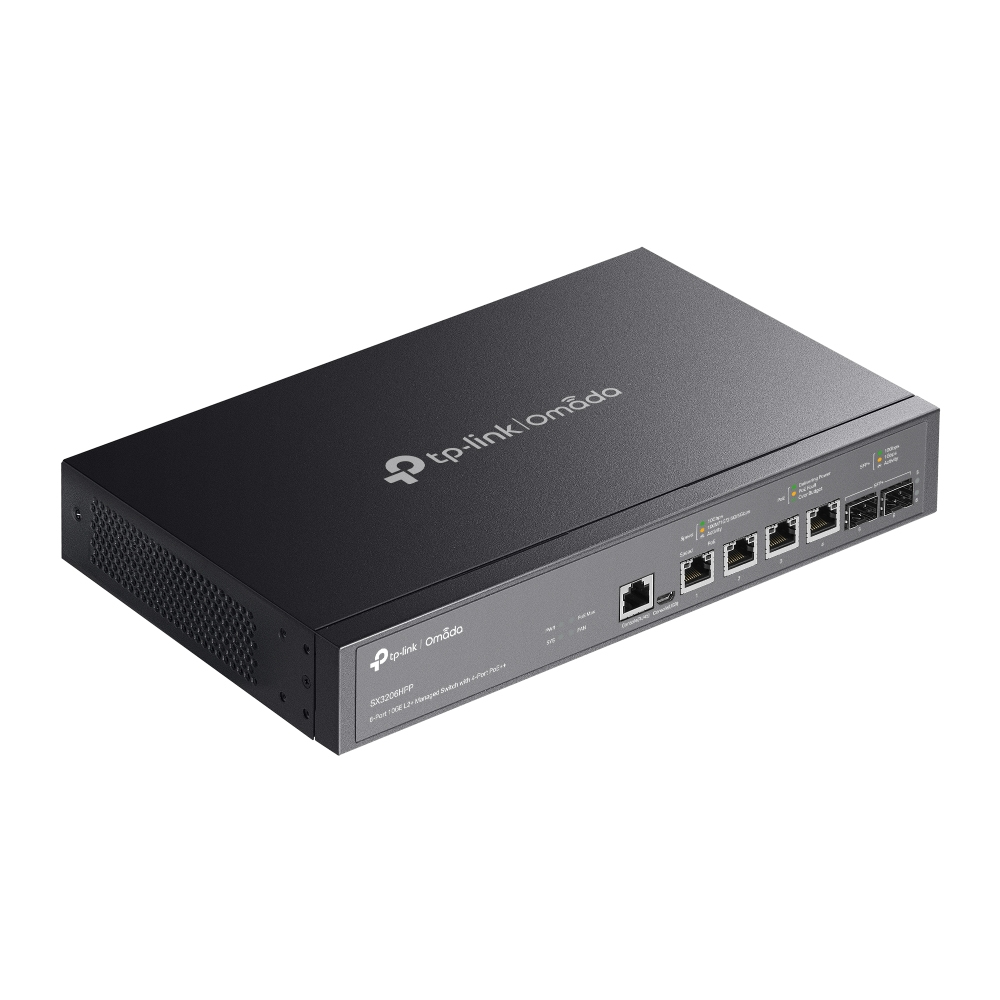

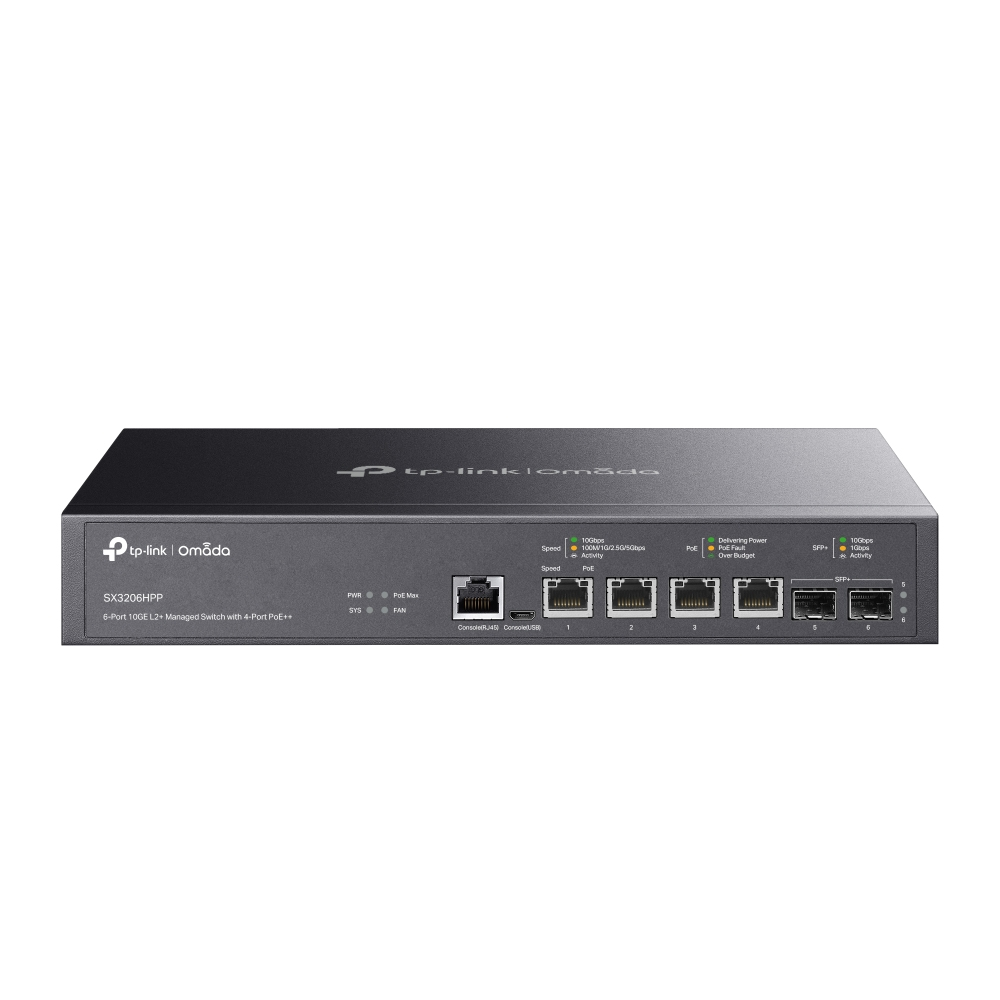

TP-LINK Switch SX3206HPP 4x10G RJ45 PoE++/2xSFP+ Managed content_copy

TP-Link's JetStream L2+ managed switches offer powerful L2 and L2+ features such as static routing, enterprise-grade QoS, advanced security strategies and a bundle of ISP features. The 10-Gigabit ports ensure high-speed data transfer and their backward compatibility with Gigabit products offers the possibility of network upgrades, thus guaranteeing stable and long-term usability.

Highlights

• 4x 10Gbit/s RJ45 ports and 2x 10Gbit/s SFP+ ports
• 4x PoE++ 10G ports with 200W power budget make it ideal for using Omada WiFi 6 APs
• Centralized cloud management – ??Integrates with Omada SDN for cloud access and remote management
• Rich L2 and L2+ features – Supports a full range of L2 and L2+ features, including static routing, enterprise-level QoS, IGMP snooping, and more
• Robust security strategies - Help protect LAN investments with built-in IP-MAC port binding, ACL, port security, 802.1X authentication and more
• Switch capacity: 120 Gbps

Product type

• Switch
• ear category (ElektroG) : relevant, Category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Integrated fan
• Switch type: Access
• Switching capacity: 120 Gbit/s (Gbps)

Connections

• Total number of copper ports: 4
• Total number of fiber optic ports: 2
• Total number of PoE ports: 4
• Connection highlights: 1x RJ45 console port, 1x Micro-USB console port
• Bandwidth: 100/1000/10G-Base-T
• PoE Standard: PoE - 802.3af, PoE+ - 802.3at, PoE++ - 802.3bt (Type 3)
• PoE budget: 200 W
• Console port
• Main port type: Copper
• Number of PoE+ (af/at) ports: 4
• Number of PoE++ (bt type 3) Ports: 4
• Number of RJ45 ports (10G): 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth : 180 mm
• Width: 294 mm

Scope of delivery

• TP-Link JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	120 Gbit/s
Forwarding rate	89.28 Mpps
MAC address table	32000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	16 MB
Static route
Jumbo frames support
Design
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
MIB support
Multicast features
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Routing entries	512
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	835.67 BTU/h
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Performance
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	244.9 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	200 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP v1/v2c/v3
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Security algorithms	HTTPS, SSL/TLS
Authentication	Guest VLAN
Authentication type	AAA, RADIUS, TACACS+
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm

---
