TP-Link Switch 8x GE SX3008F (10GBit) content_copy

TP-Link's JetStream L2+ managed switches offer powerful L2 and L2+ features such as static routing, enterprise-grade QoS, advanced security strategies and a bundle of ISP features. The 10-Gigabit ports ensure high-speed data transfer and their backward compatibility with Gigabit products offers the possibility of network upgrades, thus guaranteeing stable and long-term usability.

Highlights

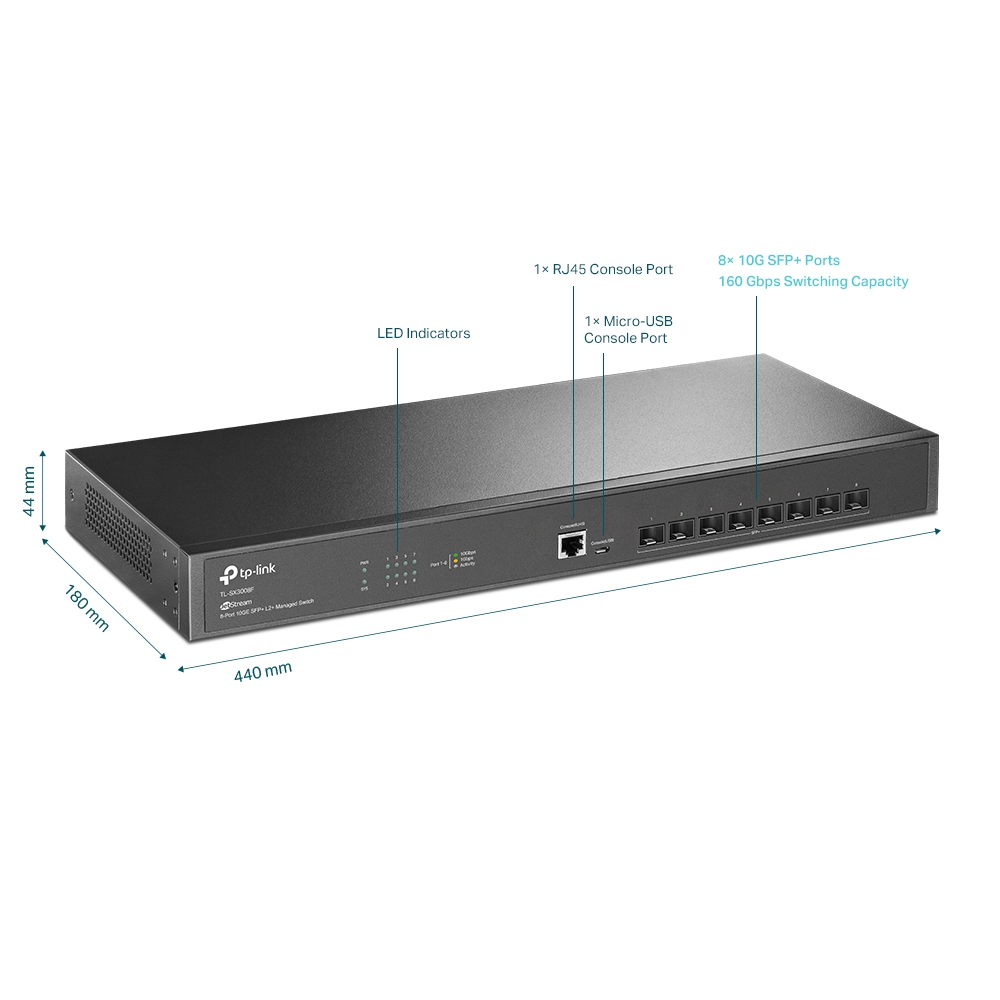

• 8 x 10Gbps SFP+ ports enable high bandwidth connectivity and non-blocking switching capacity of up to 160Gbps
• 1 RJ45 console port, 1 Micro USB console port
• Integrated with Omada SDN: Zero-Touch -Deployment, centralized cloud management and intelligent error control
• Centralized management: Simple and convenient management with cloud access and Omada app
• Static routing: Route internal traffic to efficiently use network resources
• Protect your data with systems such as IP-MAC Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
• L2/L3/L4 QoS and IGMP Snooping
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image offer powerful management functions

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• Integrated fan
• Switch type: Access

Connections

• Total number of fiber optic ports: 8
• Bandwidth: 100/1000/10G-Base-T
• Console port

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 180 mm
• Width: 440 mm

Scope of delivery

• TP-Link JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	160 Gbit/s
Forwarding rate	119.04 Mpps
MAC address table	32000 entries
Number of queues	8
Jumbo frames	9000
Packet buffer memory	16 MB
Static route
Jumbo frames support
Design
Product colour	Black
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2/L3
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Quality of Service (QoS) support
Web-based management
Cloud-managed
Traffic classification
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Virtual LAN features	Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	52.75 BTU/h
Packaging content
Cables included	AC
Quick start guide
Manual
Rack mount kit
Packaging data
Package type	Box
Ports & interfaces
SFP+ module slots quantity	8
Console port	RJ-45/micro-USB
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports type
Power
Power source	AC
AC input voltage	220 V
AC input frequency	50/60 Hz
Power consumption (max)	15.46 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Security
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
