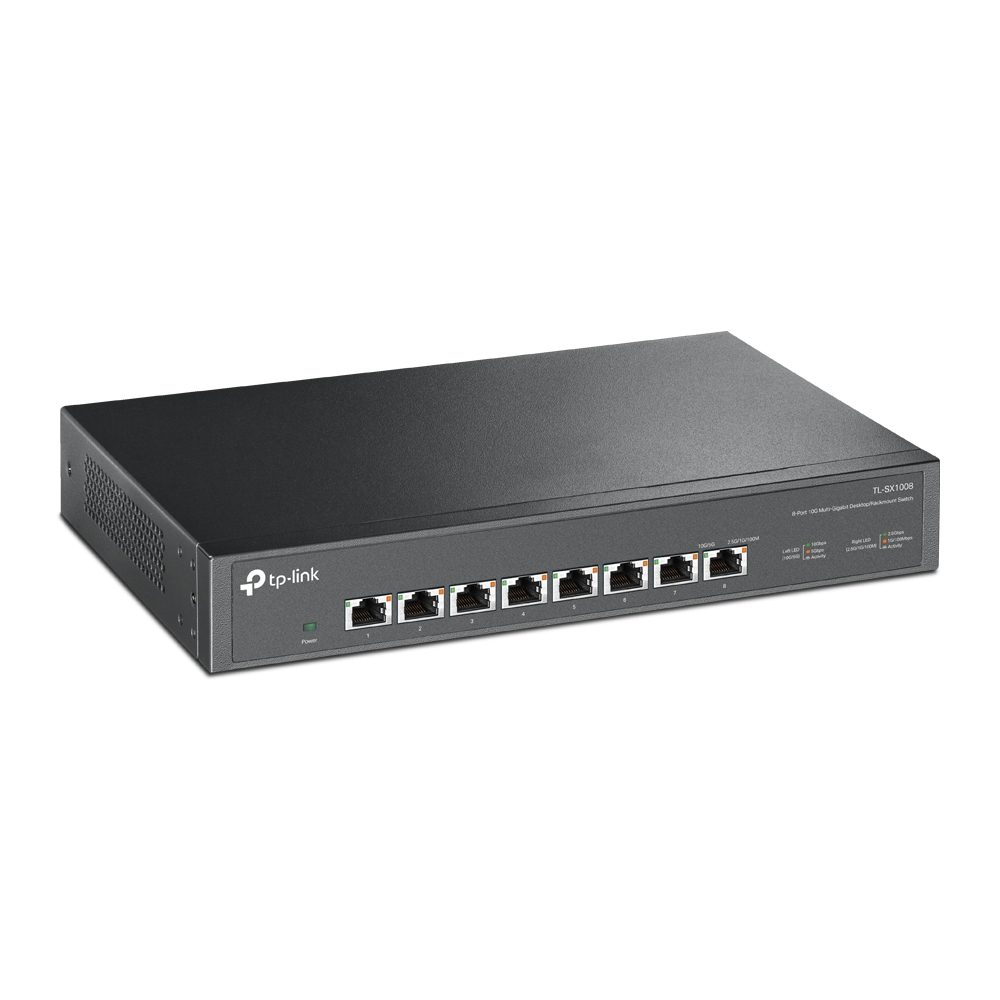

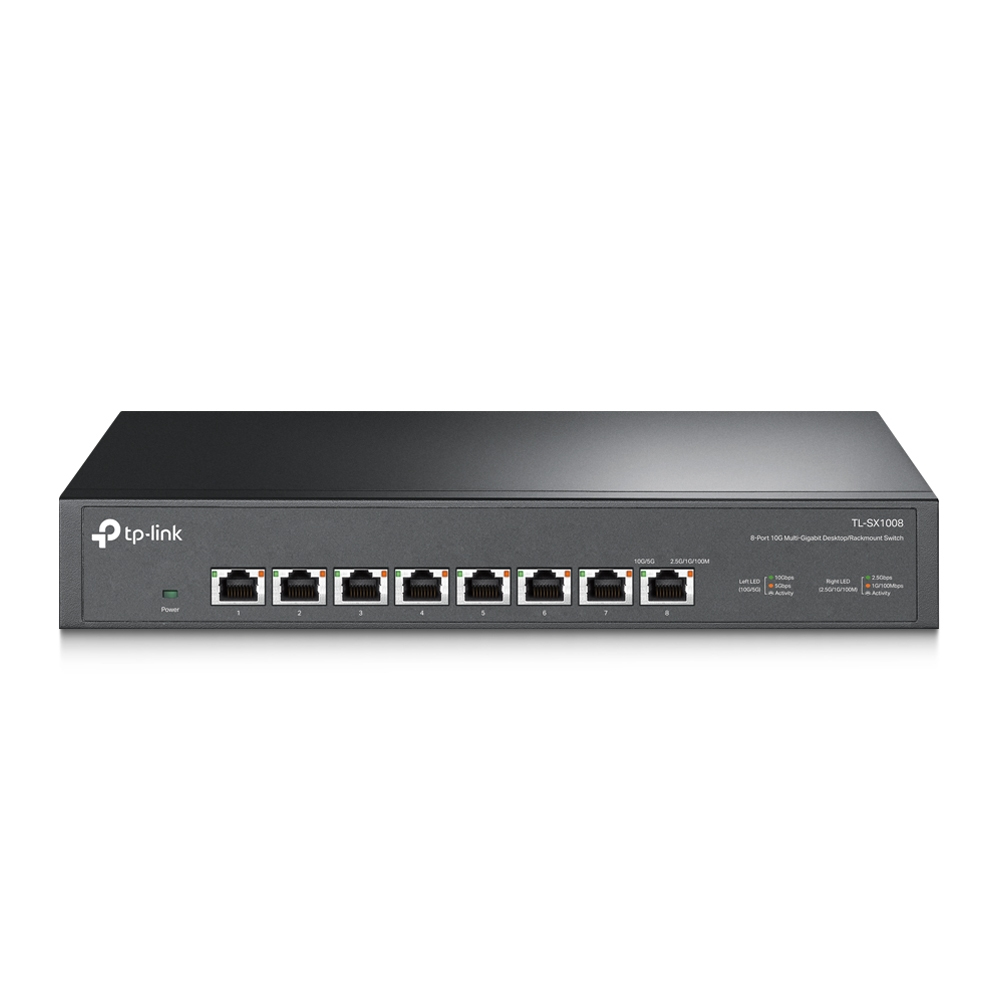

TP-Link Switch 8x 10G Multi-Gigabit TL-SX1008 content_copy

As a flagship 10G product, the TL-SX1008 is an 8-port 10G desktop rackmount switch with a switching capacity of up to 160Gbps. Automatic 5-speed connections (100Mbps/1G/2.5G/5G/10G) capture connection speeds and intelligently adjust them for compatibility and optimal performance of all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop and more.

Highlights

• 8 × 10 Gigabit ports provide up to 160Gbps switching capacity

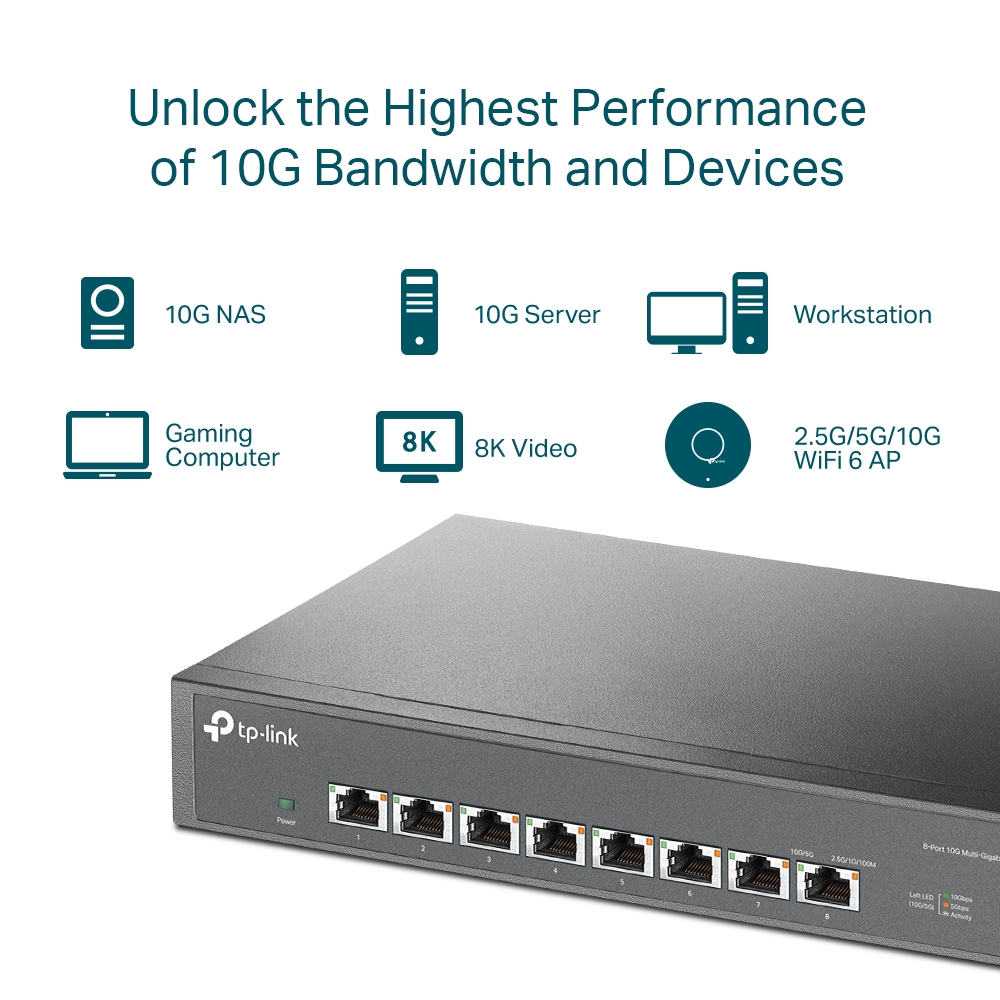

• Provides lightning-fast connections to 10G NAS, 10G Server, 10G PCIe Adapter/NIC, 2.5G/ 5G/10G WiFi 6 AP, 8K video and more
• Intelligent fan speed adjustment ensures minimal noise does not distract when in use

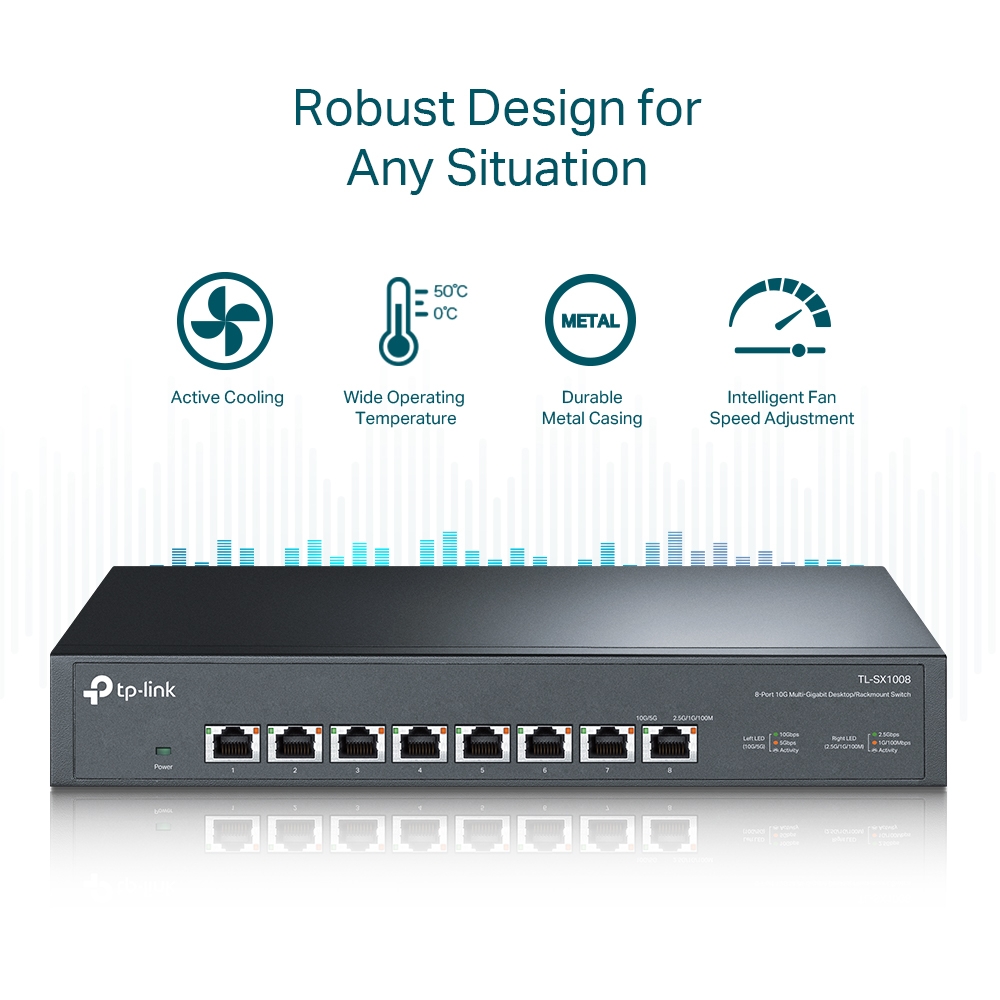

• Robust metal housing and heat-dissipating design guarantees a wide operating temperature (0-50 degrees C)
• Desktop and rack mountable
• Plug and play - Enables easy deployment without the need for a technician

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• Integrated fan

Connections

• Total number of copper ports: 8
• Bandwidth: 100/1000/10G-Base-T

Functions

• Switch manageable: No
• Mounting type: 48,3 cm ( 19 inch ) rack mount

Basic features

• Color: Black
• Height: 44 mm
• Length/depth : 180 mm
• Width: 294 mm

Scope of delivery

• TP-Link TL-SX1008 8-Port 10G Multi-Gigabit Switch

Certificates
Certification	CE, FCC ,RoHS
Data transmission
Switching capacity	160 Gbit/s
Forwarding rate	119 Mpps
MAC address table	32000 entries
Jumbo frames	10000
Packet buffer memory	16 MB
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	1 fan(s)
Rack mounting
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x
10G support
Auto MDI/MDI-X
Auto-negotiation
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Packaging data
Package type	Box
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	2.07 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	8
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power consumption (max)	28.4 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm

---
