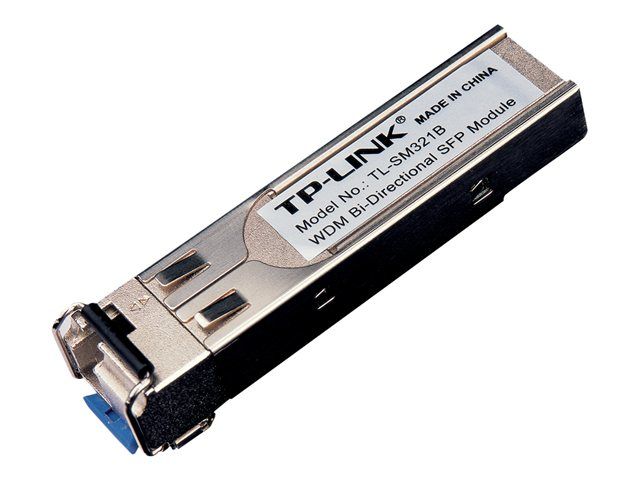

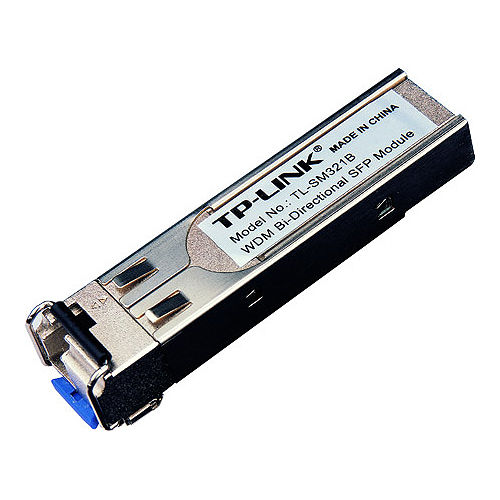

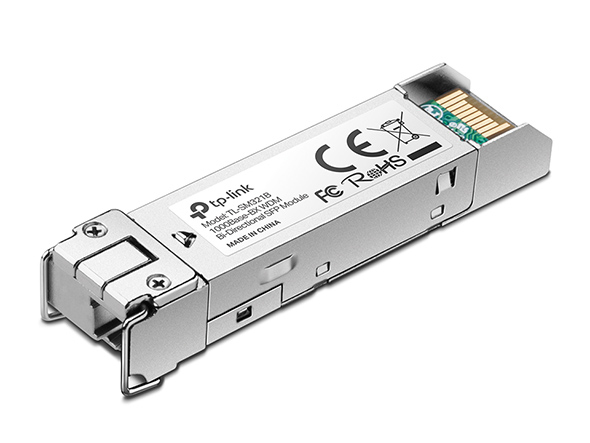

TP-LINK TL-SM321B SFP (mini-GBIC)
|
20,36 EUR |
|
|
( 24,23 EUR incl. VAT ) ≈ £17.14 | ≈ $22.86 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 126553 |
| Mfg Part No: | TL-SM321B |
| UPC/EAN: | 6935364030520 |
| Weight: | 0.064 kg |
Product information for TP-Link TL-SM321B:
TP-LINK's TL-SM321B uses the latest 1000Base-BX standard to transmit over a single strand of fiber optic cable with different wavelengths for each direction. You can extend the network range by 10km with TP-LINK routers, switches and media converters to achieve high speed and stability.
Highlights
- Bidirectional WDM SFP module
- Supports bidirectional WDM, which uses a single fiber, thereby saving costs
- 9/125 µm single mode
- Data rate: 1.25 Gbit/s
- Wavelength: TX: 1310 nm / RX: 1550 nm
- network switch module
- ear category (ElektroG): relevant, category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C
- Bandwidth: 10/100/1000 MBit /s
- SFP standard: SFP
- Color: Silver, Black
- TP-Link TL-SM321B Bidirectional 1000Base BX WDM SFP module
Product type
Connections
Data transmission
Basic properties
Scope of delivery
| Certificates | |
| Certification | FCC, CE |
| Features | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Networking standards | IEEE 802.3z |
| Single-mode fiber (SMF) supported | |
| Power | |
| Input voltage | 3.3 V |
| Weight & dimensions | |
| Width | 55.4 mm |
| Depth | 12.9 mm |
| Height | 12.9 mm |
