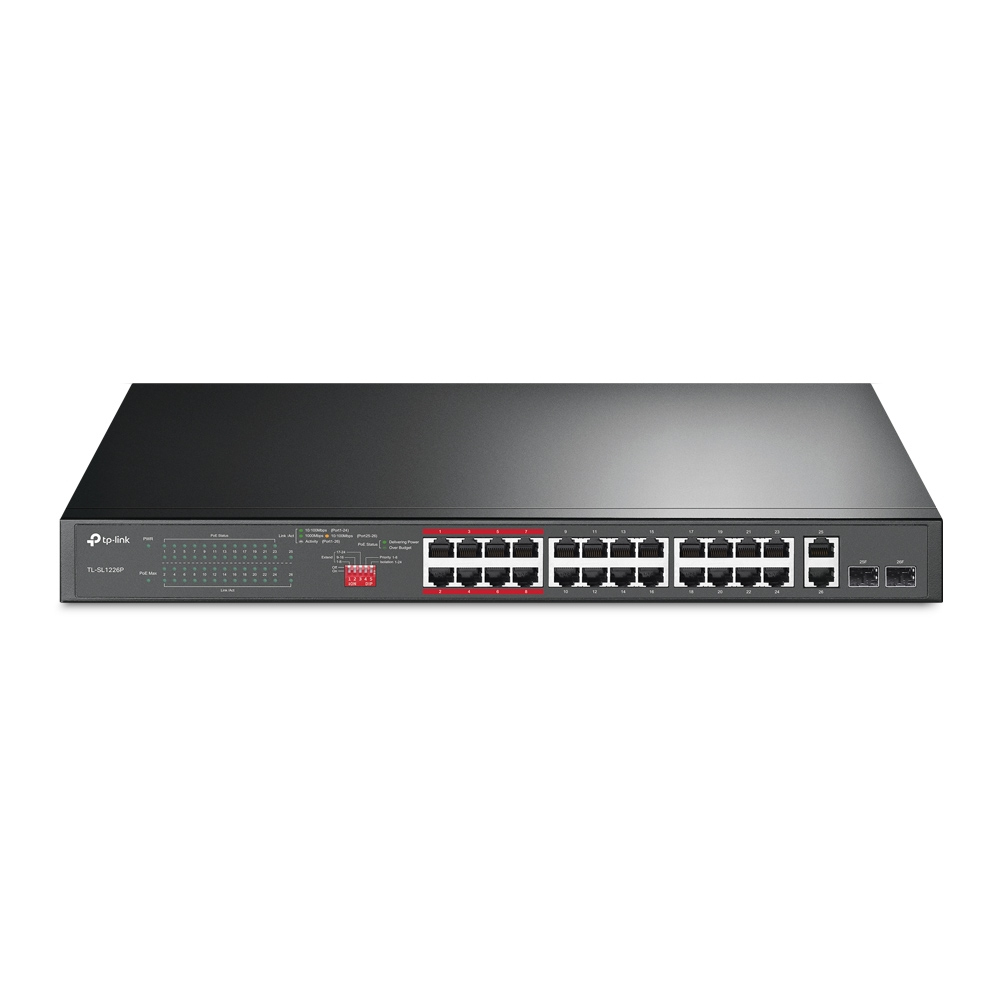

TP-Link Switch TL-SL1226P 26-Port 10/100Mbps PoE
|
-32% 148,88 EUR 217,55 EUR |
|
|
( 177,17 EUR incl. VAT ) ≈ £125.36 | ≈ $167.19 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1620090 |
| Mfg Part No: | TL-SL1226P |
| UPC/EAN: | 6935364089443 |
| Weight: | 2.985 kg |
| Type: | CPNT |
Further Miscellaneous from TP-LinkFurther products in category Miscellaneous
All products of TP-Link
Product information for TP-Link TL-SL1226P:
Thanks to the support of the 802.3af/at PoE+ standard, the power consumption of the TL-SL1226P reaches up to 30W for each port. The total power for 24 PoE ports can be up to 250W. The TL-SL1226P is therefore the ideal choice for video recording from small and medium-sized systems.
Highlights
- 24 PoE + 10/100 Mbit/s RJ45 ports, 2 Gigabit RJ45 ports and 2 combined Gigabit SFP slots
- Data transmission and power supply up to 250 m network expansion, ideal for surveillance systems
- Priority mode ensures high priority of the Ports 1-8 to ensure quality for sensitive applications such as video monitors
- High PoE power consumption up to 30W per port (total power up to 250W)
- Isolation mode allows one-click separation of client traffic for higher security and performance
- Easy installation, no configuration necessary
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Integrated fan
- Total number of copper ports: 26
- Total number of fiber optic ports: 2
- Total number of PoE ports: 24
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 250 W
- Color: Black
- Height: 44 mm
- Length/Depth: 180 mm
- Width: 440 mm
- TP-Link TL-SL1226P 26-Port 10/100Mbps PoE+ Switch
- Power cable
- Installation instructions
- 2 x mounting bracket and the fittings
Product type
Specifications
Connections
Basic properties
Scope of delivery
| Certificates | |
| Certification | CE, FCC, RoHS |
| Data transmission | |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 6.54 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Traffic classification | |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1002.54 BTU/h |
| Packaging content | |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 3.02 kg |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 281 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
