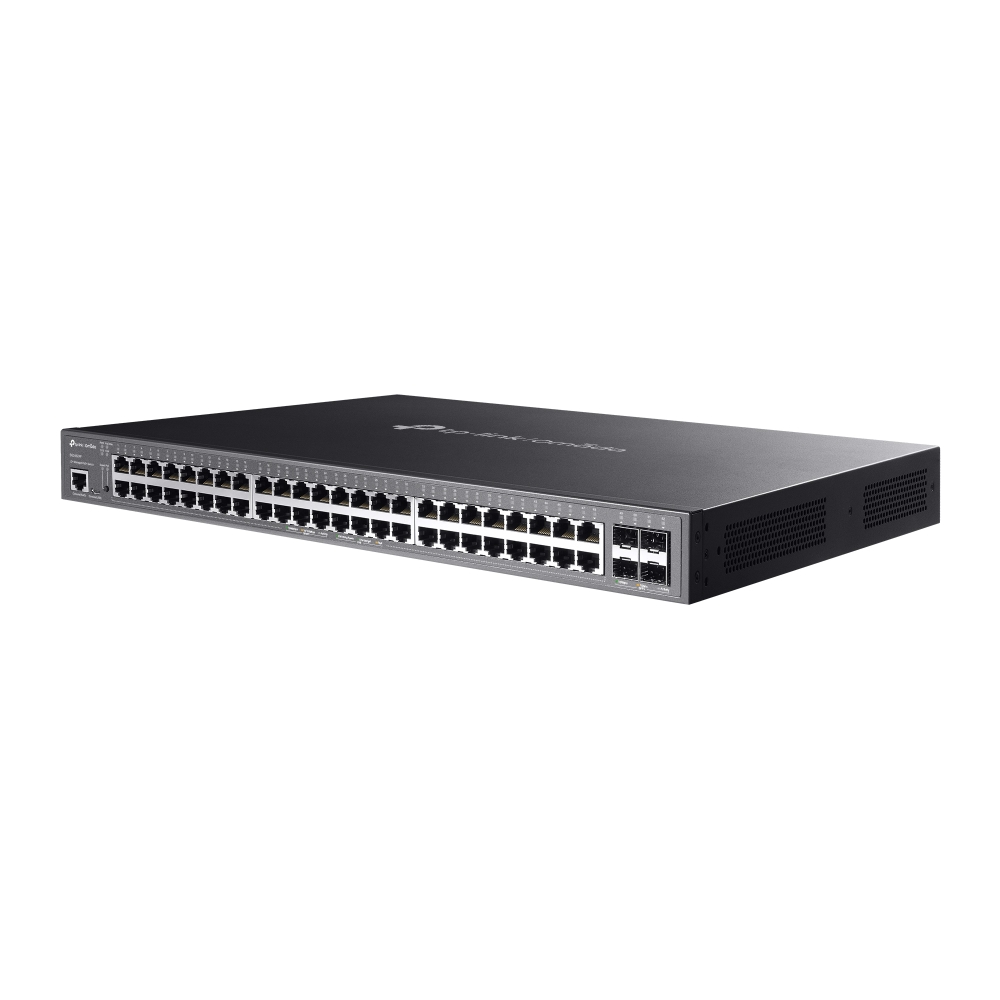

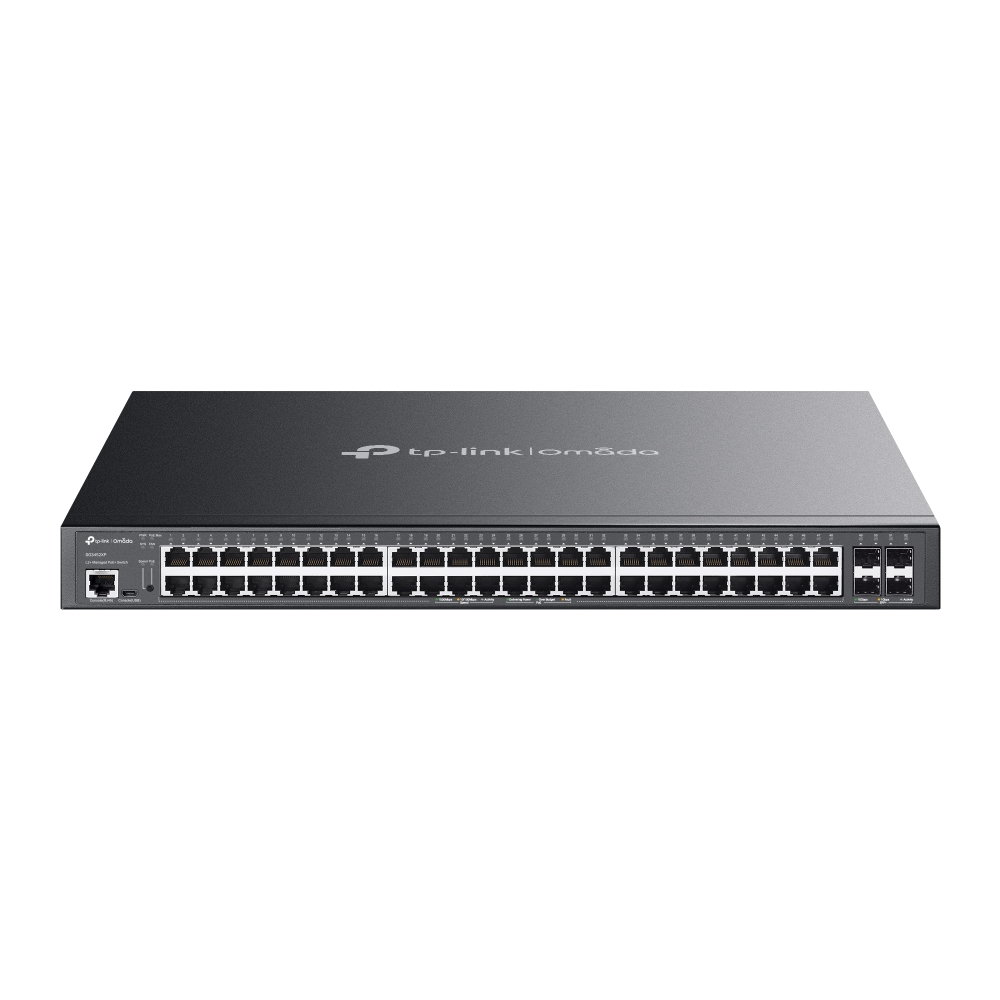

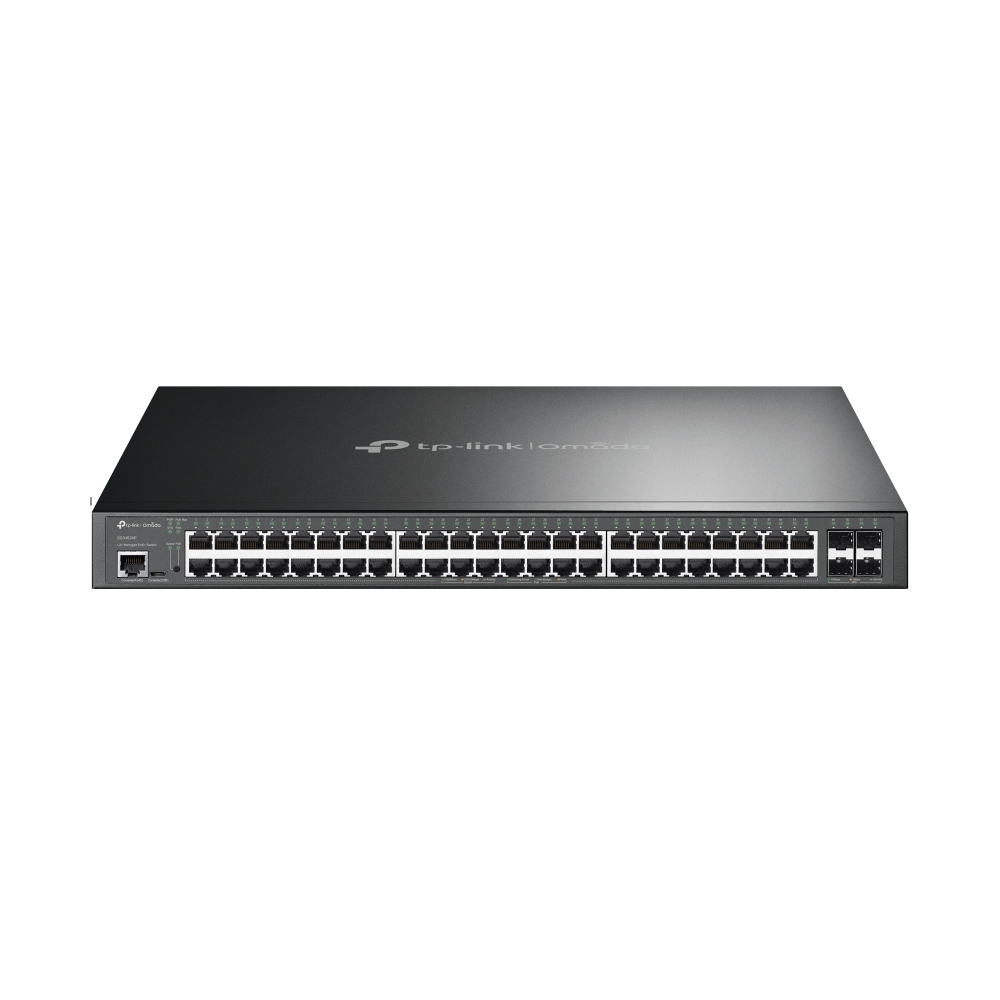

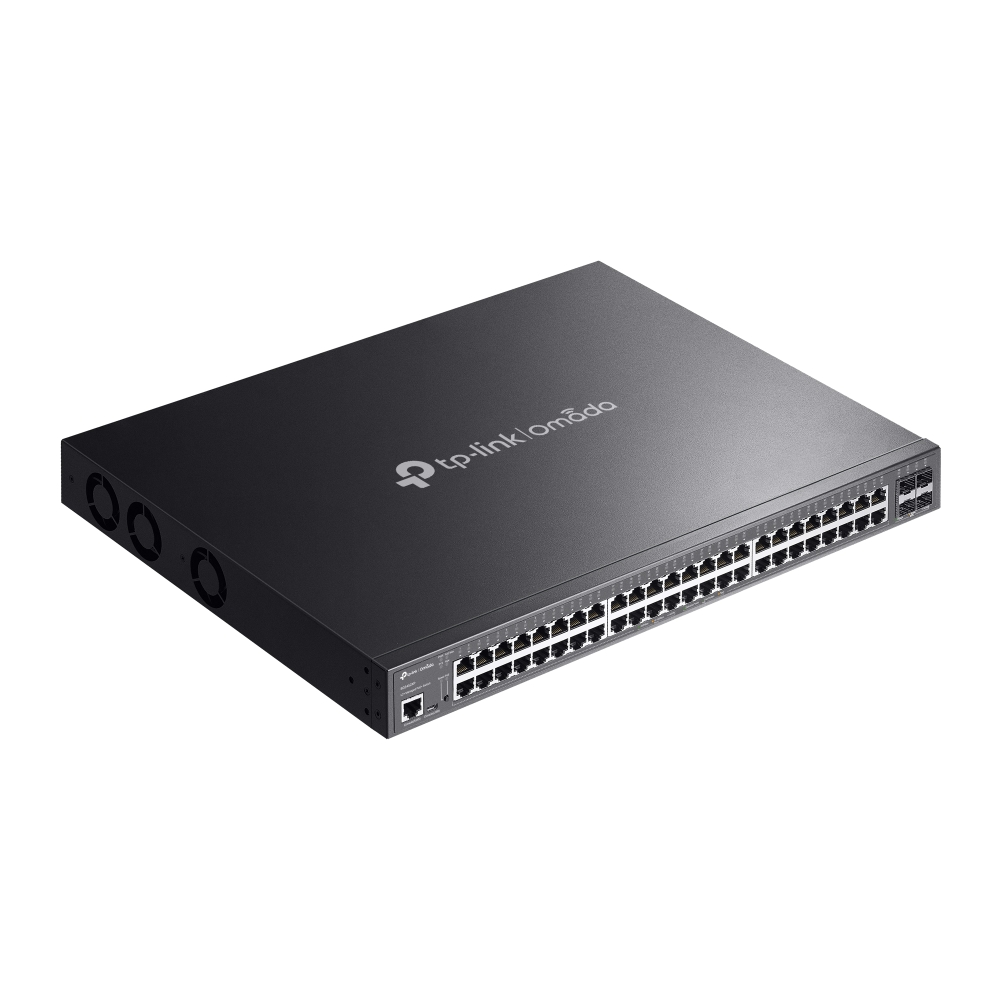

TP-LINK Switch SG3452XP 48xGBit/4xSFP+ PoE+ Managed content_copy

Enterprise Switch with 10G UplinkFour x 10Gbit/s SFP+ slots provide non-blocking switching performance and ultra-low latency. This allows reliable, lightning-fast connections to servers and other switches to be established. The 48× 802.3af/at-compliant PoE+ ports support a PoE power budget of up to 500 W. By using a single network cable for data and power transmission, this offers Device provides flexible deployment for PoE devices such as WiFi access points, IP cameras and IP phones and reduces infrastructure costs for small businesses.

Highlights

• Blazing-fast 10G uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10Gbps SFP+ slots
• PoE+ output with 500W power budget: Design your optimal network layout with forty-eight 802.3af/ at PoE+ gigabit ports
• Centralized cloud management: Integration with Omada SDN for cloud access and remote management
• Numerous L2 and L2+ features: It supports a full range of L2 and L2+ features including static routing, Enterprise-level QoS and IGMP snooping
• Robust security strategies: Protect LAN range investments with built-in IP-MAC port binding, ACL, port security and 802.1X authentication
• Self-management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image offer powerful management functions

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Integrated fan
• Switch - Type: Access
• Switching capacity: 176 GBit/s (Gbps)

Connections

• Total number of copper ports: 48
• Total number of fiber optic ports: 4
• Total number of PoE ports: 48

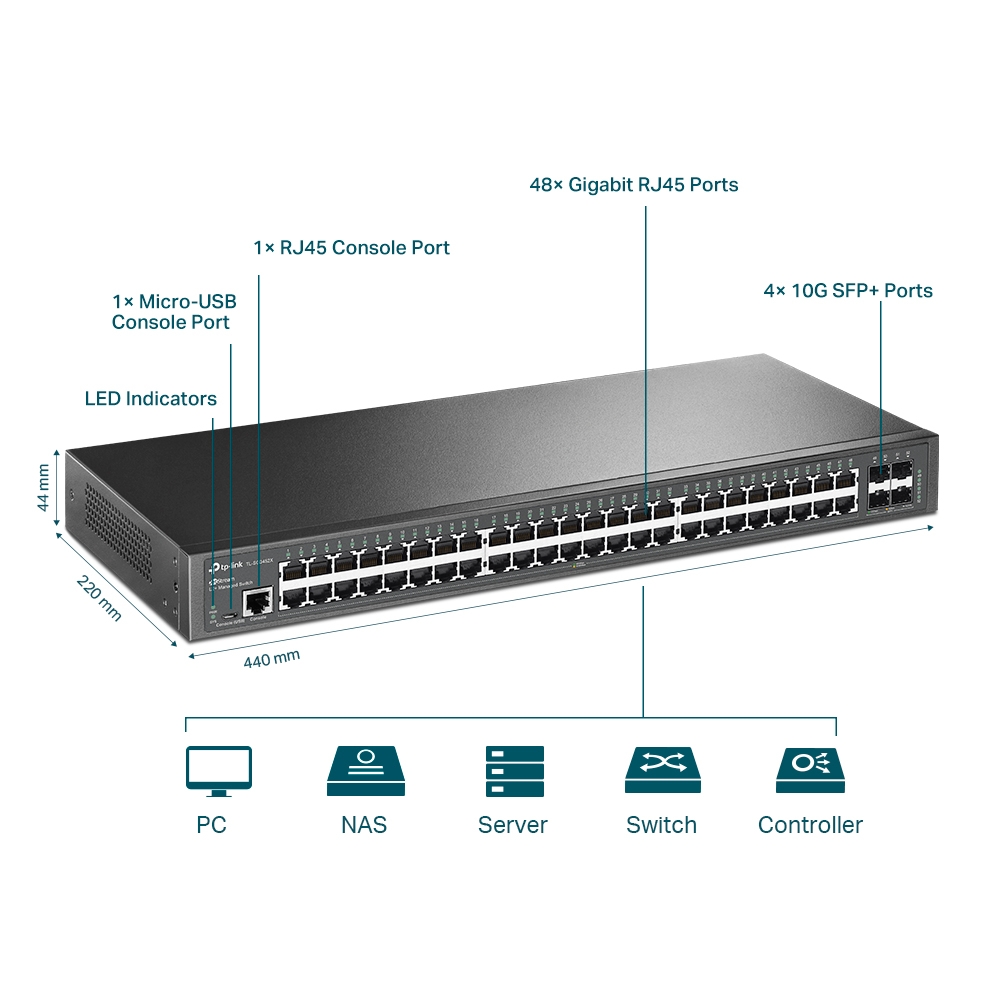

• Connections Highlights: 1× RJ45 console port; 1× Micro-USB Console Port
• Bandwidth: 10/100/1000 MBit/s
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 500 W
• Console port
• Main port type: copper
• Number of PoE+ (af /at) Ports: 48
• Number of RJ45 ports (1G): 48
• Number of SFP+ ports (10G): 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount, desktop
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 330 mm
• Width: 440 mm

Box contents

• TP-Link TL-SG3452XP 48-Port Gigabit Switch
• Power cable
• Quick start guide
• Rack mounting kit
• Rubber feet

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	176 Gbit/s
Forwarding rate	130.9 Mpps
MAC address table	16000 entries
Jumbo frames	9000
Packet buffer memory	12 MB
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	3 fan(s)
Rack mounting
Reset button
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	2169.2 BTU/h
Packaging content
Cables included	AC
Quick start guide
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	635.7 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	500 W
Power over Ethernet (PoE)
Security
DHCP features	DHCP client, DHCP relay, DHCP server
Authentication	Auto VLAN, Guest VLAN
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm

---
