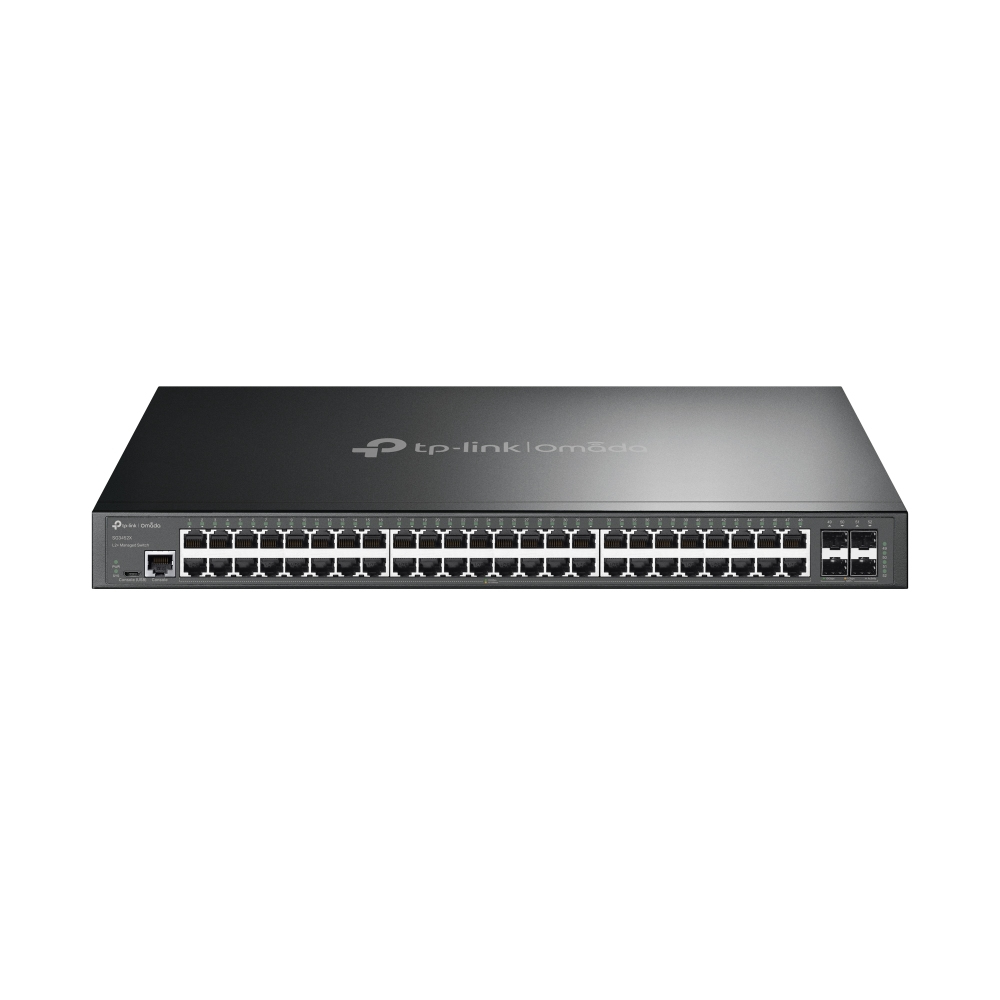

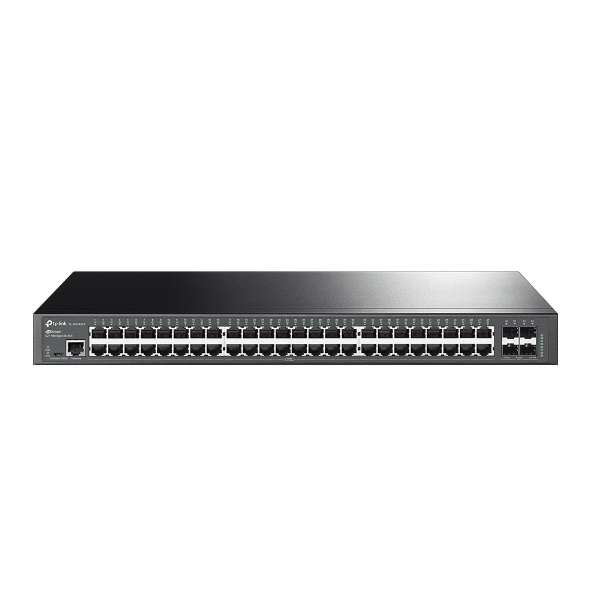

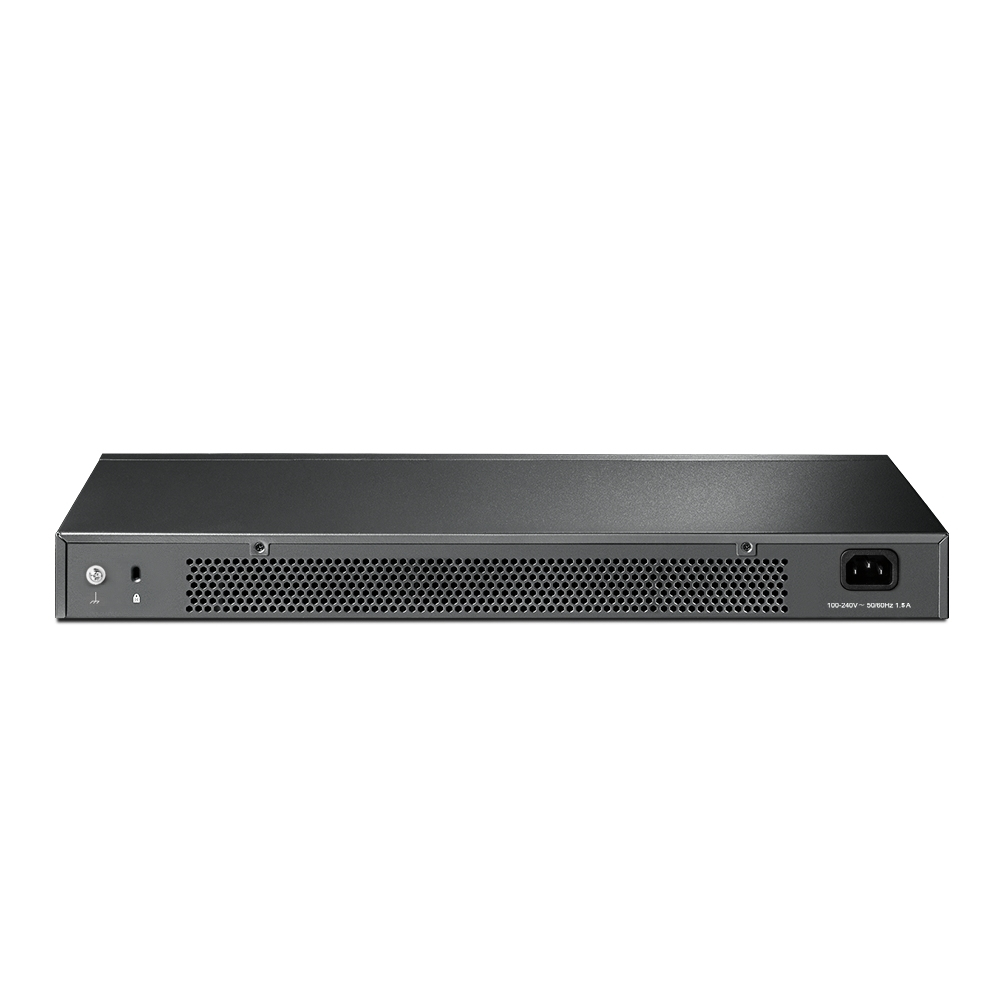

TP-Link TL-SG3452X 48-Port Gigabit L2+ Mgd Switch 4x 10GE SFP+ content_copy

TP-Link's TL-SG3452X is a 48-port Gigabit L2+ managed switch with 4 SFP+ slots for a complete Omada network. It offers high performance and powerful L2+ and L3-Lite functions such as static routing, interface routing, DHCP and much more. It therefore offers a reliable and secure solution for corporate networks.

Highlights

• Lightning-fast 10G uplink: 4× 10 Gbit/s SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
• 48× Gigabit RJ45 ports provide a high density of fast and reliable connections for other switches and devices
• Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), central cloud management and intelligent monitoring
• Cloud access and Omada app for convenient and easy management
• Layer 2+/3-lite functions: Static routing, interface routing, DHCP and much more
• Robust security strategies
• L2/L3/L4 QoS and IGMP snooping
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management features

Product Type

• Switch
• ear Category (ElektroG): relevant, Category 6 : small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 176 GBit/s (Gbps)

Connections

• Total number of copper ports: 48
• Number of fiber optic ports Total: 4
• Ports Highlights: 1× RJ45 Console Port; 1× Micro-USB Console Port
• Bandwidth: 10/100/1000 MBit/s
• Console port
• Main port type: Copper
• Number of RJ45 ports (1G): 48
• Number of SFP+ ports (10G): 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount, desktop
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 220 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SG3452X 48-port Gigabit Switch
• Power Cable
• Quick Start Guide
• Rack Mount Kit
• Rubber Feet

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	176 Gbit/s
Forwarding rate	130.9 Mpps
MAC address table	16000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	12 MB
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	0 fan(s)
Rack mounting
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2+
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
IPv4 routes	48
IPv6 routes	48
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.65 BTU/h
Packaging content
Cables included	AC
Quick start guide
Packaging data
Package width	528 mm
Package depth	336 mm
Package height	100 mm
Package weight	4 kg
Rack rails
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	32.72 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
IGMP proxy
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Password protection
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm

---
