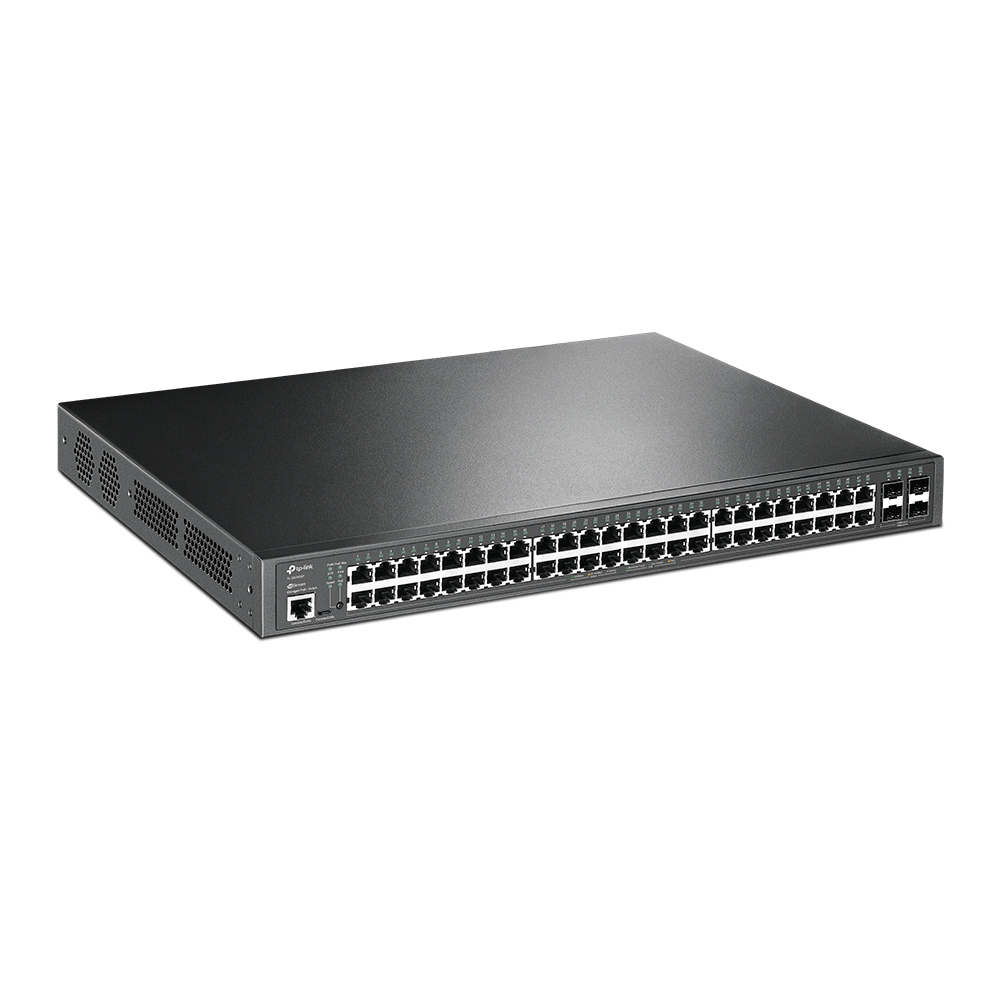

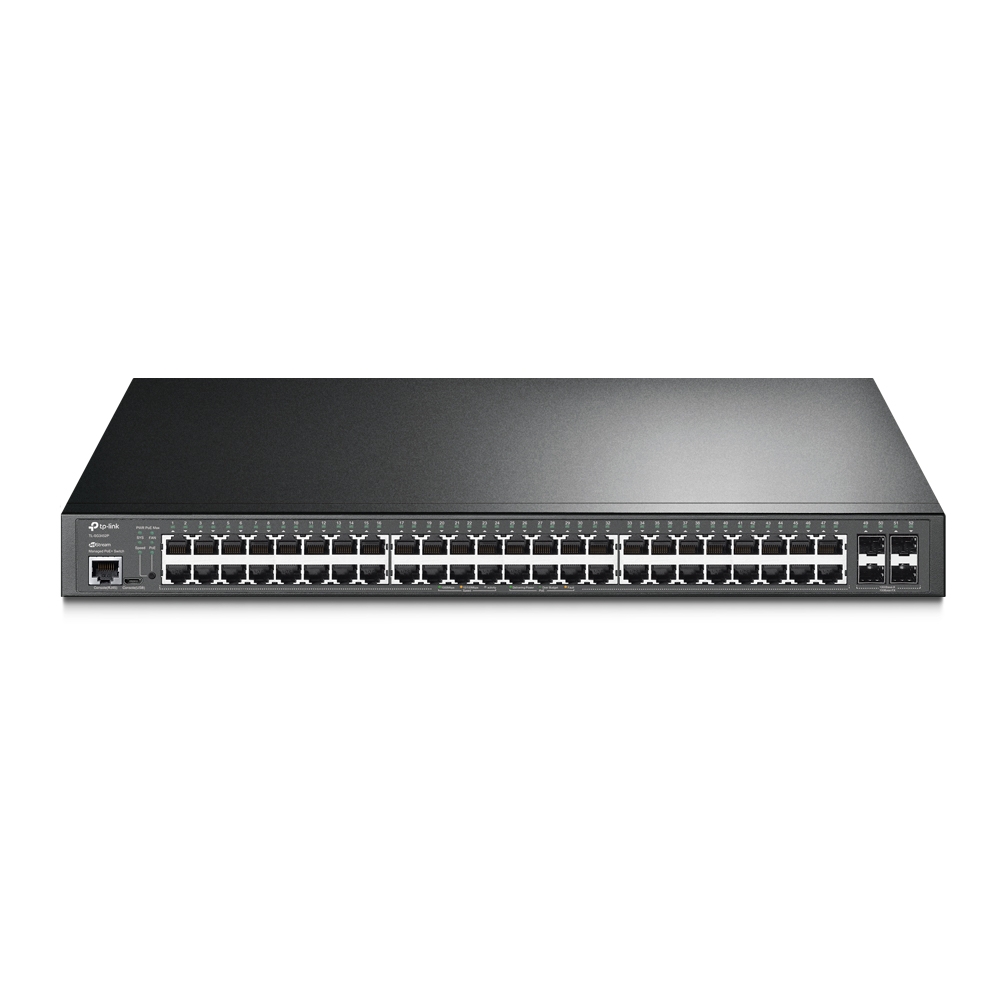

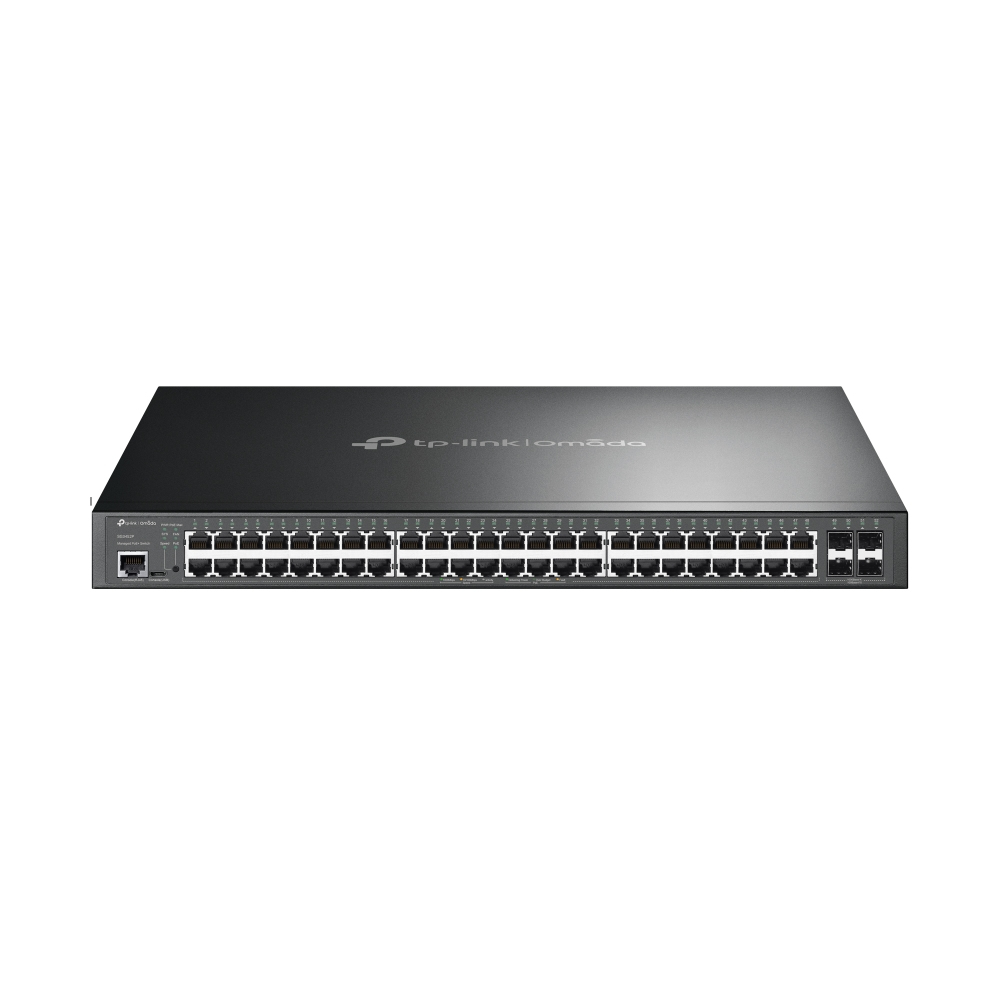

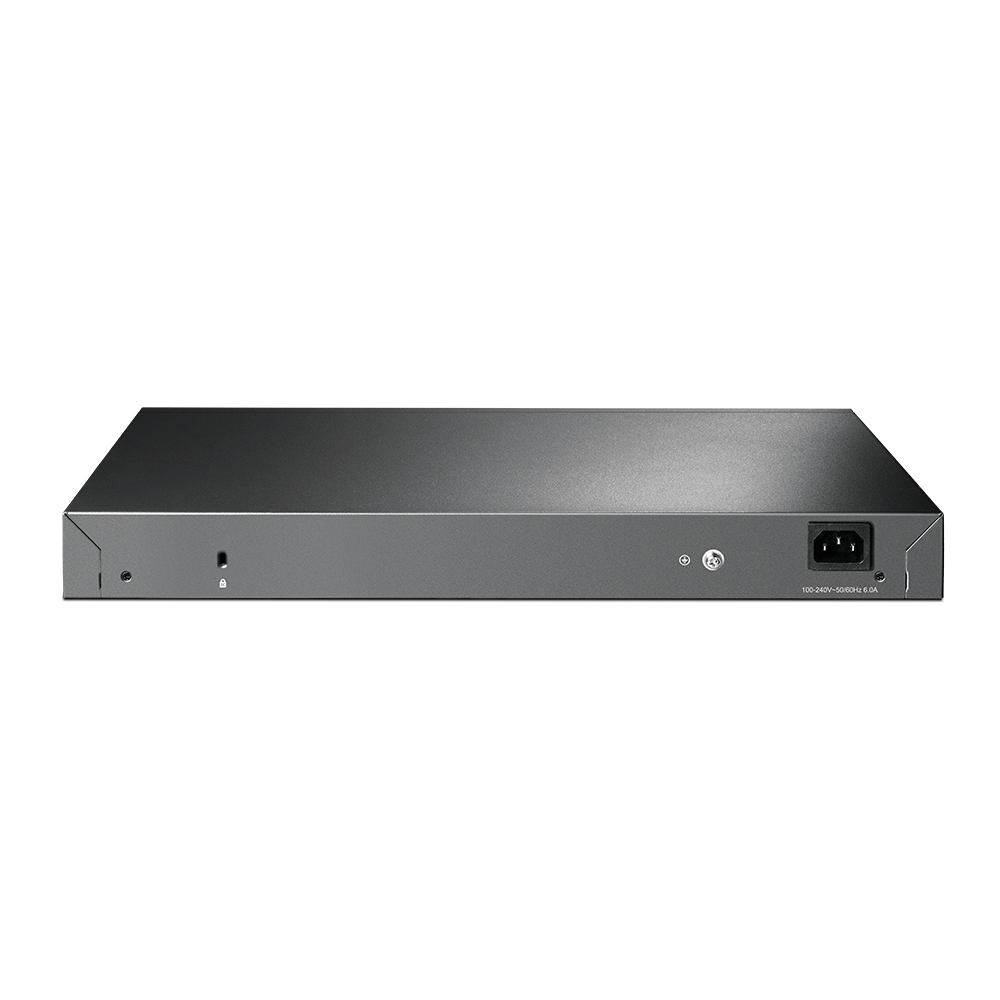

TP-LINK Switch SG3452P 48xGBit/4xSFP PoE+ Managed 48x PoE+ content_copy

The TL-SG3452P from TP-Link is a practical Gigabit L2 managed switch with 48 Gigabit PoE ports and 4 SFP slots for a complete Omada network. It offers high performance and powerful L2 and L2+ features such as static routing, QoS, advanced security strategies and a bundle of ISP features, making it a reliable and secure solution for enterprise networks.

Highlights

• 48× Gigabit RJ45 ports and 4× Gigabit SFP slots provide high-speed connections
• Integrated into Omada: Zero-Touch Provisioning (ZTP), central cloud management and intelligent monitoring
• Static Routing: Helps route internal data transfers for a More efficient use of network resources
• IP-MAC port binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication and more
• L2/L3/L4 QoS and IGMP Snooping
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image deliver powerful management capabilities
• Switching capacity: 104 Gbit/s

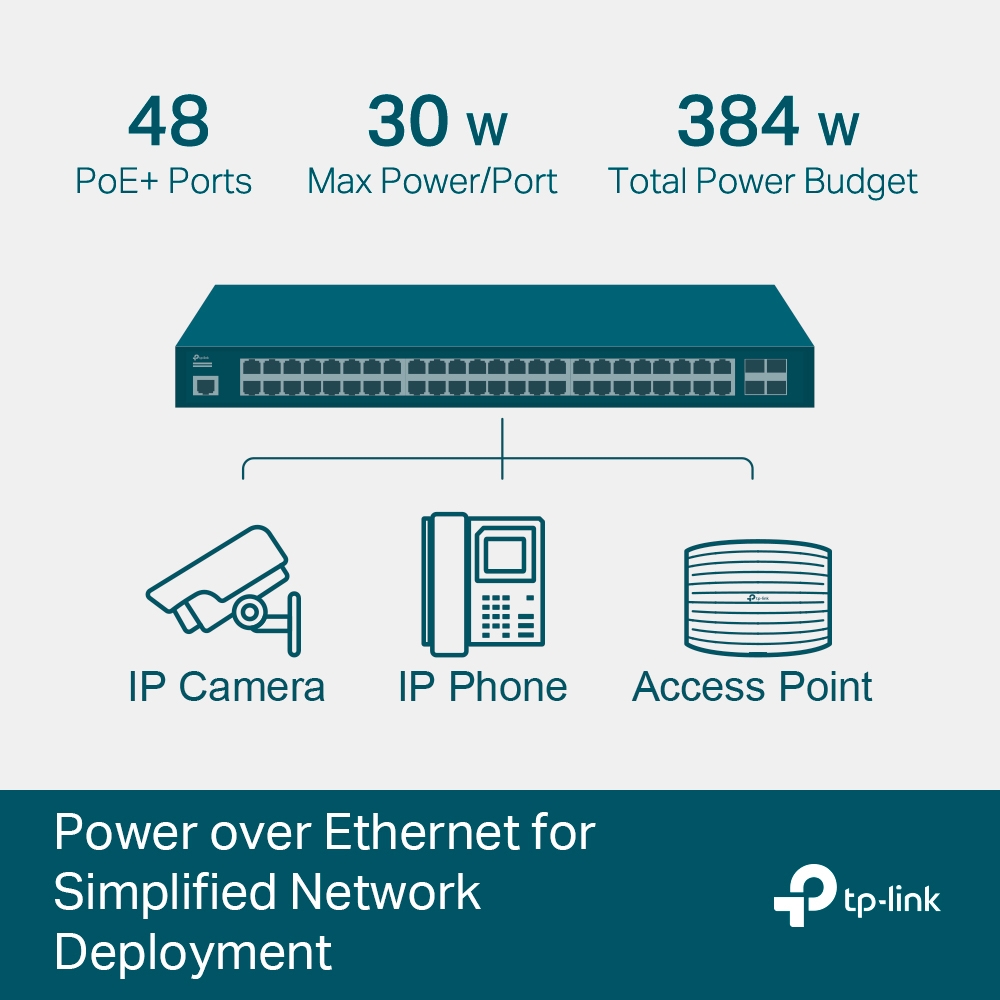

• 48 Gigabit ports with PoE 802.3af/at support (PoE budget 384 W, 30 W per port)

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access

Connections

• Total number of copper ports: 48
• Total number of fiber optic ports: 4
• Total number of PoE ports: 48
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 384 W

Functions

• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 330 mm
• Width: 440 mm

Scope of delivery

• TL-SG3452P Switch
• Power cable
• Rack mounting kit
• Rubber feet
• Quick start guide

Data transmission
Switching capacity	104 Gbit/s
Forwarding rate	77.38 Mpps
MAC address table	16000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	12 MB
Store-and-forward
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	3 fan(s)
Rack mounting
Reset button
LED indicators
Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
System event log
MIB support
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Policy-based routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
Active link detection
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1584.08 BTU/h
Packaging content
Cables included	AC
Quick start guide
Manual
Packaging data
Package type	Box
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Console port	RJ-45/micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	464.2 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	384 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	MAC-based authentication, Port-based authentication
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
Password protection
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm

---
