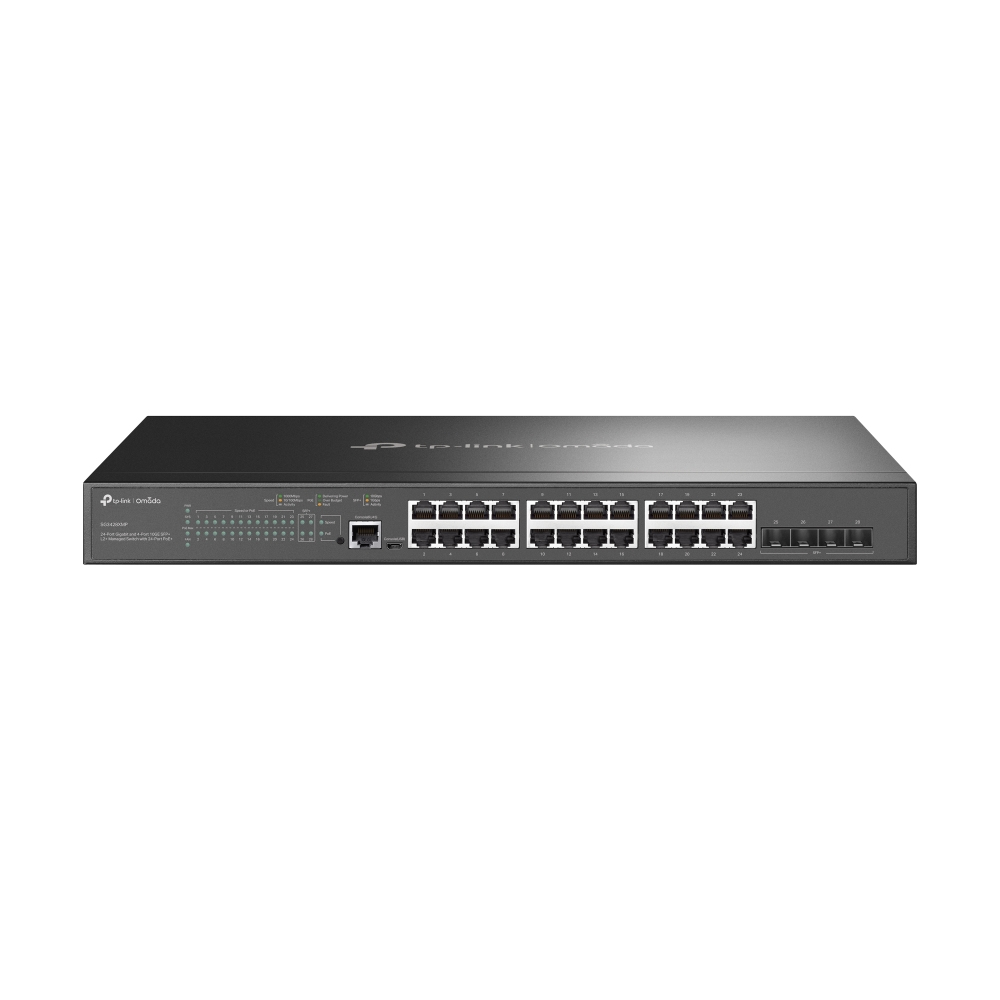

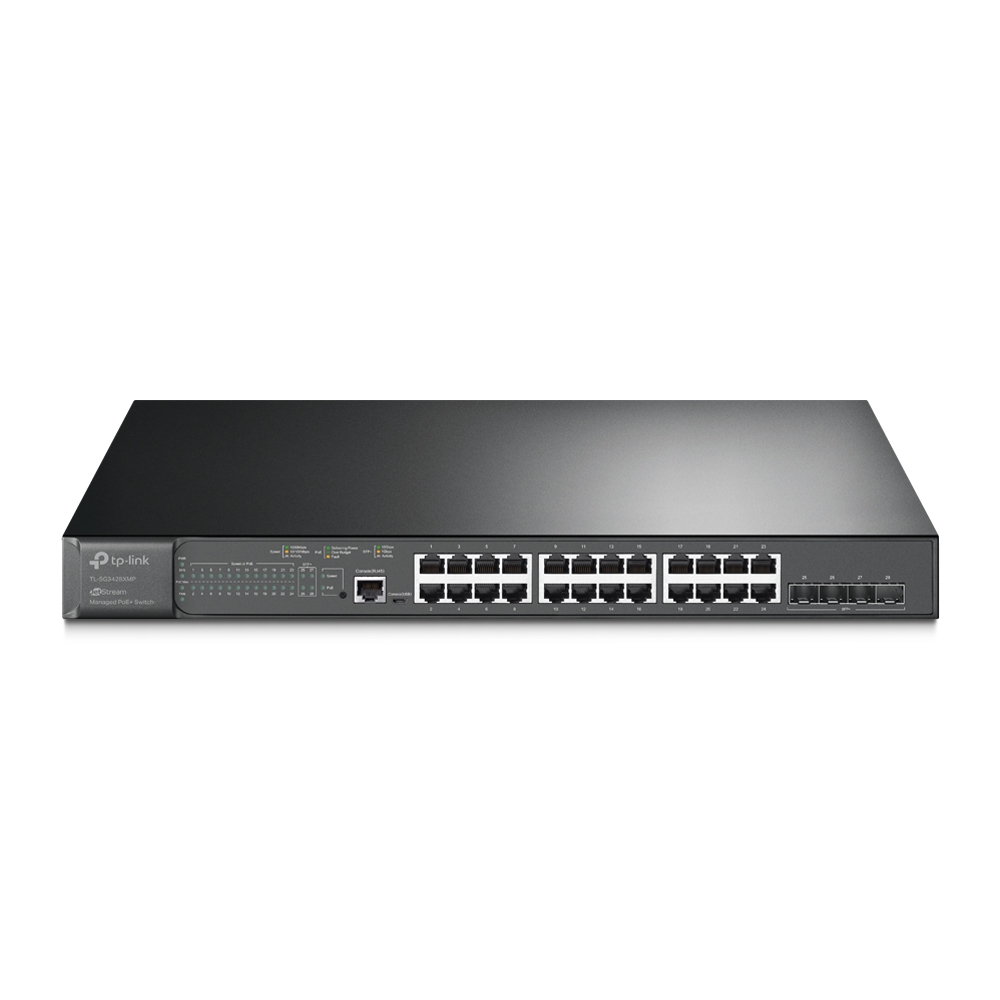

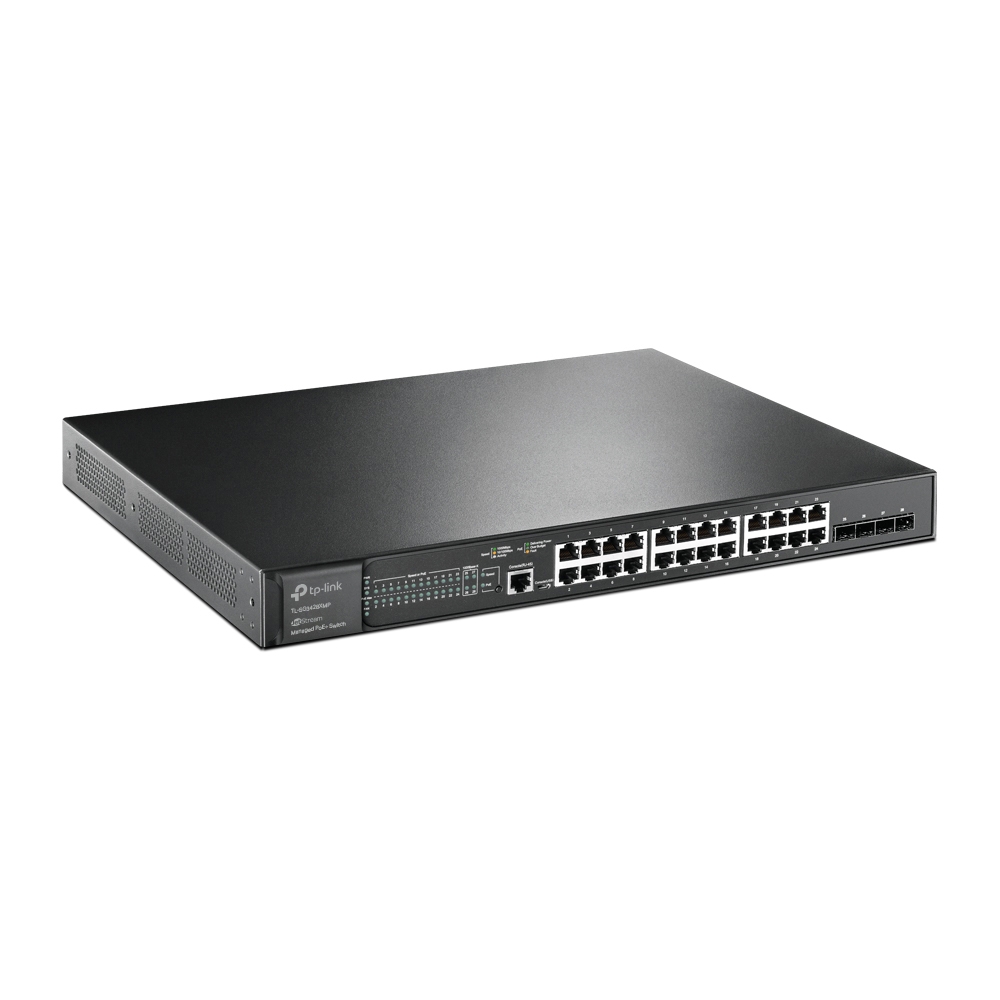

TP-LINK Switch SG3428XMP 24xGBit/4xSFP+ PoE+ (384W) Managed content_copy

TP-Link's TL-SG3428XMP is a 10G uplink managed switch for a full Omada network. 24 Gigabit Ethernet ports with PoE+ provide a reliable connection and four 10 Gbit/s SFP+ slots provide non-blocking switching performance and ultra-low latency, making it easy to establish reliable and lightning-fast connections to the server and other switches. A variety of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, sites and ISPs.

Highlights

• Lightning-fast 10G uplinks: 4× 10 Gbit/s SFP+ slots and full switch capacity ensure the full uplink bandwidth
• 24× 802.3at/af-compliant PoE+ ports with a total PoE budget of 384 W
• Integrated into Omada: Zero -Touch Provisioning (ZTP), central cloud management and intelligent monitoring
• Static Routing: Helps route internal data transfers for more efficient use of network resources
• IP-MAC port binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication and more
• Optimized voice and video applications: L2/L3/L4 QoS and IGMP Snooping
• Standalone management: Deliver Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image powerful management capacities

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access

Connections

• Total number of copper ports: 24
• Total number of fiber optic ports: 4
• Total number of PoE ports: 24
• PoE standard: PoE - 802.3af, PoE+ - 802.3at

Functions

• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic properties

• Color: Black
• Height: 44 mm
• Length/Depth: 330 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SG3428XMP JetStream 24-Port Gigabit L2+ Managed PoE+ Switch with 4x 10G SFP+ Slot
• Power cable
• Rackmount Kit
• Rubber feet
• installation instructions

Data transmission
Switching capacity	128 Gbit/s
Forwarding rate	95.23 Mpps
MAC address table	16000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	12 MB
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
System event log
MIB support
Multicast features
Multicast support
Network
Networking standards	IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
Policy-based routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
Active link detection
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1658.78 BTU/h
Packaging content
Cables included	LAN (RJ-45)
Quick start guide
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB

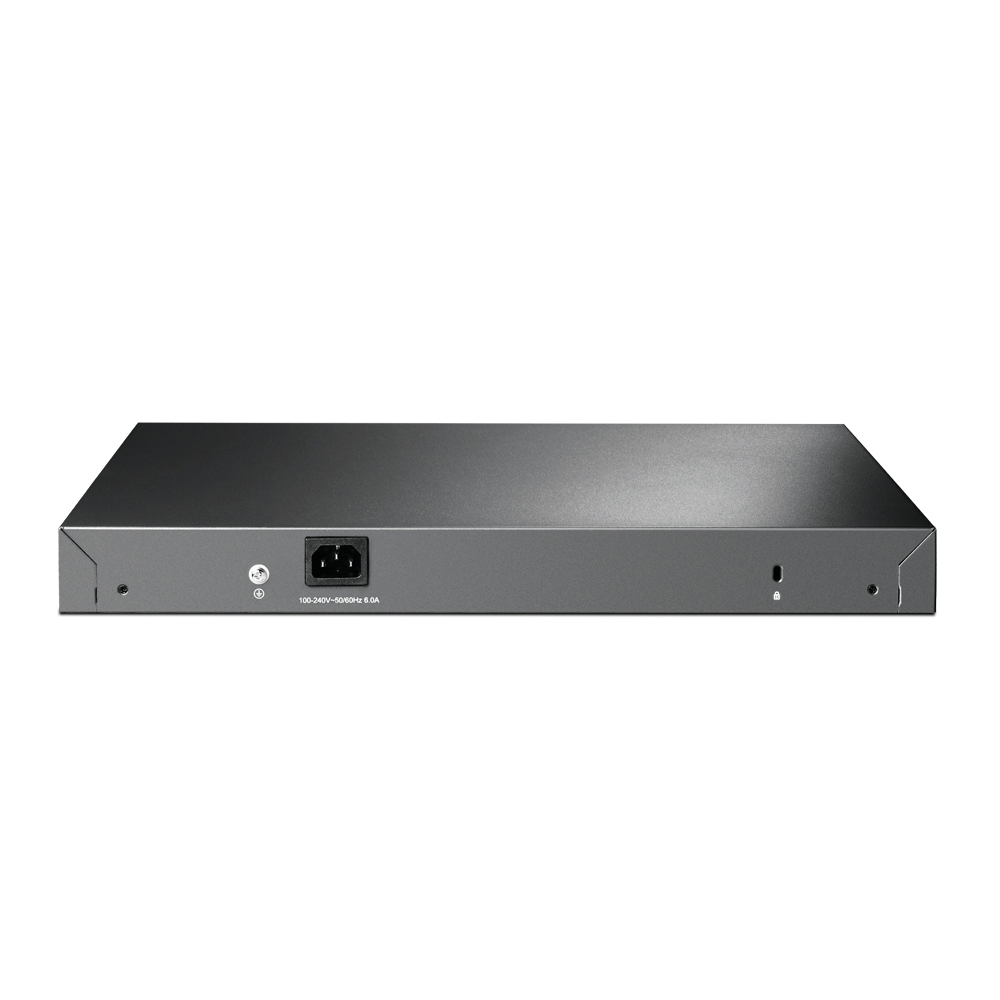

Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	486.2 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	384 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm

---
