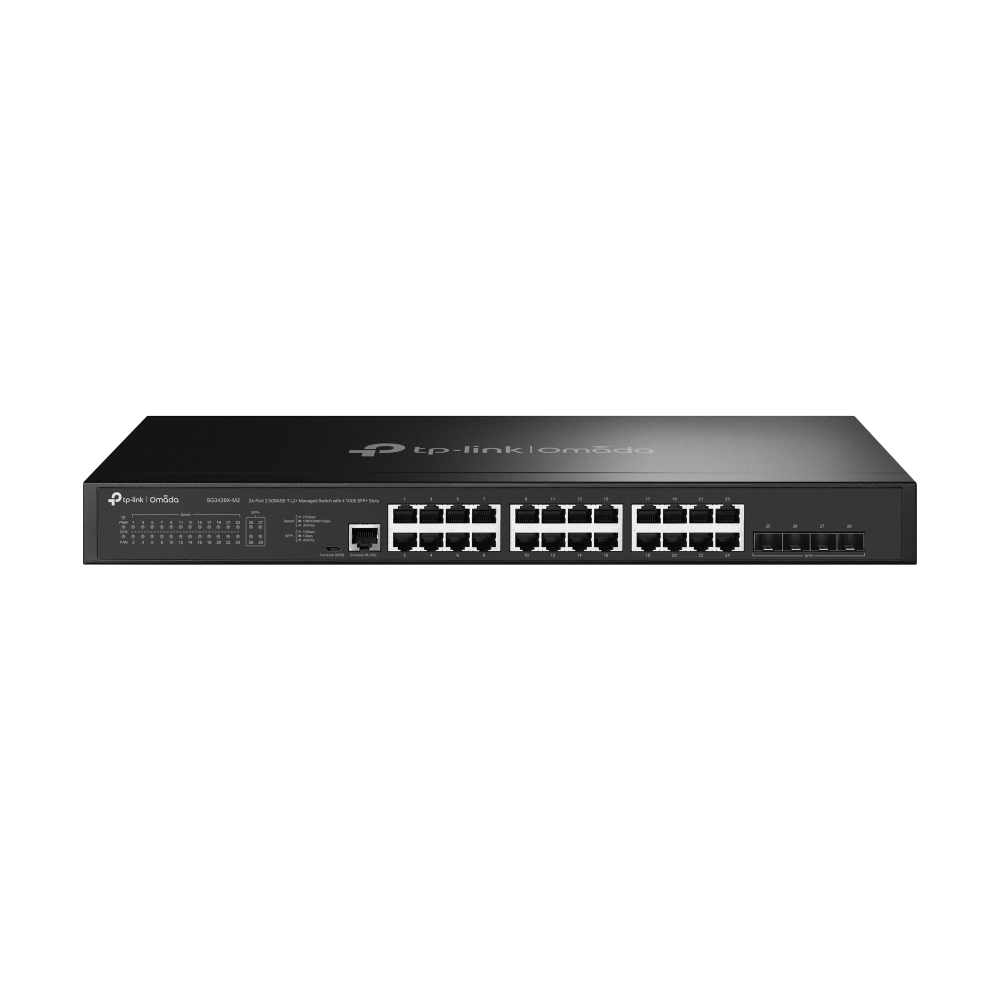

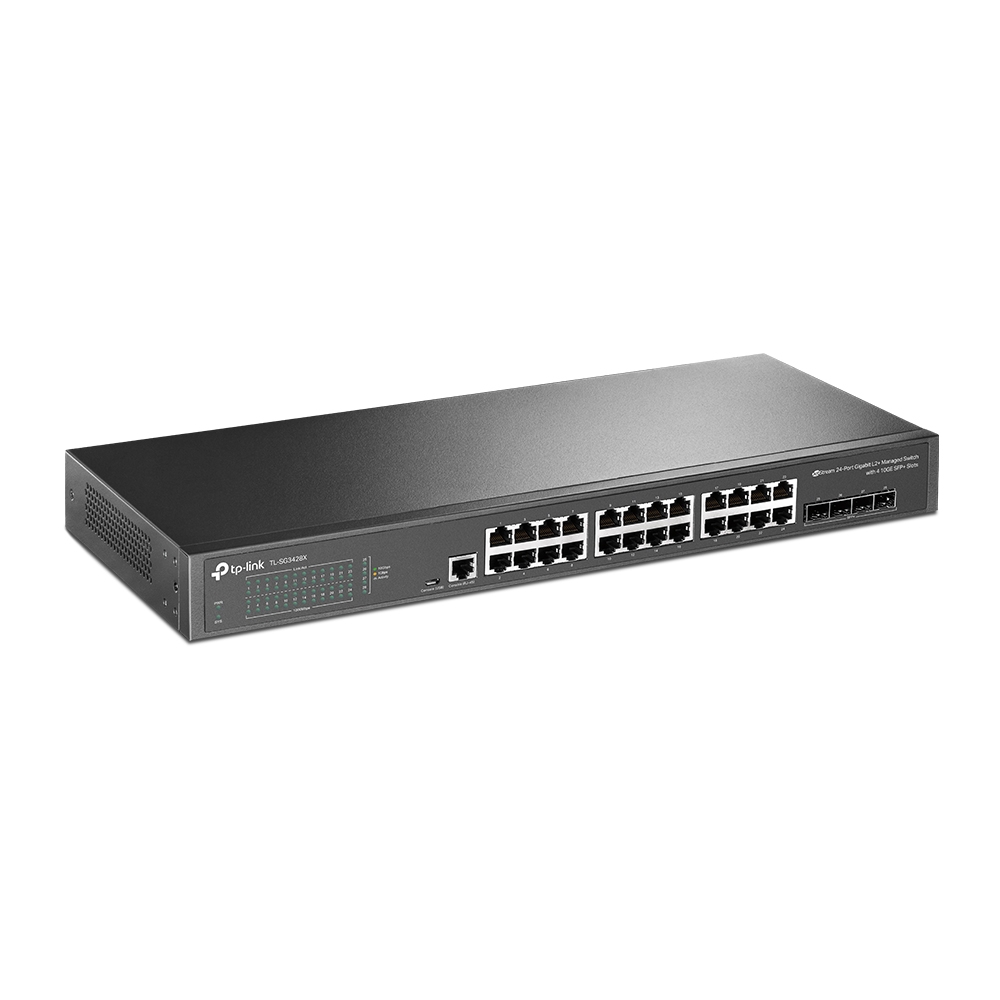

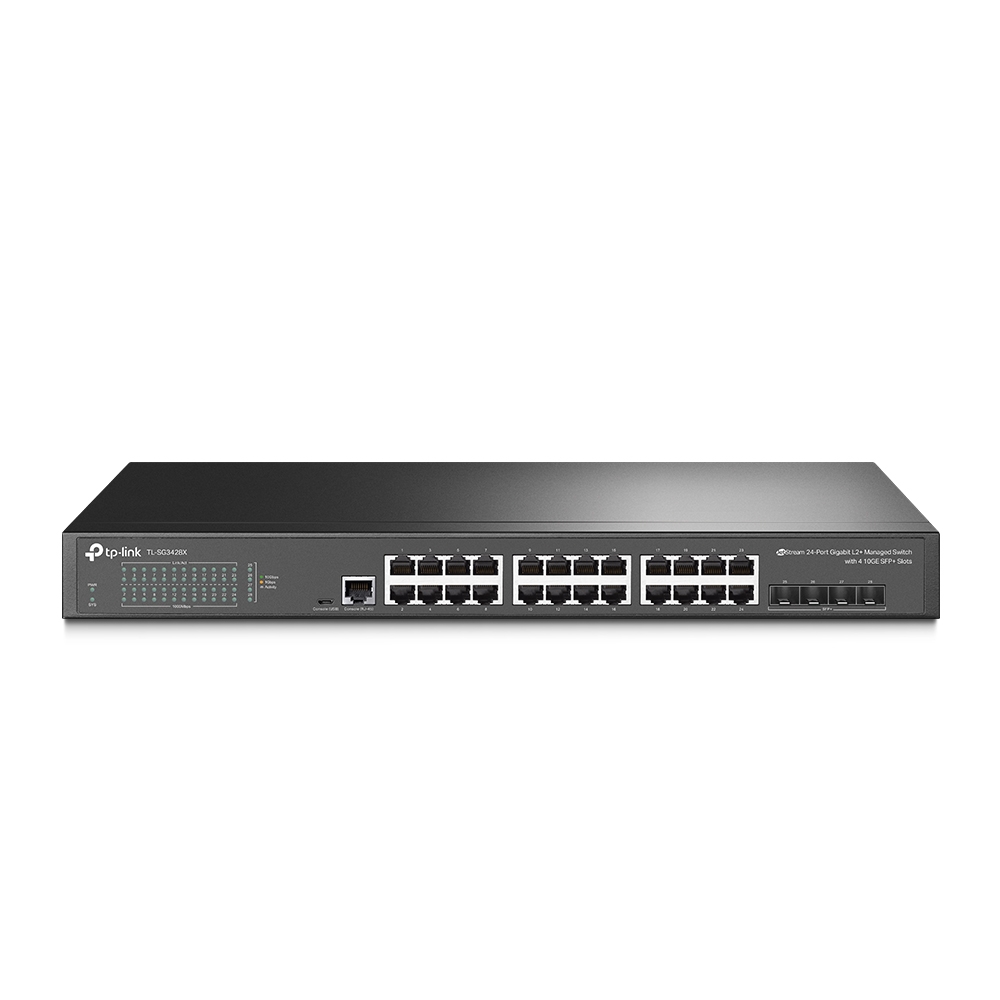

TP-LINK Switch SG3428X-M2 24x 2,5-GBit/4xSFP+Managed Rack Mountable, Omada SDN, 1 Fan, No PoE content_copy

Build and expand your lightning-fast network with TP-Link TL-SG3428X-M2 - a fully managed switch with 24× 2.5 Gigabit ports and 4× 10G SFP+ ports. It is ideal for any corporate network and meets and exceeds the requirements for fast, reliable and secure corporate networks.

Highlights

• 2.5Gbps speeds: 24× 2.5Gbps RJ45 ports provide fast and reliable connections to other switches and devices
• Blazing fast 10G uplink: 4× 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capabilities
• Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring
• Centralized management: Cloud access and Omada app for ultra-convenient and easy Management
• Static Routing: Helps route internal traffic for more efficient use of network resources
• Robust security strategies: IP-MAC port binding, ACL, port security, DoS mitigation, storm control, DHCP snooping, 802.1X, Radius authentication and more
• Voice and video application optimization: L2/L3/L4 QoS and IGMP snooping
• Standalone management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management features

Product Type

• Switch
• ear- Category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Specifications

• Integrated fan
• Switch type: Access
• Switching capacity: 200 GBit/s (Gbps )

Connections

• Total number of copper ports: 24
• Total number of fiber optic ports: 4

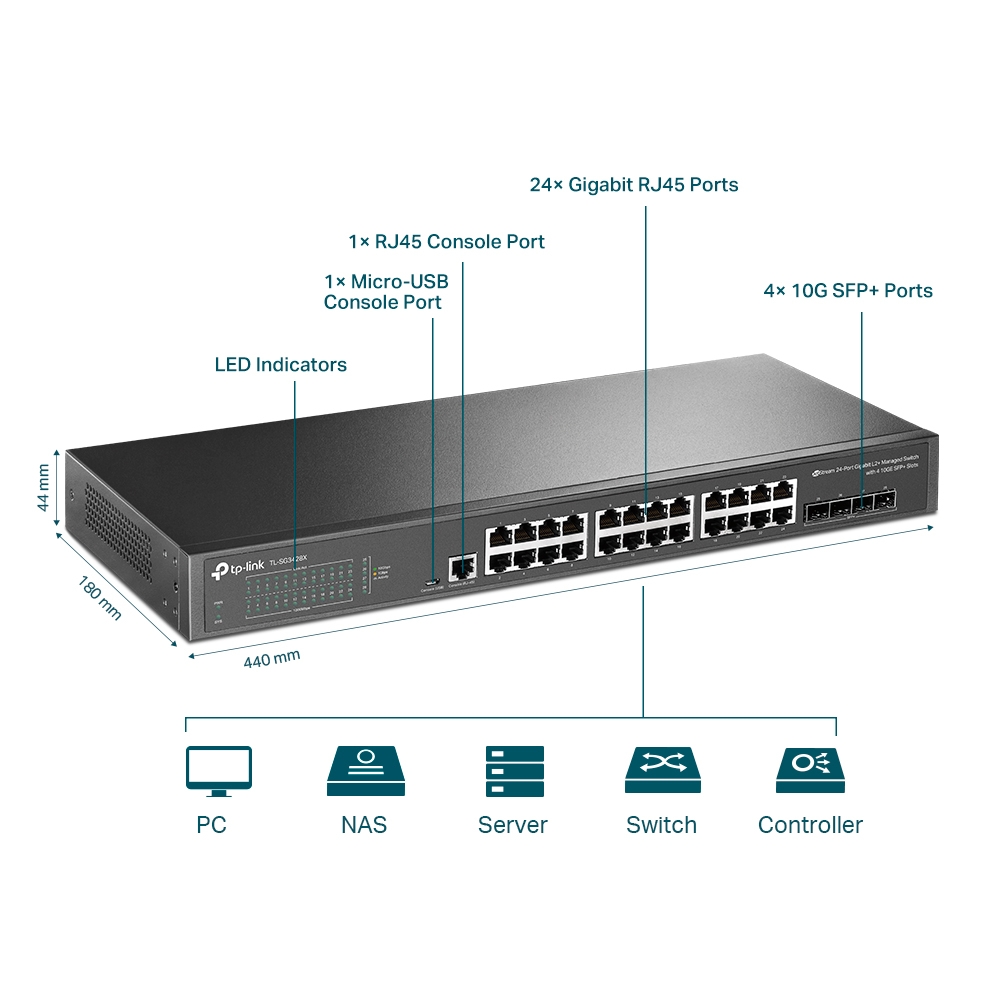

• Connection highlights: RJ45 console port; Micro-USB Console Port
• Bandwidth: 2.5G-Base-T
• Console port
• Main port type: Copper
• Number of RJ45 Multi Gig ports (2.5G): 24
• Number of SFP+ ports (10G): 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 180 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SG3428X-M2
• Power cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	200 Gbit/s
Forwarding rate	148.8 Mpps
MAC address table	32000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	16 MB
Store-and-forward
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	1 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
MIB support
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
IPv4 routes	48
IPv6 routes	48
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
10G support
Port mirroring
Policy-based routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
Active link detection
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	154.38 BTU/h
Packaging content
Cables included	LAN (RJ-45)
Quick start guide
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	45.1 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP v1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 FIB entries	100
IPv6 FIB entries	100
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
