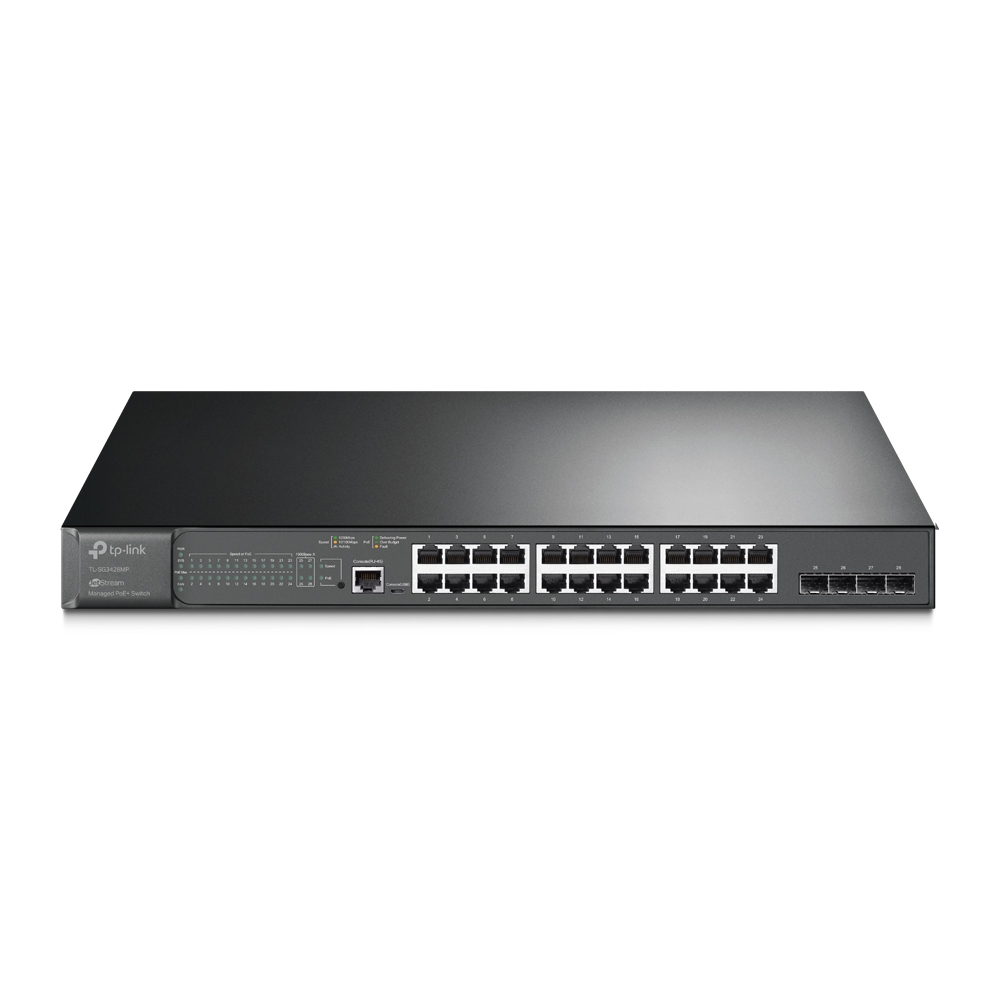

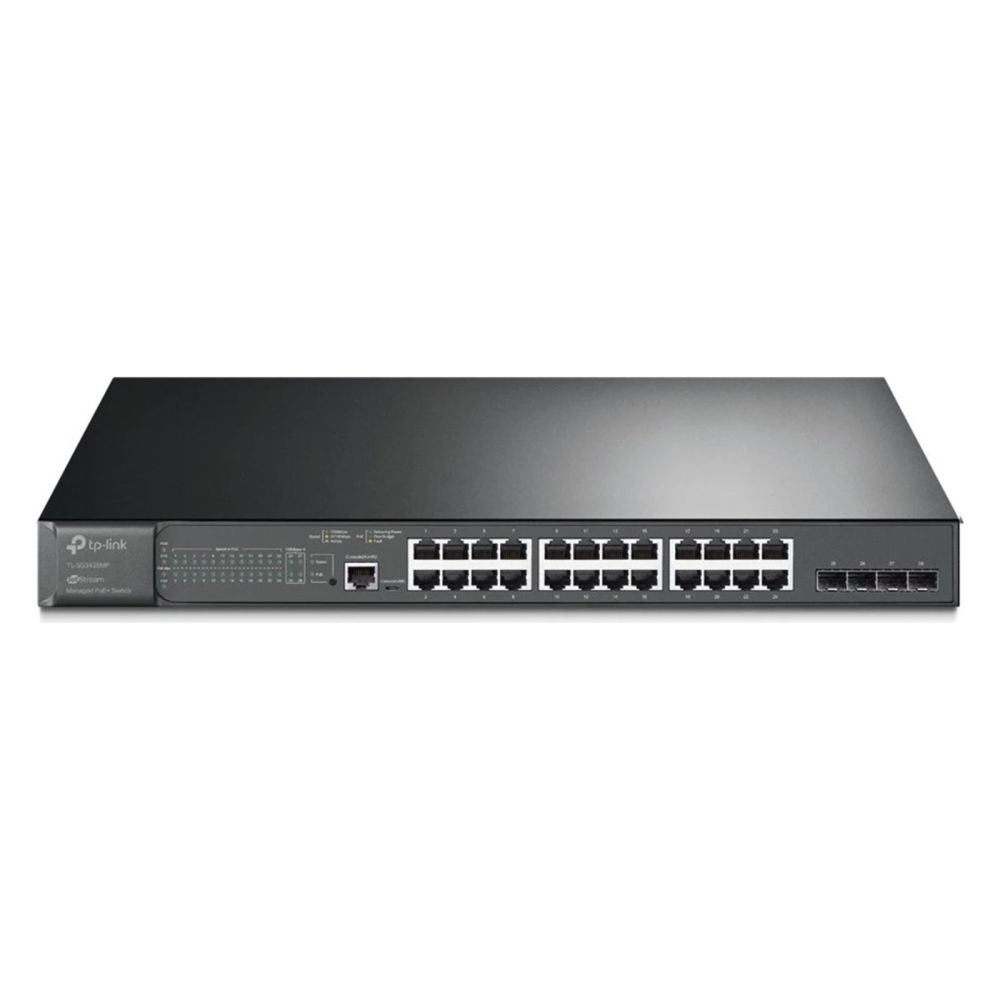

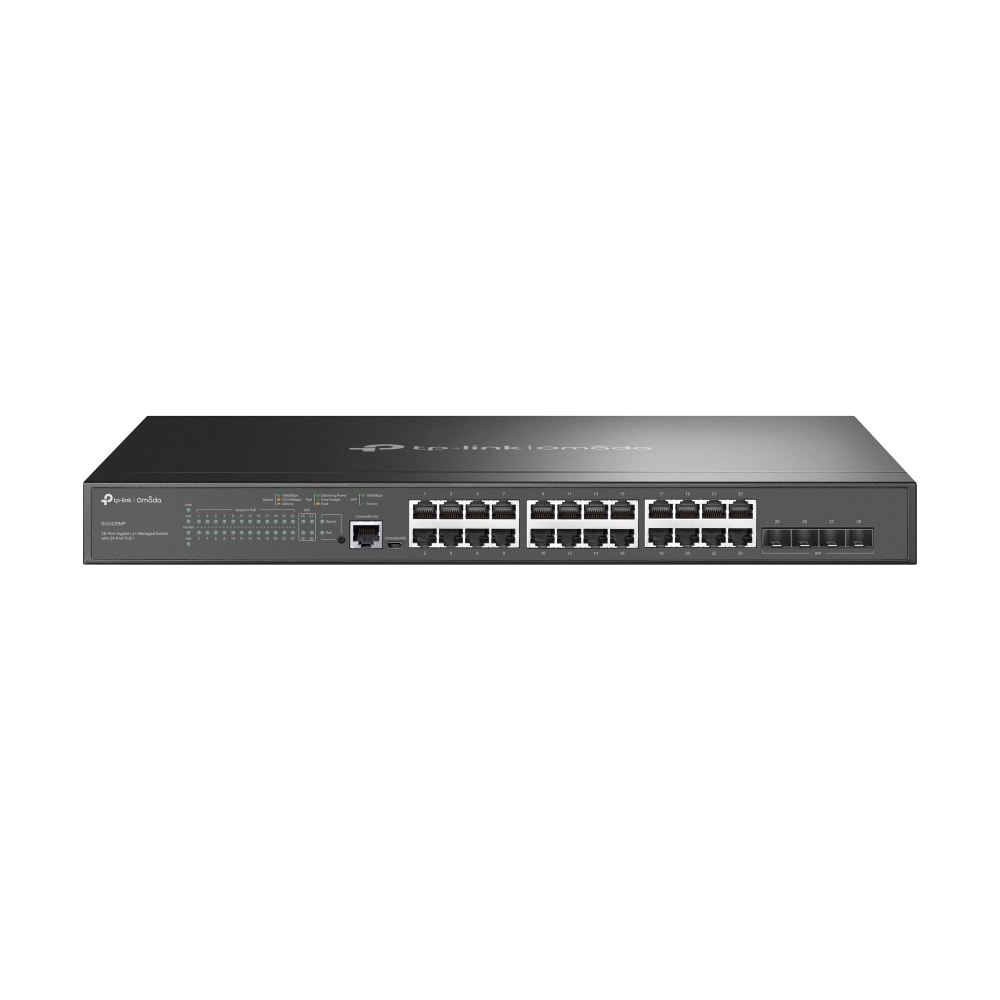

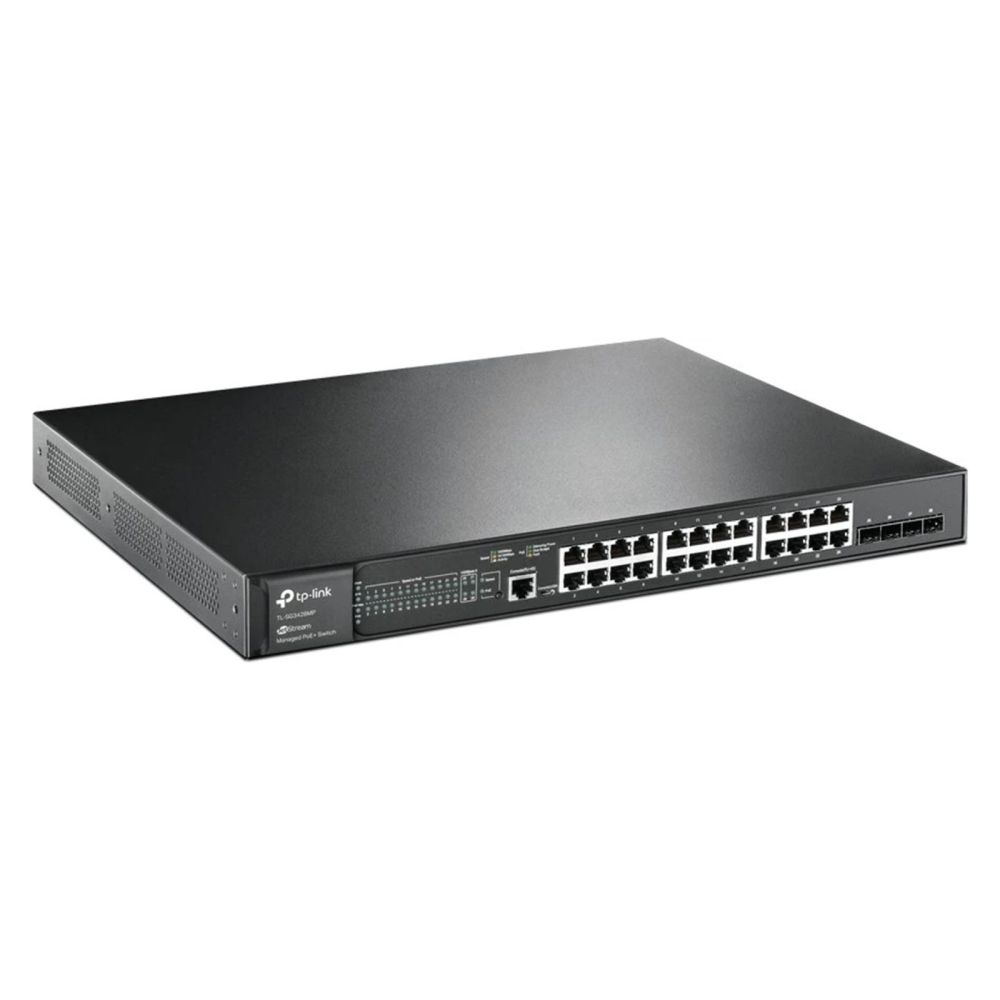

TP-LINK Switch SG3428MP 24xGBit/4xSFP PoE+ Managed content_copy

The TL-SG3428MP from TP-Link is a practical Gigabit L2 managed switch with PoE+ and 24 ports and 4 SFP slots for a complete Omada network.
It offers high performance and powerful L2 and L2+ features such as static routing, QoS, advanced security strategies and a bundle of ISP features, making it a reliable and secure solution for enterprise networks.

Highlights

• 24 802.3at/af compliant PoE+ ports with a total power of 384 W
• 4 Gigabit SFP slots enable high-speed connections
• Centralized management thanks to cloud access and Omada app
• Zero-touch provisioning (ZTP), central cloud management and intelligent monitoring
• IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
• Optimized voice and video applications: L2/L3/L4 QoS and IGMP Snooping

Product Type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Specifications

• Switch type: Access

Connections

• Total number of copper ports: 24
• Number Total fiber optic ports: 4
• Total number of PoE ports: 24
• PoE budget: 384 W

Functions

• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 330 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SG3428MP JetStream 24-Port Gigabit PoE+ L2 Managed Switch with 4 SFP slots
• Power cable
• Rackmount Kit
• Rubber feet
• Installation instructions

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
MAC address table	16000 entries
Jumbo frames	9000
Packet buffer memory	12 MB
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast support
Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
Active link detection
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1637.14 BTU/h
Packaging content
Quick start guide
User guide
Performance
Export Control Classification Number (ECCN)	EAR99
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45/Micro-USB

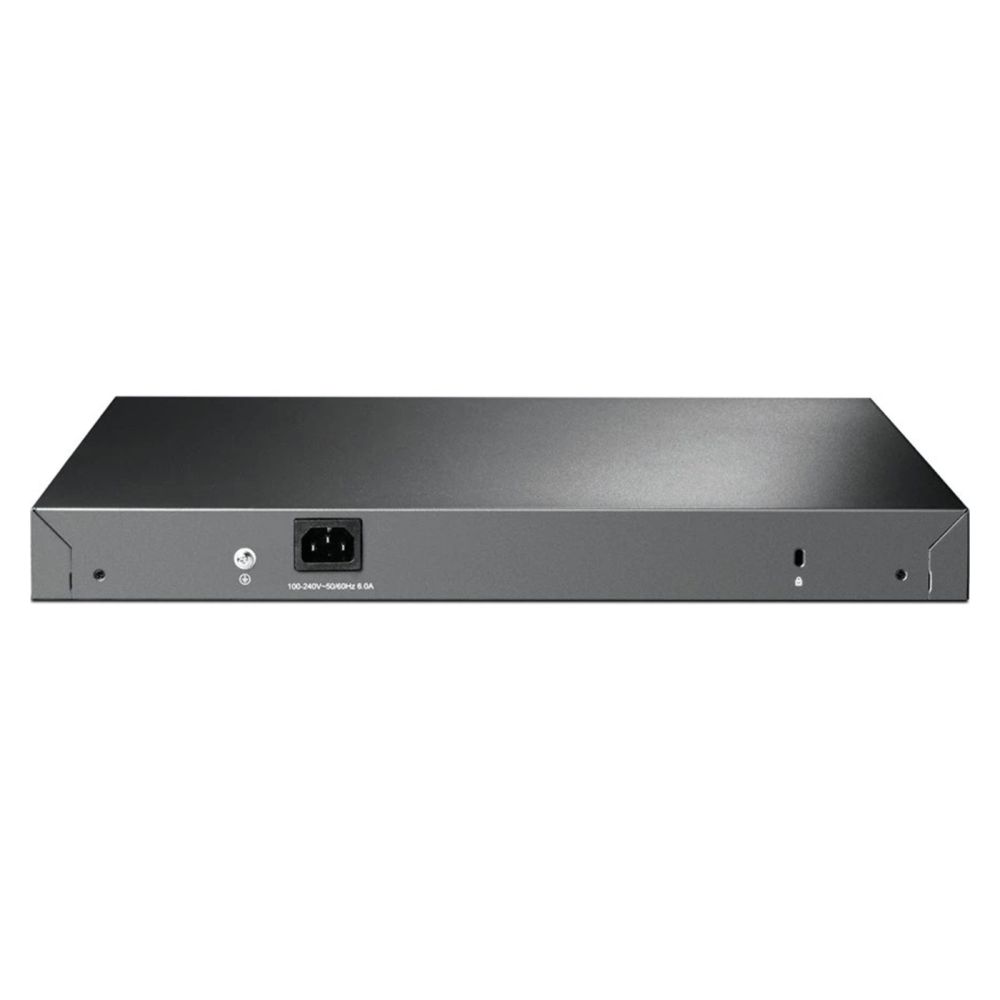

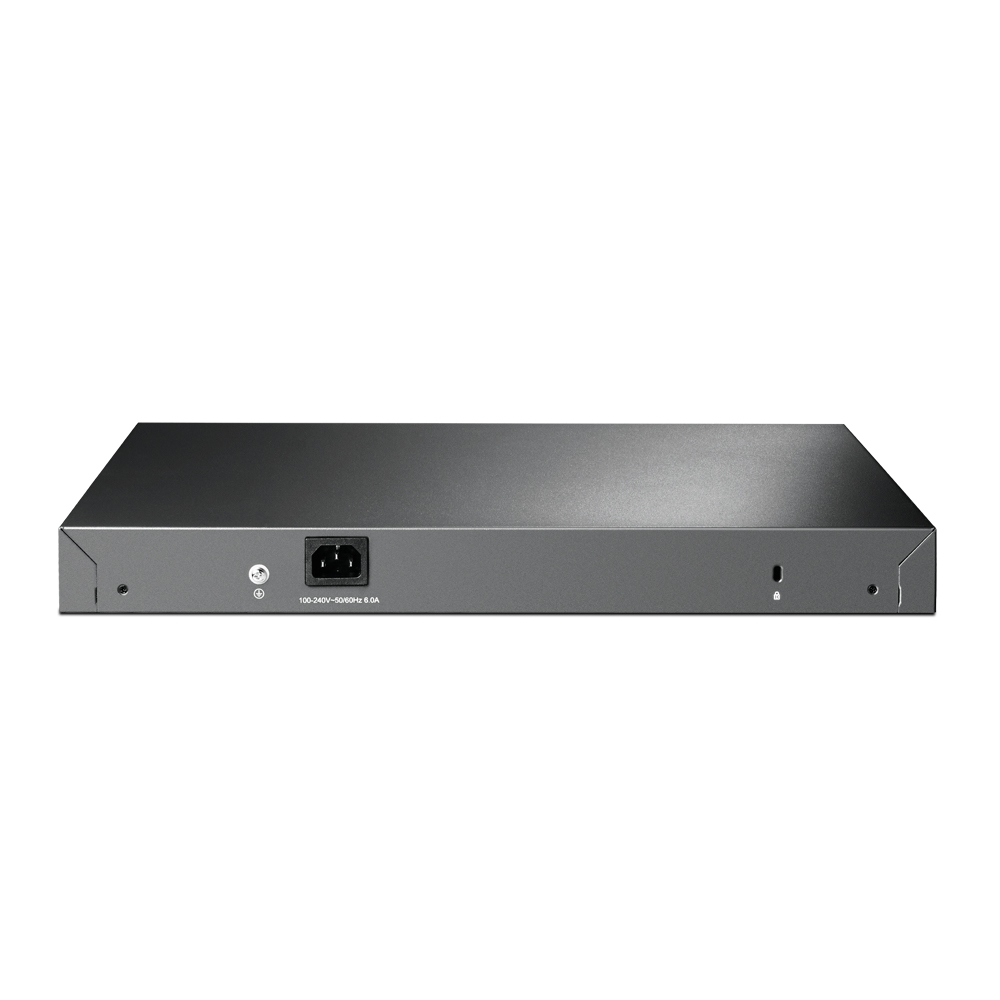

Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	480.1 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	384 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	SSH, SSL/TLS
Authentication	MAC-based authentication, Port-based authentication
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm

---
