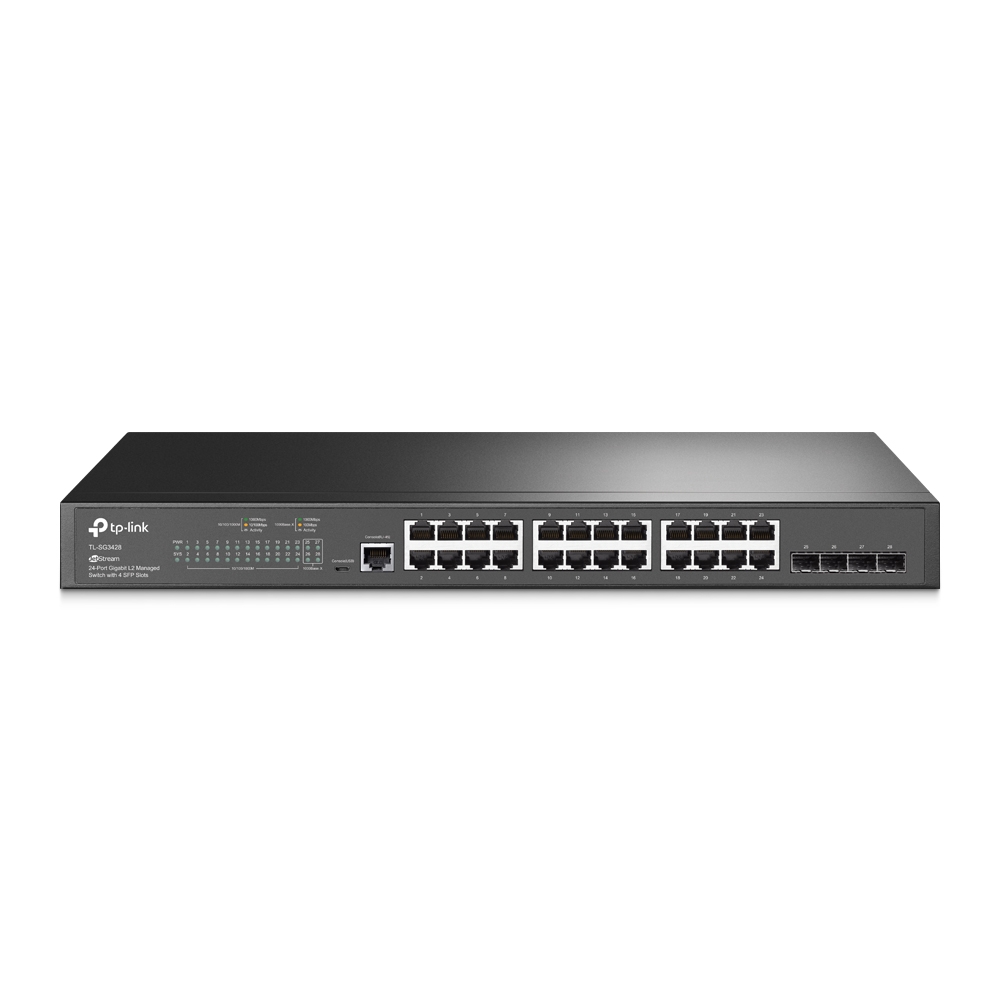

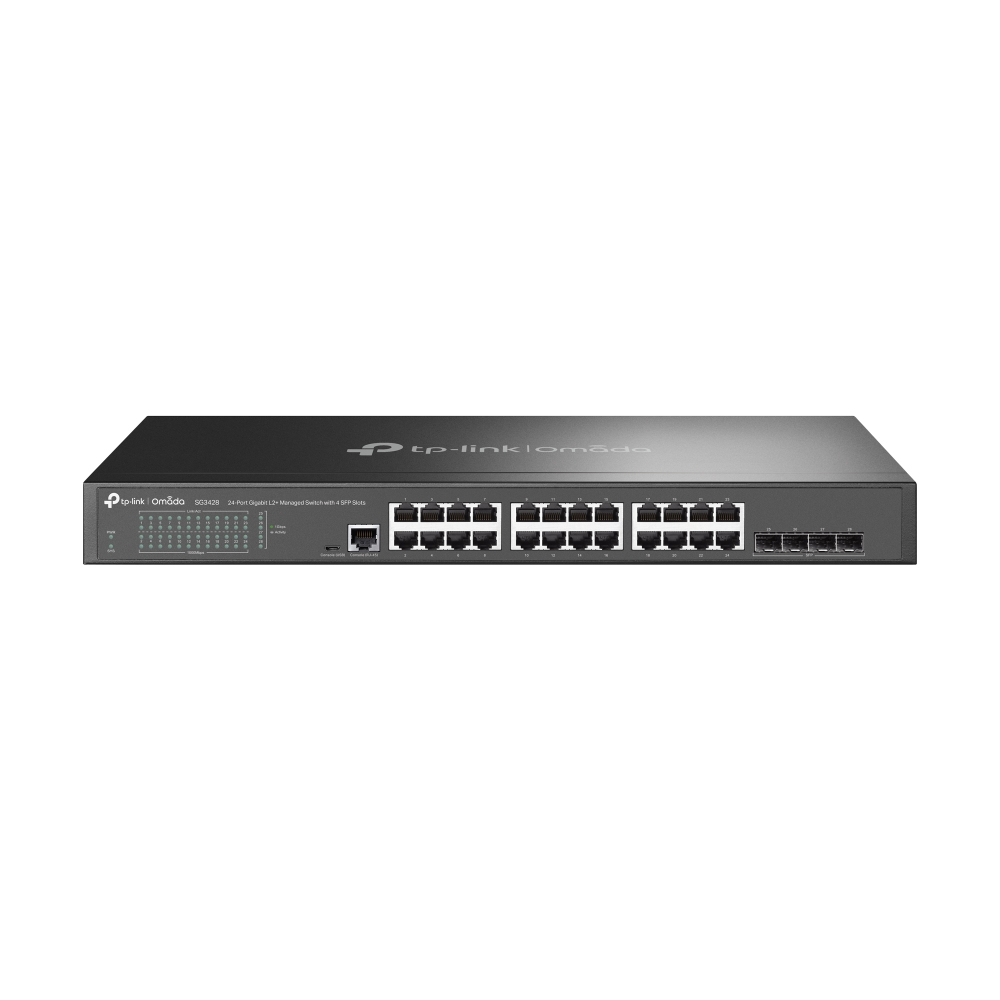

TP-Link Switch 24x GE SG3428 (JetStream) 4xSFP content_copy

The TL-SG3428 from TP-Link is a practical Gigabit L2 managed switch with 24 ports and 4 SFP slots for a complete Omada network.
It offers high performance and powerful L2 and L2+ features such as static routing, QoS, advanced security strategies and a bundle of ISP features, making it a reliable and secure solution for enterprise networks.

Highlights

• 24 Gigabit RJ45 ports and 4 Gigabit SFP slots
• Centralized management thanks to cloud access and Omada app
• Zero-touch provisioning (ZTP), central cloud management and intelligent monitoring
• IP-MAC port binding, ACL , Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
• Optimized voice and video applications: L2/L3/L4 QoS and IGMP Snooping

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access

Connections

• Total number of copper ports: 24
• Total number of fiber optic ports: 4

Functions

• Mounting type: 48,3 cm ( 19 inch ) rack mounting
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 180 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP slots
• power cable
• rackmount kit
• rubber feet
• installation instructions

Data transmission
Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
MAC address table	16000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	12 MB
Store-and-forward
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	0 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
MIB support
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
IPv4 routes	48
IPv6 routes	48
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Policy-based routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	70.3 BTU/h
Packaging content
Cables included	LAN (RJ-45)
Quick start guide
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45/Micro-USB
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	20.6 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
