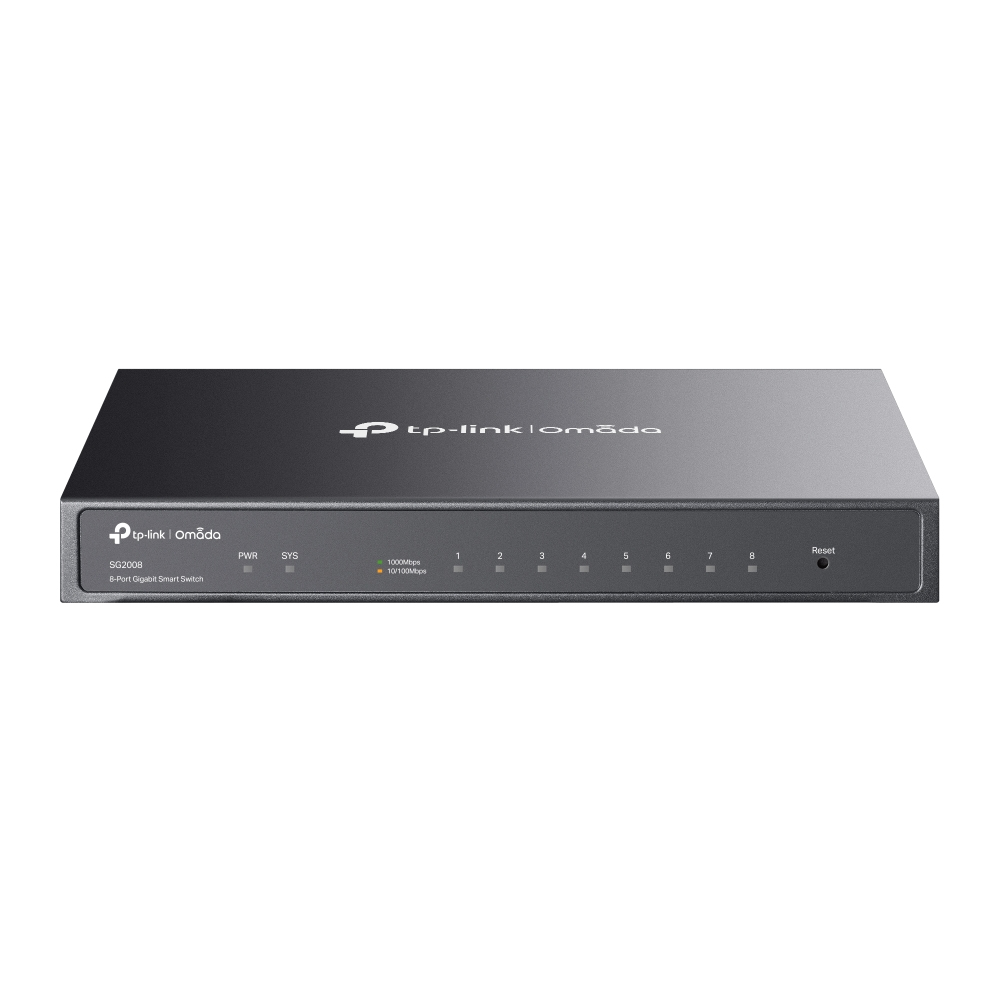

TP-Link Switch fully managed Layer2 8 Port? 8x 1GbE? Fanless, Omada? SG2008 content_copy

Expand your existing network at home or in the office with the TP-Link TL-SG2008 8-Port Switch. It offers full gigabit bandwidth for upload and download at the same time on all 8 ports, enabling high-speed connections. Thanks to cloud access and the Omada app, it can be managed very conveniently and easily. Its fanless design is ideal for noise-sensitive environments.

Highlights

• Smart switch with 8× 10/100/1000 Mbit/s RJ45 ports
• Centralized management thanks to cloud access and Omada app
• Zero-touch provisioning (ZTP), centralized cloud management and intelligent monitoring
• Solid security strategies with 802.1 Q VLAN, ACL, Port Security, Storm Control and more
• Optimized voice and video applications with L2/L3/L4 QoS and IGMP snooping
• Versatile management thanks to WEB, CLI or controller management, SNMP and RMON

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 16 GBit/s ( Gbps)

Connections

• Bandwidth: 10/100/1000 MBit/s

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount

Basic features

• Color: Black
• Height: 26 mm
• Length/depth: 126 mm
• Width: 209 mm

Scope of delivery

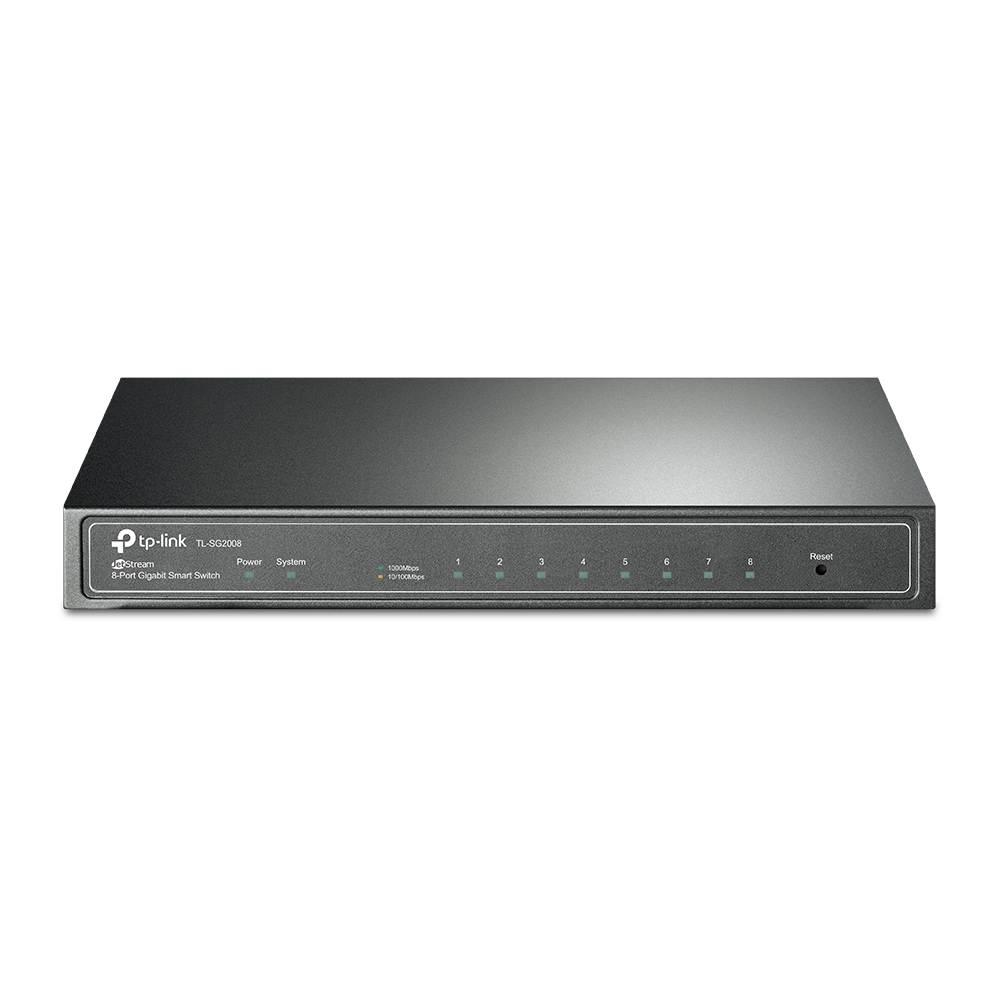

• TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch
• power supply
• installation instructions
• rubber feet

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Number of static routes	32
Number of IP interfaces	16
Jumbo frames	9000
Packet buffer memory	4.1 MB
Static route
Jumbo frames support
Design
Product colour	Black
LED indicators

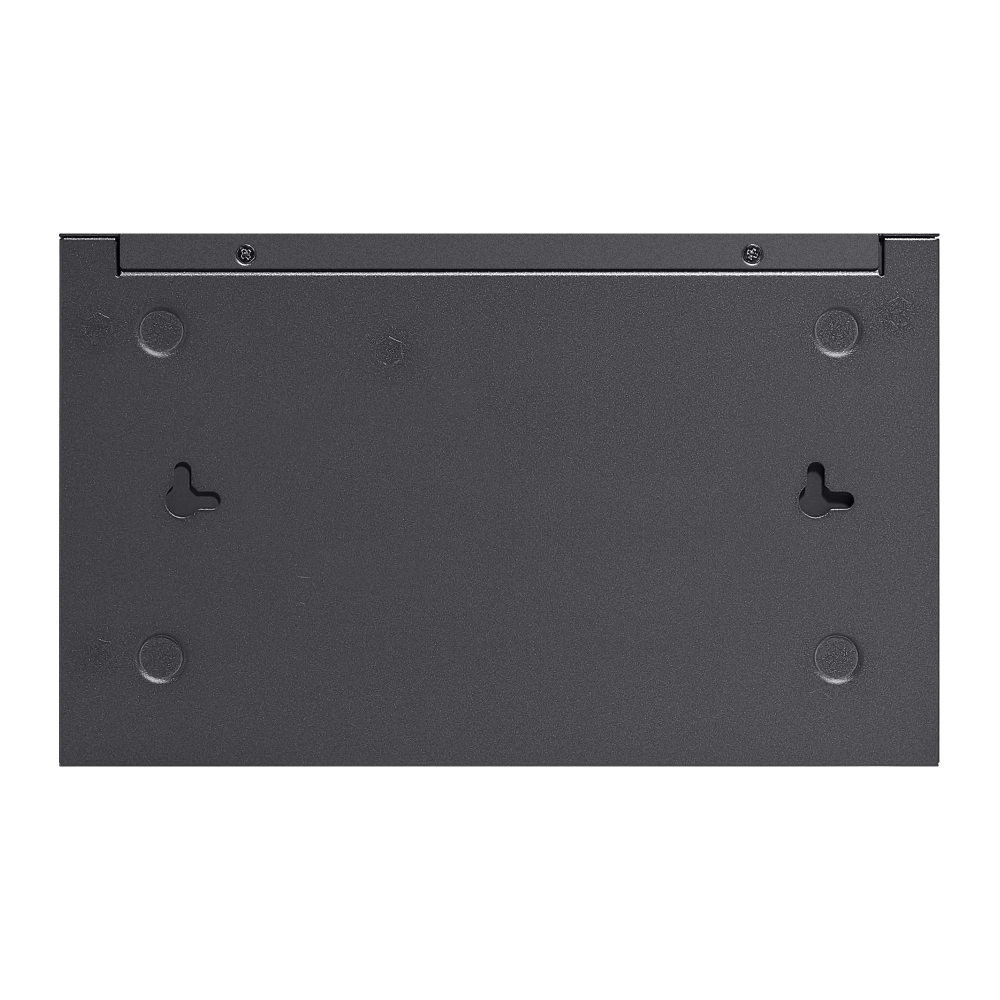

Wall mountable
Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	21.84 BTU/h
Packaging content
Cables included	AC
User guide
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Power
Power source	DC
Input current	1 A
Input voltage	12 V
Power consumption (max)	6.4 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	SSH, SSH-2, SSL/TLS
Access Control List (ACL)
IGMP snooping
SSH/SSL support
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm

---
