TP-Link Switch 16x GE TL-SG1218MPE (POE)
|
236,55 EUR |
|
|
( 281,49 EUR incl. VAT ) ≈ £201.07 | ≈ $265.65 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 02. Aug 2026 |
|---|---|
| Lieske Part No.: | 1517837 |
| Mfg Part No: | TL-SG1218MPE |
| UPC/EAN: | 6935364086923 |
| Weight: | 3.1 kg |
| Type: | CPNT |
Further Miscellaneous from TP-LinkFurther products in category Miscellaneous
All products of TP-Link

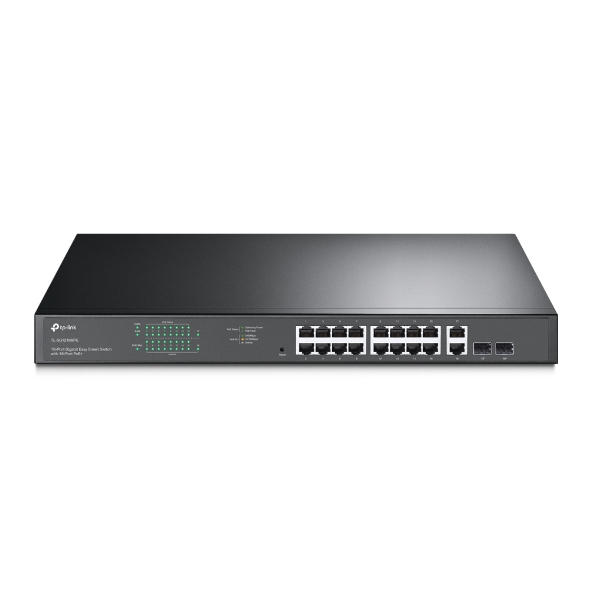

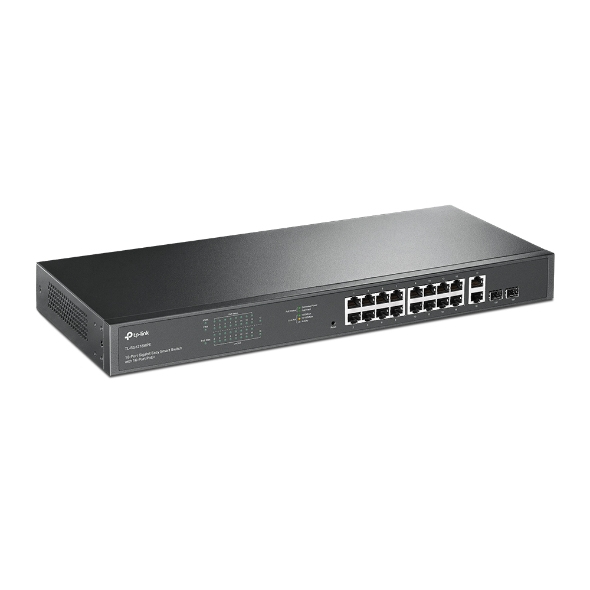

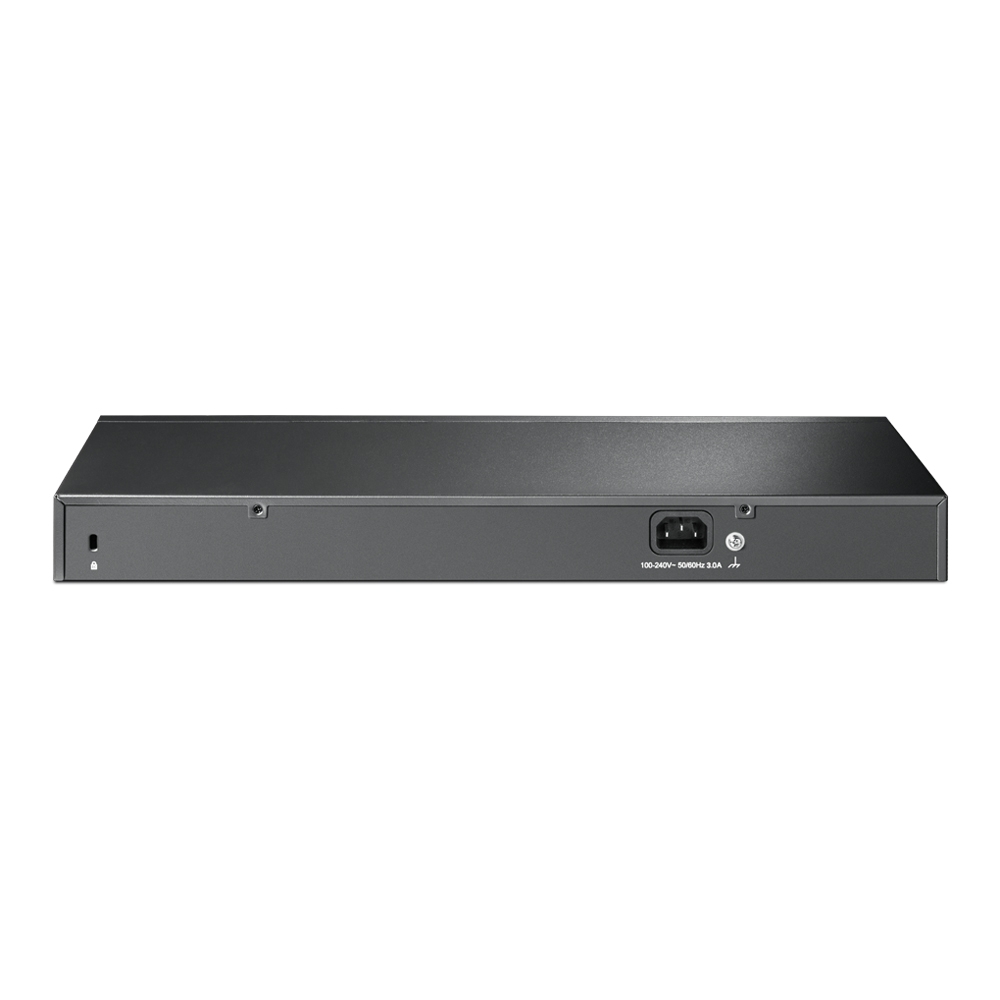

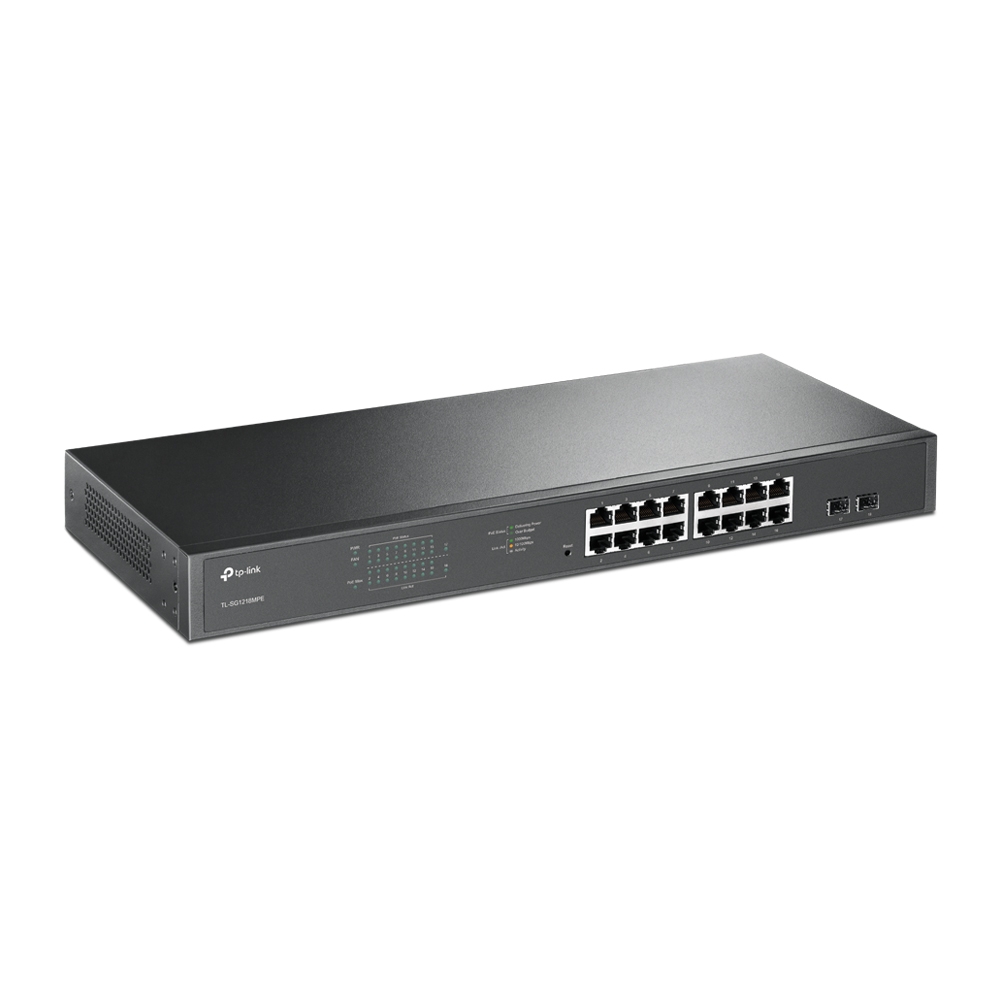

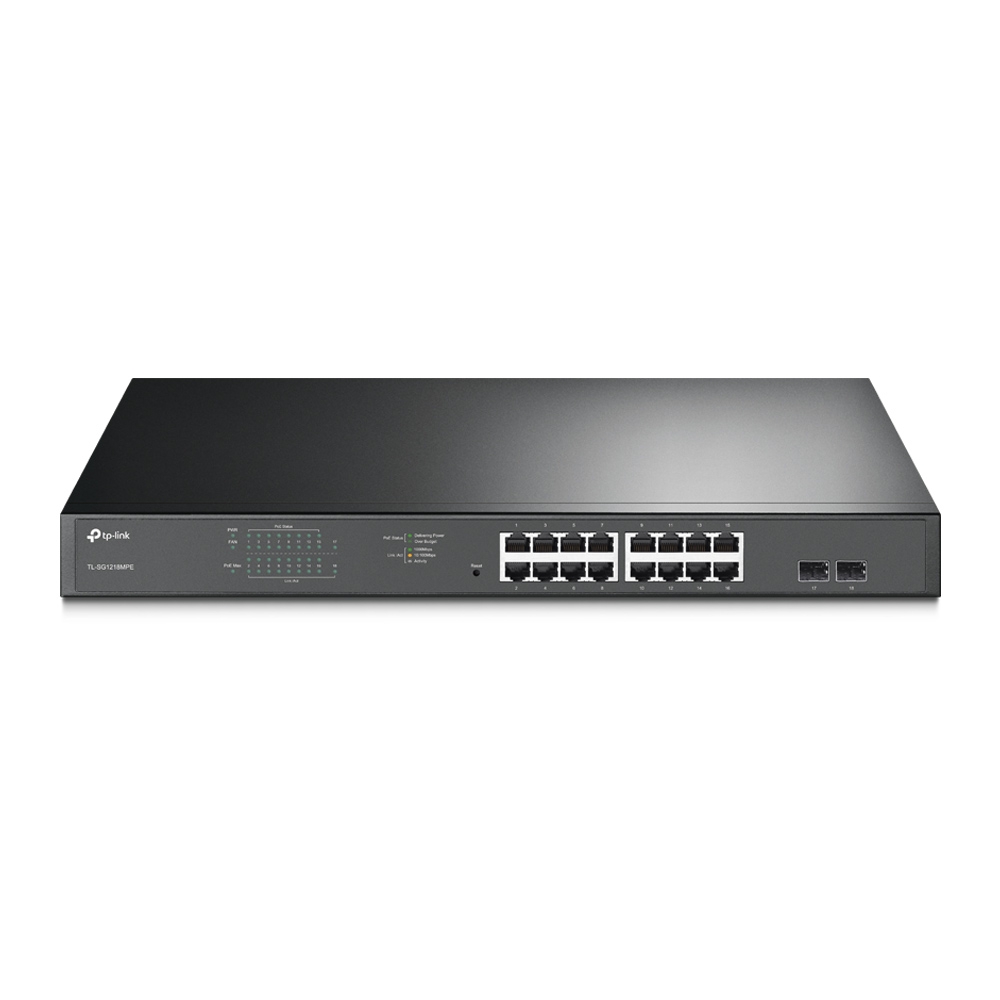

Product information for TP-Link TL-SG1218MPE:
The TL-SG1218MPE complies with the 802.3af/at PoE+ standard and supports up to 30W power supply on each PoE port. The total PoE power is up to 192W for the 16 ports, making it ideal for small to medium business surveillance systems.
Highlights
- 16 PoE+ Gigabit RJ45 ports and 2 SFP slots
- Intelligent power management can protect the switch from overload
- Port priority function for securing sensitive applications that require the highest quality, e.g. video surveillance
- High PoE power consumption up to 30 W per port (total power up to 192 W)
- Easy installation, no configuration necessary
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT devices - and telecommunications technology B2C
- Integrated fan
- Switch type: Access
- Total number of copper ports: 16
- Total number of fiber optic ports: 2
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3 af, PoE+ - 802.3at
- PoE budget: 192 W
- Mounting type: 48,3 cm ( 19 inch ) rack mount
- Color: Black
- Height: 44 mm
- Length/Depth: 180 mm
- Width: 440 mm
- TP-LINK TL-SG1218MPE 16-Port Gigabit PoE+ Switch
- Power Cable
- Installation Guide
- Rackmount Kit
- Rubber Feet
Product type
Specifications
Connections
Functions
Basic features
Scope of delivery
| Certificates | |
| Certification | CE, FCC, RoHS |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.78 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 741.15 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Rack mount kit | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Combo SFP ports quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 296.3 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
