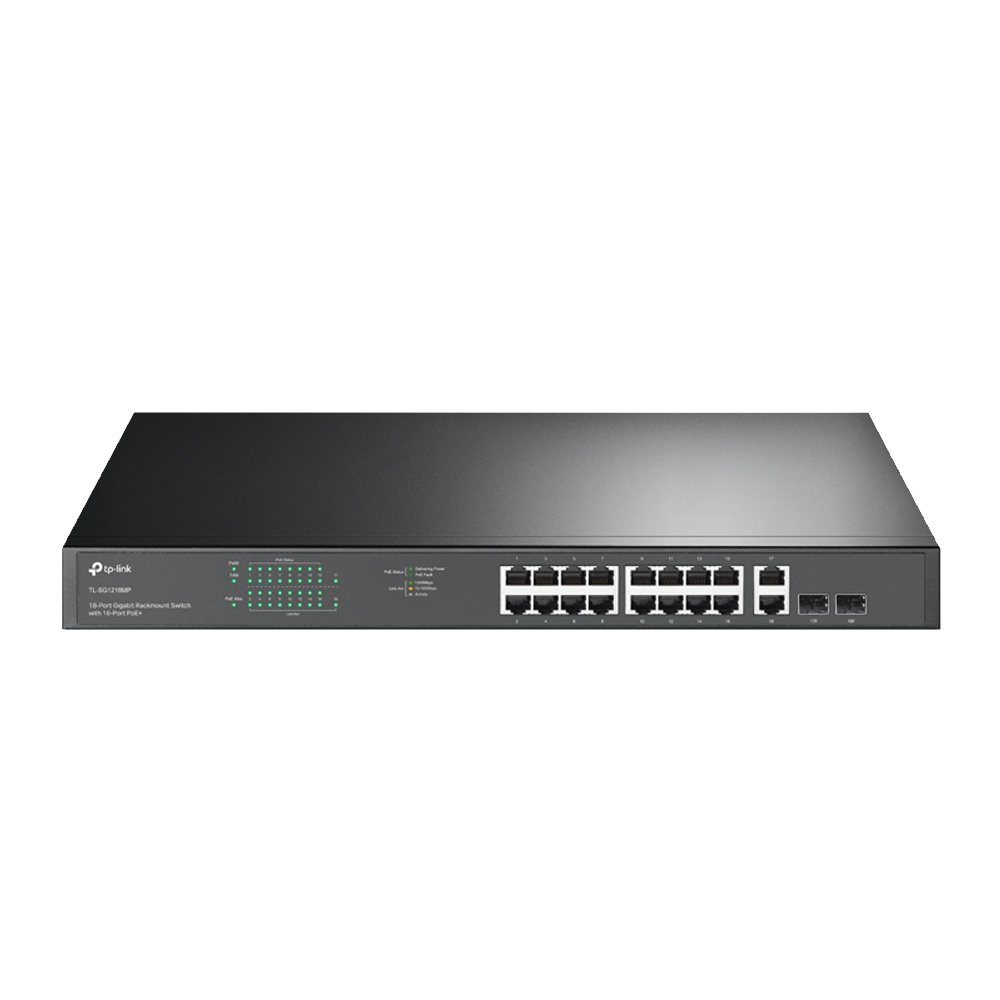

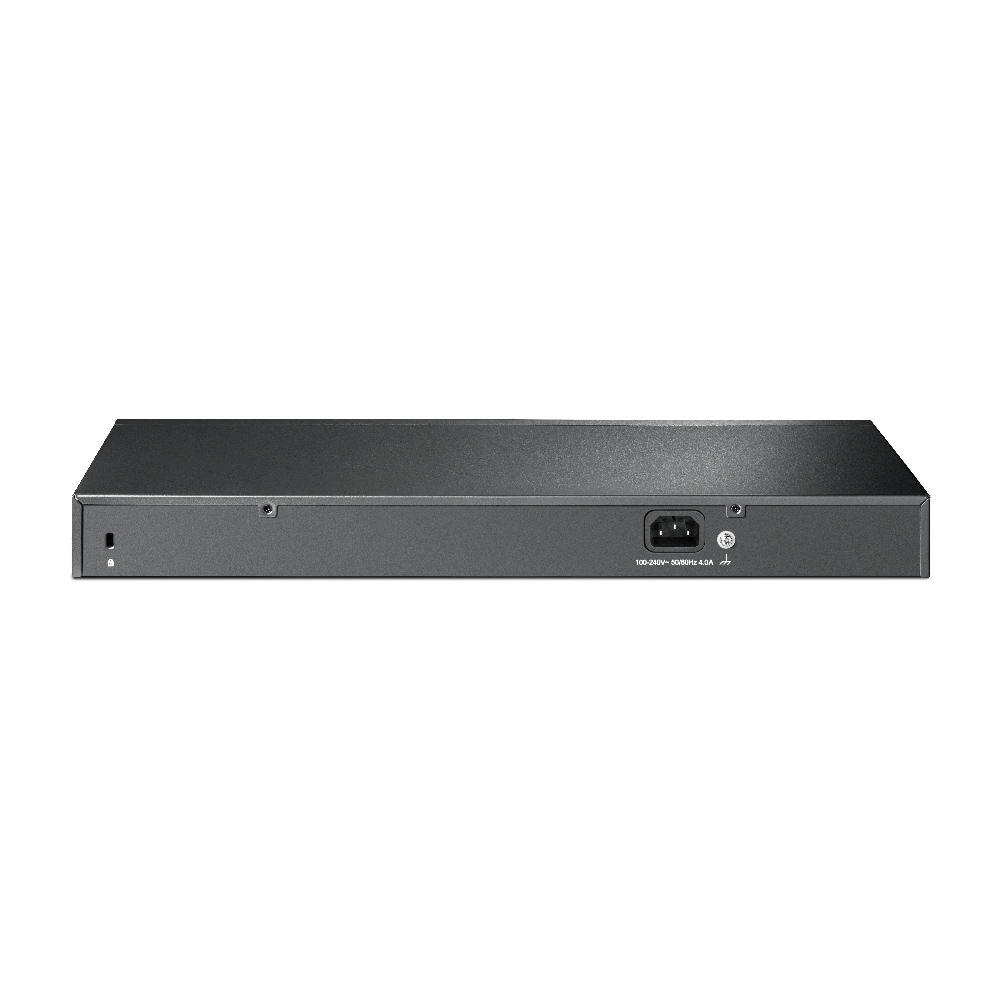

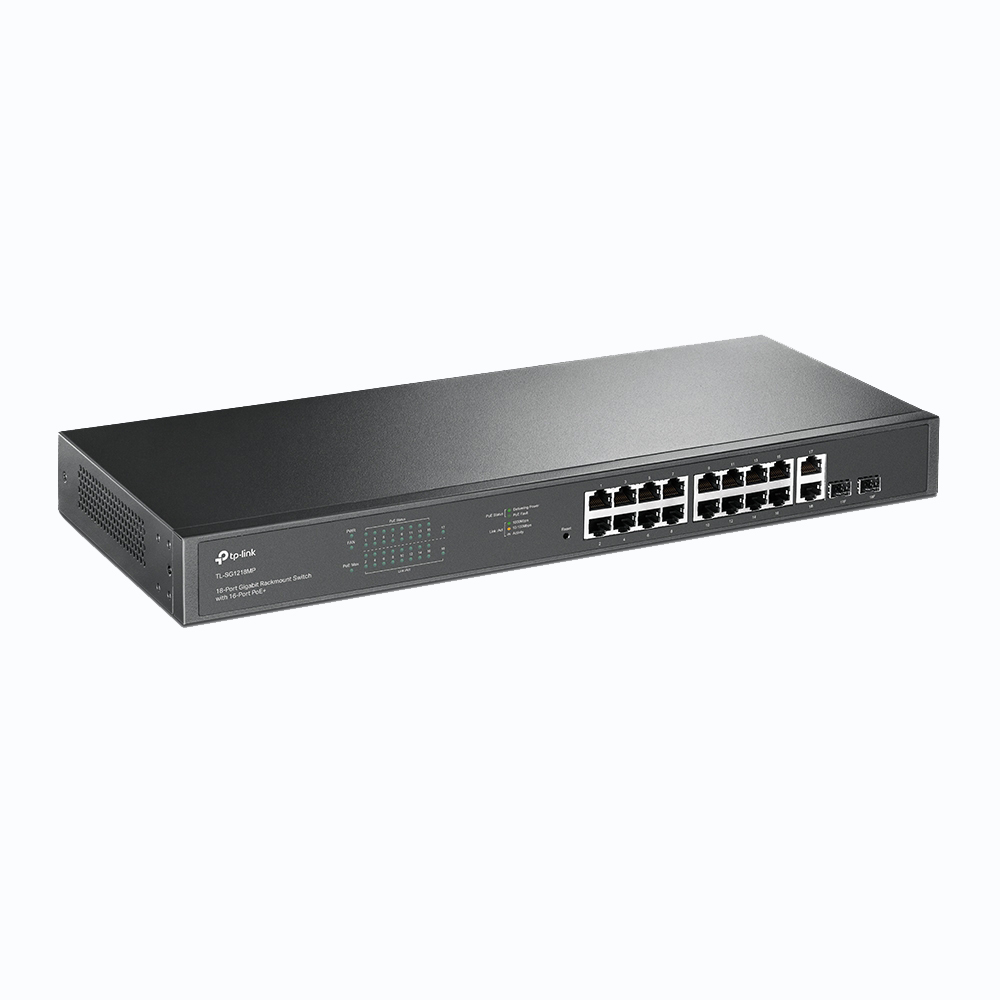

TP-Link Switch TL-SG1218MP 18-Port Gigabit PoE content_copy

Professional high-performance 18-port Gigabit rackmount switch with 16 PoE+ ports. The PoE power budget of a total of 250 W for the 16× Gigabit PoE+ ports enables numerous possible uses, e.g. B. for surveillance, in offices, dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Highlights

• 16× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports and 2× Combo Gigabit SFP slots

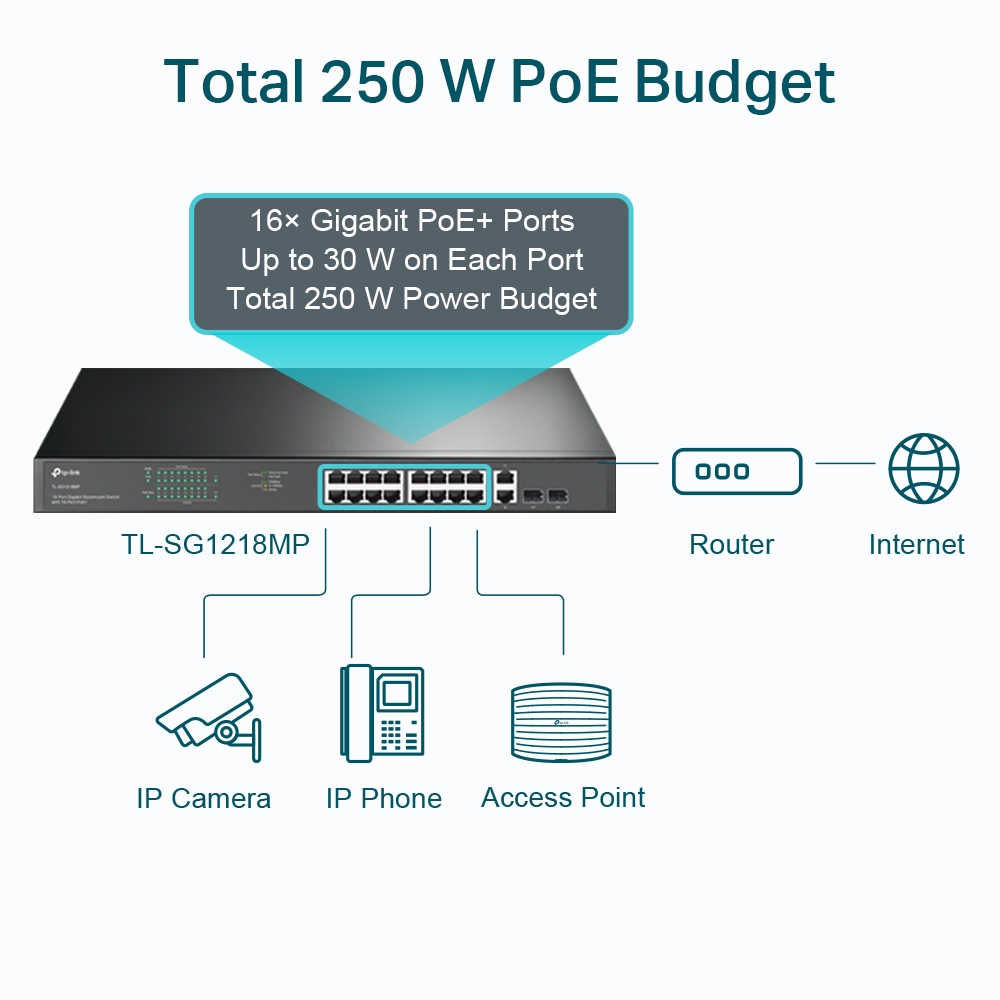

• High PoE budget with up to 30 W on each PoE port and 250 W in total
• Works with IEEE 802.3af/at compatible PoE devices
• Plug and play without configuration
• 802.1p/DSCP QoS ensures the smooth transmission of latency-sensitive data transfers
• The sturdy metal housing and a professional heat dissipation design ensures a high operating temperature (0-50 degrees C) with high reliability

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices TK-Technik B2C

Specifications

• Integrated fan
• Switch type: Access

Connections

• Total number of copper ports: 18
• Total number of fiber optic ports: 2
• Total number of PoE ports: 16
• Bandwidth: 10/100/1000 MBit/s
• PoE Standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 250 W

Functions

• Mounting type: 48,3 cm ( 19 inch ) rack mount

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 180 mm
• Width: 440 mm

Box contents

• TP-Link TL-SG1218MP 16-Port Gigabit PoE+ Rackmount Switch
• Installation instructions
• Power cable
• Rack mounting kit
• Rubber feet

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	36 Gbit/s
Forwarding rate	26.78 Mpps
MAC address table	8000 entries
Jumbo frames	10000
Packet buffer memory	4.1 MB
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Housing material	Metal
Number of fans	2 fan(s)
Rack mounting
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Quality of Service (QoS) support
Traffic classification
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support
Full duplex
Half duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	977.44 BTU/h
Packaging content
Cables included	AC
Quick start guide
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	3.05 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
Combo SFP ports quantity	2
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	286.64 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE)
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
