TP-Link TL-SG1210MP 10-Port Gigabit PoE+ Desktop Switch
|
106,75 EUR |
|
|
( 127,03 EUR incl. VAT ) ≈ £90.74 | ≈ $119.88 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 02. Aug 2026 |
|---|---|
| Lieske Part No.: | 509031 |
| Mfg Part No: | TL-SG1210MP |
| UPC/EAN: | 6935364052683 |
| Weight: | 1.6 kg |
Further Miscellaneous from TP-LinkFurther products in category Miscellaneous
All products of TP-Link
Product information for TP-Link TL-SG1210MP:
Professional 10-port Gigabit unmanaged switch with 8-port PoE+, plug and play, with PoE transmission for monitoring up to 250 m
Highlights

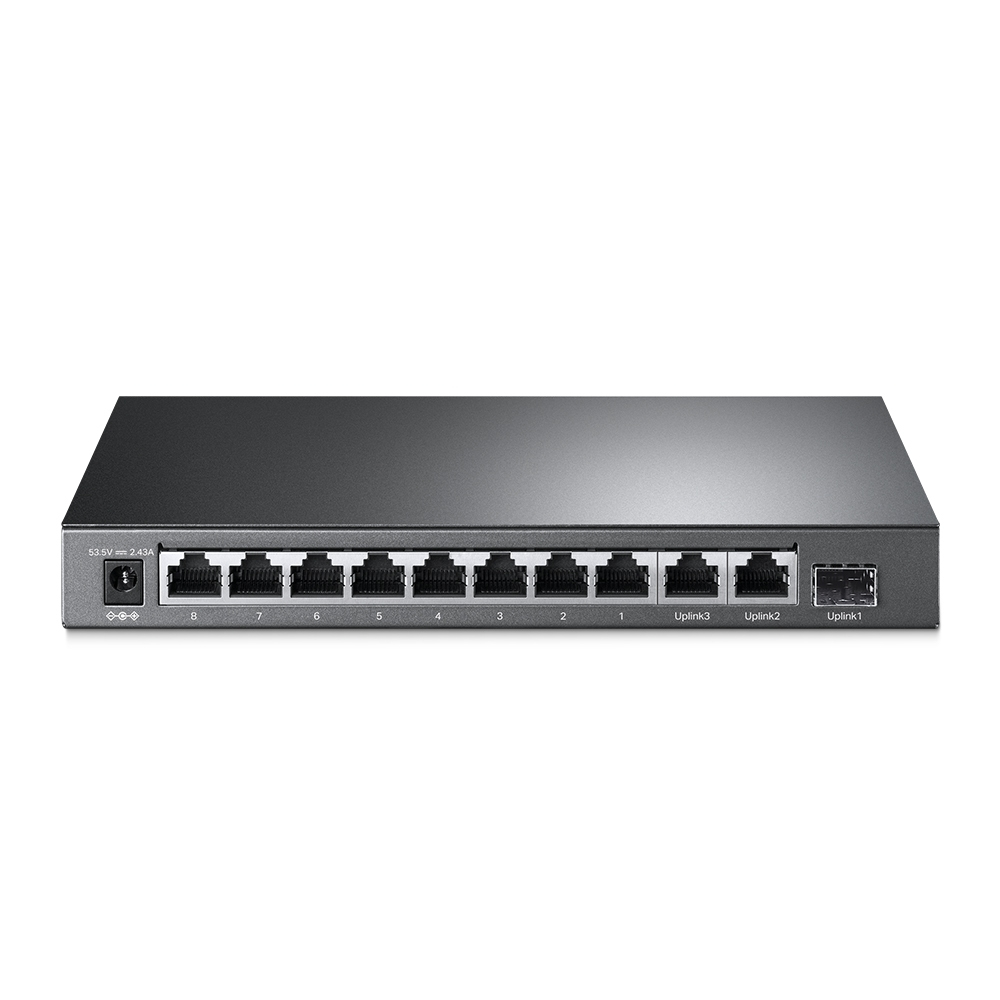

- 9× Gigabit RJ45 ports and 1× Gigabit combo SFP/RJ45 port
- 8× PoE+ ports transmit data and power over a single cable
- According to IEEE 802.3af/at PoE+, the switch supports PoE power up to 30 W for each PoE port (PoE budget 123 W)
- Up to 250 m data - and power transmission range in Extend Mode

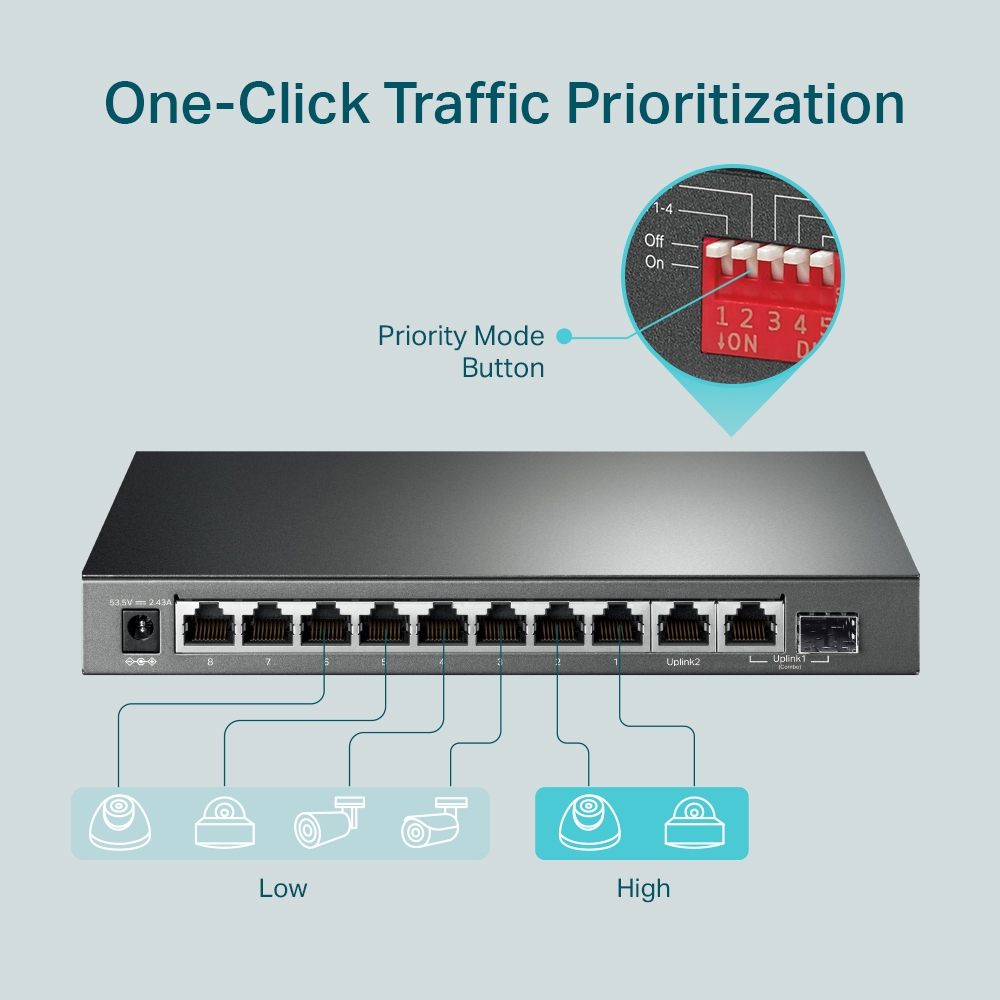

- Priority mode ensures high priority of ports 1-2 to ensure the quality of sensitive applications

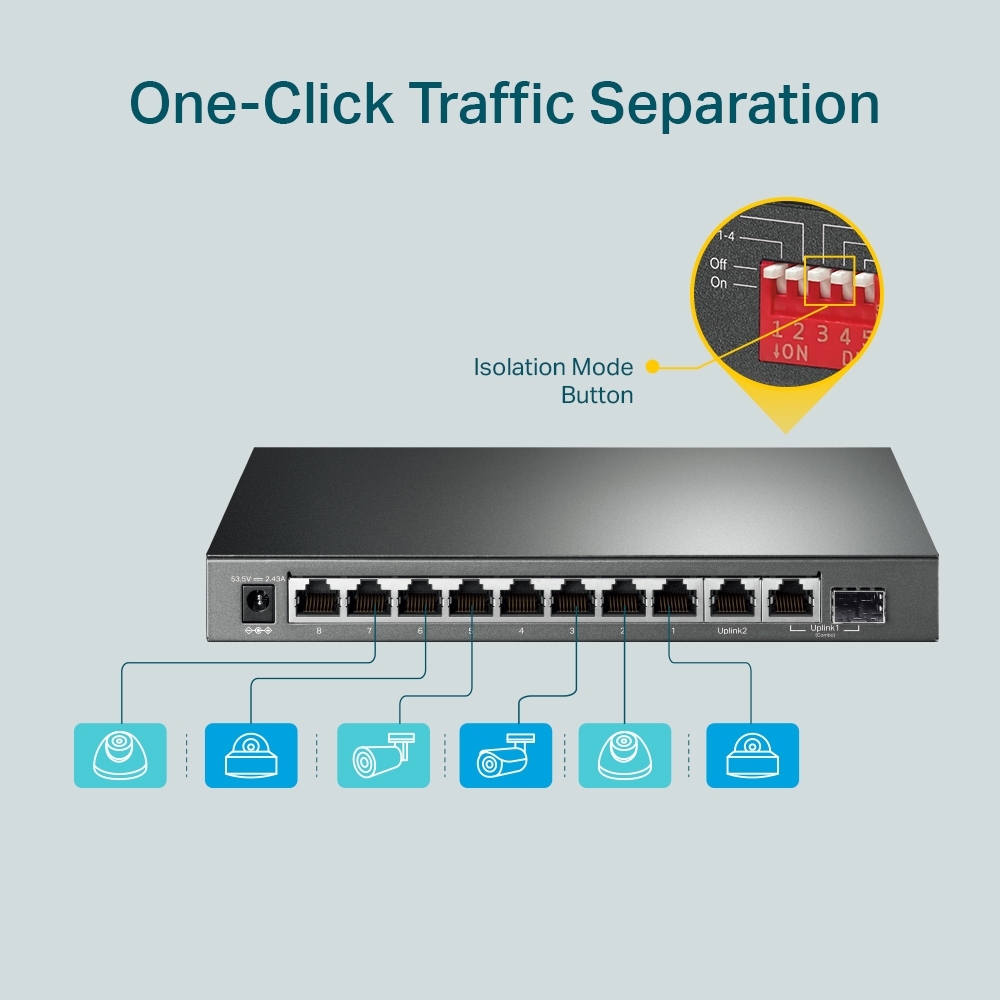

- Isolation mode allows one-click separation of client traffic for higher security and performance

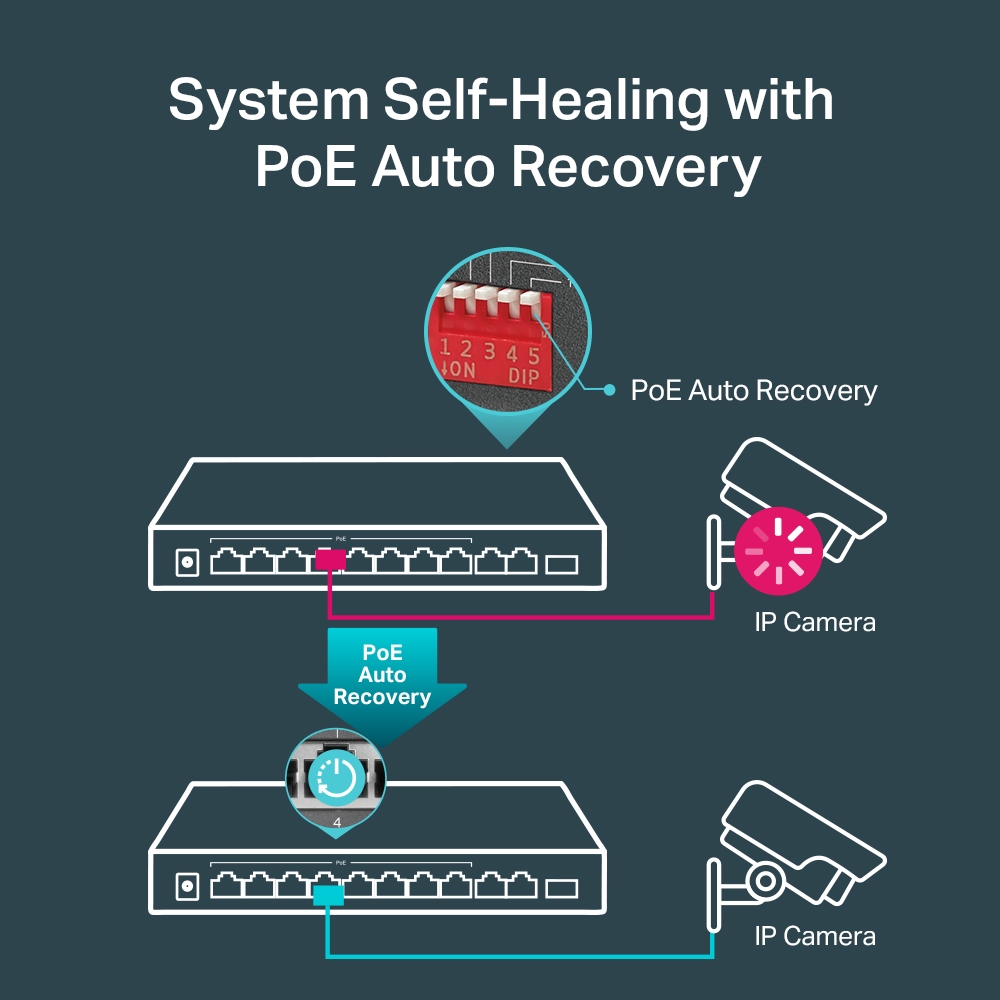

- Starts your failed or not Responding PoE-powered devices automatically with PoE Auto Recovery
- Plug and Play - no configuration required
- Fanless design reduces power consumption and operates silently in its location
- Desktop or wall mounting possible
- Switch
- ear category (ElektroG) : relevant, Category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C
- Integrated fan
- Switch type: Access
- Switching capacity: 20 GBit/s (Gbps)
- Total number of copper ports: 9
- Total number of PoE ports: 8
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 123 W
- Number (1G) ports combo: 1
- Switch manageable: No
- Mounting type: desktop, wall
- Power supply: external
- Color: Black
- Height: 26 mm
- Length/depth: 126 mm
- Width: 209 mm
- TP- Link TL-SG1210MP 10-Port Gigabit PoE+ Desktop Switch
- Power Supply
- Installation Instructions
Product type
Specifications
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Certification | CE, FCC |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| MAC address table | 4000 entries |
| Packet buffer memory | 14.88 MB |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 482.17 BTU/h |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.41 kg |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Power | |
| Power source | DC |
| Input current | 2.43 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 141.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 123 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
