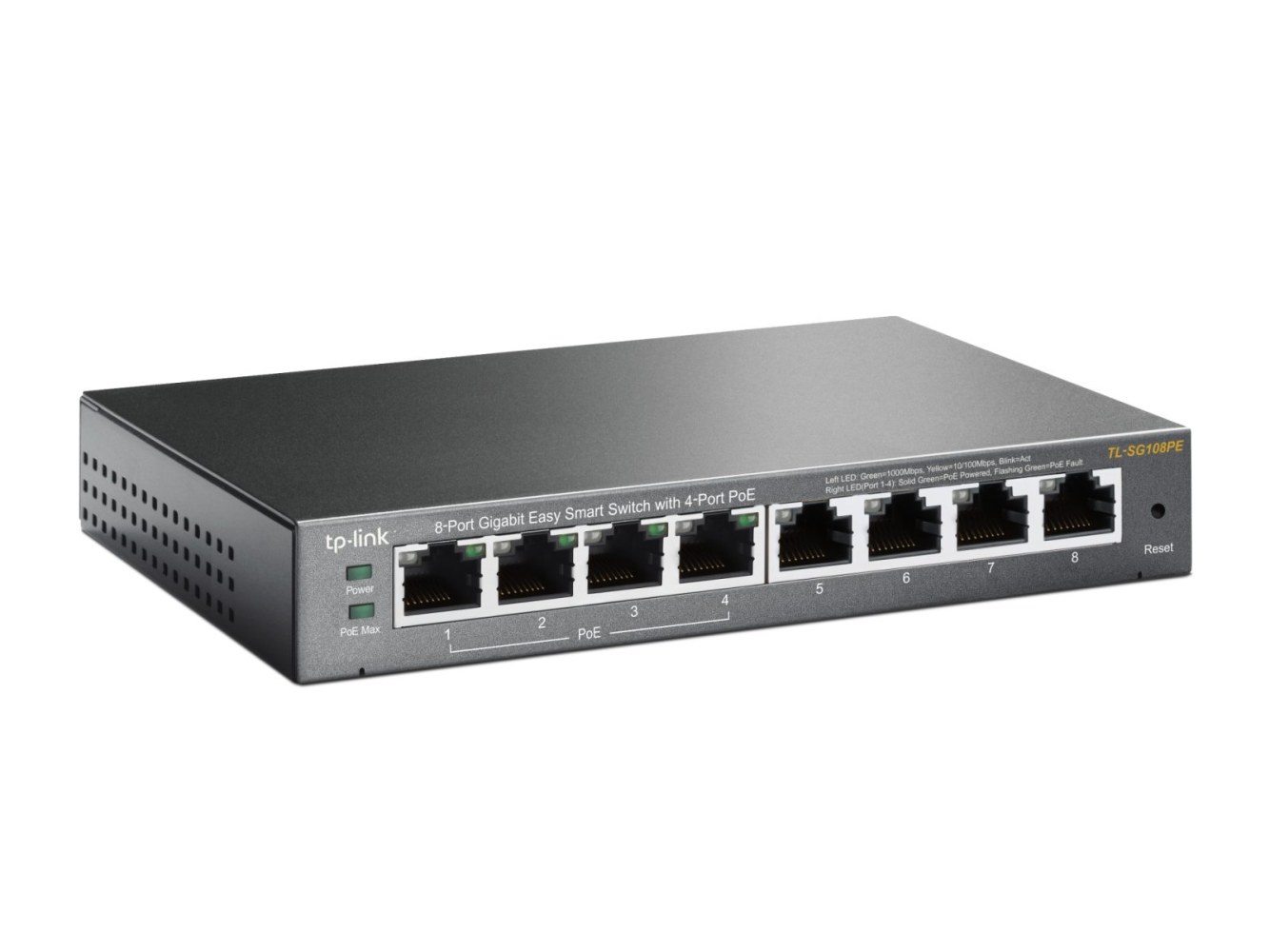

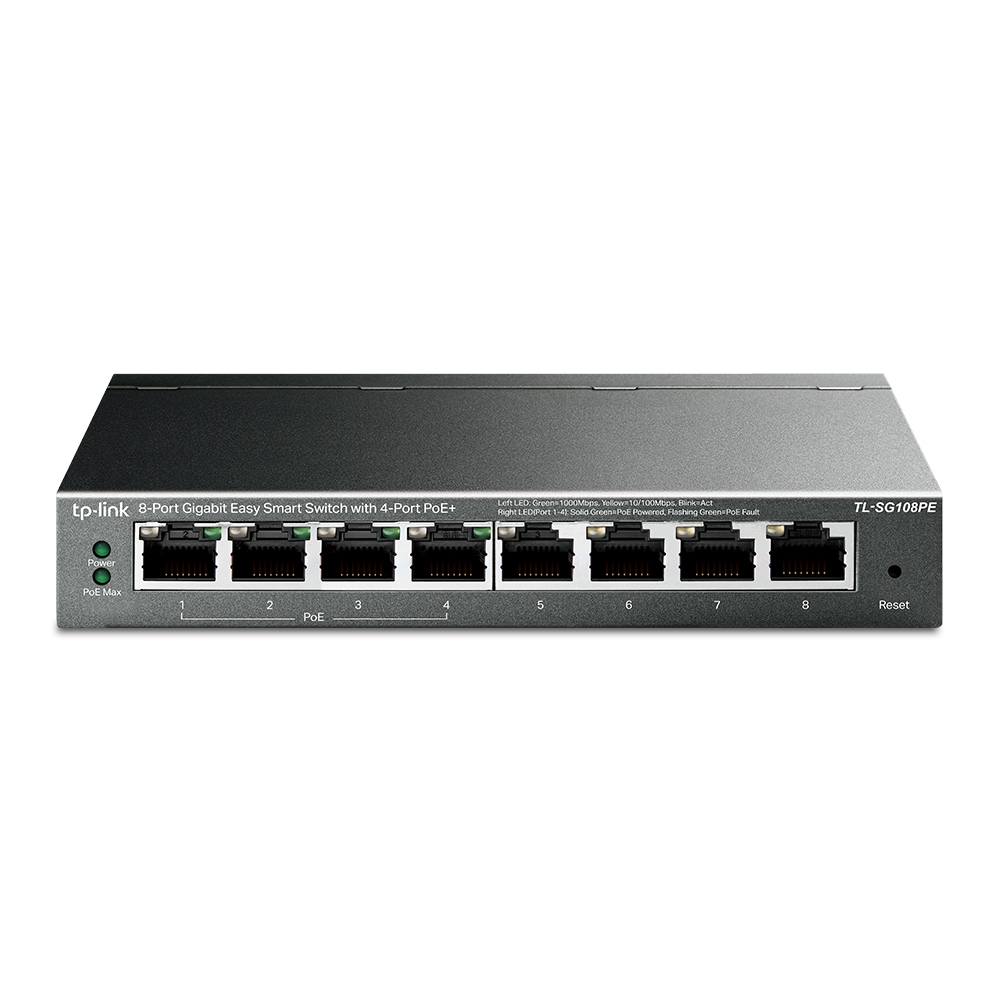

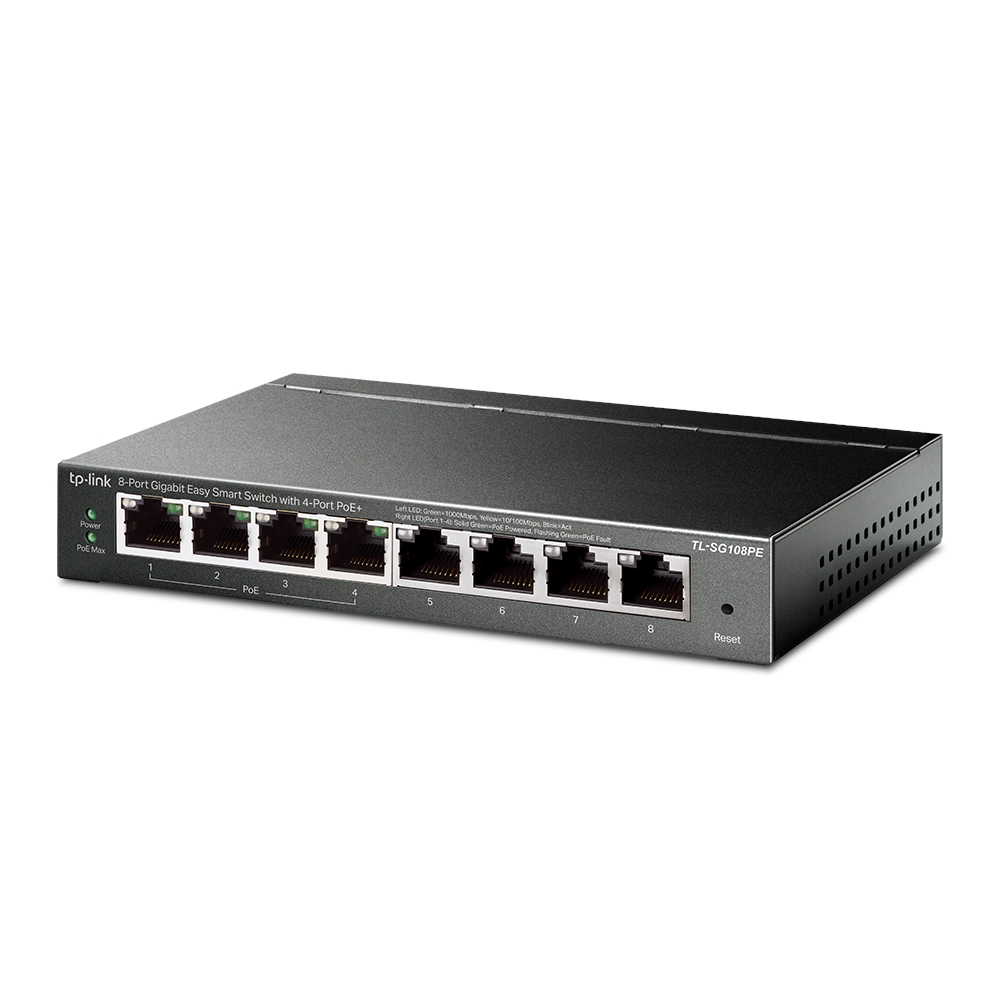

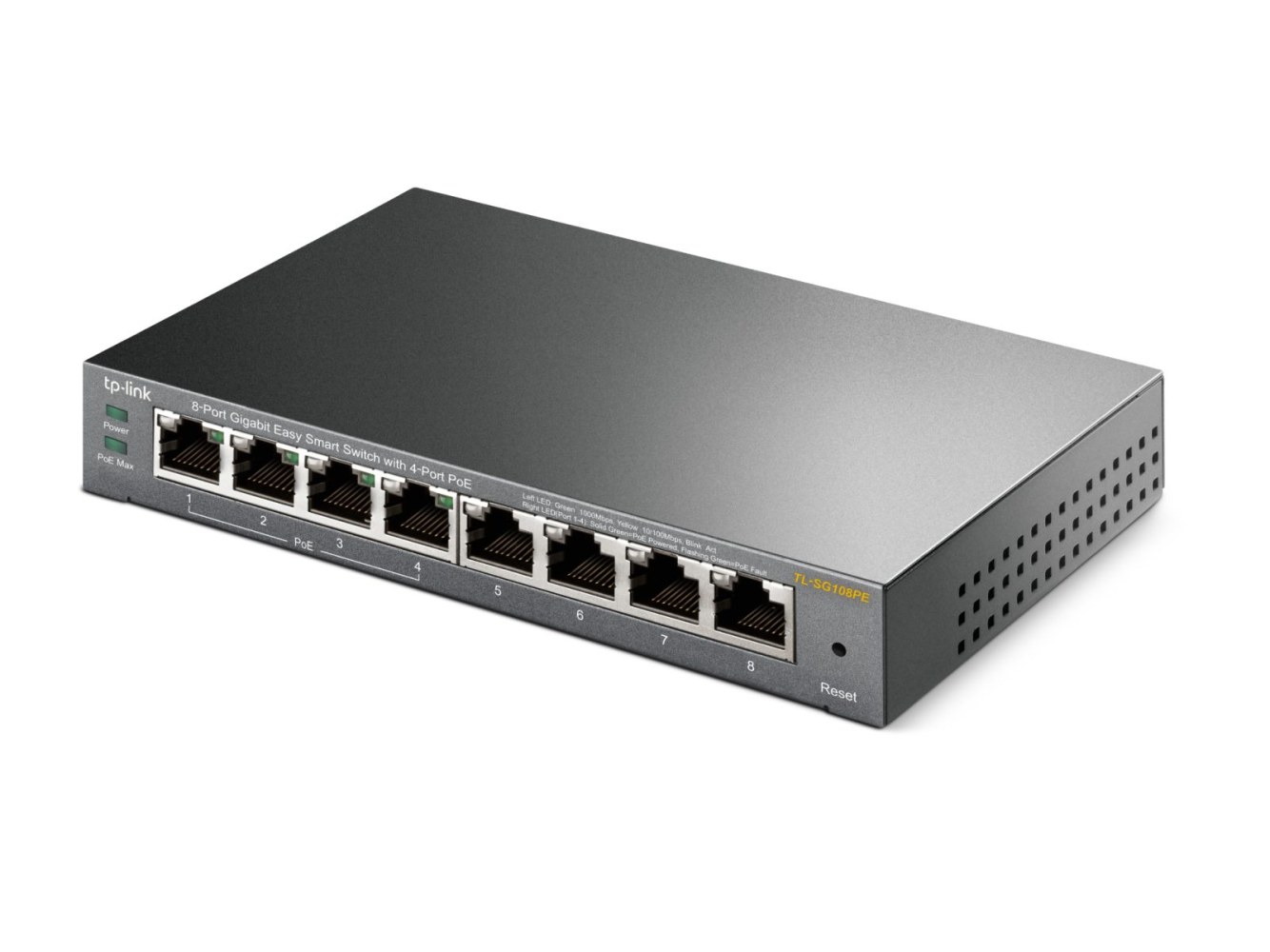

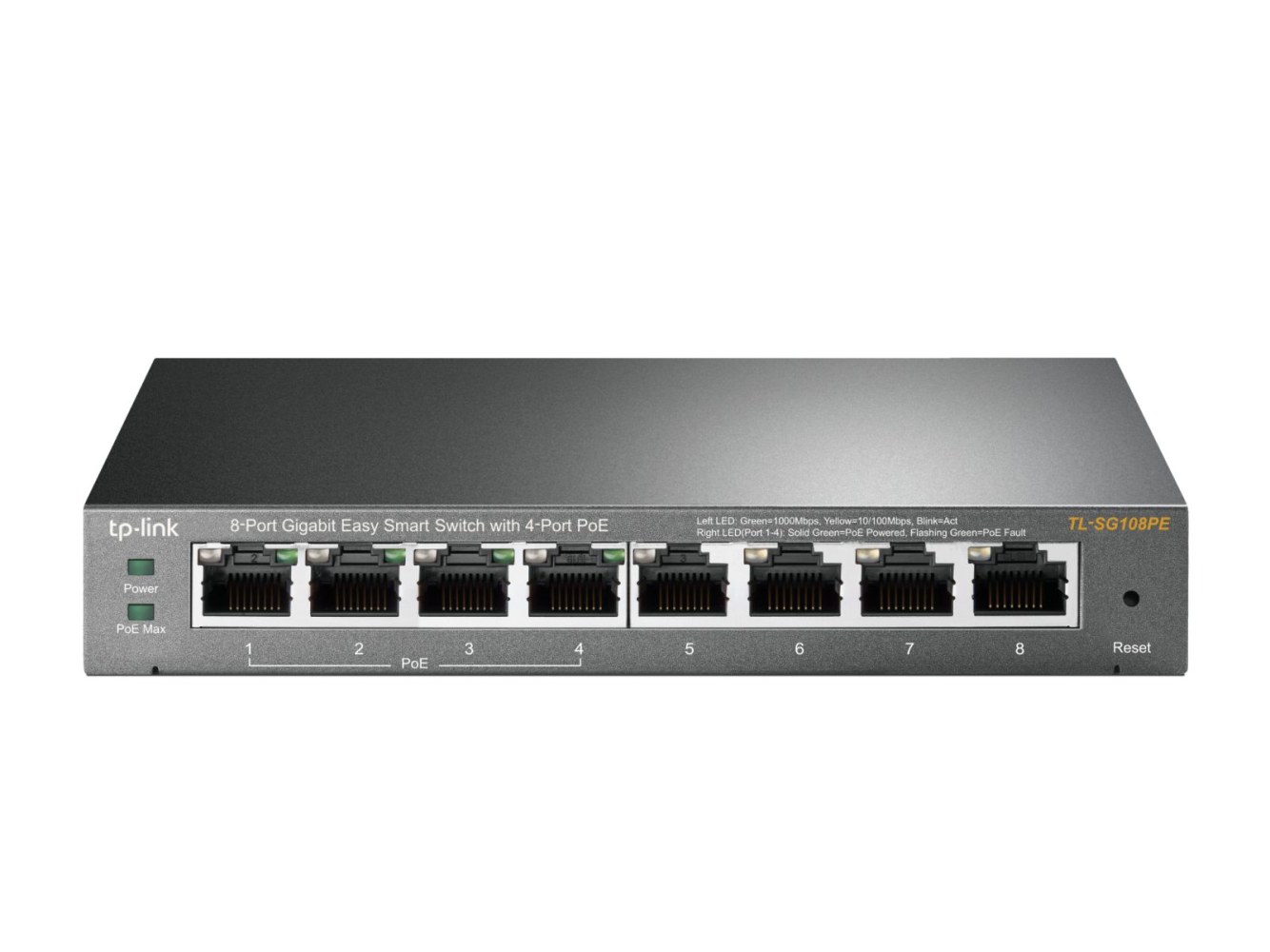

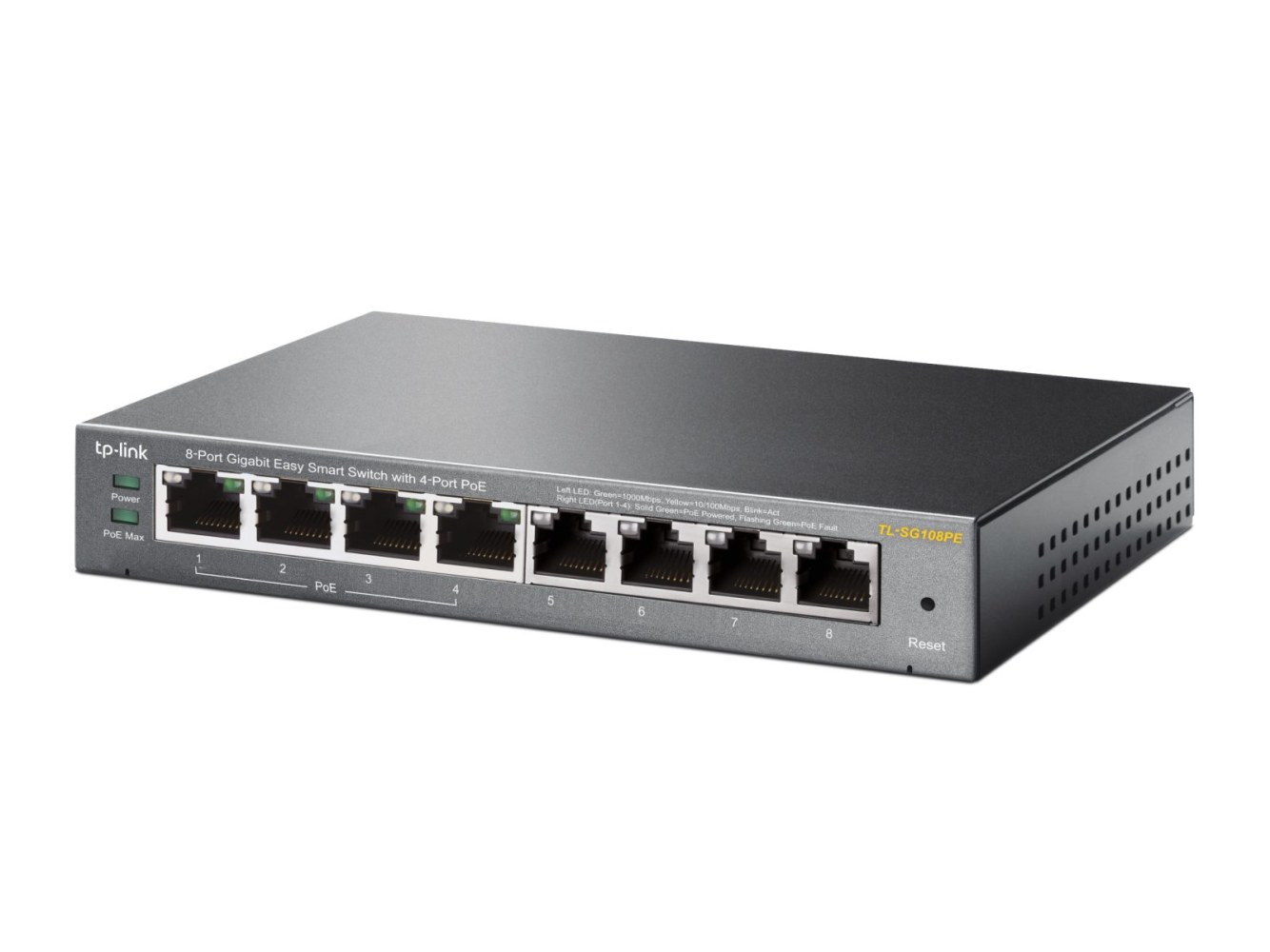

TP-LINK EasySmart TL-SG108PE 8 Ports Manageable Ethernet Switch - 10/100/1000Base-T - 8 x Network content_copy

8 10/100/1000Mbps RJ45 ports With 4 PoE ports, data and power can be transferred on one single cable Provides network monitoring, traffic prioritization and VLAN features Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements. Power Over Ethernet

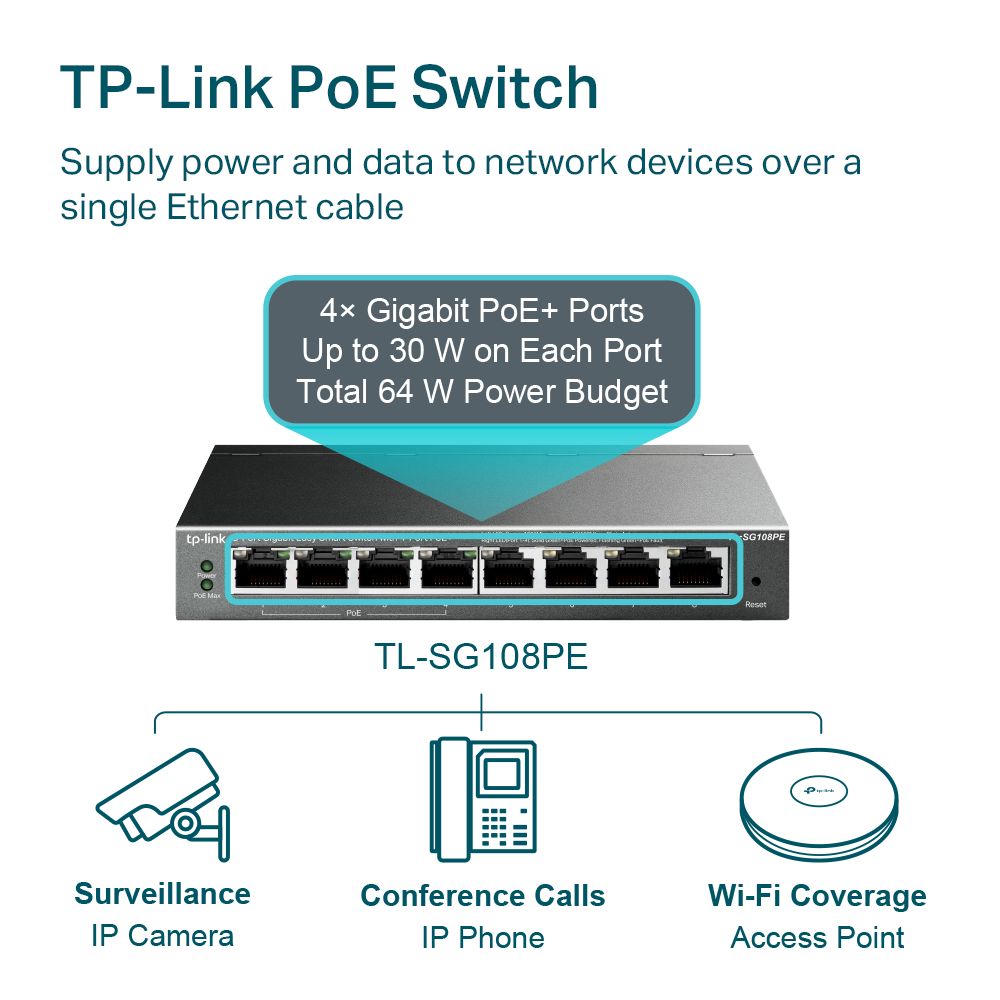

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Effective Management

TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user. Easy to Use

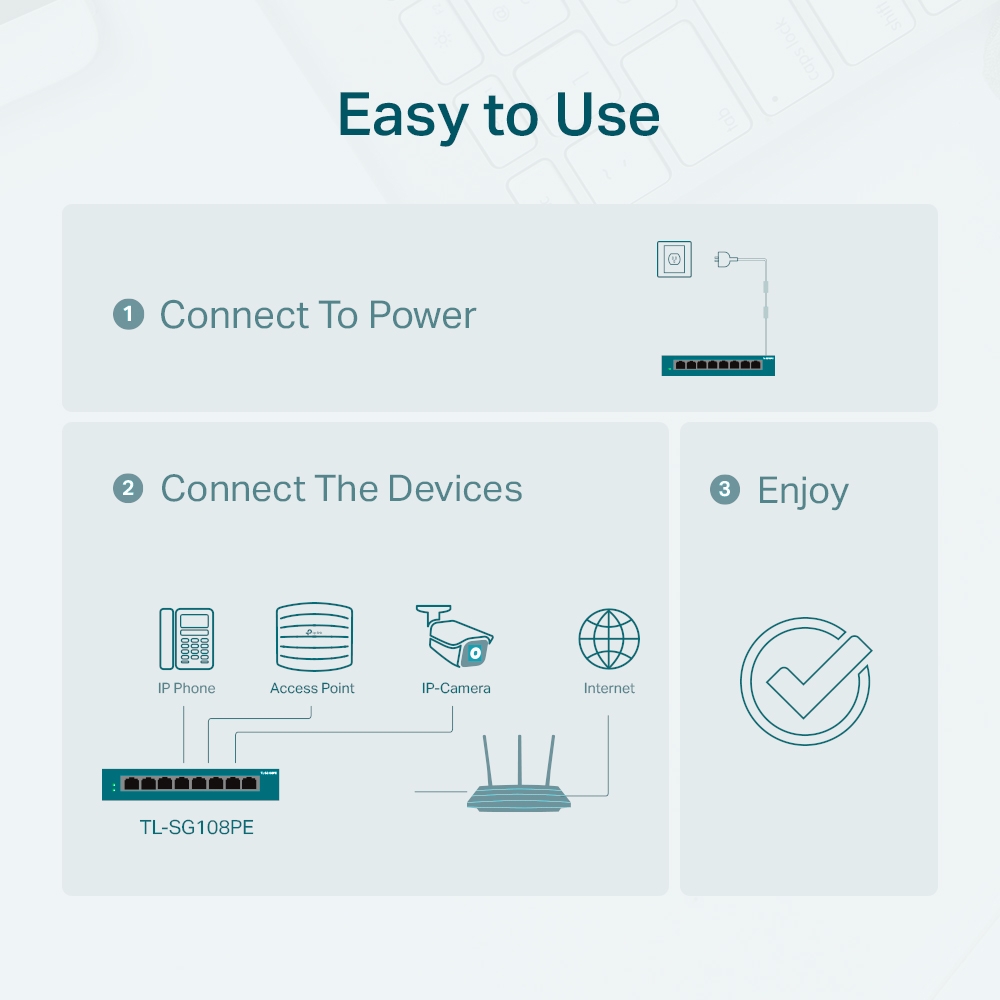

TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Certificates
Certification	FCC, CE, RoHS
Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	4000 entries
Jumbo frames	15000
Packet forwarding rate (1 Gbps)	11900000 pps
Packet buffer memory	1.5 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed, Status
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support
Web-based management
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Virtual LAN features	Port-based VLAN
Number of VLANs	32
10G support
Port mirroring
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
Auto-negotiation
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	256.19 BTU/h
Packaging content
Cables included	AC
User guide
Packaging data
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	860 g
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Power
Power source	DC
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.25 A
Input voltage	48 V
Power consumption (max)	65.2 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	64 W
Power over Ethernet (PoE)
Security
IGMP snooping
Loop protection
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm

---
