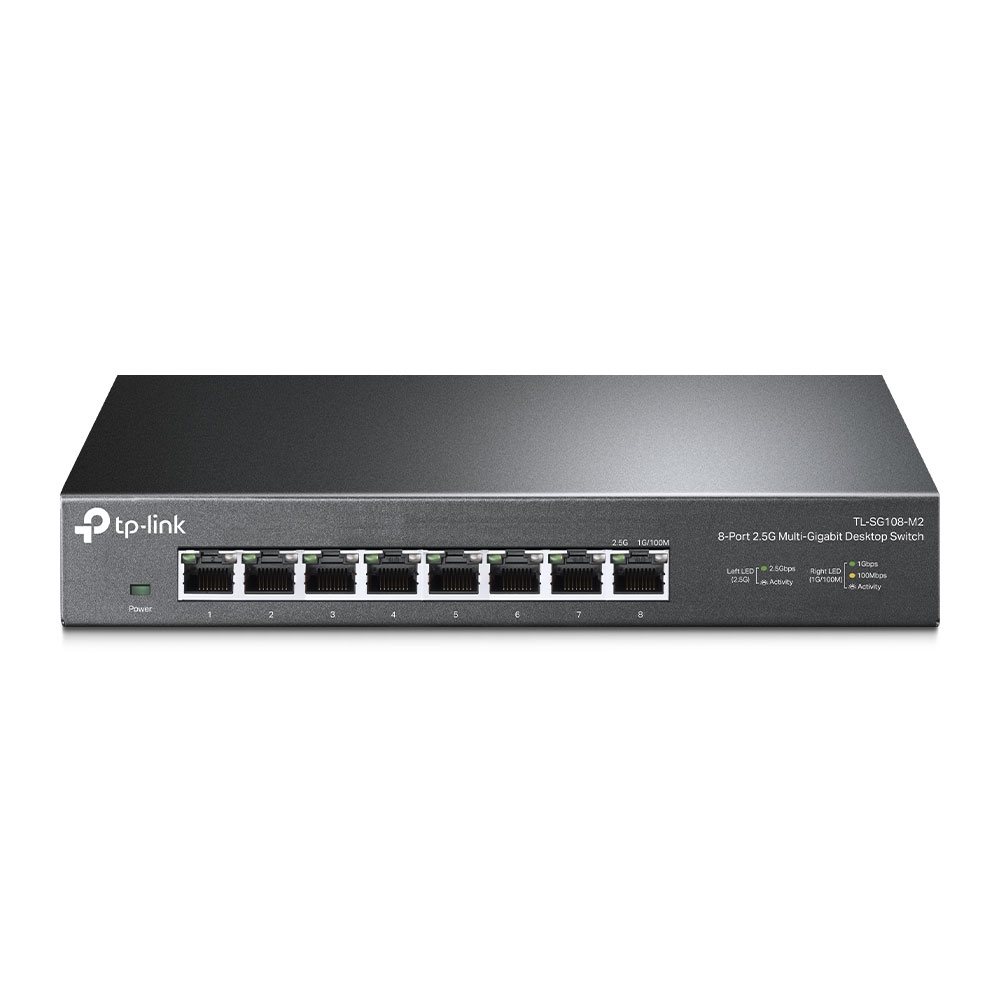

TP-Link Switch 8x 2.5G Multi-Gigabit TL-SX108-M2 content_copy

As the flagship of 2.5G products, the 8-port desktop switch with 8× 2.5 Gigabit ports delivers the highest performance of your multi-gig bandwidth and devices, offering up to 40Gbps switching capacity. s. 3-speed (100MB/1G/2.5G) auto-negotiation connections capture connection speeds and intelligently adjust for compatibility and optimal performance of all your devices, including 2.5G NAS, 2.5G PCIe adapters , Game Console, VR Gaming, 2.5G WiFi 6 AP, 4K Video, Desktop and more.

Highlights

• 8 × 2.5 Gigabit ports provide the highest performance of your multi-gig bandwidth and devices, offering up to 40Gbps switching capacity
• Suitable for LAN parties, home entertainment, small and Home offices and instant transfer for workstations
• Instant upgrade to 2.5Gbps without the need to upgrade to Cat6 cabling, reducing cabling costs and effort
• Industry-leading fanless design ensures quiet operation, ideal for any Home or business
• Plug and play allows for easy deployment
• The robust metal housing and desktop/wall mount design are well suited to various environments

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT devices - and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Switch type: Access
• Switching capacity: 40 GBit/s (Gbps)

Connections

• Total number of copper ports: 8
• Bandwidth: 2.5G base -T
• Main port type: copper
• Number of RJ45 Multi Gig ports (2.5G): 8

Functions

• Switch manageable: No
• Mounting type: Desktop, wall

Power supply

• Power supply: external

Basic features

• Color: Black
• Height: 35 mm
• Length/depth: 131 mm
• Width: 226 mm

Scope of delivery

• TP-Link TL-SG108-M2 8-Port 2.5 Gigabit Desktop Switch
• Power supply
• Rubber feet
• Installation instructions

Data transmission
Switching capacity	40 Gbit/s
Forwarding rate	29.8 Mpps
MAC address table	16000 entries
Jumbo frames	10000
Packet buffer memory	1.5 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Rack mounting
LED indicators
Wall mountable
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Quality of Service (QoS) support
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support
Flow control support
Auto MDI/MDI-X
Auto-negotiation
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	53.4 BTU/h
Packaging content
Cables included	AC, LAN (RJ-45)
Packaging data
Package width	240 mm
Package depth	315 mm
Package height	70 mm
Package weight	1.35 kg
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	8
Power
Power source	DC
Input current	1.5 A
Input voltage	12 V
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Weight & dimensions
Width	226 mm
Depth	131 mm
Height	35 mm

---
