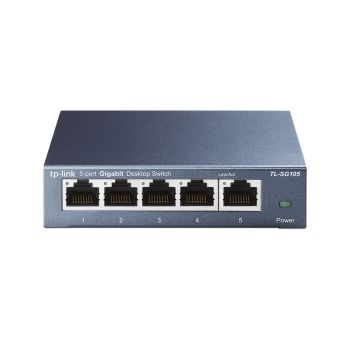

TP-Link TL-SG105(TPD) Switch TL-SG105 5xGBit Unmanaged metal housing content_copy

The 5-Port Gigabit desktop switch TL-SG105 from TP-LINK provides an easy way to take the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit a reality in your workplace. Additionally, the TL-SG105 is designed for lower power consumption. With the innovative energy-efficient technology the TL-SG105, you can save up to 65% energy with which this device is also an environmentally friendly solution for your home and office network. Equipped with 5 10/100/1000Mbps-Ports expands the TL SG105 your network capacity significantly, so that the direct transmission of large files is possible. So power users can used in home, office, workgroup, or creative production environment in a now move large, bandwidth-intensive files faster. Submit documents, programs, or multimedia files across the network without delay. You now have the opportunity to choose the green way, if you want to upgrade to a gigabit network! This 5-port Gigabit Switch TL-SG105 has an innovative, energy-efficient technology that can greatly expand your network capacity, with much less energy consumption. It automatically adjusts power consumption of the link status and cable length to improve the environmental performance of your network. When a computer or network equipment is off, the corresponding port of a traditional Switchs continues to consume a significant amount of power. The TL-SG105 automatically detect the link status of each port and reduce the power consumption of ports that are idle, which means an energy saving of up to 65%. Energy allocation to cable length Ideally, shorter cables would use less power because less energy is lost over the length of the cable. For most devices this is not the case, since it is the same amount of energy to send over the cable, regardless of its length. Easy to use The auto features of this gigabit Switchs make the installation easily thanks to plug-and-play. No configuration is required. MDIX eliminates the need for crossover cables. Auto-Negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts to ensure the compatibility and optimal performance.

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
MAC address table	2048 entries
Jumbo frames	16000
Packet buffer memory	1 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Steel
Rack mounting
LED indicators
Wall mountable
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.83 BTU/h
Packaging content
Cables included	AC
User guide
Packaging data
Package type	Box
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Power
AC input voltage	220 V
AC input frequency	50 Hz
Input current	0.6 A
Power consumption (max)	2.3 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
IGMP snooping
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm

---
