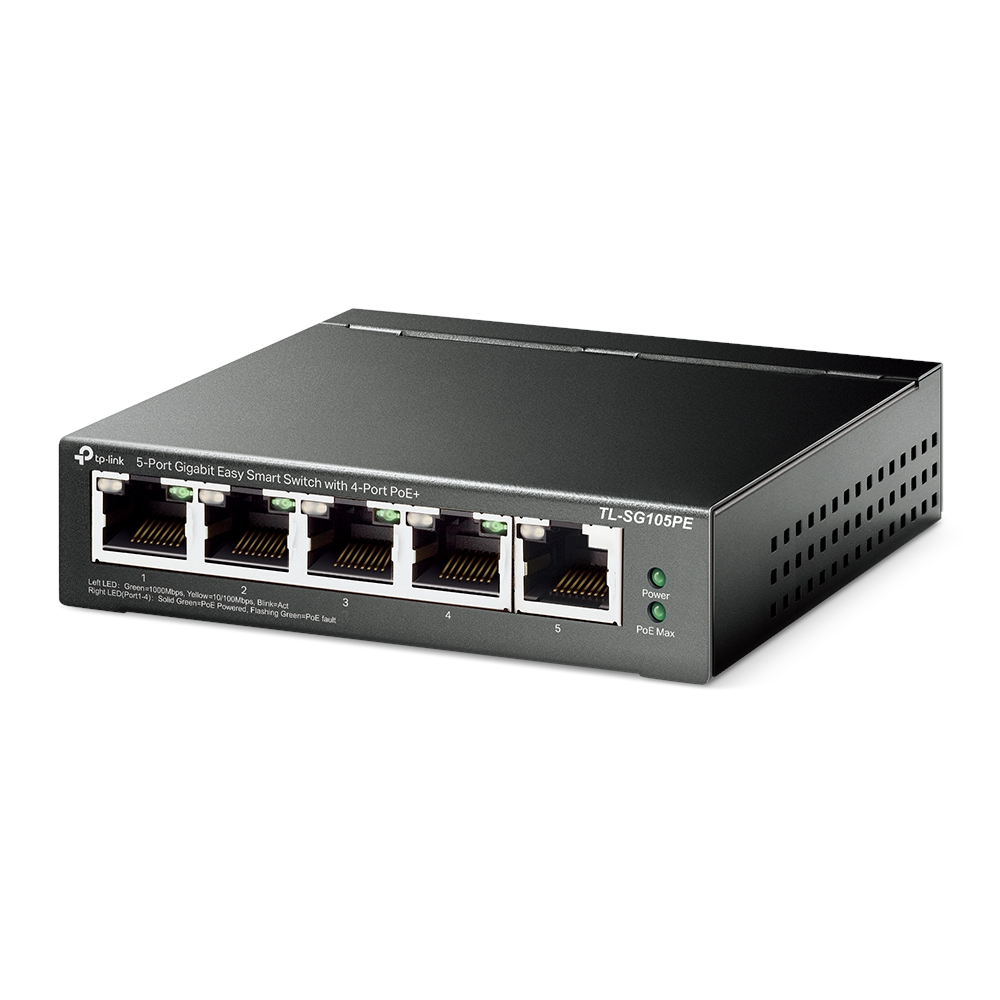

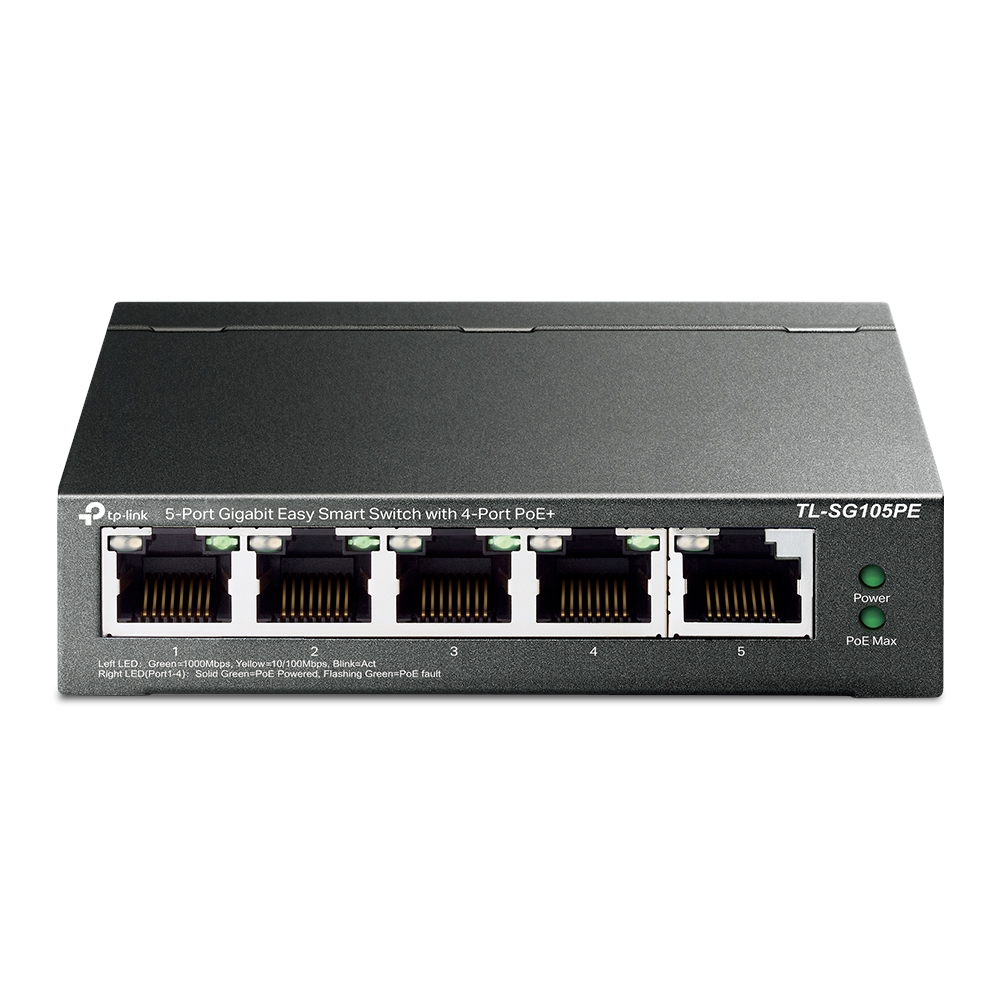

TP-LINK Switch TL-SG105PE 5xGBit 4xPoE+ Unmanaged/Easy Smart Metallgehäuse
|
56,90 EUR |
|||||||||||
|
( 67,71 EUR incl. VAT ) ≈ £48.25 | ≈ $63.78 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| End-Of-Life: | 07. Sep 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1606257 | ||||||||||
| Mfg Part No: | TL-SG105PE | ||||||||||
| UPC/EAN: | 6935364052744 | ||||||||||
| Weight: | 0.78 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for TP-Link TL-SG105PE:
Highlights
- 5x 10/100/1000 Mbit/s RJ45 ports

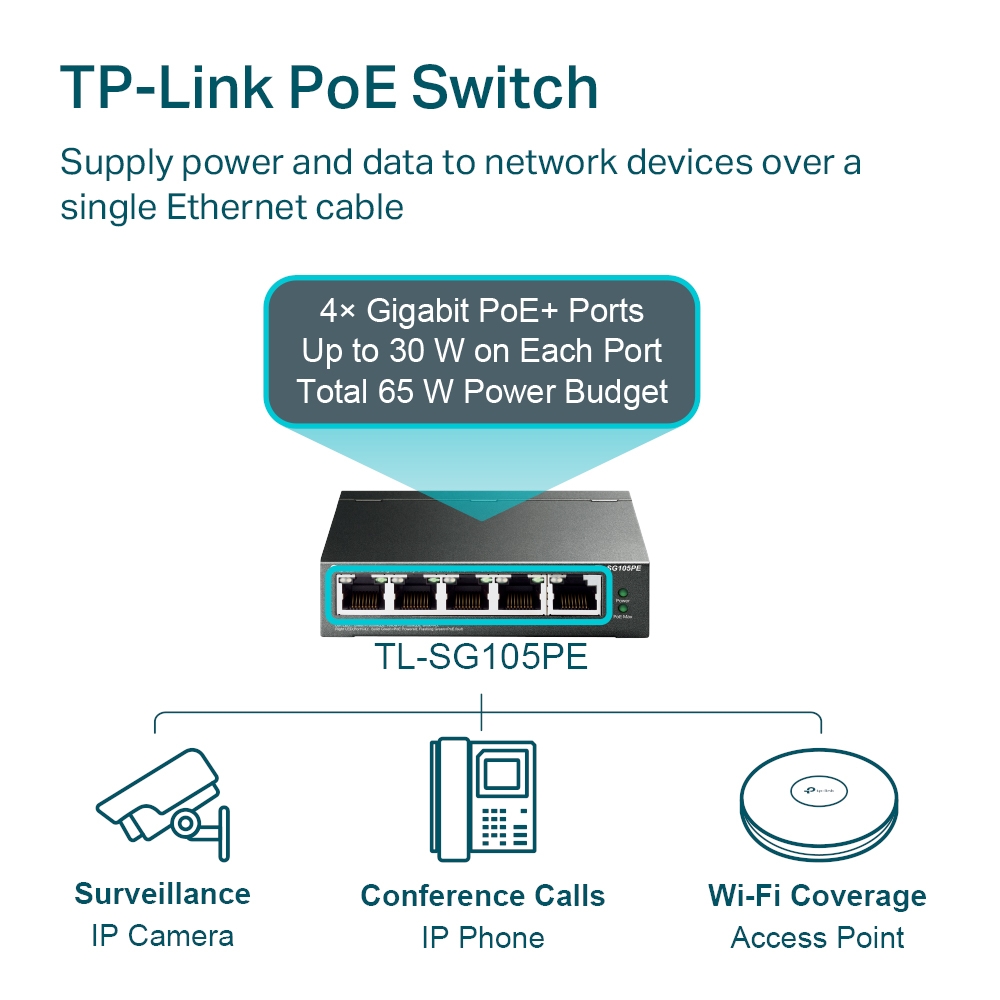

- 4x 802.3af/at PoE+ ports with up to 30W for each port
- Supports a PoE budget of up to 65W total for all PoE ports

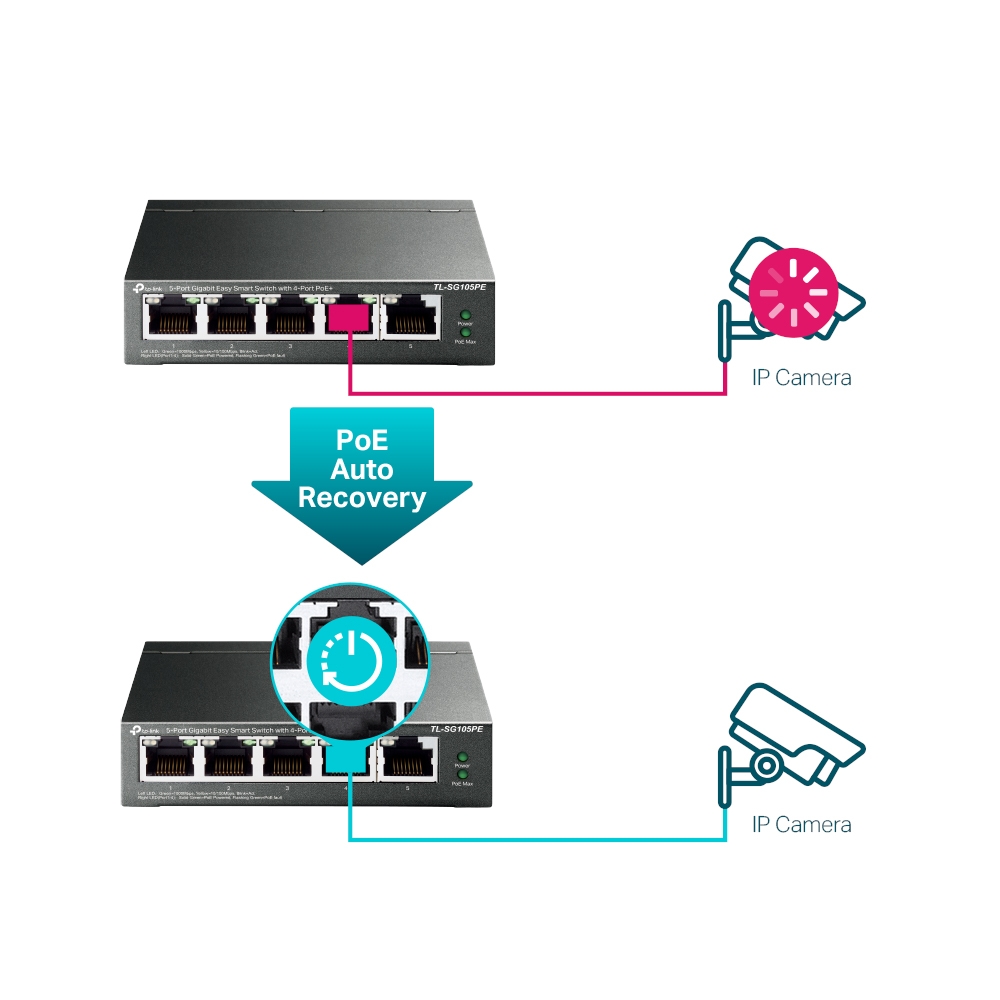

- Enables Network monitoring, transmission prioritization, VLAN and automatic PoE recovery

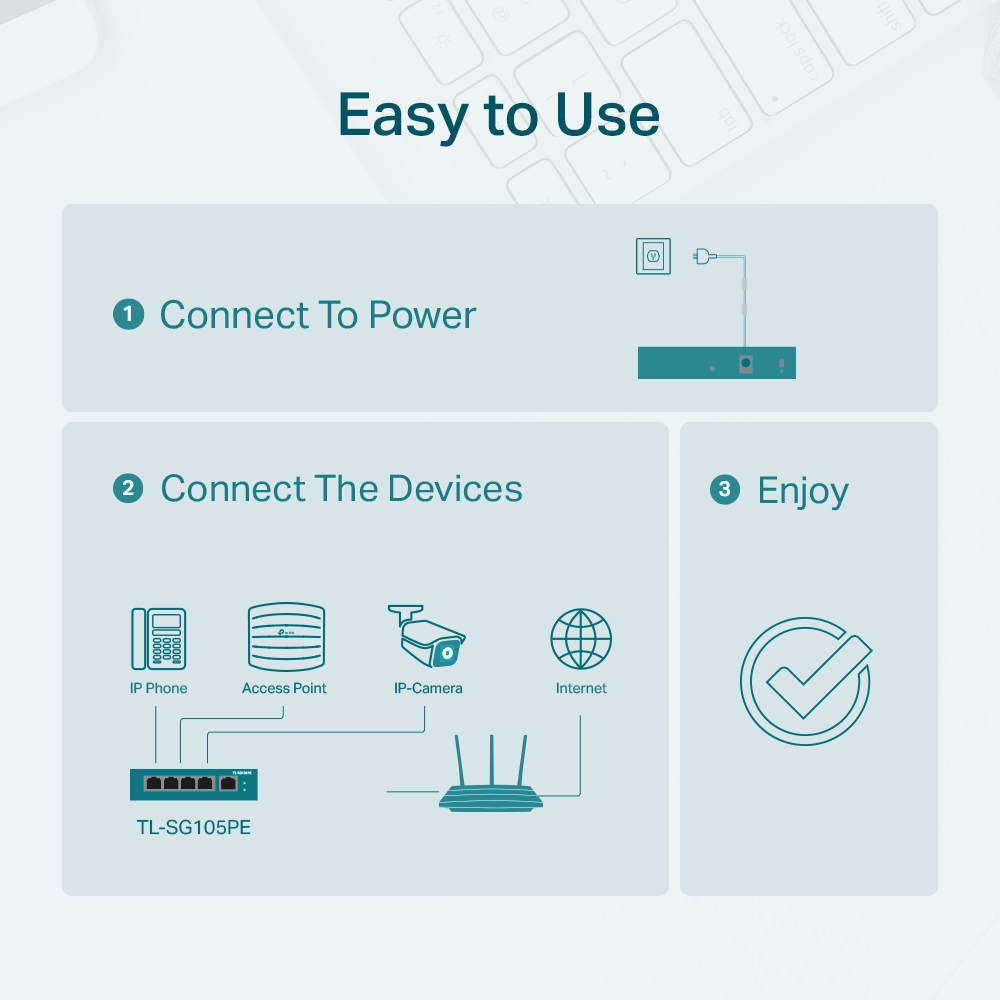

- Simple network setup and plug and play
- A web interface and the simple Easy Smart Configuration utility simplify configuration
- Fanless design reduces power consumption and enables noiseless operation
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C
- Switch type: Access
- Switching capacity: 10 GBit/s (Gbps )
- Total number of copper ports: 5
- Total number of PoE ports: 4
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 65 W
- Number PoE+ (af/at) ports: 4
- Number of RJ45 ports (1G): 5
- Switch manageable: Yes
- Mounting type: desktop, wall
- IGMP
- Power supply: external
- Color: Black
- Height: 25 mm
- Length/Depth: 98 mm
- Width: 99.8 mm
- TP-Link TL-SG105PE 5-Port Gigabit Switch
- Power supply
- Rubber feet
- Installation instructions
Product type
Specifications
Connections
Functions
Power supply
Basic properties
Scope of delivery
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Number of queues | 4 |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Rack mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 256.3 BTU/h |
| Packaging content | |
| User guide | |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 770 g |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power | |
| Power source | DC |
| Input current | 1.31 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 75.16 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
Questions & answers
What is the delivery time of TP-LINK Switch TL-SG105PE 5xGBit 4xPoE+ Unmanaged/Easy Smart Metallgehäuse?
The article TP-LINK Switch TL-SG105PE 5xGBit 4xPoE+ Unmanaged/Easy Smart Metallgehäuse is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SG105PE to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK Switch TL-SG105PE 5xGBit 4xPoE+ Unmanaged/Easy Smart Metallgehäuse always at the best possible price. We can give you a discount of 2% on TP-LINK Switch TL-SG105PE 5xGBit 4xPoE+ Unmanaged/Easy Smart Metallgehäuse if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of TP-LINK Switch TL-SG105PE 5xGBit 4xPoE+ Unmanaged/Easy Smart Metallgehäuse we can offer you a price of 54,77 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
