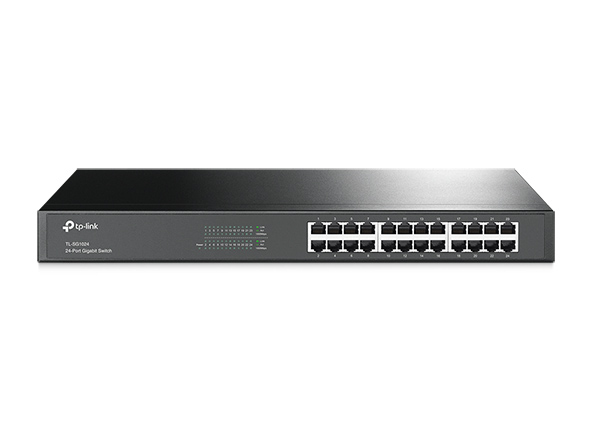

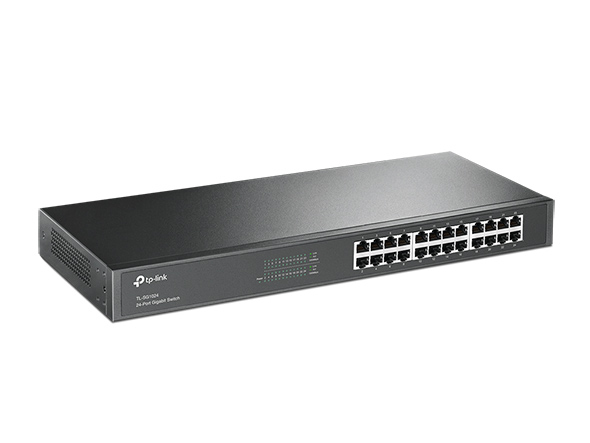

TP-LINK TL-SG1024 24 Ports Ethernet Switch - 24 x Network (RJ-45) Ports - 10/100/1000Base-T
|
-16% 74,16 EUR 88,35 EUR |
|
|
( 88,25 EUR incl. VAT ) ≈ £63.04 | ≈ $83.28 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 14. Sep 2026 |
|---|---|
| Lieske Part No.: | 682587 |
| Mfg Part No: | TL-SG1024 |
| UPC/EAN: | 6935364020101 |
| Weight: | 3 kg |
Further up to 24 ports from TP-LinkFurther products in category up to 24 ports
All products of TP-Link
Product information for TP-Link TL-SG1024:
Der 24-Port-Gigabit-Rackmount-Switch TL-SG1024 bietet eine einfache Möglichkeit, den Übergang zum Gigabit-Ethernet zu wagen. Alle 24 Ports unterstützen Auto-MDI/MDIX. Es ist nicht nötig, sich über den Kabeltyp Gedanken zu machen, einfach anschließen und einschalten. Darüber hinaus sparen Sie mit der innovativen, energieeffizienten Technik des TL-SG1024 bis zu 40% Strom ein, womit dies auch eine umweltfreundliche Lösung für Ihr Geschäftsnetz ist.
Highlights
- 24 10/100/1000Mbps-RJ45-Ports
- Innovative energieeffiziente Green IT, spart bis zu 40% Energie
- Unterstützt Auto-Learning von MAC-Adressen und Auto-MDI/MDIX
- Standard 19-Zoll-Rack-montierbares Stahlgehäuse
- 24 Ports Cu 10/100/1000
- 48,3 cm ( 19 inch ) Montage
- Lüfterlos
- 19-Zoll Rackmontage
- Tischmontage
- Color: Black
- Höhe: 44 mm
- Breite: 440 mm
- Tiefe: 180 mm
- Produkttyp: Switch
- 24-Port-Gigabit-Desktop Switch
- Stromversorgungskabel
- Operating instructions
Switch
Basic Properties
Delivery
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames | 10000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 46.44 BTU/h |
| Other features | |
| Connectivity technology | Wired |
| Bandwidth | 48 Gbit/s |
| Connectivity LEDs | Y |
| Dimensions (W x D x H) (imperial) | 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7") |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Rack mount kit | |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.13 kg |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 13.62 W |
| Power supply included | |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-LINK TL-SG1024 24 Ports Ethernet Switch - 24 x Network (RJ-45) Ports - 10/100/1000Base-T?
The article TP-LINK TL-SG1024 24 Ports Ethernet Switch - 24 x Network (RJ-45) Ports - 10/100/1000Base-T is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SG1024 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK TL-SG1024 24 Ports Ethernet Switch - 24 x Network (RJ-45) Ports - 10/100/1000Base-T always at the best possible price. We can give you a discount of 2% on TP-LINK TL-SG1024 24 Ports Ethernet Switch - 24 x Network (RJ-45) Ports - 10/100/1000Base-T if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
