TP-LINK Switch TL-SG1016PE 16xGBit 48,3 cm ( 19 inch ) (8x PoE+ / 110W)
|
189,05 EUR |
|
|
( 224,97 EUR incl. VAT ) ≈ £160.31 | ≈ $211.93 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 22. Jan 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 413181 |
| Mfg Part No: | TL-SG1016PE |
| UPC/EAN: | 6935364098865 |
| Weight: | 2.603 kg |
| Type: | CPNT |
Further Miscellaneous from TP-LinkFurther products in category Miscellaneous
All products of TP-Link
Product information for TP-Link TL-SG1016PE:

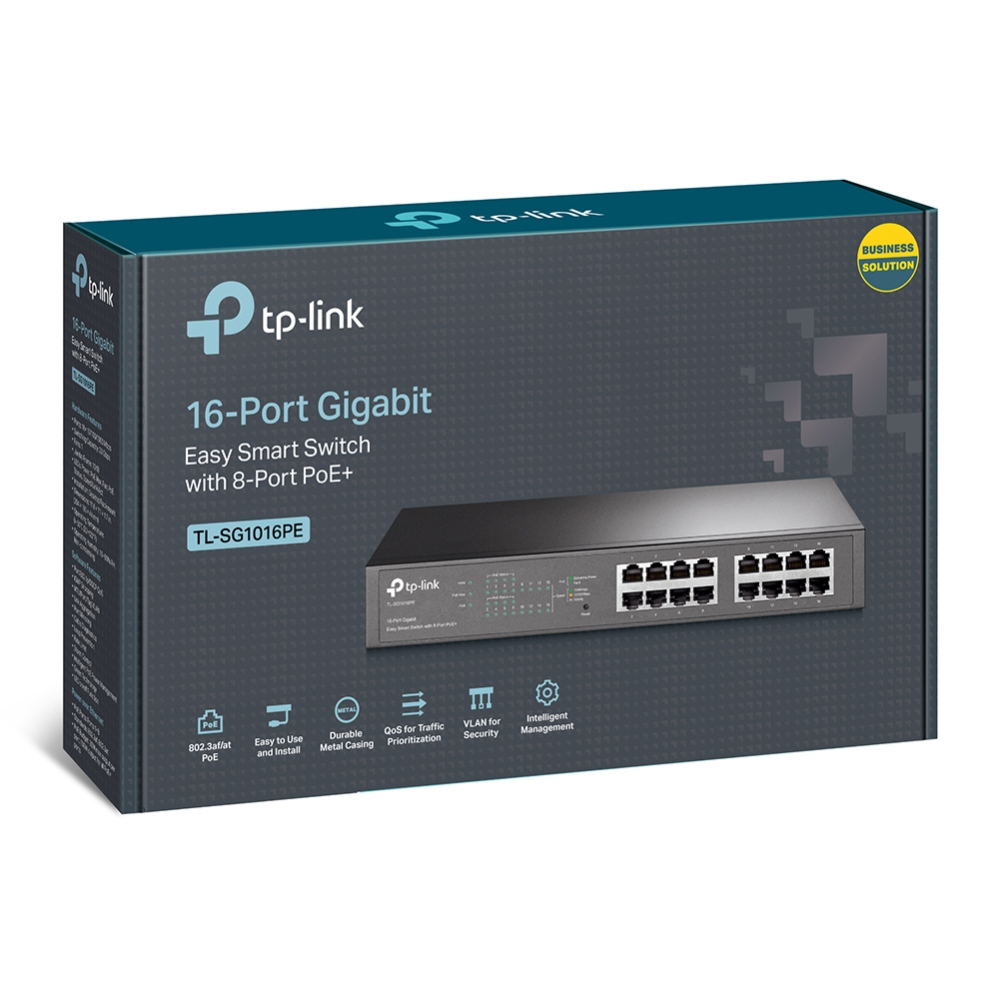

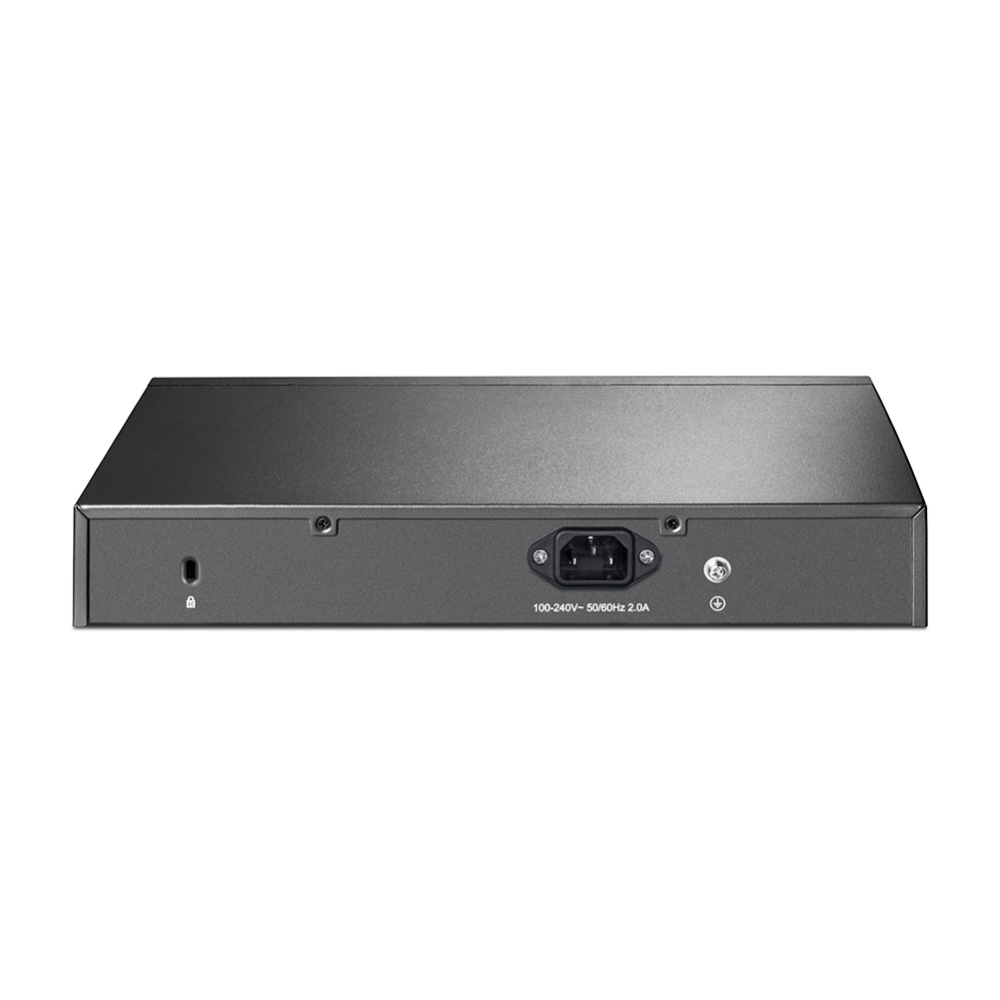

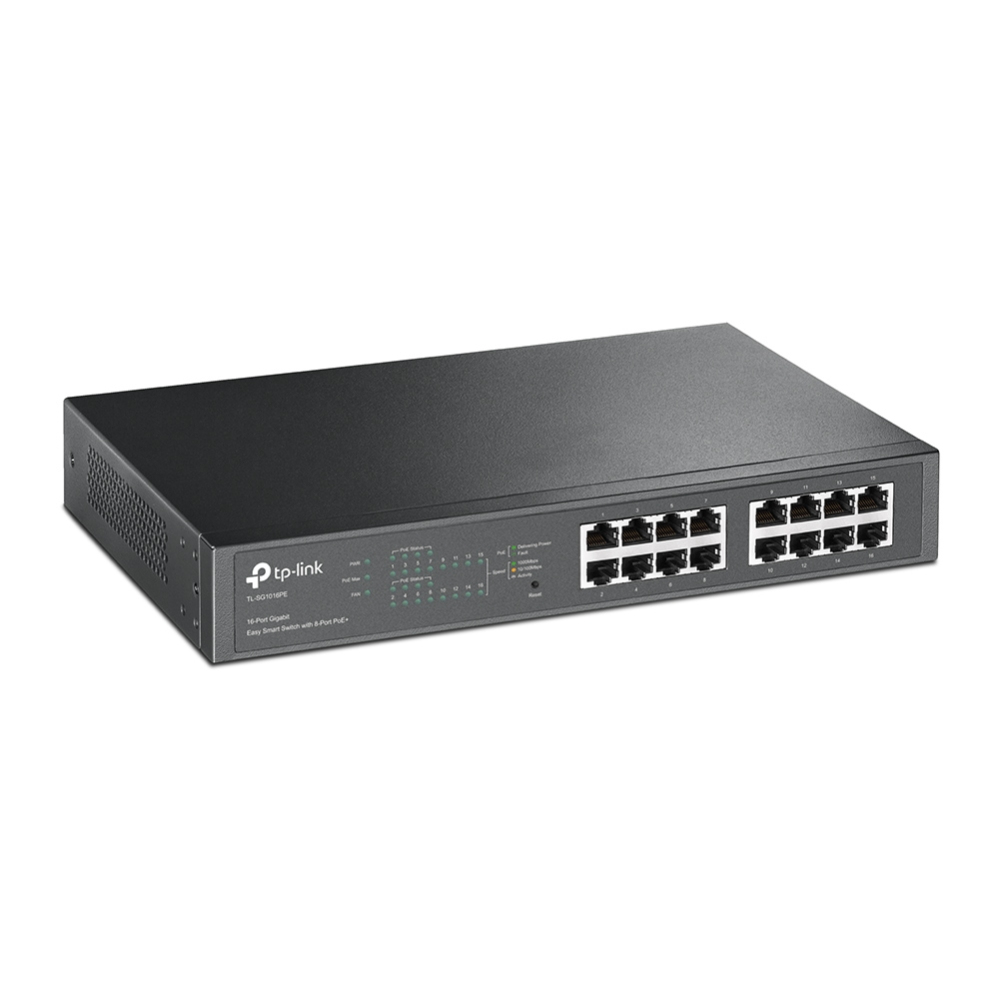

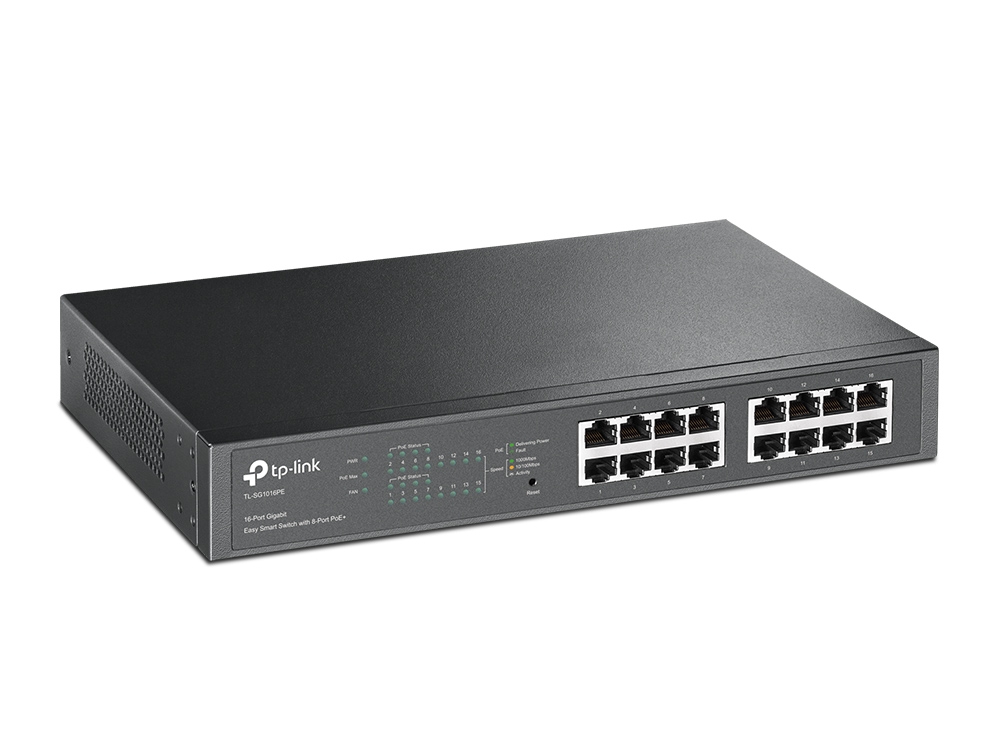

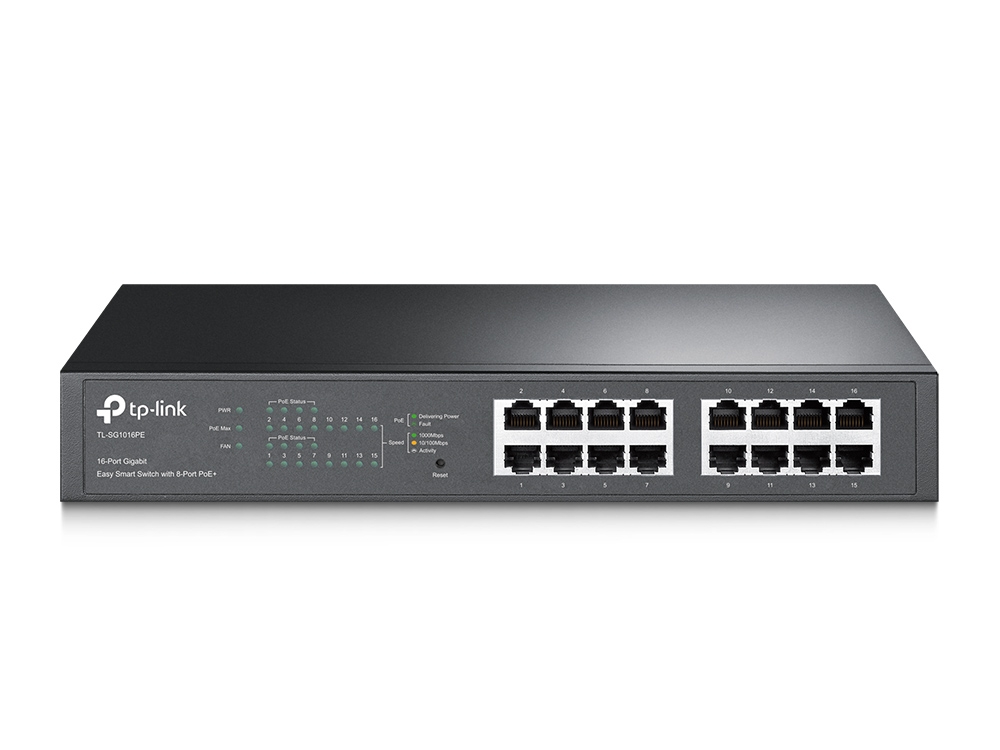

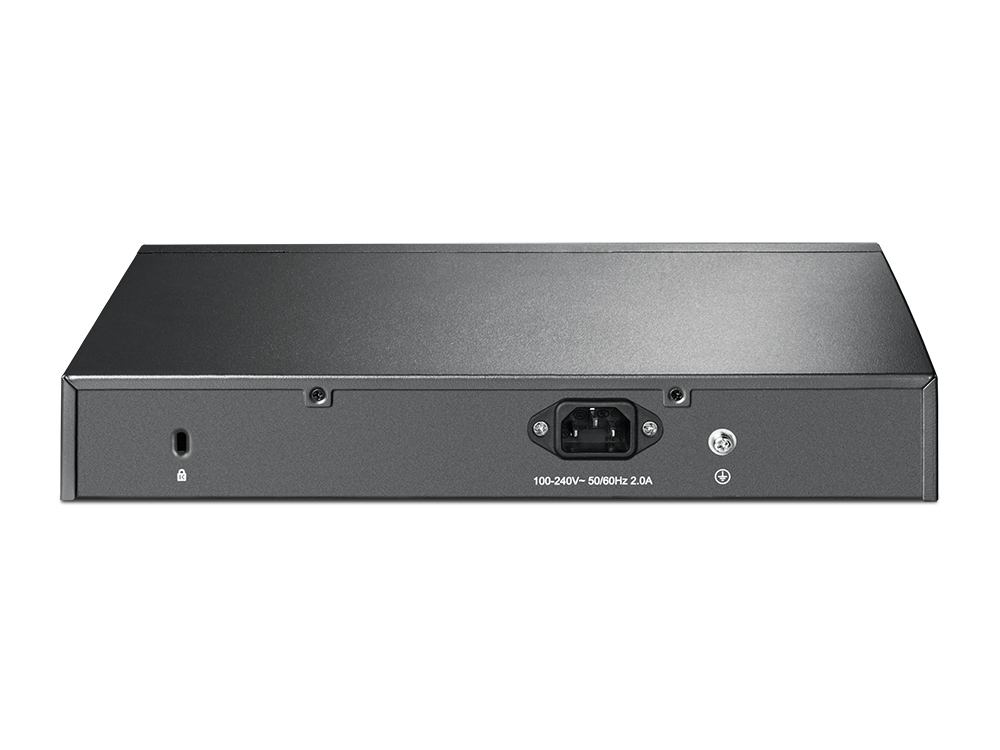

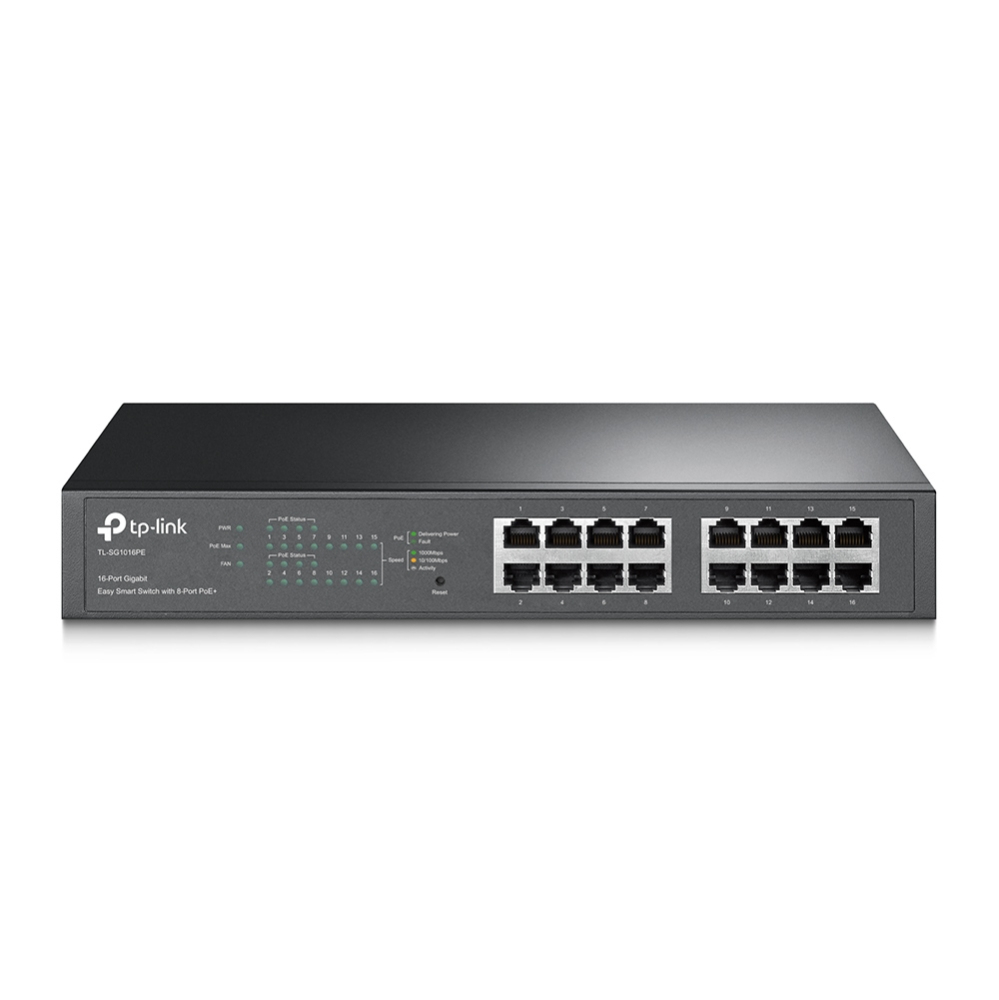

The TL-SG1016PE is a 16-port Gigabit desktop/rack switch with 8 PoE+ ports. It offers an easy way to expand your network and delivers data and power over a single Ethernet cable. With a total PoE power of 124W (up to 30W per port), the TL-SG1016PE is able to power devices with high power consumption (such as access points, IP cameras and IP phones). It also supports innovative energy saving mechanisms, so that the TL-SG1016PE saves up to 75% energy and is also an environmentally friendly solution.
Highlights
- 16 10/100/1000Mbit/s RJ45 ports
- 8 PoE+ ports that can transmit data and power over a single cable
- Powers IEEE802.3af/at compatible devices
- Easy setup, plug and play
- Configurable via web interface
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Switch type: Access
- Total number of copper ports: 16
- Bandwidth: 10/100/1000 MBit/s
- PoE budget: 110 W
- Main port type: Copper
- Mounting type: Desktop, 48,3 cm ( 19 inch ) rack mount
- Color: Black
- Height: 44 mm
- Length / Depth: 180 mm
- Width: 294 mm
- TL-SG1016PE
- Power cable
- Installation instructions
- CD
- Rack mounting kit
- Rubber feet
Product type
Specifications
Connections
Functions
Basic features
Scope of delivery
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Throughput | 23.8 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 10000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 124.4 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Static port security | |
| Loop protection | |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
