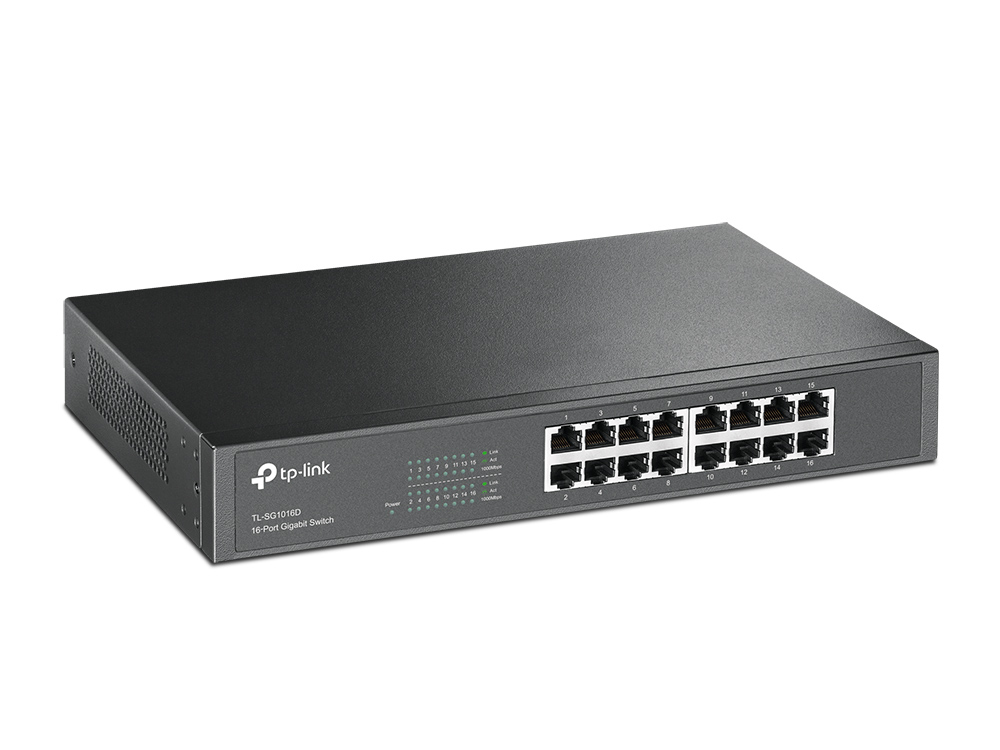

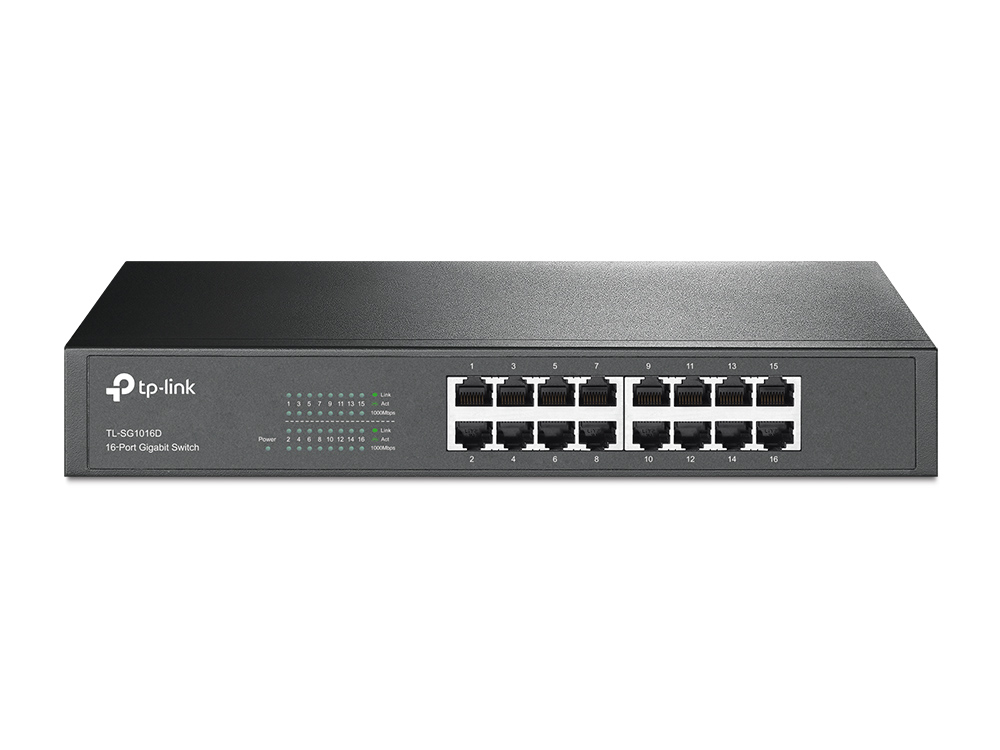

TP LINK TP-Link TL-SG1016D Switch Unmanaged Gigabit Rackmount with 16 x 10/100/1000Mbps Ports content_copy

The 16-Port Gigabit Switch TL-SG1016D simplify your migration to Gigabit Ethernet. By all 16 ports support auto MDI, you do not have to care about the cable type. In addition, you can use the efficient energy-saving technology to save up to 40% energy. Equipped with 16 10/100/1000Mbps-Ports, allows the TL-SG1016D a simple extension of your network, so that the rapid transfer of large data is possible. Ideal for small offices or work groups in which large amounts of data to be exchanged. When upgrading to gigabit you can now act environmentally conscious. This new generation of 16-port Gigabit switches TL-SG1016D includes new and innovative energy saving measures. This allows you to expand your network while saving energy by lowering power consumption is automatically adjusted to your network usage and the cable length. Ports that are running not sent or received, are automatically turned off. Thanks auto-MDI/MDIX You no longer need to distinguish between patch and crossover cables. Auto-Negotiation on each port automatically adjusts the connection speed according to your network device (10/100/1000Mbps) to ensure an optimal connection.

Technical details
Source data-sheet	Icecat.biz
Stackable	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
DC-in jack	Yes
Gigabit Ethernet (copper) ports quantity	16
Other features
Bandwidth	32 Gbit/s
Connectivity LEDs	Yes
Connectivity technology	Wired
Networking features	Gigabit Ethernet
Power supply type	AC
Dimensions (WxDxH)	294 x 180 x 44 mm
Power requirements	100 - 240V, 50/60Hz
Networking
Flow control support	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes
Full duplex	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 90 %
Operating temperature (T-T)	32 - 104
Data transmission
Jumbo frames support	Yes
MAC address table	8000 entries
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10/100 Mbps
Management features
Switch type	Unmanaged
Protocols
Supported network protocols	CSMA/CD, TCP/IP
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No

---
