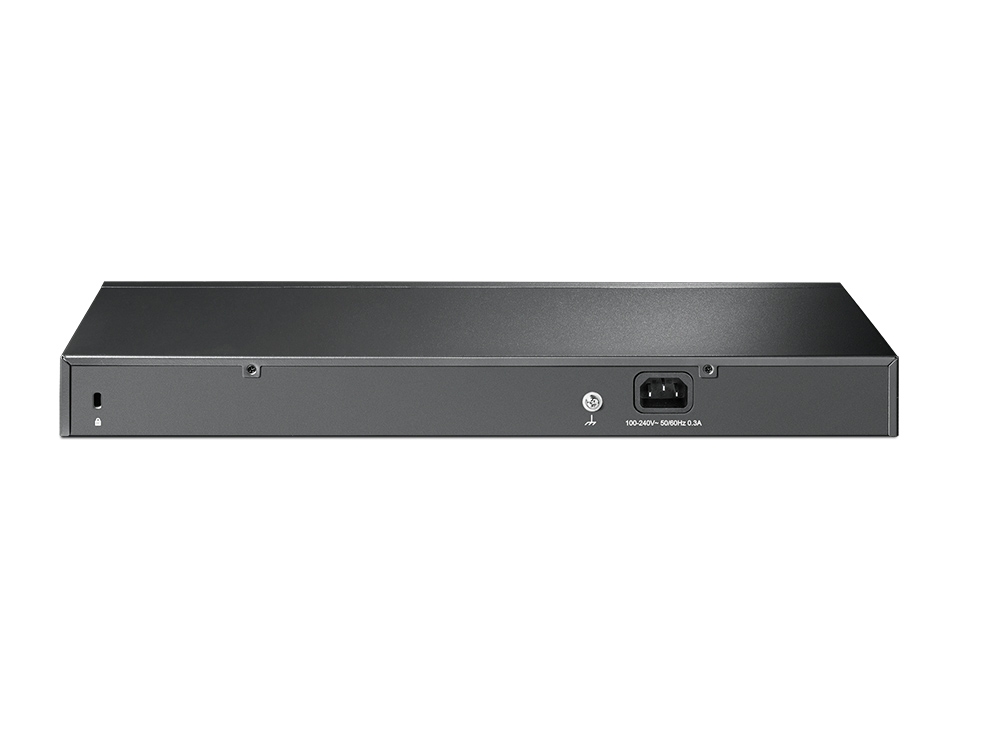

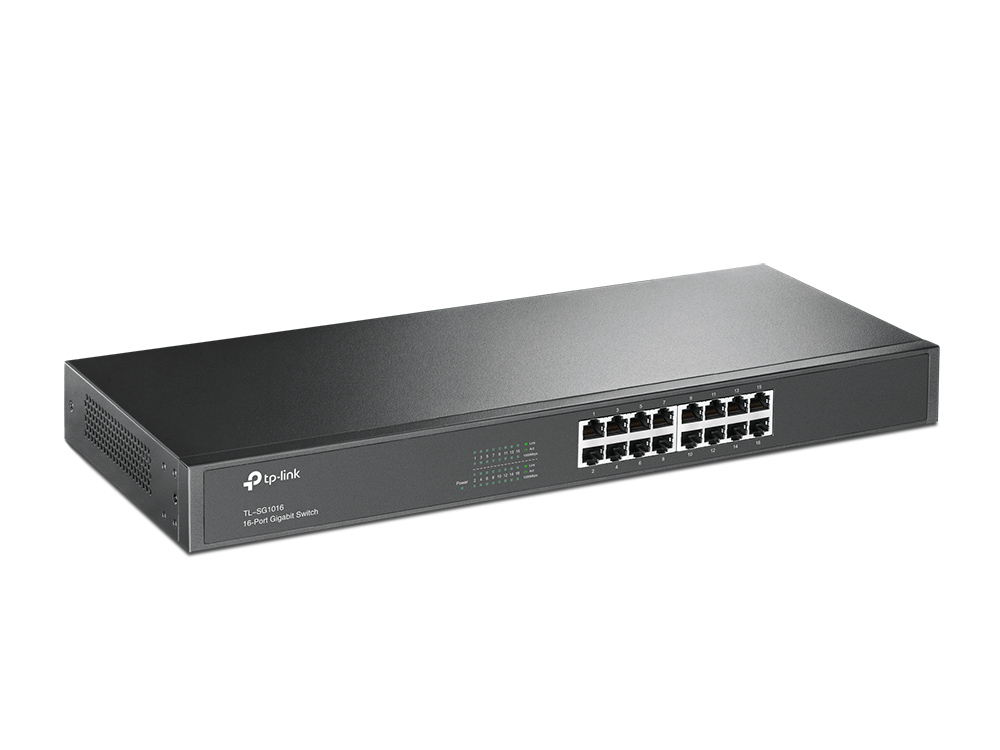

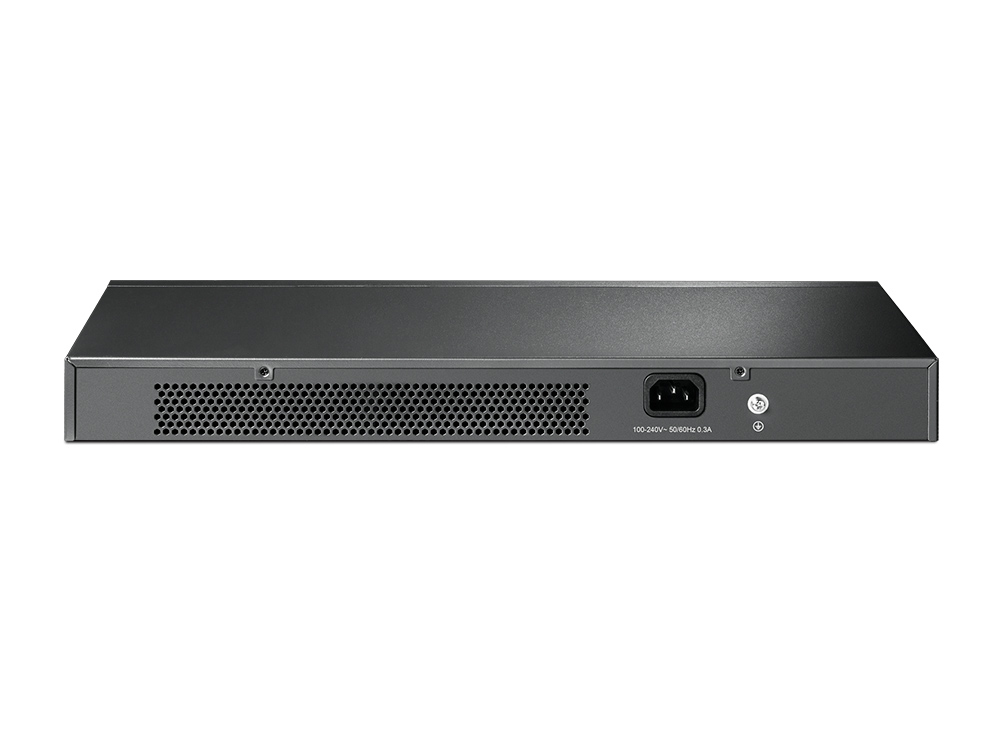

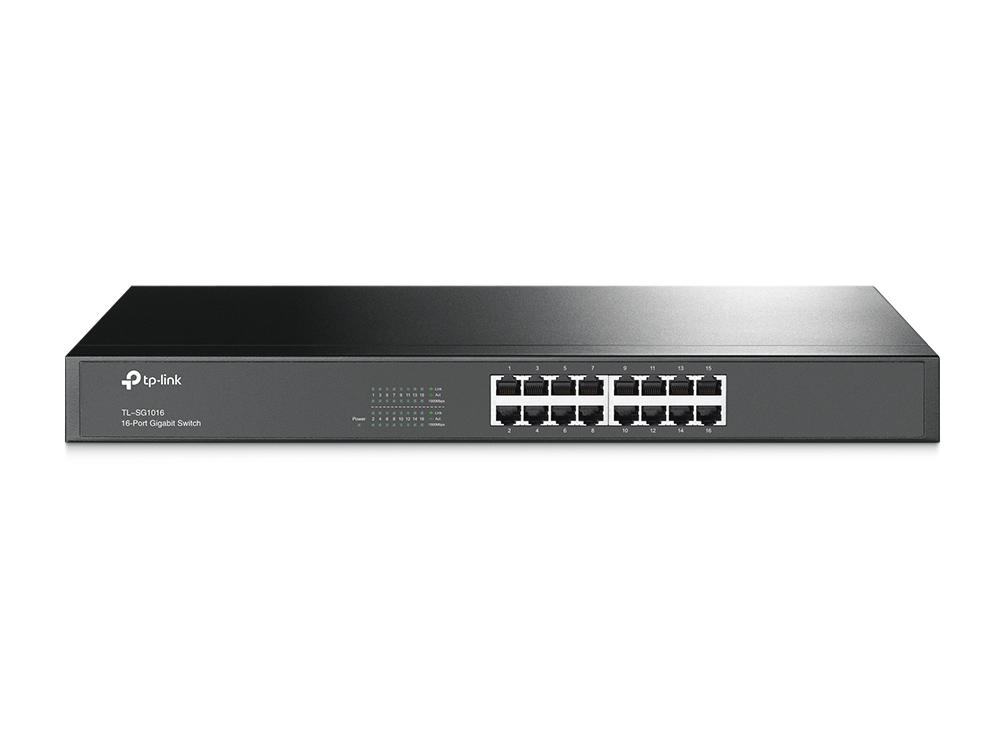

TP-LINK TL-SG1016 16 Ports Ethernet Switch - 16 x Network (RJ-45) Ports - 10/100/1000Base-T
|
-19% 58,94 EUR 72,40 EUR |
|
|
( 70,14 EUR incl. VAT ) ≈ £49.63 | ≈ $66.19 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 682590 |
| Mfg Part No: | TL-SG1016 |
| UPC/EAN: | 6935364020095 |
| Weight: | 2.733 kg |
Further up to 16 ports from TP-LinkFurther products in category up to 16 ports
All products of TP-Link
Product information for TP-Link TL-SG1016:
Der 16-Port-Gigabit-Rackmount-Switch TL-SG1016 bietet eine einfache Möglichkeit, den Übergang zum Gigabit-Ethernet zu wagen. Alle 16 Ports unterstützen Auto-MDI/MDIX. Es ist nicht notwendig, sich über den Kabeltyp Gedanken zu machen, einfach anschließen und einschalten. Darüber hinaus sparen Sie mit der innovativen, energieeffizienten Technik desTL-SG1016 bis zu 15% Strom ein, womit dies auch eine umweltfreundliche Lösung für Ihr Geschäftsnetz ist.
Highlights
- 16 10/100/1000Mbps-RJ45-Ports
- Innovative energieeffiziente Green IT, spart bis zu 40% Energie ein
- Auto-Learning von MAC-Adressen und Auto-MDI/MDIX
- Standard-19-Zoll-Rack-montierbares Stahlgehäuse
- 16 Ports Cu 10/100/1000
- 48,3 cm ( 19 inch ) Montage
- Lüfterlos
- Max. Energieverbrauch 13,3 W (ohne PoE)
- 19-Zoll Rackmontage
- Tischmontage
- Color: Black
- Höhe: 44 mm
- Breite: 440 mm
- Tiefe: 360 mm
- Produkttyp: Switch
- 16-Port-Gigabit-Desktopswitch
- Spannungsadapter
- Operating instructions
Switch
Basic Properties
Delivery
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 35.6 BTU/h |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.04 kg |
| Performance | |
| Compatible operating systems | Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux |
| Maximum cable length | 100 m |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 10.44 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
