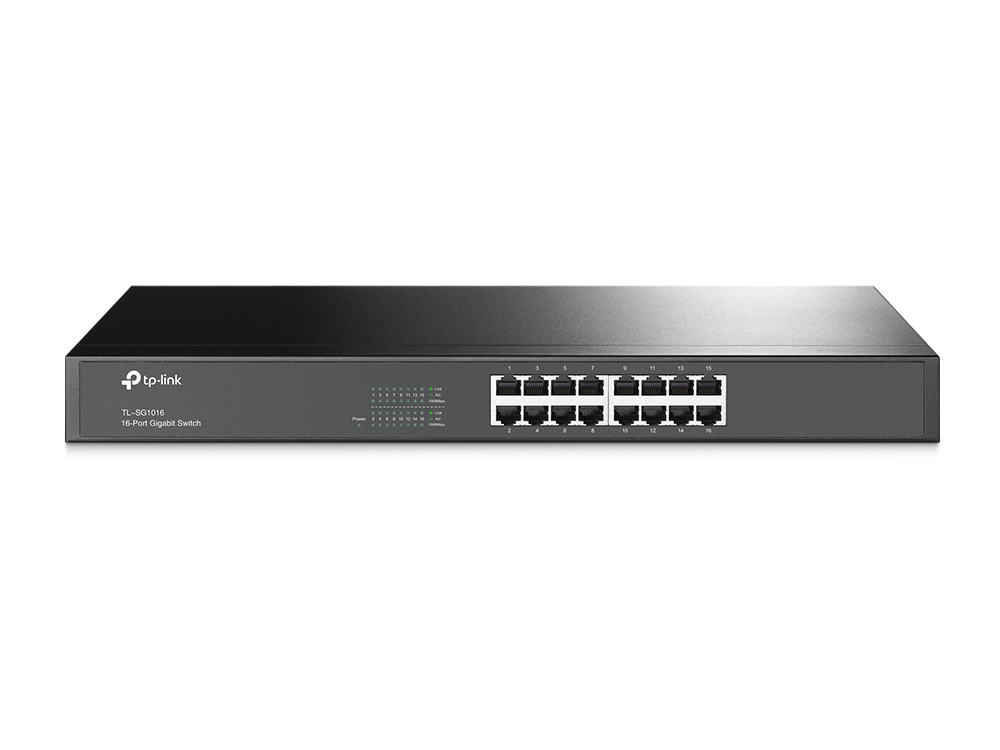

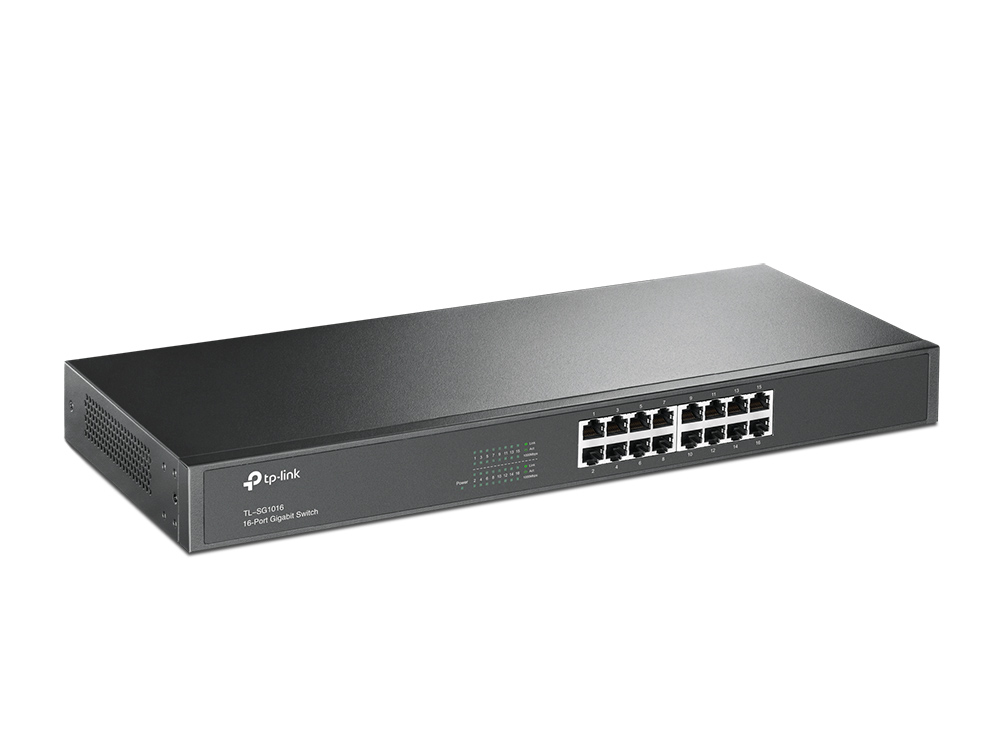

TP-Link TL-SG1016 16-port Gigab. Switch 48,3 cm ( 19 inch )Rack content_copy

The TP-Link TL-SG1016 is an unmanaged Gigabit-Switch with 16 ports, designed for use in Rack-Systems. It enables the expansion of existing networks to Gigabit speed (10/100/1000 Mbit/s) without complex configuration. The switch is suitable for use in office environments, small businesses, or as an extension in existing networks where high data transfer rates and simple installation are required.

Applications
The TL-SG1016 is suitable for networks requiring high bandwidth for data transfer, for example, when transferring large files, video surveillance, or in environments with many simultaneous users. The 16 RJ-45-ports support Gigabit-Ethernet and are compatible with older 10/100-Mbit/s devices, enabling gradual modernization of the network. Due to its rack-mountable design in 1U format, it is ideal for server rooms or IT infrastructures in 19-inch racks.

Functions and Equipment in Detail
The switch features Auto-MDI/MDI-X, eliminating the need for special crossover cables — a standard UTP cable is sufficient. The Auto-Negotiation function automatically detects available speed (10, 100, or 1000 Mbit/s) and adapts to connected devices. The Store-and-Forward technology ensures reliable data transmission by fully receiving and checking packets before forwarding them. The MAC address table with 8000 entries enables efficient management of connected devices.

Technology Explained Simply
The switch operates with a switching capacity of 32 Gbit/s and a transfer rate of 23.8 Mpps, ensuring high throughput for data exchange between connected devices. Support for Jumbo-Frames up to 10000 bytes improves efficiency when transferring large data volumes, for example, during file transfers or backup operations. The data flow control (IEEE 802.3x) supports full-duplex mode and backpressure in half-duplex mode to prevent traffic overload. Port mirroring allows monitoring of data traffic on a specific port, which is useful for network diagnostics.

Compatibility and Accessories
The switch is compatible with Cat3, Cat4, Cat5, and Cat5e cables. Supported network standards include IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x. VLAN support and QoS (Quality of Service) enable prioritization of data traffic, with QoS available only from specific firmware versions (V11 and higher). The IGMP Snooping function optimizes multicast traffic, and DHCP Snooping along with access control lists enhance network security. The access control list (ACL) and password protection provide additional security mechanisms.

Mounting and Installation

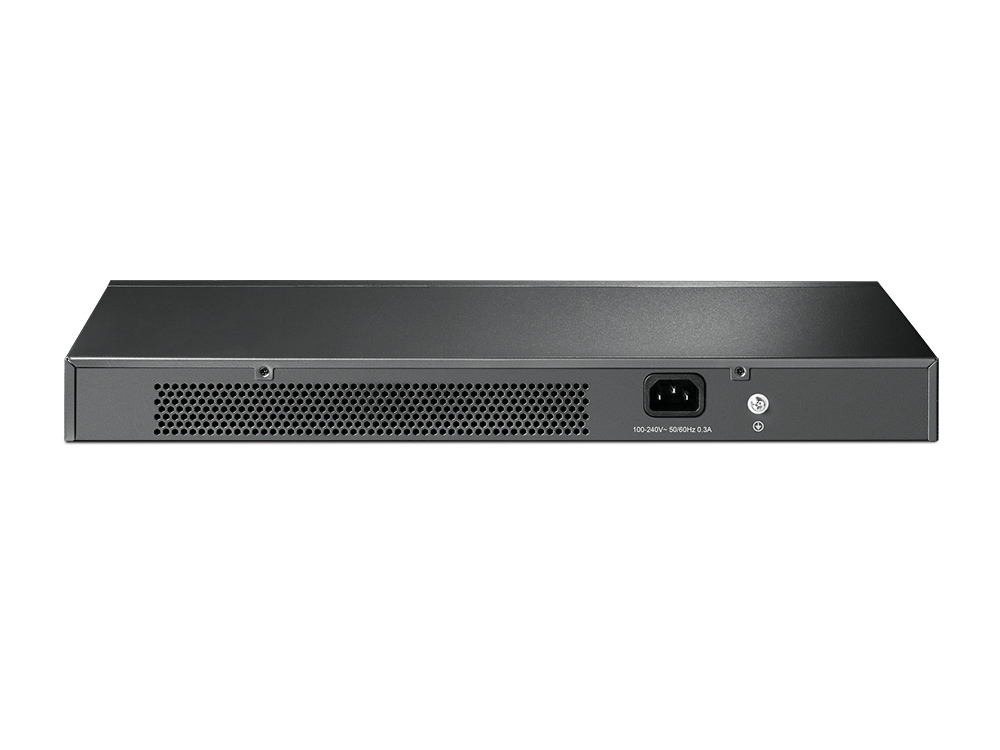

The TL-SG1016 is fanless and therefore operates quietly. It is mounted in a 1U rack and includes an integrated rack mounting kit to simplify installation. Power supply is via 100–240 V AC at a frequency of 50–60 Hz. The package includes an AC power cable. LED indicators for activity, link, and power allow visual monitoring of operational status.

Advantages in Operation
The switch features energy-efficient technology that adjusts power consumption based on connection status and cable length. Maximum power consumption is 10.44 W, with 9.26 W consumed in standard operation. Operating temperature ranges from 0 to 40 °C, and storage temperature from -40 to 70 °C. Relative humidity during operation is 10–90 %, and during storage 5–90 %. Heat dissipation is 35.6 BTU/h. Certifications FCC, CE, and RoHS confirm compliance with applicable standards.

Certificates
Certification	FCC, CE, RoHS
Data transmission
Switching capacity	32 Gbit/s
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames	10000
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power
Rack mounting
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Quality of Service (QoS) support
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Port mirroring
Full duplex
IP routing
Policy-based routing
Flow control support
Auto MDI/MDI-X
Head-of-line (HOL) blocking
Auto-negotiation
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	35.6 BTU/h
Packaging content
Cables included	AC
Rack mount kit
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9.26 W
Power consumption (max)	10.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
DHCP features	DHCP client, DHCP server, DHCP snooping
Security algorithms	802.1x RADIUS
Access Control List (ACL)
IGMP snooping
Password protection
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
