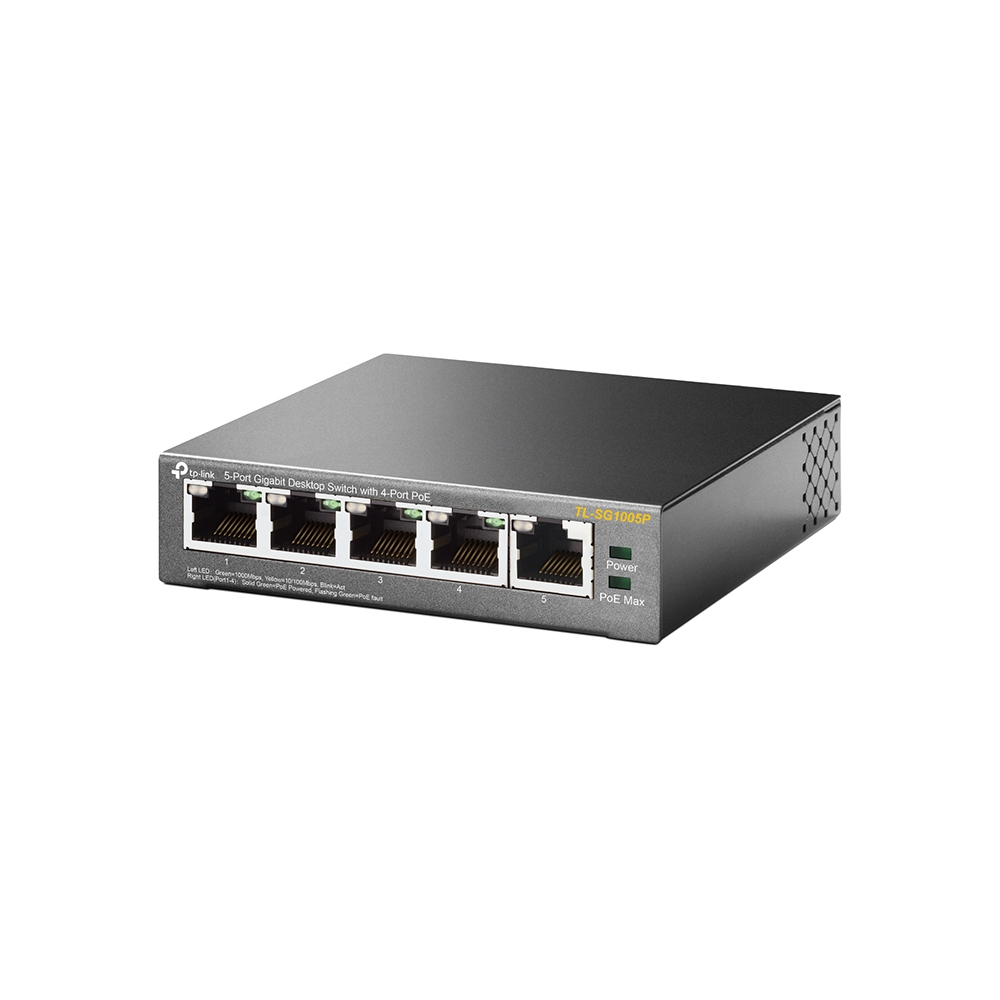

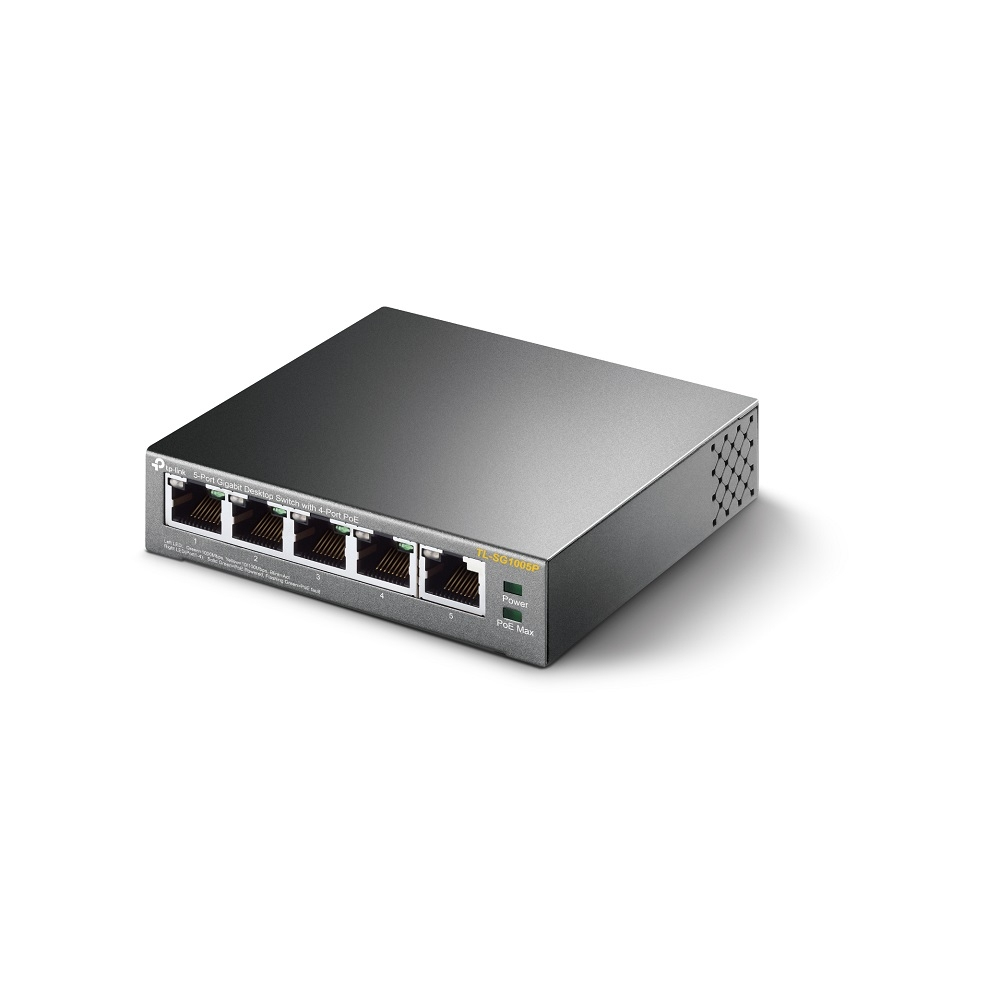

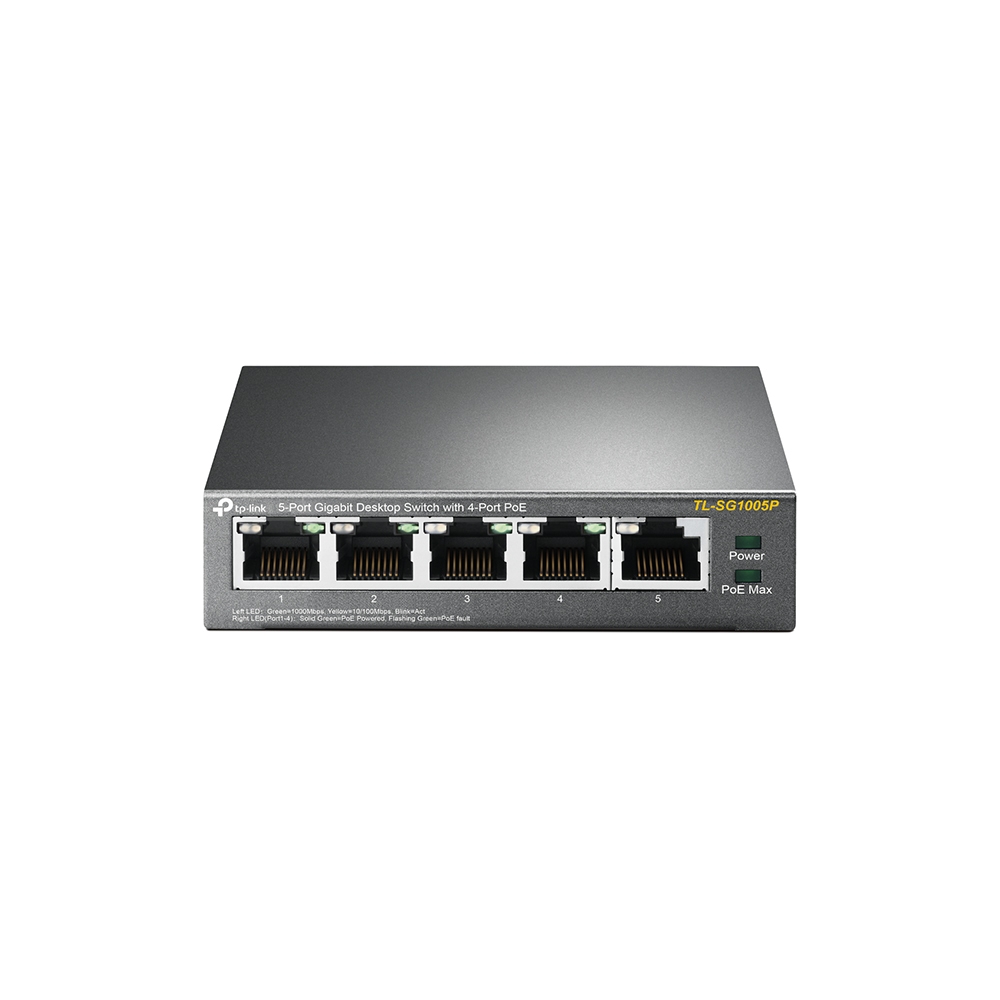

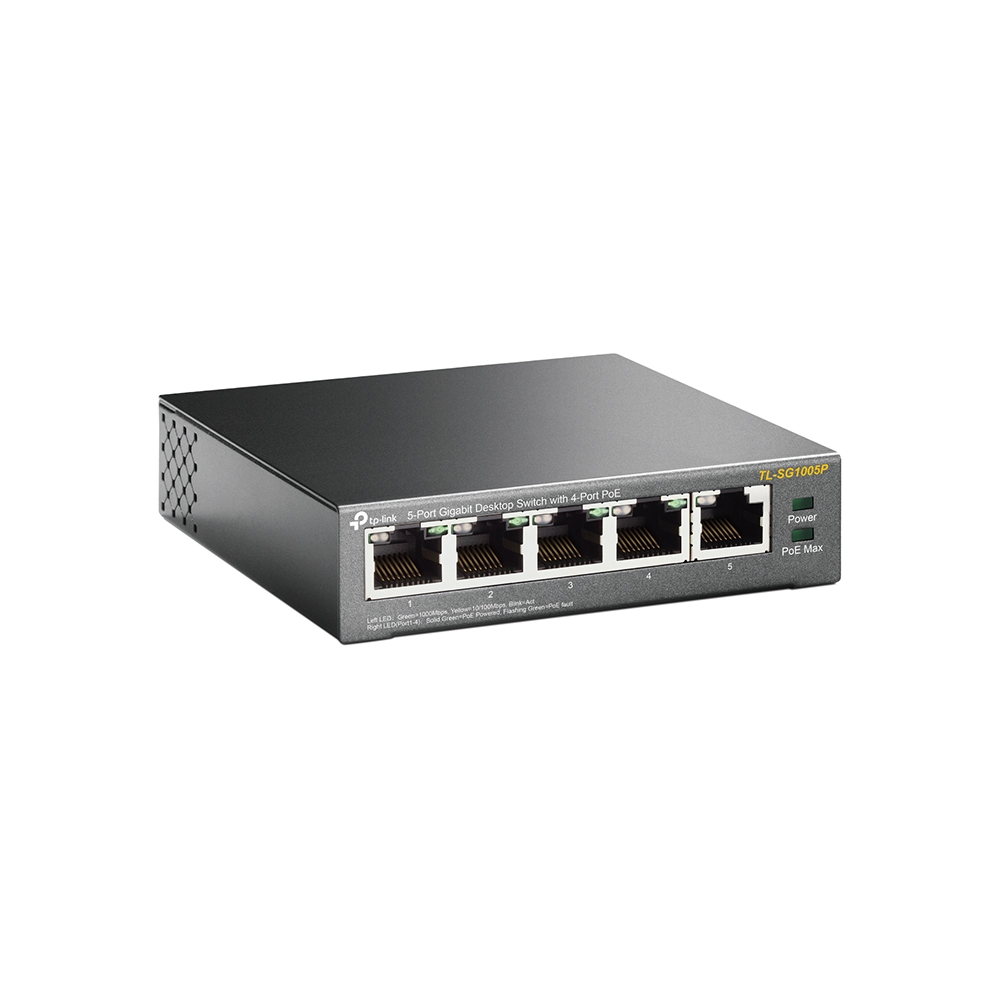

TP-LINK Switch TL-SG1005P 5xGBit (4xPoE / 65W) Unmanaged content_copy

The TL-SG1005P includes five 10/100/1000 Mbps ports, four of which are PoE, and requires no configuration or software installation. The device automatically detects and powers connected PoE devices. Both data transfer and power supply are guaranteed via a single cable. This makes network expansion significantly easier.

Highlights

• Desktop PoE switch with five 10/100/1000 Mbit/s RJ45 ports
• Four PoE ports
• Thanks to PoE: data transfer and power supply only via one cable
• Powers IEEE 802.3af devices and expands your existing network at home or in the office
• Supports PoE with up to 15.4 W per PoE port
• Total PoE power of 56 W
• 802.1p/DSCP-QoS enables smooth data traffic
• No configuration or installation necessary

Product type

• Switch
• ear category (ElektroG ): relevant, Category 6: small devices in IT and telecommunications technology, small devices in IT and telecommunications technology B2C

Specifications

• Switch type: Access

Connections

• Total number of copper ports: 5
• Total number of PoE ports: 4
• Bandwidth: 10/100/1000 MBit/s
• PoE budget: 56 W
• Main port type: Copper

Features

• Mounting type: Desktop, 48,3 cm ( 19 inch ) rack mount

Basic features

• Color: Black
• Height: 25 mm
• Length/Depth: 98 mm
• Width: 99.8 mm

Scope of delivery

• TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch
• Voltage adapter
• Manual

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, CE, RoHS
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
MAC address table	2000 entries
Store-and-forward
Design
Product colour	Black
Rack mounting
Stackable
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Quality of Service (QoS) support
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
10G support
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	219.87 BTU/h
Packaging content
Cables included	AC
Quick start guide
User guide
Manual
Packaging data
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	761 g
AC adapter included
Performance
Maximum cable length	100 m
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power
Power source	DC/PoE
AC input voltage	100 - 220 V
AC input frequency	50 Hz
DC input voltage	48 V
Input current	1.25 A
Power consumption (max)	64.44 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	56 W
Power over Ethernet (PoE)
Security
IGMP snooping
Sustainability
Sustainability compliance
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm

---
