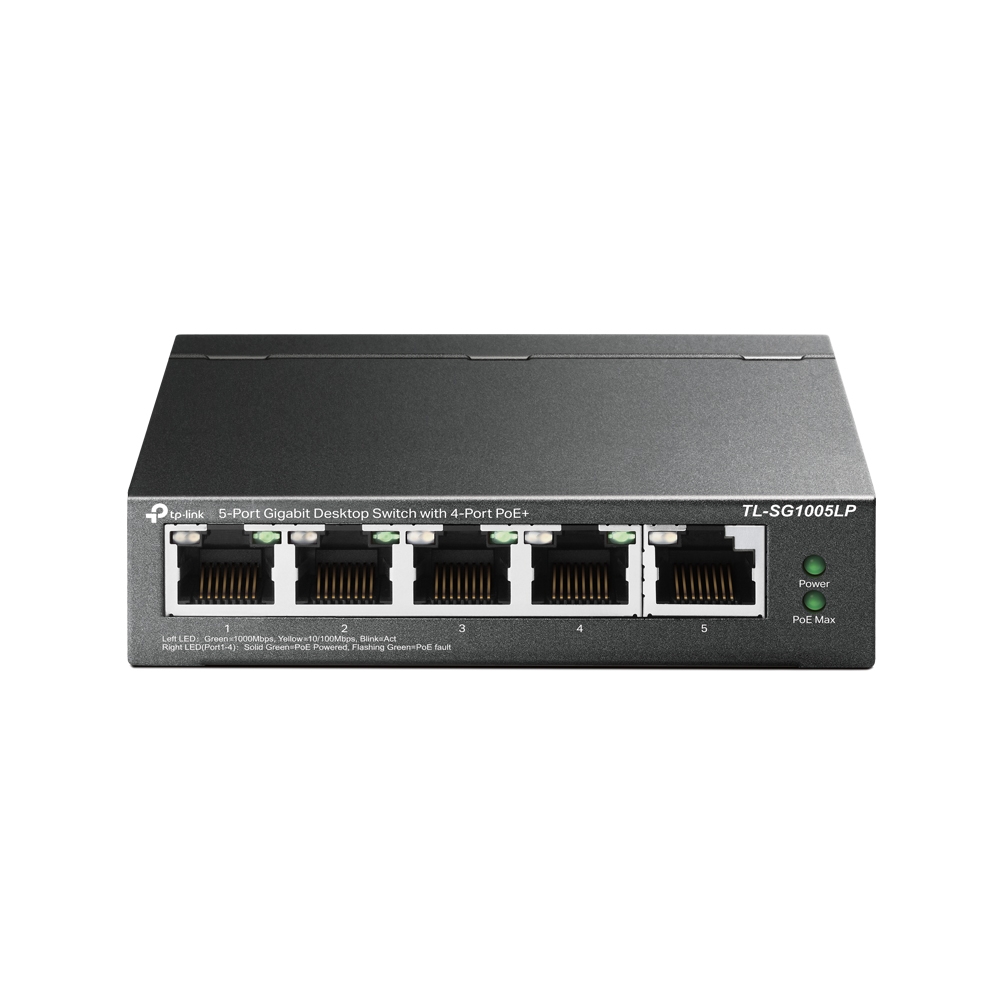

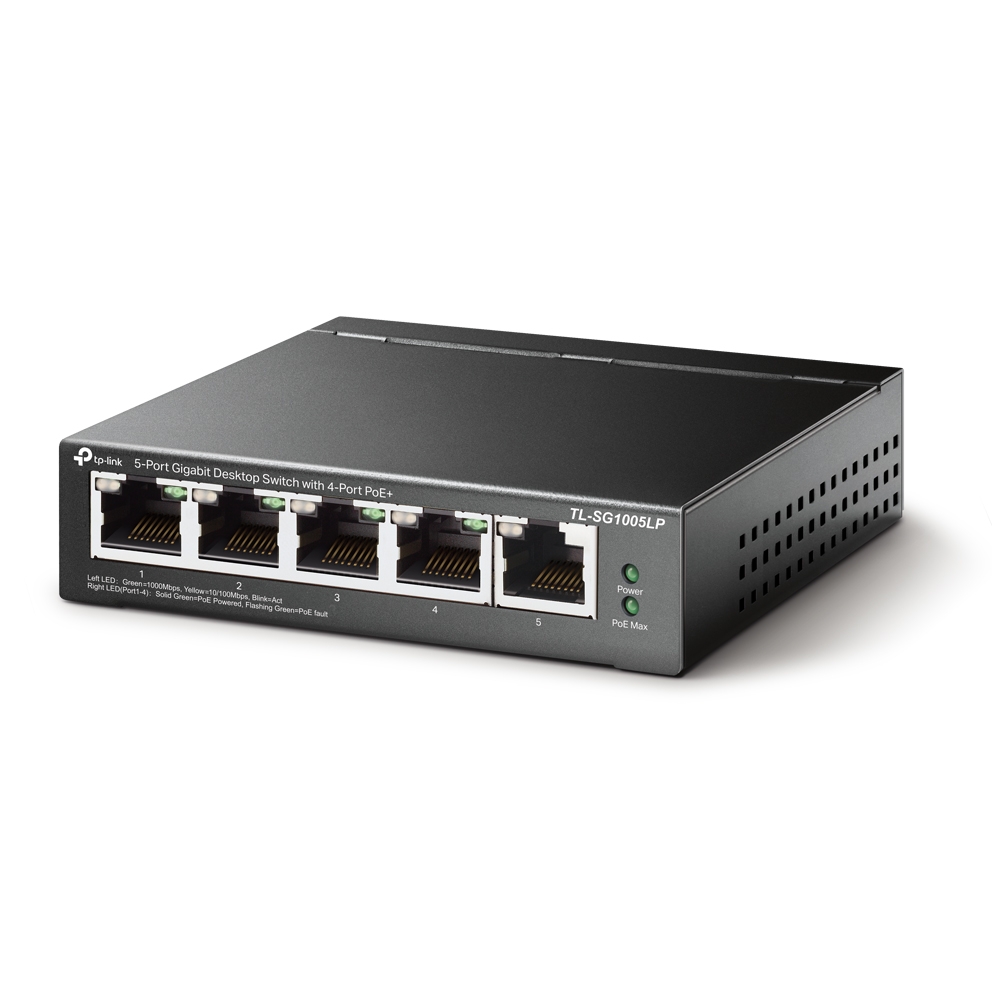

TP-Link Switch 5x GE TL-SG1005LP (including 4xPOE+)
|
42,65 EUR |
|||||||||||
|
( 50,75 EUR incl. VAT ) ≈ £36.17 | ≈ $47.81 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| End-Of-Life: | 10. Sep 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1606982 | ||||||||||
| Mfg Part No: | TL-SG1005LP | ||||||||||
| UPC/EAN: | 6935364052720 | ||||||||||
| Weight: | 0.75 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for TP-Link TL-SG1005LP:
Highlights
- 5 x 10/100/1000Mbit/s RJ45 ports

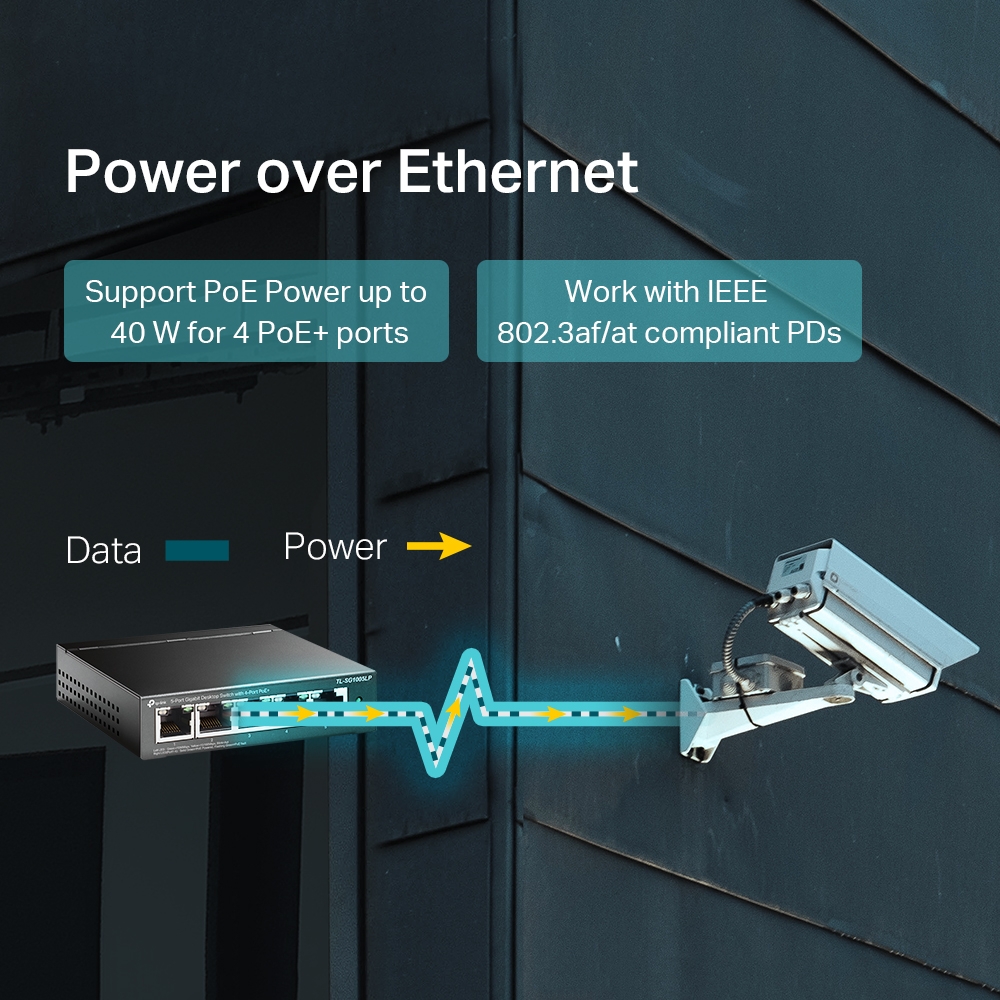

- 4 PoE ports for data transmission and power supply via just one cable
- Works with all IEEE 802.3af/at devices and expands your existing network at home or in the office
- Smooth data transfer thanks to 802.1p/DSCP QoS
- Supports PoE with up to 30 watts per PoE port
- PoE total power of up to 40 watts

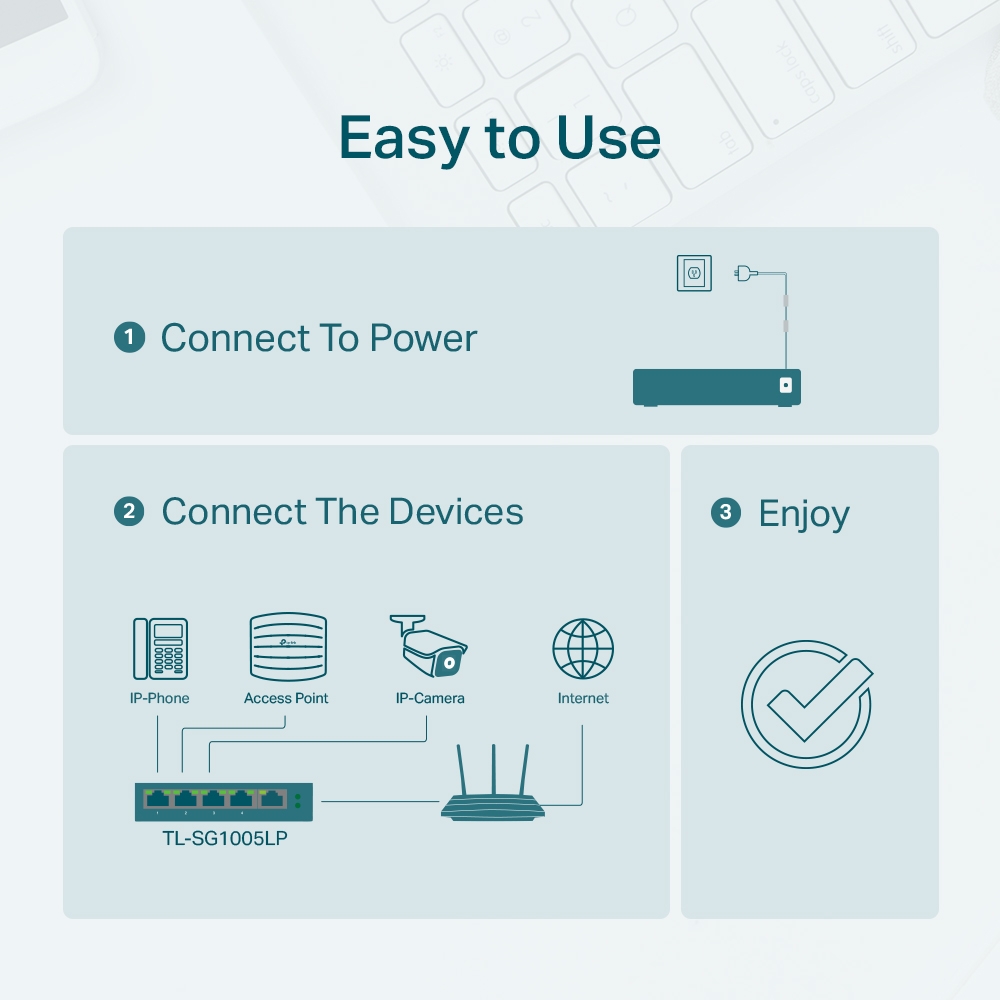

- No configuration or installation necessary
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C
- Switch type: Access
- Total number of copper ports: 5
- Total number of PoE ports: 4
- Bandwidth: 10 /100/1000 MBit/s
- PoE budget: 40 W
- Main port type: Copper
- Mounting type: Desktop, 48,3 cm ( 19 inch ) rack mount
- Color: Black
- Height: 25 mm
- Length/Depth: 98 mm
- Width: 99.8 mm
- TP-Link TL-SG1005PE 5-Port Gigabit Switch
- power supply
- installation instructions
Product type
Specifications
Connections
Features
Basic features
Scope of delivery
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 16000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Wall mountable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| 10G support | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 161.98 BTU/h |
| Packaging content | |
| User guide | |
| Packaging data | |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 730 g |
| Performance | |
| Maximum cable length | 100 m |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power | |
| Power source | DC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 53.5 V |
| Input current | 0.81 A |
| Power consumption (max) | 47.5 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 40 W |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
Questions & answers
What is the delivery time of TP-Link Switch 5x GE TL-SG1005LP (including 4xPOE+)?
The article TP-Link Switch 5x GE TL-SG1005LP (including 4xPOE+) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SG1005LP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link Switch 5x GE TL-SG1005LP (including 4xPOE+) always at the best possible price. We can give you a discount of 2% on TP-Link Switch 5x GE TL-SG1005LP (including 4xPOE+) if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of TP-Link Switch 5x GE TL-SG1005LP (including 4xPOE+) we can offer you a price of 41,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
