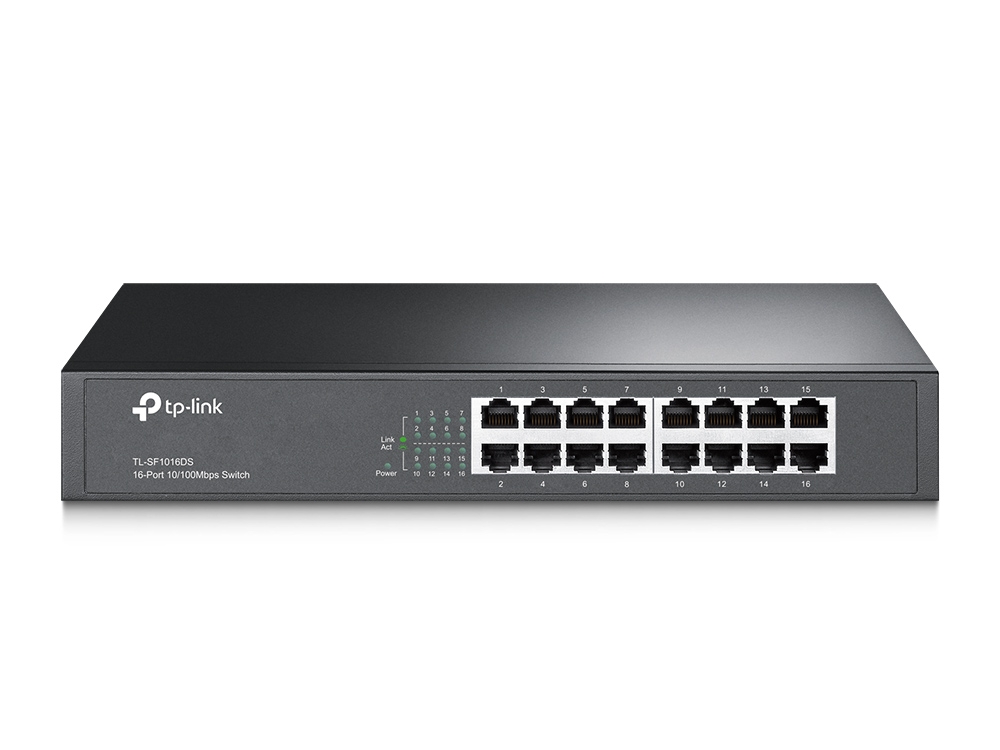

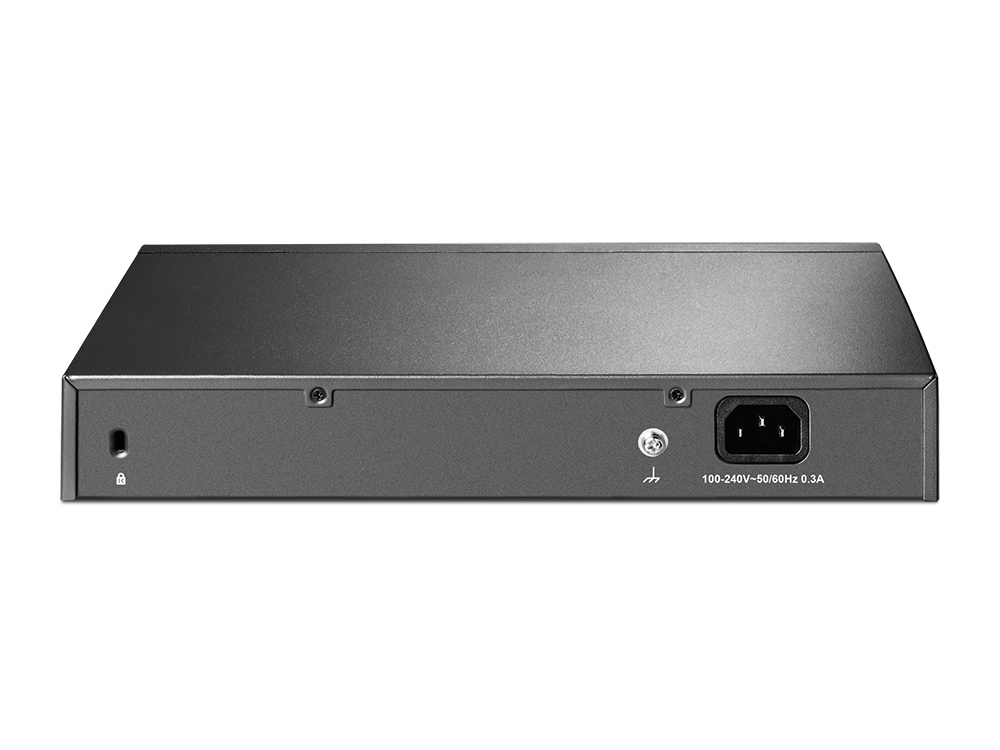

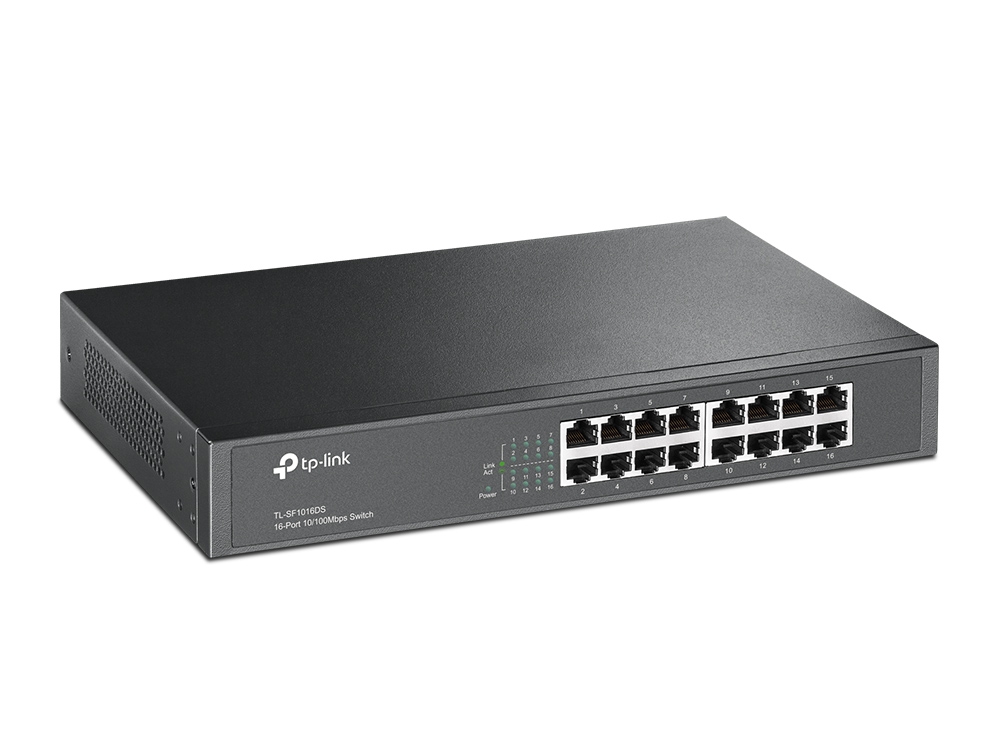

TP-Link TL-SF1016DS 16-Port 10/100Mbps Switch content_copy

The TL-SF1016DS Fast Ethernet Switch offers you a powerful, cost-effective, easy-to-use, seamless and standard upgrade for adding more ports to your old network. All 16 ports support Auto-MDI/MDIX. Don't worry about the cable type (patch or crossover), just plug it in and you're good to go. In addition, with its innovative energy efficient technology, the TL-SF1016D can save up to 75% energy and 70% of the packaging material can be recycled, making it an environmentally friendly solution for your business network.

Highlights

• Latest generation Fast Ethernet switch
• 16x 10/100 Mbit/s RJ45 ports
• Supports auto-learning of MAC addresses and auto-MDI/MDIX
• Standard 13-inch steel housing
• Plug and play - no configuration required

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 3.2 GBit/s (Gbps)

Connections

• Total number of copper ports: 16
• Bandwidth: 10/100 MBit/s
• Number of RJ45 ports (100Mbit): 16

Functions

• Switch manageable: No
• Mounting type: Desktop, 48,3 cm ( 19 inch ) rack mount

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 180 mm
• Width: 294 mm

Scope of delivery

• 16-port 10/100Mbit/s switch
• Power connection cable
• Installation instructions
• Rackmount kit
• Rubber feet

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, RoHS
Data transmission
Switching capacity	3.2 Gbit/s
Throughput	2.38 Mpps
MAC address table	8000 entries
Packet buffer memory	2 MB
Store-and-forward
Design
Form factor	1U
Product colour	Black
Housing material	Metal
Number of fans	0 fan(s)
Rack mounting
Stackable
Redundant fans support
Management features
Switch type	Unmanaged
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet LAN data rates	10,100 Mbit/s
10G support
Flow control support
Auto MDI/MDI-X
Auto-negotiation
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.03 BTU/h
Packaging content
Cables included	AC
User guide
Rack mount kit
Packaging data
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	1.99 kg
Rubber feet
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	16
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	2.06 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Supported network protocols	TCP/IP
Security
Static port security
Sustainability
Sustainability compliance
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm

---
