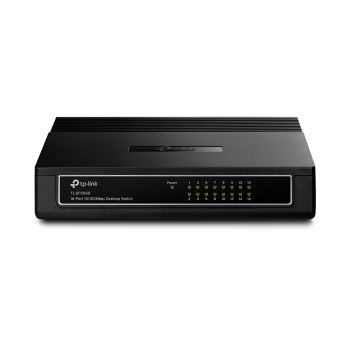

TP-LINK TL-SF1016D 16 Ports Ethernet Switch - 16 x Network (RJ-45) Ports - 10/100Base-TX
|
27,00 EUR |
|
|
( 32,13 EUR incl. VAT ) ≈ £22.73 | ≈ $30.32 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 06. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 462488 |
| Mfg Part No: | TL-SF1016D(UN) |
| UPC/EAN: | 6935364020293 |
| Weight: | 0.607 kg |
Further up to 16 ports from TP-LinkFurther products in category up to 16 ports
All products of TP-Link
Product information for TP-Link TL-SF1016D(UN):
The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office / Home Office) or workgroup users. All 16 ports support Auto-MDI/MDIX. Don't worry about the cable type, just plug it in and go. In addition, with its innovative energy efficient technology, the TL-SF1016D can save up to 70% of electricity consumption and 70% of packaging material can be recycled, making it an environmentally friendly solution for your business network.
Highlights
- 16x 10/100Mbps RJ45 ports with auto-tuning and auto-MDI/MDIX
- Green IT saves up to 70% energy
- IEEE802.3x flow control ensures reliable data transmission
- Plastic housing for tabletop or wall mounting
- Plug-and-play Play, no configuration necessary
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Switch type: Access
- Switching capacity: 3.2 GBit/s (Gbps)
- Total number of copper ports: 16
- Bandwidth: 10/100 MBit/s
- Number of RJ45 ports (100Mbit): 16
- Mounting type: desktop, wall
- Color: Black
- Height: 40 mm
- Length/Depth: 200 mm
- Width: 142 mm
- 16-port 10/10Mbps desktop switch TL-SF1016D
- Power supply
- User manual
Product type
Specifications
Connections
Functions
Basic properties
Scope of delivery
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 3.2 Gbit/s |
| MAC address table | 2000 entries |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Wall mountable | |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 11.01 BTU/h |
| Packaging content | |
| User guide | |
| Packaging data | |
| Package type | Box |
| Package width | 223 mm |
| Package depth | 285 mm |
| Package height | 68 mm |
| Package weight | 674 g |
| AC adapter included | |
| Performance | |
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (max) | 3.23 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 142 mm |
| Height | 40 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
