TP-Link TL-SF1016D 16-Port 10/100 Desktop Switch content_copy

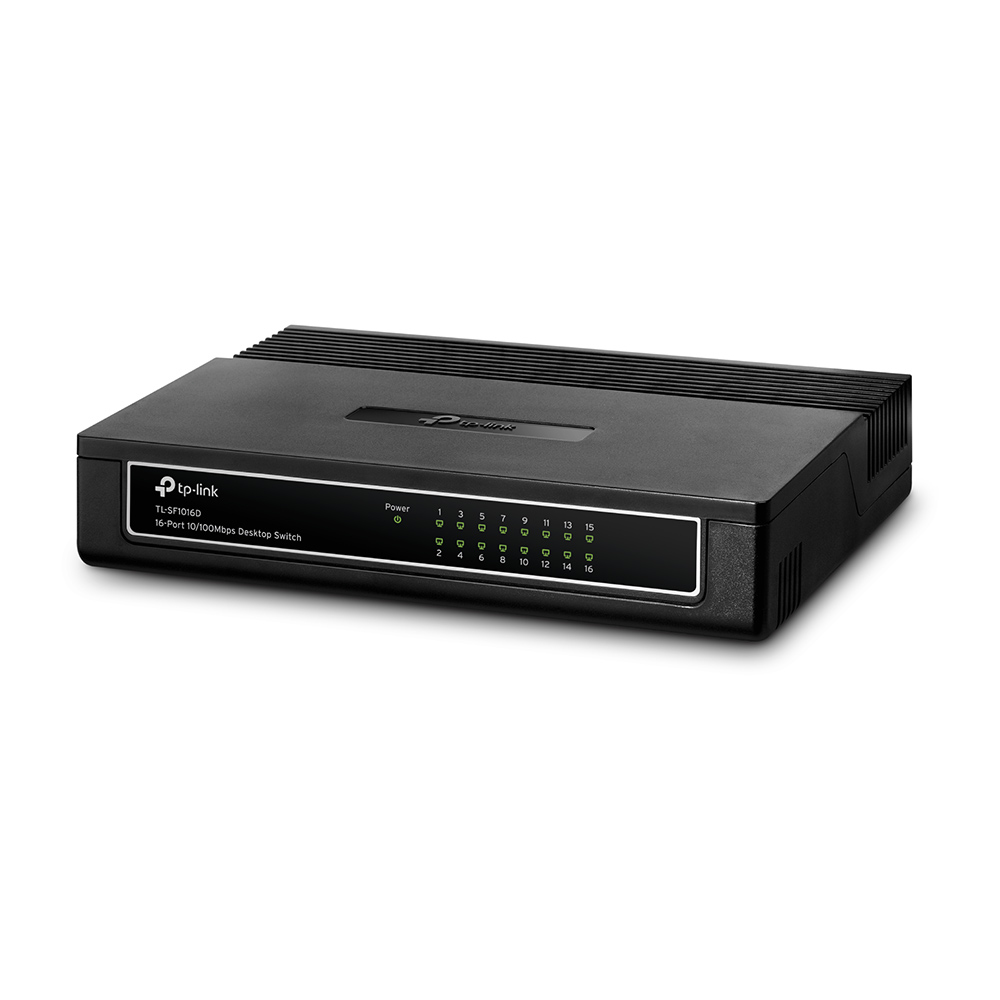

The TP-Link TL-SF1016D is an unmanaged Switch with 16 ports, designed for expanding wired networks. As a Fast Ethernet device, it supports data transfer rates of 10 and 100 Mbit/s per port and is suitable for small to medium networks in offices, home applications, or retail environments. The device is compact, black painted, and can be placed on a desk or installed in a Rack. It features LED indicators for power supply status and activity of individual ports, enabling visual monitoring of operation.

Applications
The switch is suitable for use in office and home applications where a simple, reliable network connection is required. It enables the connection of multiple computers, printers, network storage, or other devices via Ethernet cables. Due to its rack-mountable design, it is also usable in smaller server rooms or IT infrastructures where space-saving and structured cabling are important. The operating temperature of 0 to 40 °C and storage temperature of -40 to 70 °C make it suitable for indoor use, although it is not designed for direct outdoor use.

Functions and Equipment in Detail
All 16 ports support Auto MDI/MDIX, meaning no special crossover cables are required—the device automatically detects the correct connection. The Auto-Negotiation function ensures that each port sets the fastest available speed (10 or 100 Mbit/s) with the connected device. The switching capacity is 3.2 Gbit/s, providing sufficient bandwidth for simultaneous data traffic across all ports. The MAC address table can store up to 8000 entries to efficiently route data packets to the correct end devices. The data packet buffer memory of 2 MB supports data packet processing under high traffic loads.

Technology Explained Simply
The switch operates using the Store-and-Forward method, in which entire data packets are received, checked, and then forwarded. This ensures error-free data transmission. The IEEE 802.3x-Flow-Control function enables reliable data transmission by temporarily halting data transfer during overload to prevent data loss. The maximum bandwidth in full-duplex mode is 200 Mbit/s per port, which is sufficient for operation in small networks. Power supply is via an external power adapter with an output voltage of 5 V/0.6 A, connected through a DC connector. The input voltage is 100–240 V AC, enabling worldwide use.

Compatibility and Accessories
The switch is compatible with network standards IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, which form the basis for Ethernet networks. It is designed for use with RJ-45 Ethernet cables, which should typically be Cat5 or higher to achieve the maximum speed of 100 Mbit/s.

Mounting and Installation
Installation is performed via a Plug-and-Play design that requires no special configuration. Devices are simply connected via Ethernet cables, and the switch automatically detects connections. For rack mounting, mounting holes or rails are available, typically integrated into the device. Dimensions are 294 mm (width) × 180 mm (depth) × 44 mm (height), conforming to the standard for 19-inch racks.

Operational Advantages
The TP-Link TL-SF1016D provides a reliable, maintenance-free network connection without the need for configuration or management. The LED indicators allow for quick visual monitoring of operational status. The low power consumption of 2.23 W in standard operation reduces energy usage. The certification according to FCC, CE, and RoHS ensures compliance with relevant safety and environmental standards. The relative humidity during operation of 10 to 90 % (non-condensing) and during storage of 5 to 90 % (non-condensing) allows flexible placement in various indoor environments.

Certificates
Certification	FCC, CE, RoHS
Data transmission
Switching capacity	3.2 Gbit/s
Throughput	2.38 Mpps
MAC address table	8000 entries
Packet buffer memory	2 MB
Design
Product colour	Black
Rack mounting

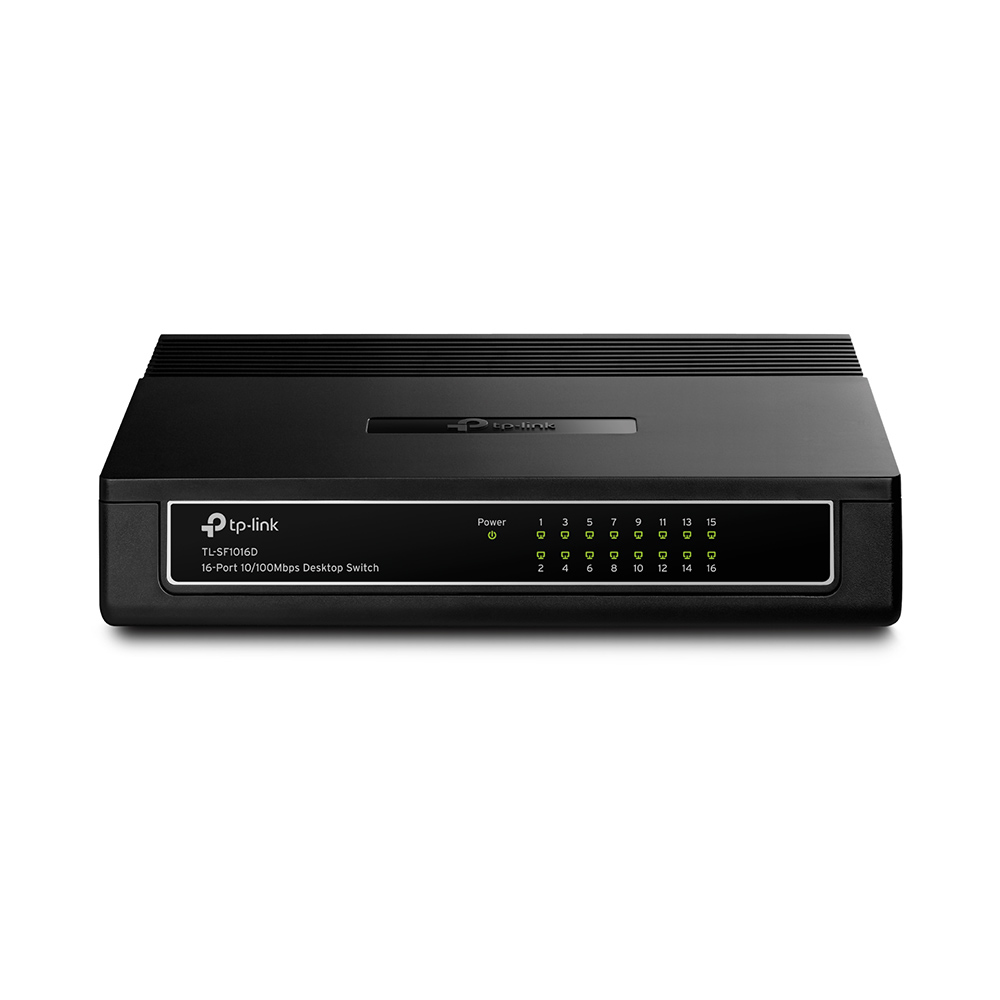

LED indicators
Logistics data
Harmonized System (HS) code	85176990
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)

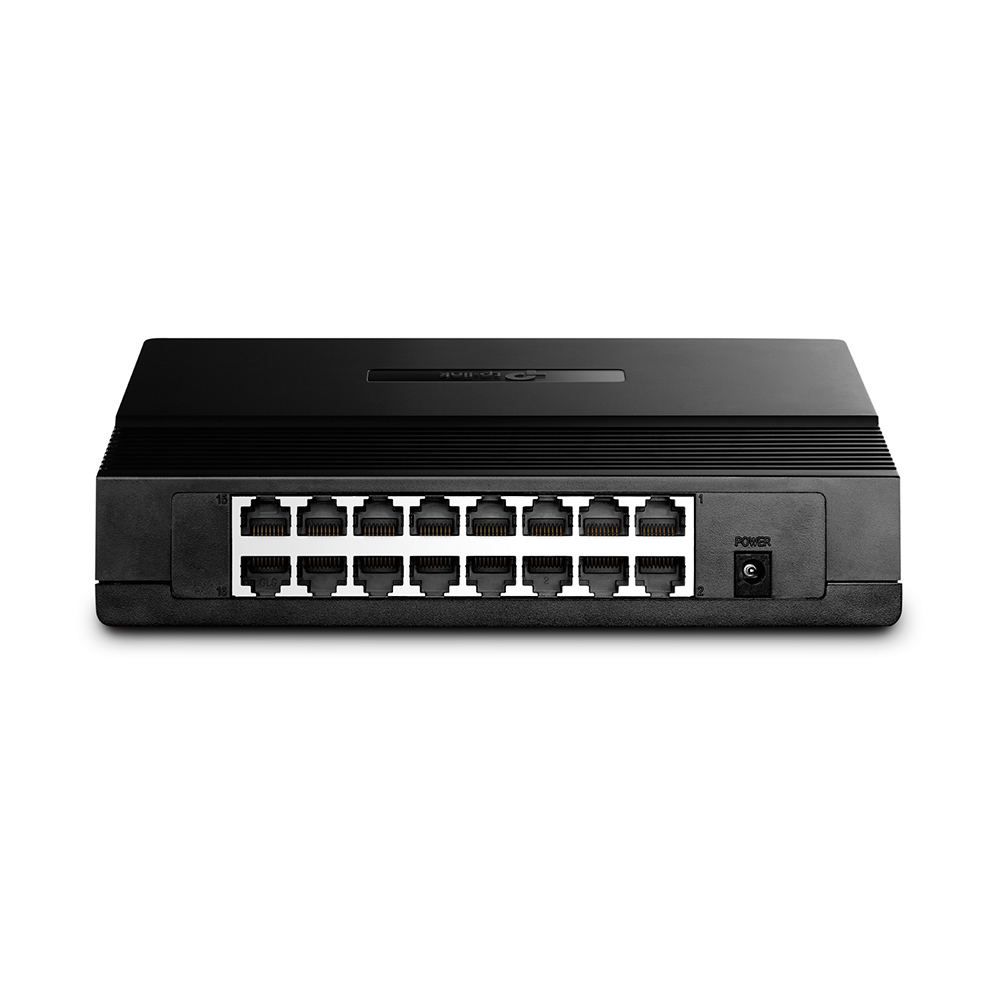

Power connector	DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	2.23 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm

---
