TP-Link Switch 9x FE TL-SF1009P (including 8PoE+)
|
44,27 EUR 44,42 EUR |
|
|
( 52,68 EUR incl. VAT ) ≈ £36.92 | ≈ $49.45 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 06. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1607149 |
| Mfg Part No: | TL-SF1009P |
| UPC/EAN: | 6935364052966 |
| Weight: | 0.99 kg |
| Type: | CPNT |
Further up to 8 ports from TP-LinkFurther products in category up to 8 ports
All products of TP-Link
Product information for TP-Link TL-SF1009P:
Expand your existing network at home or in the office with the TP-Link TL-SF1009P 9-Port Switch. Thanks to PoE+, it works with all IEEE 802.3af/at devices and delivers a total PoE power of up to 65 watts.
Highlights
- 9× 10/100 Mbit/s RJ45 ports
- 8× PoE+ ports supply PoE devices with power and data simultaneously
- Supports PoE supply according to the PoE standard IEEE802.3af/at
- Transmits data and power up to up to 250 m over network cable in extend mode

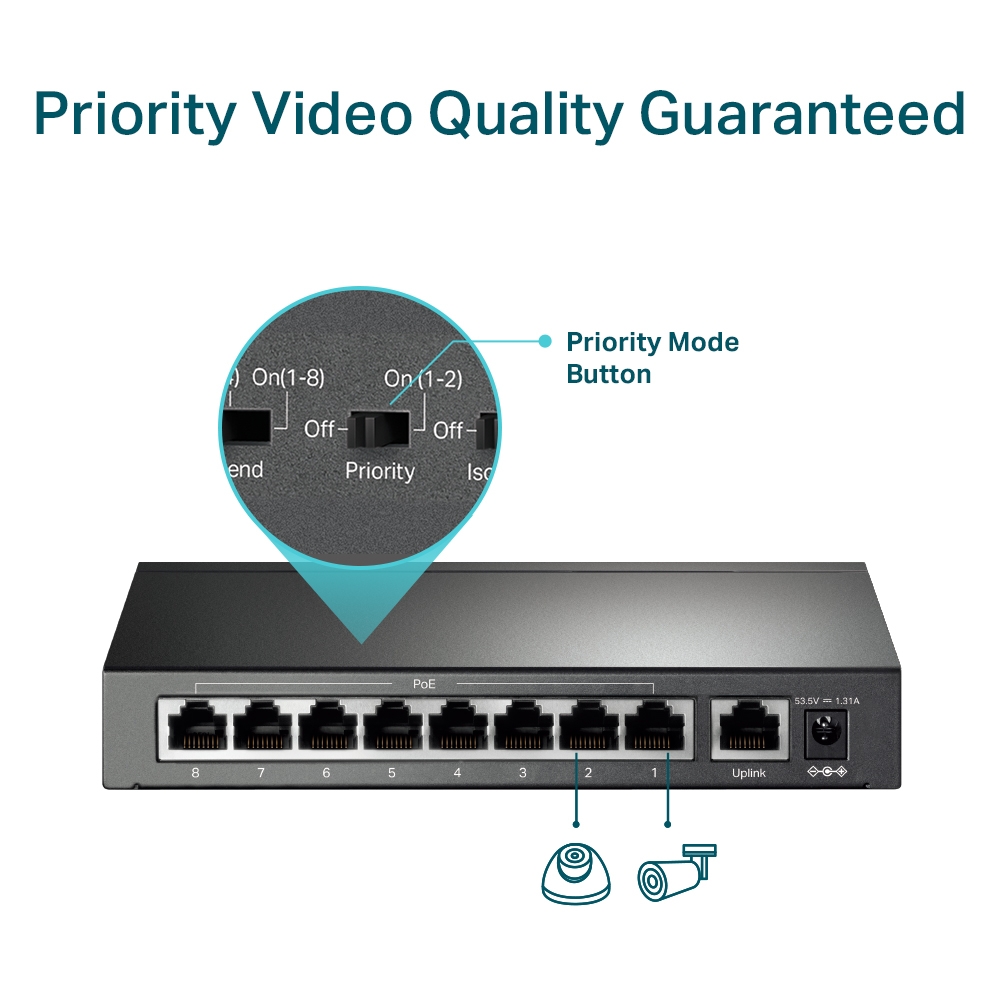

- Priority mode offers prioritized transmission for ports 1-2 to ensure the quality of important applications

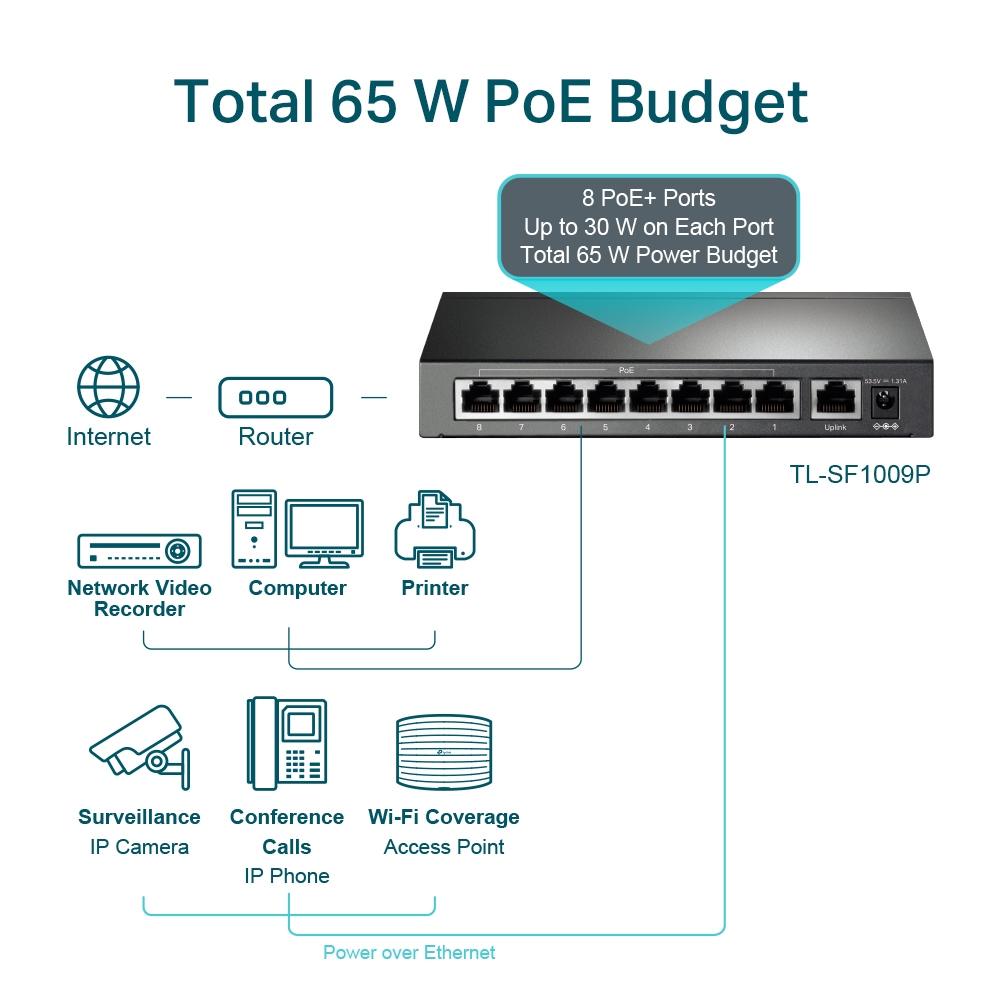

- Up to 30 watts of PoE power per PoE port (PoE budget 65 watts)
- Plug and Play - no further configuration or installation necessary
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Switch type: Access
- Switching capacity: 1.6 GBit/s (Gbps)
- Total number of copper ports: 9
- Total number of PoE ports: 8
- Bandwidth: 10/100 MBit/s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 65 W
- Main port type: Copper
- Number of PoE+ (af/at) ports: 8
- Number of RJ45 ports (100Mbit): 9
- Switch manageable: No
- Mounting type: Desktop, wall
- Power supply: external
- Color: Black
- Height: 27 mm
- Length/Depth: 98 mm
- Width: 171 mm
- TP-Link TL-SF1009P 9-Port 10/100Mbps (8x PoE+) Switch
- Power supply
- Installation instructions
Product type
Specifications
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 1.3392 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Rack mounting | |
| Stackable | |
| Wall mountable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 262.84 BTU/h |
| Packaging content | |
| User guide | |
| Packaging data | |
| Package type | Box |
| Package width | 223 mm |
| Package depth | 280 mm |
| Package height | 68 mm |
| Package weight | 980 g |
| AC adapter included | |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 9 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC/PoE |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 77.08 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 171 mm |
| Depth | 98 mm |
| Height | 27 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-Link Switch 9x FE TL-SF1009P (including 8PoE+)?
The article TP-Link Switch 9x FE TL-SF1009P (including 8PoE+) is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SF1009P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link Switch 9x FE TL-SF1009P (including 8PoE+) always at the best possible price. We can give you a discount of 2% on TP-Link Switch 9x FE TL-SF1009P (including 8PoE+) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
