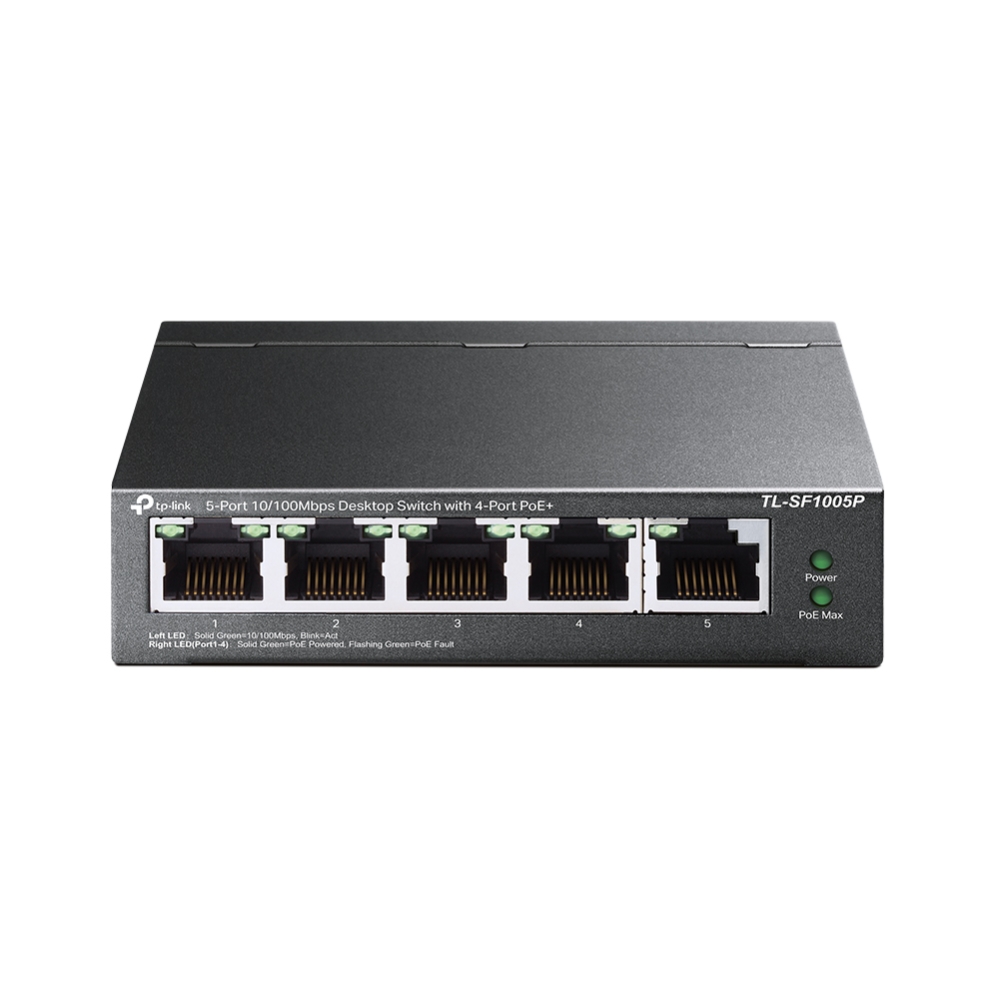

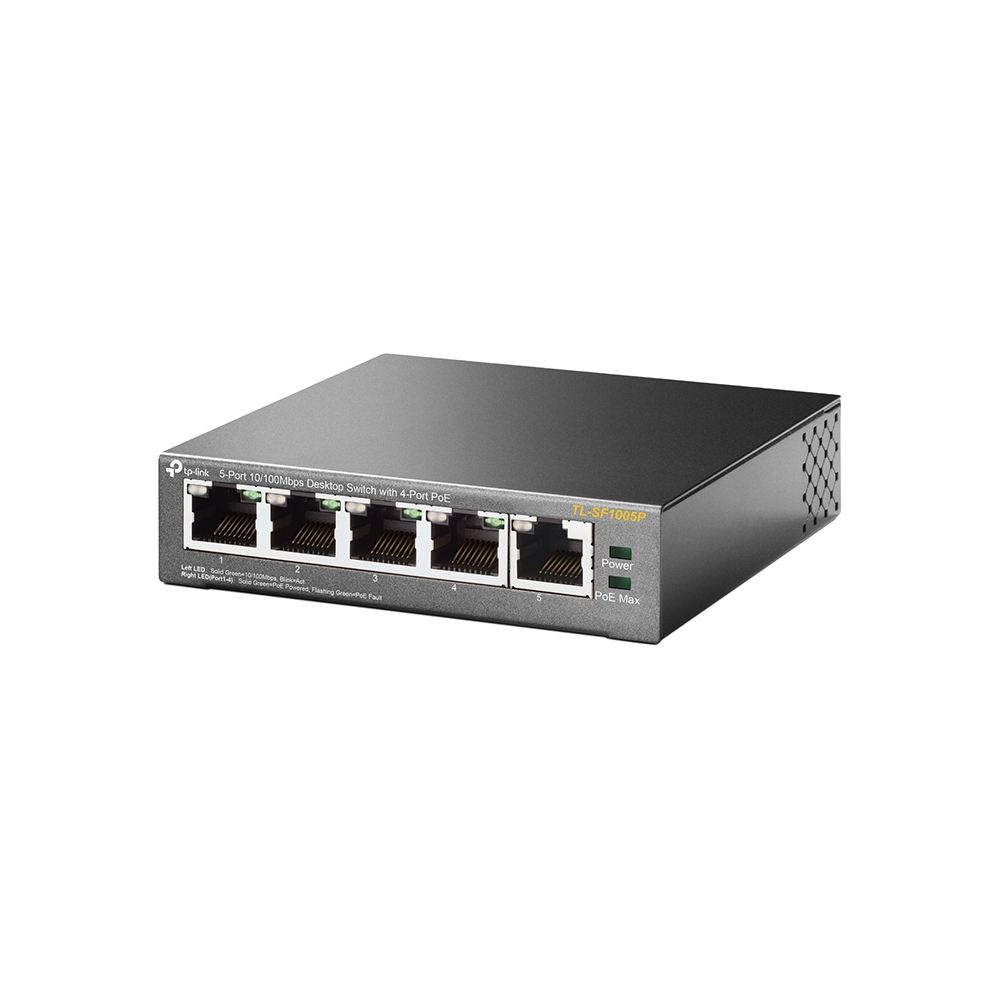

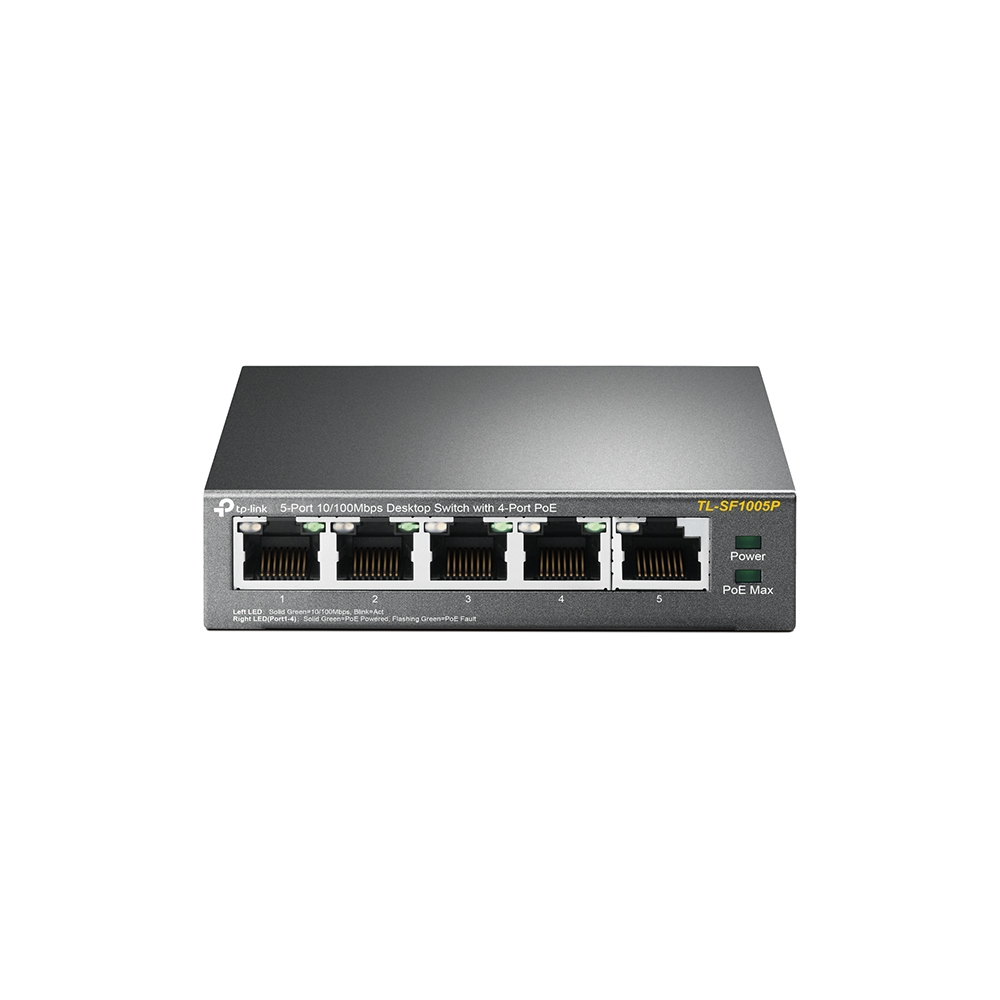

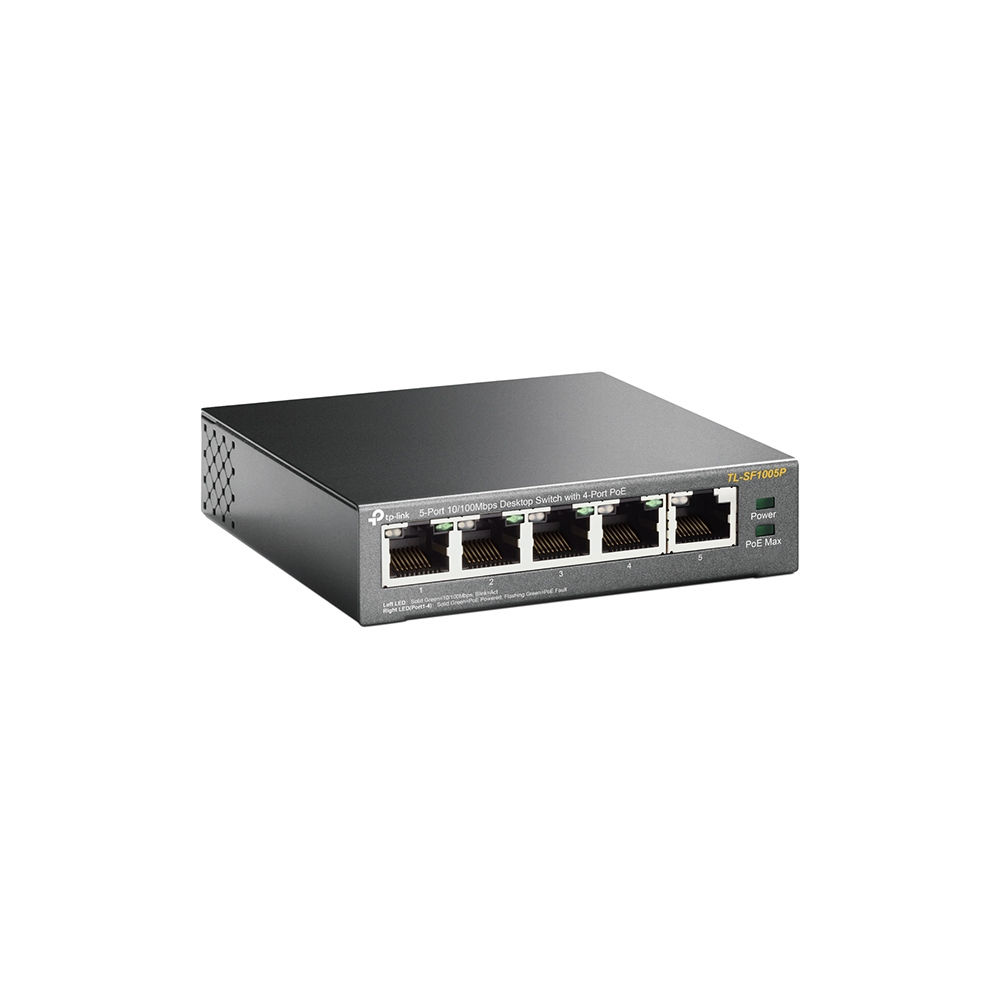

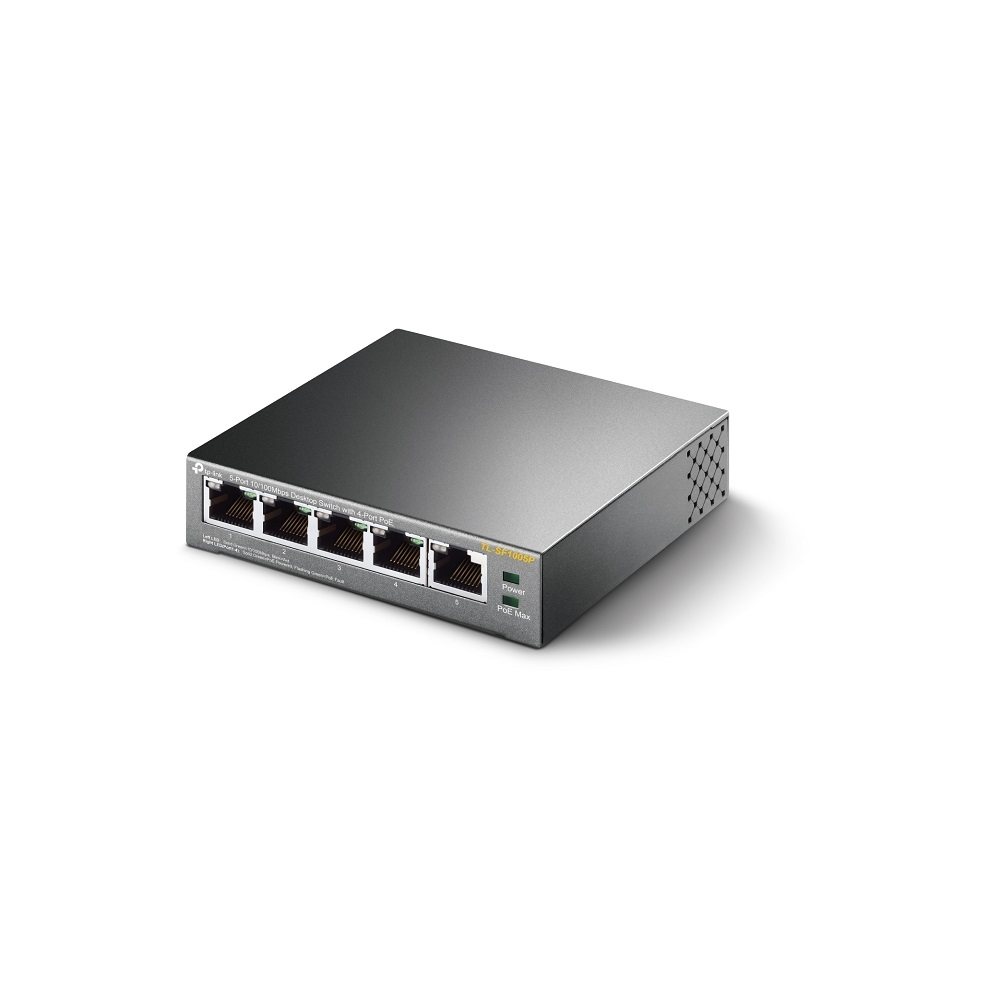

TP-Link Switch 5x FE TL-SF1005P (4xPOE+/58W) content_copy

The TL-SF1005P includes five 10/100 Mbps ports, four of which are PoE, and requires no configuration or software installation. The device automatically detects and powers connected PoE devices. Both data transfer and power supply are guaranteed via a single cable. This makes network expansion significantly easier.

Highlights

• Desktop PoE switch with 5x 10/100 Mbit/s RJ45 ports
• 4× PoE+ ports transmit data and power simultaneously over a single cable
• Works with IEEE 802.3af / with compatible PDs
• Powers IEEE 802.3af devices and expands your existing network at home or in the office

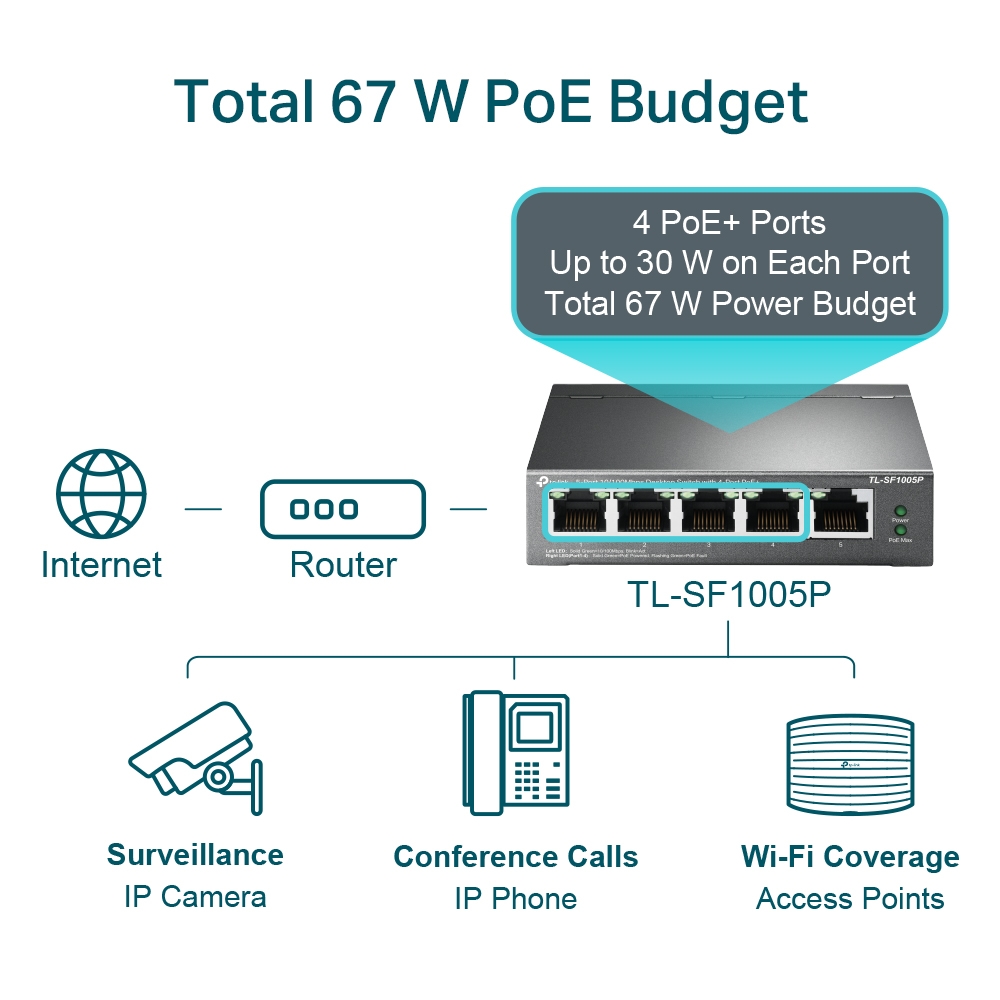

• Total PoE power of 67 W (up to 30 W per PoE port)

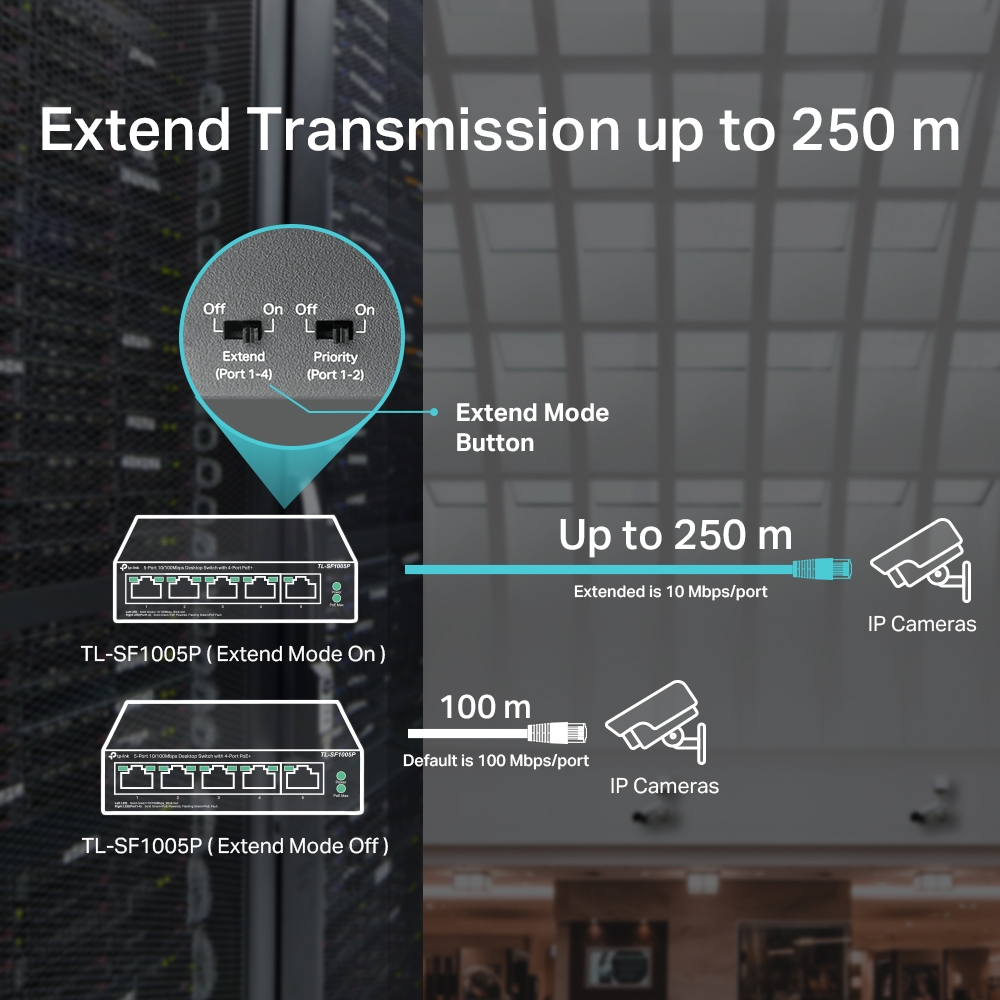

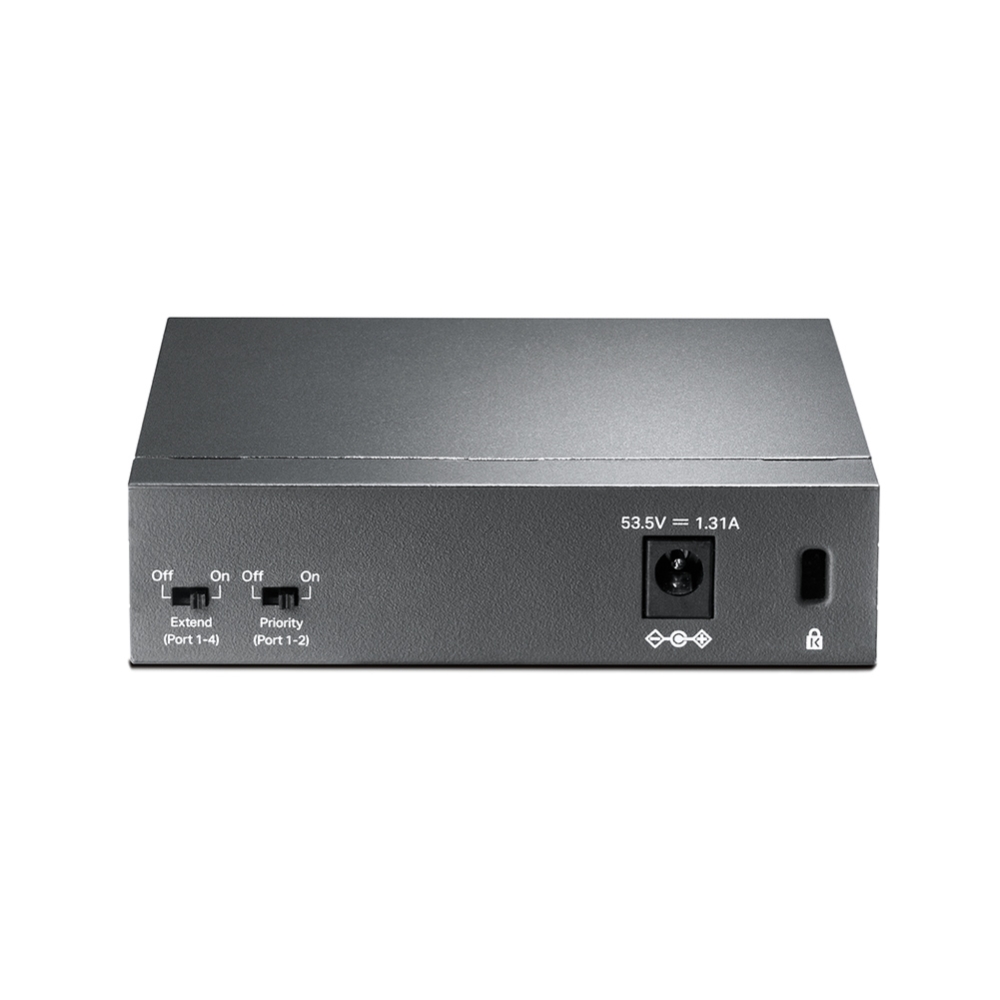

• Up to 250 m data and power transmission range in expansion mode

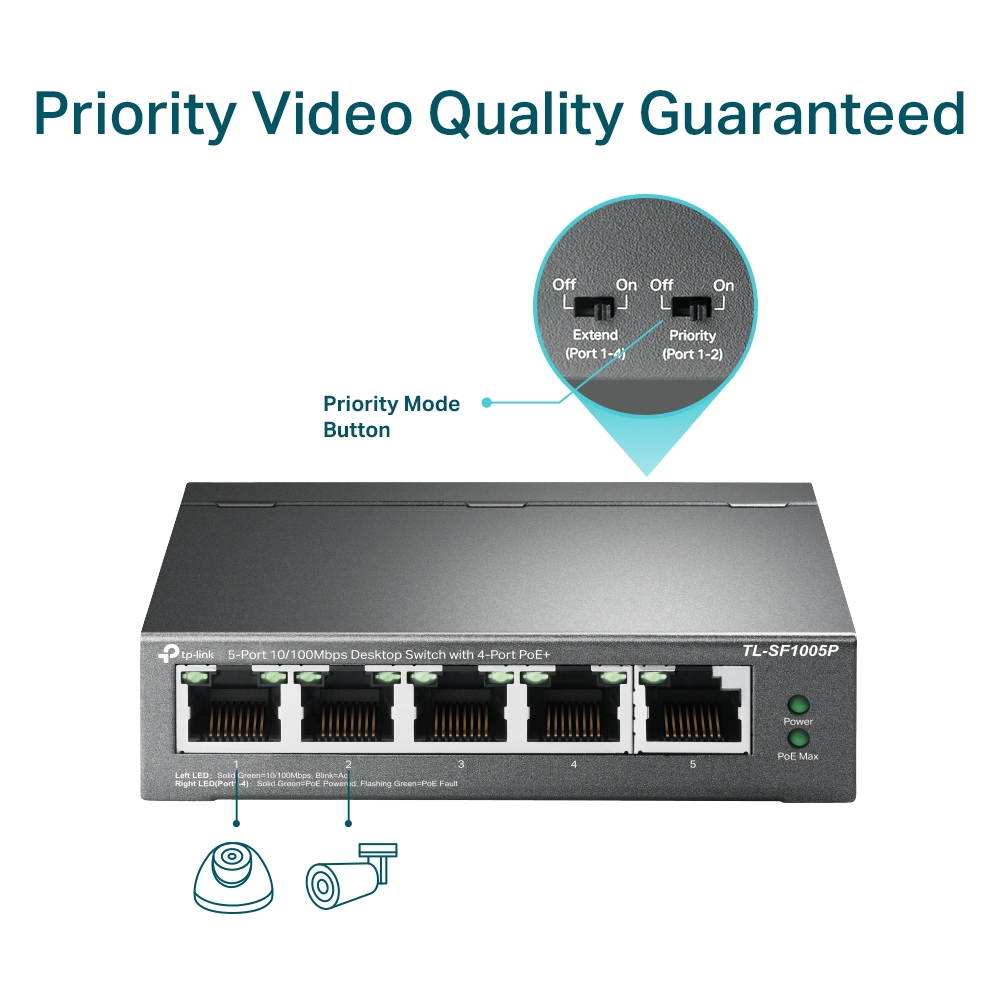

• Priority mode ensures high priority of ports 1-2 to ensure the quality of sensitive applications

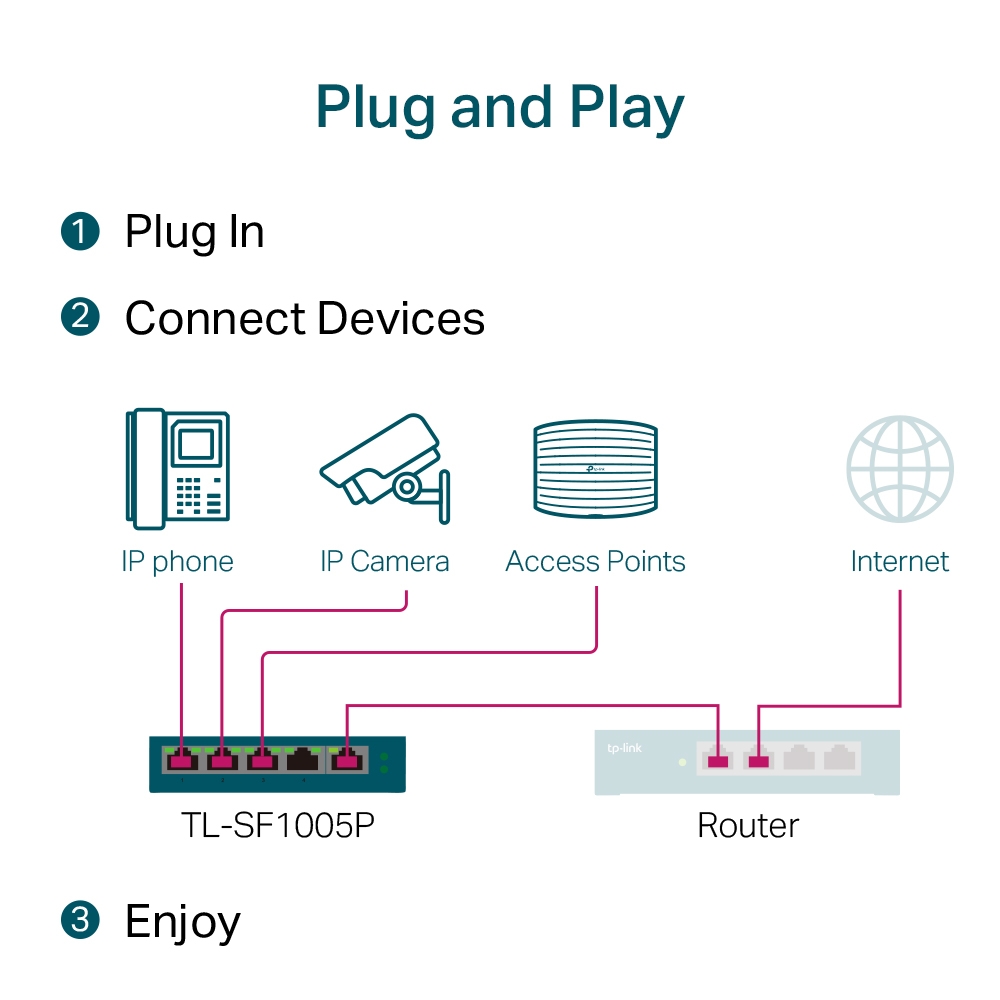

• No configuration or installation necessary

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• Switch type: Access
• Switching capacity: 1.2 GBit/s (Gbps)

Connections

• Total number of copper ports: 5
• Total number of PoE ports: 4
• Bandwidth: 10/100 MBit/s
• PoE budget: 67 W
• Main port type: copper
• Number of PoE+ (af/at) ports: 4
• Number of RJ45 ports (100Mbit): 5

Functions

• Switch manageable: No
• Mounting type: Desktop, wall

Power supply

• Power supply: external

Basic properties

• Color: Black
• Height: 25 mm
• Length/Depth: 98 mm
• Width: 99.8 mm

Scope of delivery

• TP-Link TL-SF1005P 5-Port 10/100 Desktop Switch
• Power supply
• Manual

Certificates
Certification	FCC, CE, RoHS
Data transmission
Switching capacity	1 Gbit/s
MAC address table	2000 entries
Store-and-forward
Design
Product colour	Black
Rack mounting
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Network
Networking standards	IEEE 802.3af, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat3, Cat4, Cat5, Cat5e
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	5.73 BTU/h
Packaging content
User guide
Packaging data
Package type	Box
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power
Power consumption (max)	63.51 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	58 W
Power over Ethernet (PoE)
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm

---
