TP-Link Switch 5x FE TL-SF1005LP (including 4PoE+)
|
33,15 EUR |
|
|
( 39,45 EUR incl. VAT ) ≈ £28.11 | ≈ $37.16 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 03. May 2026 |
|---|---|
| Lieske Part No.: | 1606815 |
| Mfg Part No: | TL-SF1005LP |
| UPC/EAN: | 6935364052782 |
| Weight: | 0.74 kg |
| Type: | CPNT |
Further up to 8 ports from TP-LinkFurther products in category up to 8 ports
All products of TP-Link

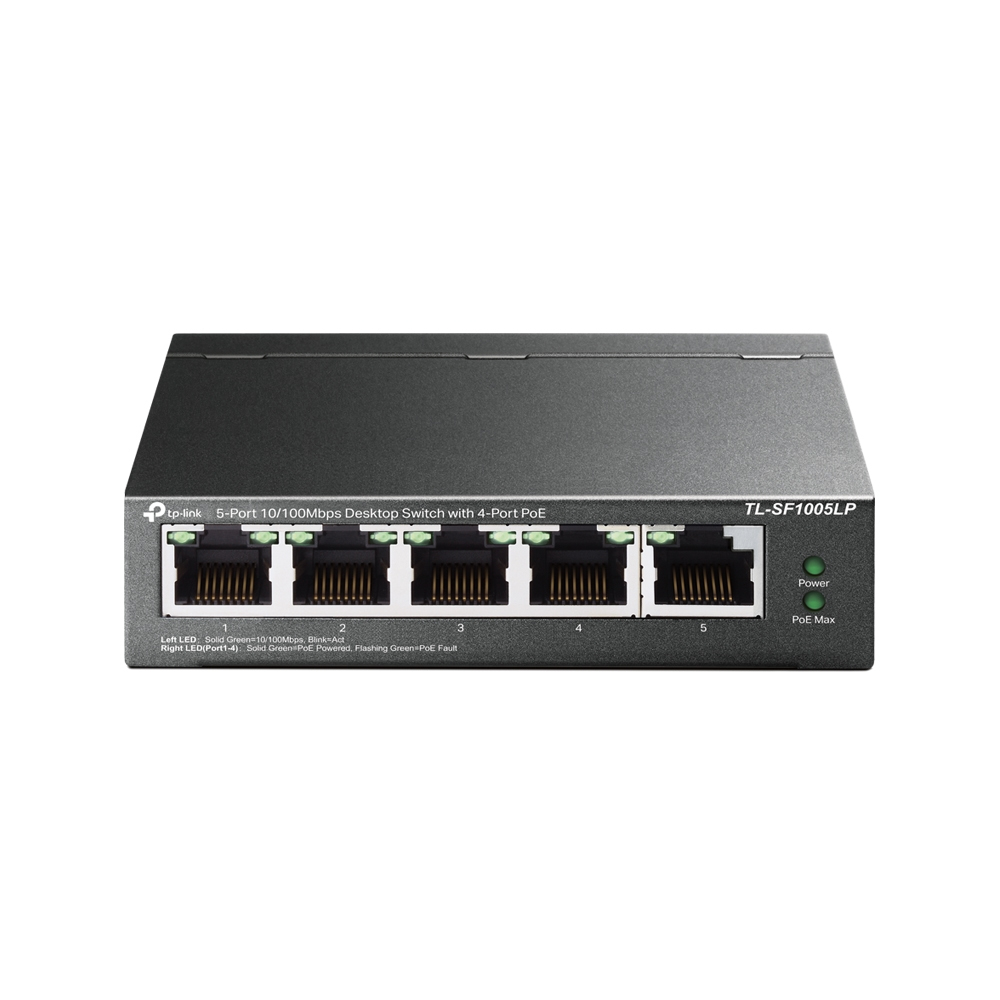

Product information for TP-Link TL-SF1005LP:
Expand your existing network at home or in the office with the TP-Link TL-SF1005LP 5-Port Switch. Thanks to PoE, it works with all IEEE 802.3af devices and delivers a total PoE power of up to 41 watts.
Highlights
- 5× 10/100 Mbit/s RJ45 ports

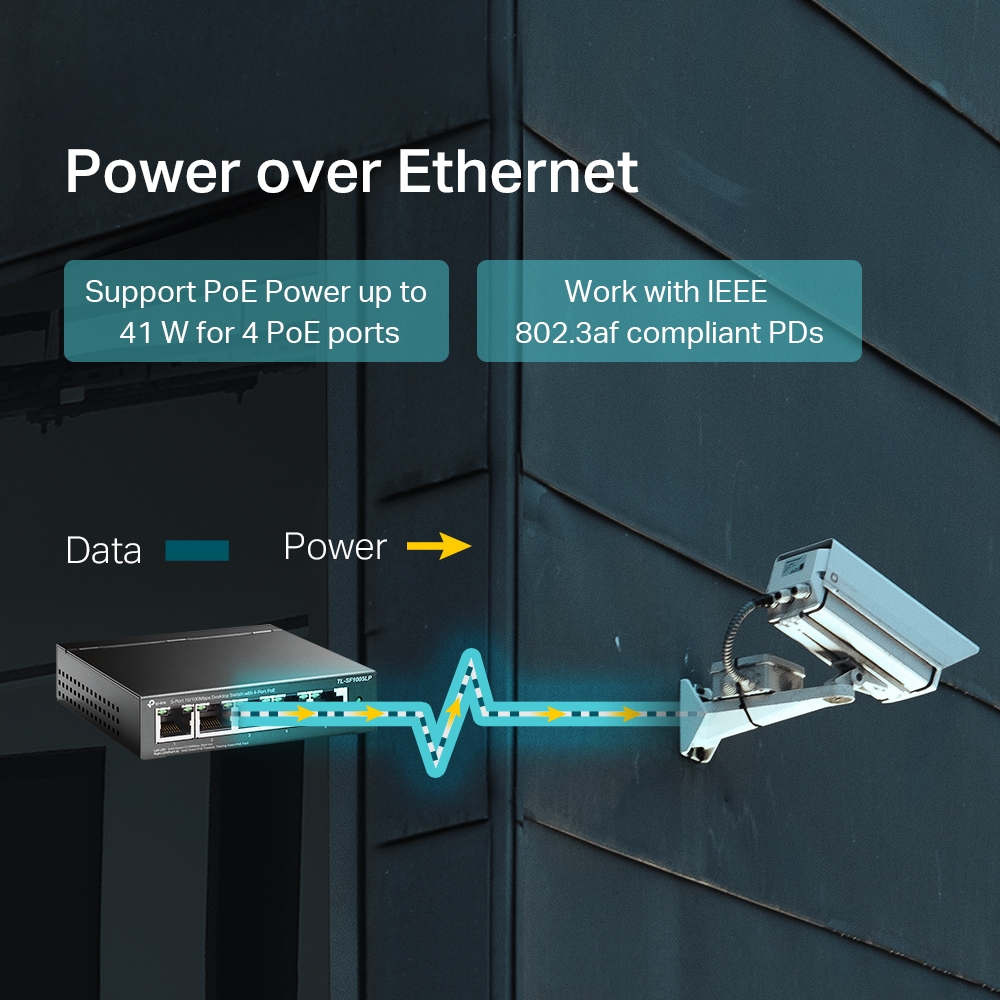

- 4× PoE ports supply PoE devices with power and data simultaneously
- Supports PoE supply according to the PoE standard IEEE802.3af
- Transmits data and power up to 250 m over network cable in Extend Mode
- Priority mode ensures high priority of ports 1-2 to ensure the quality of sensitive applications

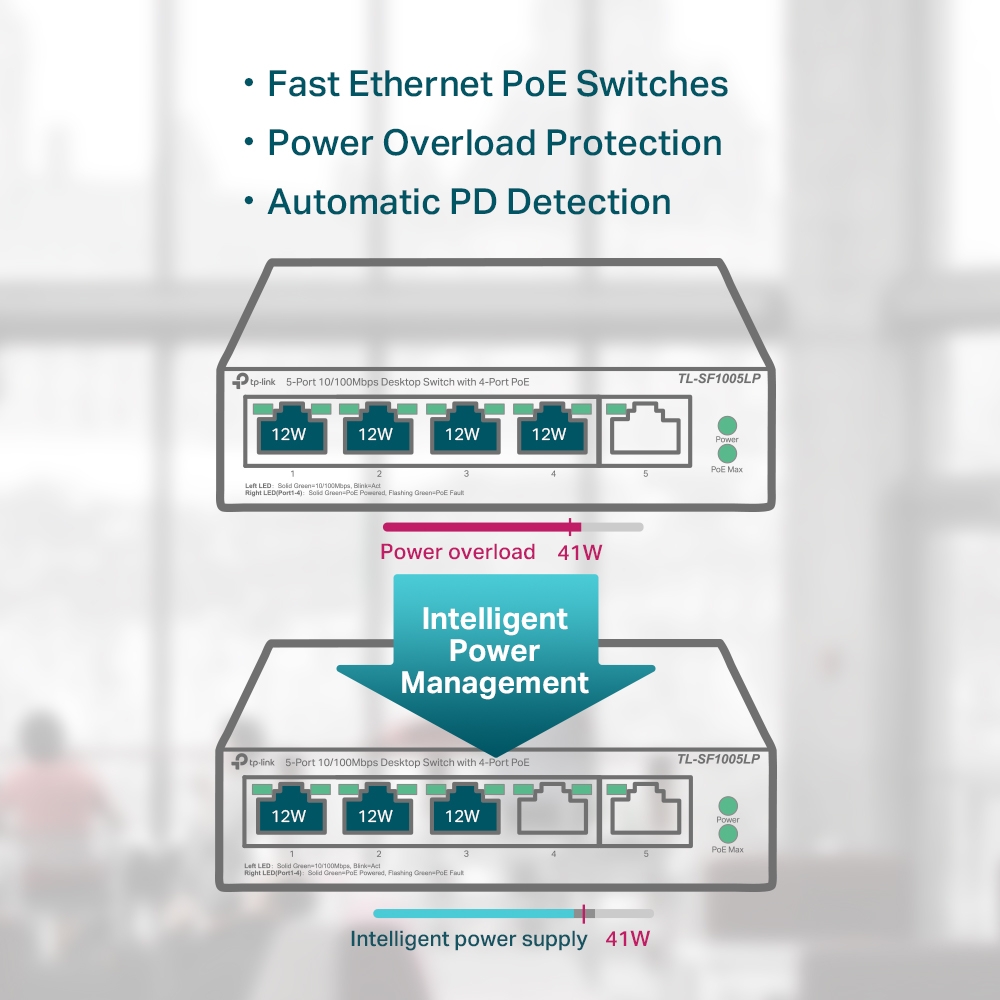

- Up to 15.4 watts of PoE power per PoE port (PoE budget 41 watts)

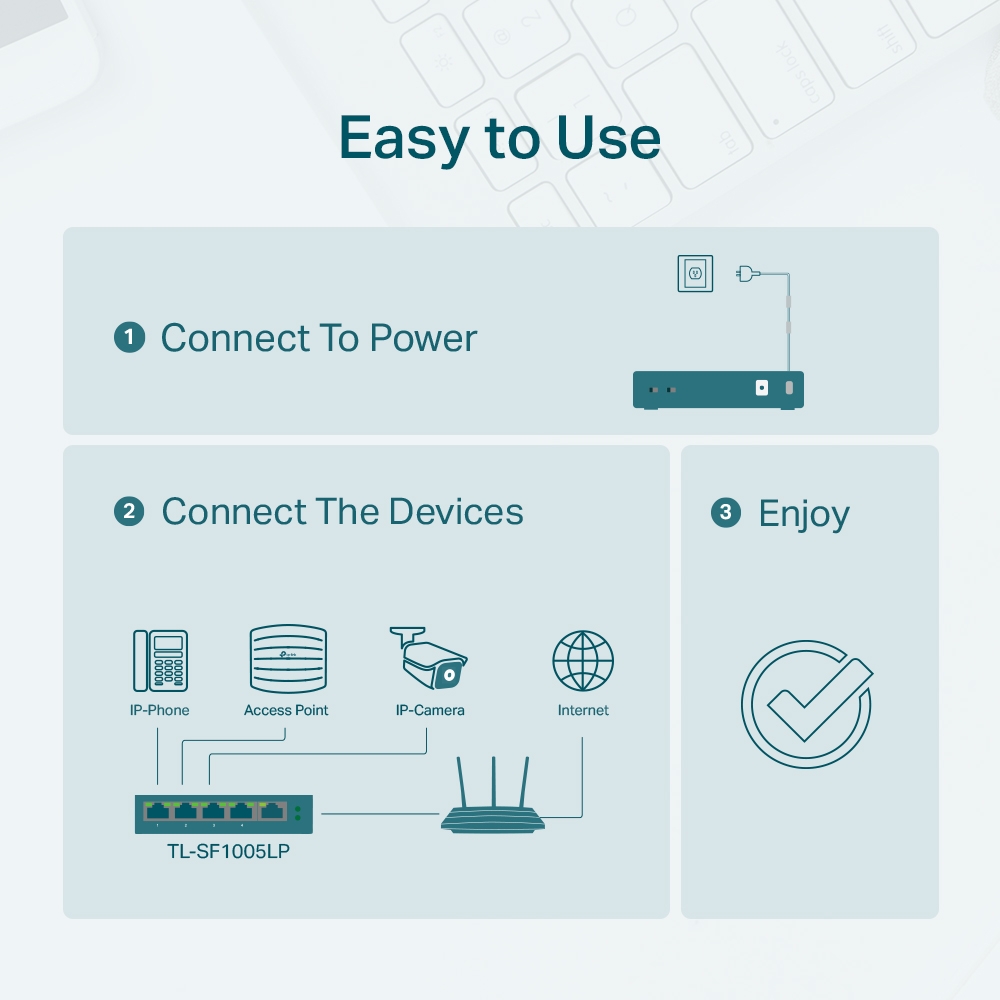

- Plug and Play - no further configuration or installation necessary
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Switch Type: Access
- Switching capacity: 1 GBit/s (Gbps)
- Total number of copper ports: 5
- Total number of PoE ports: 4
- Bandwidth: 10/100 MBit/s
- PoE standard: PoE - 802.3af
- PoE budget : 41 W
- Main port type: Copper
- Number of PoE (af) ports: 4
- Number of RJ45 ports (100Mbit): 5
- Switch manageable: No
- Mounting type: desktop, wall
- Power supply: external
- Color: Black
- Height: 25 mm
- Length/Depth: 98 mm
- Width: 100 mm
- TP-Link TL-SF1005LP 5-Port 10/100Mbps (4x PoE) Switch
- Power supply
- Installation instructions
Product type
Specifications
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.744 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 2000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 160.27 BTU/h |
| Packaging content | |
| User guide | |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 740 g |
| AC adapter included | |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power | |
| Power source | DC/PoE |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.81 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 47 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 41 W |
| Power over Ethernet (PoE) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
