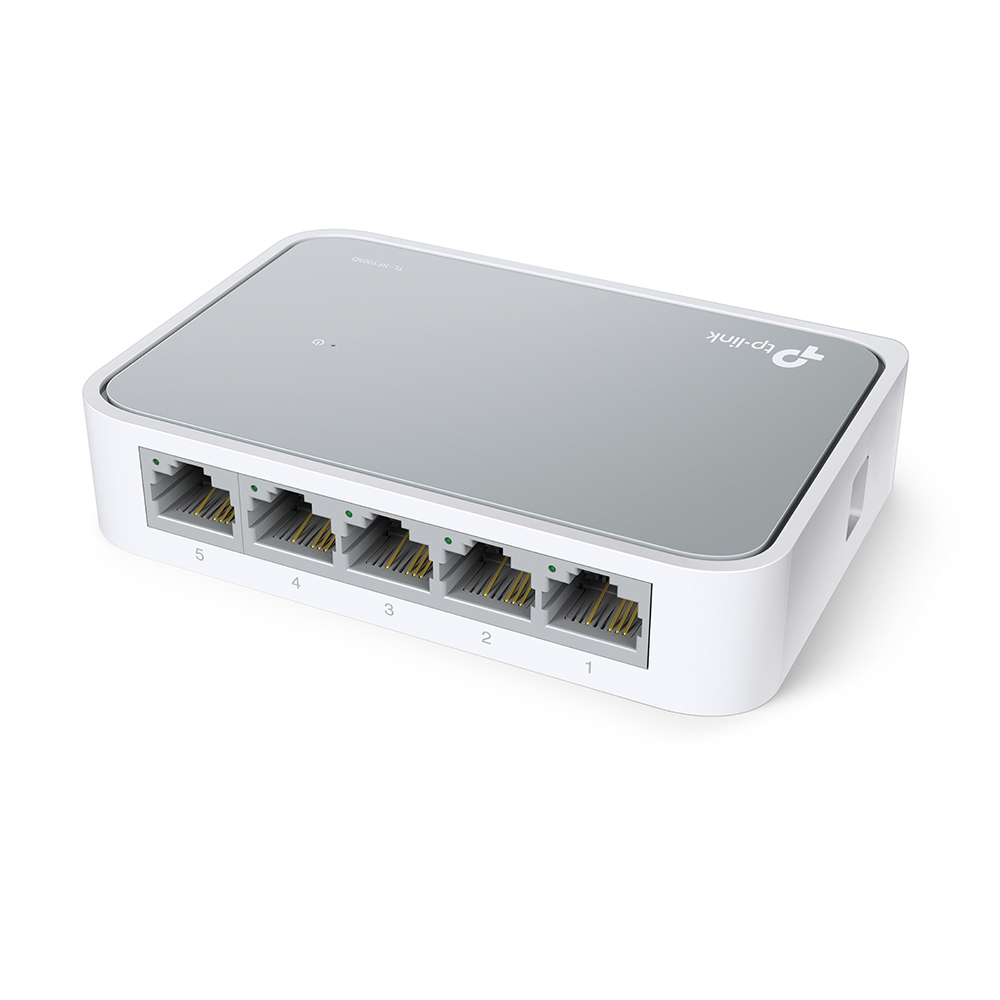

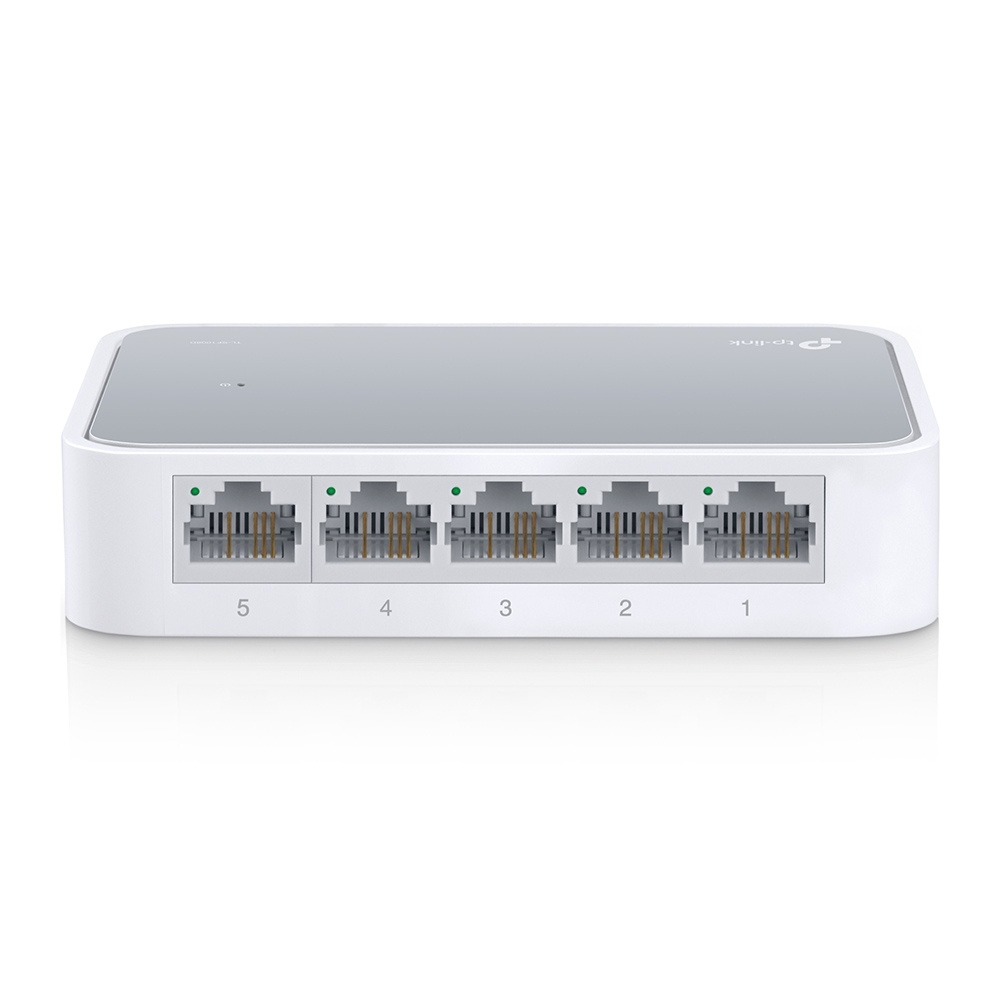

TP-LINK TL-SF1005D 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX
|
8,07 EUR |
|
|
( 9,60 EUR incl. VAT ) ≈ £6.84 | ≈ $9.05 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 22. Jan 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 682287 |
| Mfg Part No: | TL-SF1005D |
| UPC/EAN: | 6935364020064 |
| Weight: | 0.19 kg |
Further up to 8 ports from TP-LinkFurther products in category up to 8 ports
All products of TP-Link
Product information for TP-Link TL-SF1005D:
Der Fast-Ethernet-Switch TL-SF1005D ist für SOHO(Small Office / Home Office)- oder Arbeitsgruppen-Benutzer konzipiert. Alle 5 Ports unterstützen Auto-MDI/MDIX. Machen Sie sich keine Sorgen über den Kabeltyp, einfach anschließen und los geht es. Darüber hinaus kann der TL-SF1005D mit seiner innovativen, energieeffizienten Technik bis zu 60% des Energieverbrauchs einsparen, was ihn zu einer umweltfreundlichen Lösung für Ihr Heim- oder Geschäftsnetz macht.
Highlights
- 5 10/100Mbps-RJ45-Ports mit Autoabstimmung und Auto-MDI/MDIX
- Green IT spart bis zu 60% Energie
- IEEE802.3x-Durchflusssteuerung sorgt für eine zuverlässige Datenübertragung
- Plastikgehäuse für Tischaufbau
- Plug-and-Play, keine Konfiguration notwendig
- 5 Ports Cu 10/100
- 48,3 cm ( 19 inch ) Montage
- Lüfterlos
- Layer 2 Funktionen - 802.1q (VLAN-Tagging)
- Max. Energieverbrauch 2,2 W (ohne PoE)
- 19-Zoll Rackmontage
- Tischmontage
- Color white
- Höhe: 22 mm
- Breite: 103,5 mm
- Tiefe: 77 mm
- Produkttyp: Switch
- 5-Port-10/100Mbps-Desktop-Switch
- Spannungsadapter
- Operating instructions
Switch
Basic Properties
Delivery
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | FCC, RoHs |
| Data transmission | |
| Switching capacity | 1.6 Gbit/s |
| MAC address table | 1000 entries |
| Store-and-forward | |
| Design | |
| Product colour | White |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 6.38 BTU/h |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Packaging data | |
| Package type | Box |
| Package width | 91 mm |
| Package depth | 108 mm |
| Package height | 85 mm |
| Package weight | 200 g |
| AC adapter included | |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 5 V |
| Input current | 0.6 A |
| Power consumption (typical) | 1.87 W |
| Power consumption (max) | 1.87 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 103.5 mm |
| Depth | 70 mm |
| Height | 22 mm |
