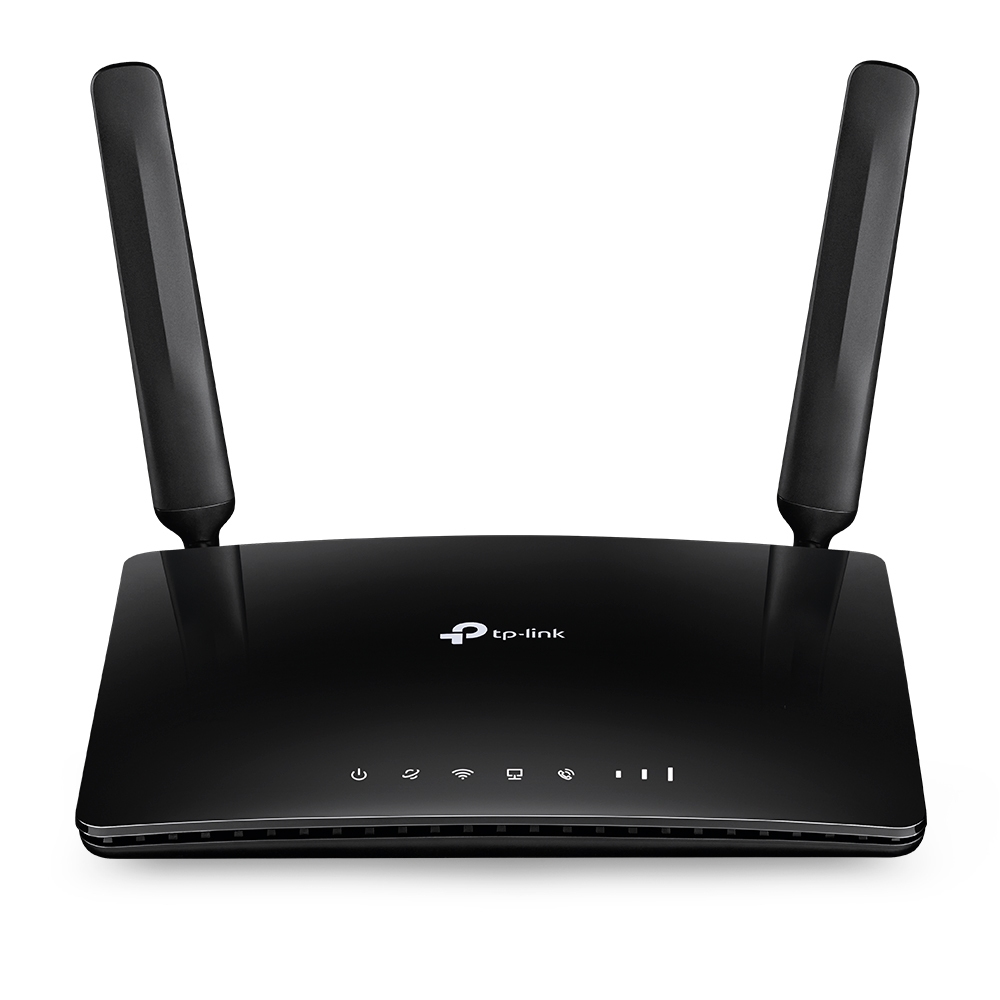

TP-Link WLAN router Archer MR6500V (AC750/4G-LTE modem) content_copy

The TL-MR6500v N300 is a 4G/LTE telephony modem router from TP-Link with which you can easily set up a WiFi home network with 4G broadband access with download speeds of up to 150 Mbit/s. Enjoy HD movies, fast downloads, video chats and more on multiple devices at the same time.
With internal 4G/LTE modem and SIM card slot, all you need to do is insert a SIM card and turn on the router. It's never been easier to enjoy fast and stable WiFi on a 4G LTE network.

Highlights

• Supports the 4G/LTE mobile communications standard with download rates of up to 150 Mbit/s
• Connect up to 32 devices at the same time
• No configuration required, compatible with more than 100 SIM cards worldwide, simply insert the SIM card

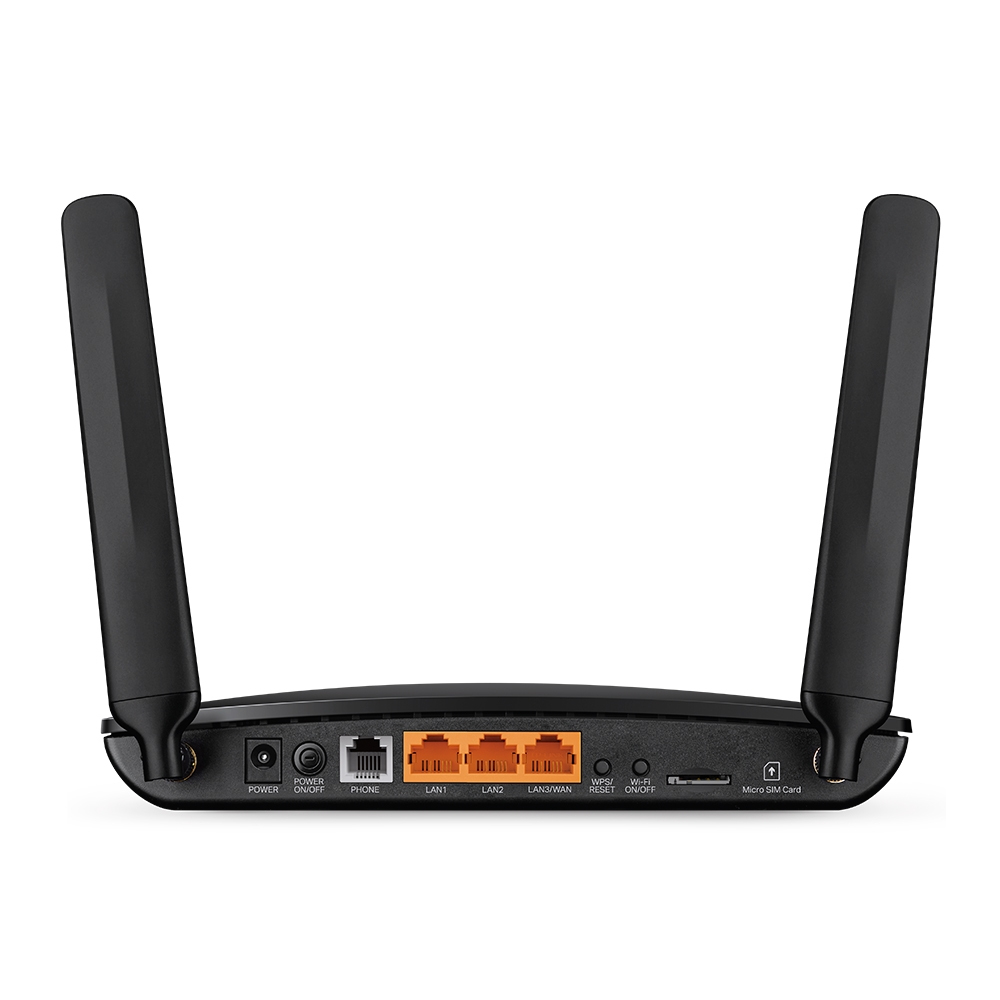

• 2x 10/ 100 Mbit/s LAN port, 1x 10/100 Mbit/s LAN/WAN port, 1x RJ11 port for telephony
• Also works as a WLAN router by simply plugging in a LAN cable via the freely configurable LAN/WAN port
• WiFi- Speeds of up to 300 Mbit/s for streaming, fast downloading and video chats
• Supports VoLTE / CSFB / VoIP functions and offers 50 MB of internal memory for 100 minutes of voicemail

Product type

• Stationary router
• ear category (ElektroG): relevant, Category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Area of application: Indoor
• Mode type: LTE

Connections

• Total number of copper ports: 3

Functions

• DHCP server
• Telephony functionality: integrated

power supply

• power supply: external

data transmission

• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• mobile radio standards: 3G - UMTS, 3.5G - HSPA, 3.5G - HSPA+, 4G - LTE Advanced (LTE-A from CAT 6)
• UMTS band: B1 (2100), B8 (900 GSM)
• LTE band: B1 (2100), B3 (1800 +), B7 (2600), B8 (900), B20 (800 DD), B38 (TD 2600), B40 (TD 2300), B41 (TD 2500)
• Security standard: WPA, WPA2, WPS
• Bandwidth: 10/100 MBit/s
• WPS

Basic properties

• Color: Black
• Height: 33.6 mm
• Length/Depth: 141 mm
• Width: 202 mm

Scope of delivery

• TP-Link TL-MR6500v N300 4G LTE WiFi router
• power supply
• RJ45 Ethernet cable
• RJ11 cable
• Quick installation guide

Antenna
Antenna design	External
Antennas quantity	2
Detachable antenna(s)
Design
Product colour	Black
Product type	Tabletop router
Wall mountable
On/off switch
Logistics data
Harmonized System (HS) code	85176990
Management features
Wi-Fi Multimedia (WMM)/(WME)
Quality of Service (QoS) support
Reset button
WPS push button
Mobile network
Mobile network generation	4G
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
4G bands supported	800,900,1800,2100,2300,2500,2600 MHz
3G bands supported	900,2100 MHz
SIM card type	MicroSIM
3G
4G
Dual SIM support
Network
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of guest networks (2.4 GHz)	1
VPN server	PPTP VPN, OpenVPN
VPN tunnels quantity	10
Ethernet LAN
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Static route
VPN Passthrough
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Quick installation guide
Packaging data
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	640 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-11 ports quantity	1
USB port
Memory card slot(s)
DC-in jack
Power
Power source type	DC
Output voltage	12 V
Output current	1 A
Protocols
VoIP protocols	SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall security	: DoS, SPI Firewall, IP and MAC Address Binding
Firewall
Guest access
Parental control
DMZ support
WAN connection
WAN connection type	RJ-45
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	202 mm
Depth	141 mm
Height	33.6 mm
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s

---
