TP-LINK TL-MR3020 IEEE 802.11n Wireless Router - 3.75G - 2.48 GHz ISM Band
|
23,81 EUR |
|
|
( 28,33 EUR incl. VAT ) ≈ £20.05 | ≈ $26.74 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 471226 |
| Mfg Part No: | TL-MR3020 |
| UPC/EAN: | 6935364051709 |
| Weight: | 0.283 kg |
Further Access Points from TP-LinkFurther products in category Access Points
All products of TP-Link

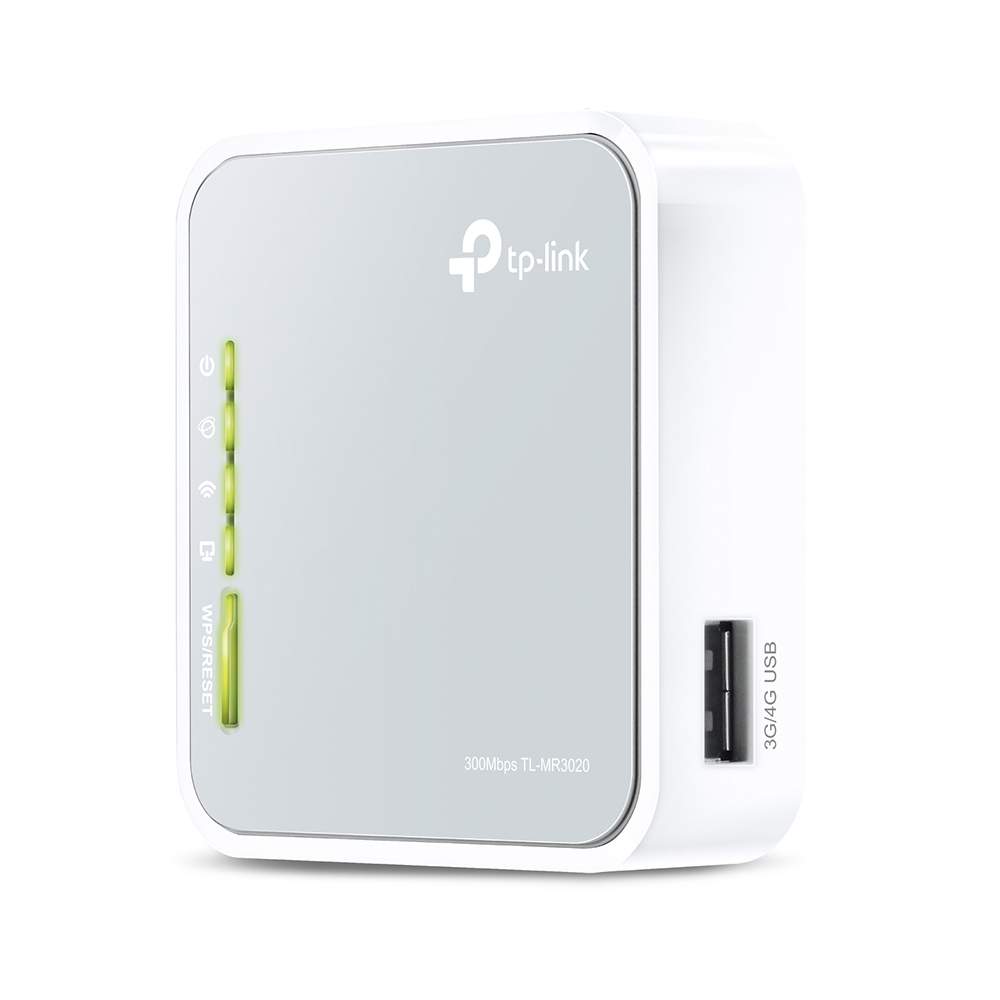

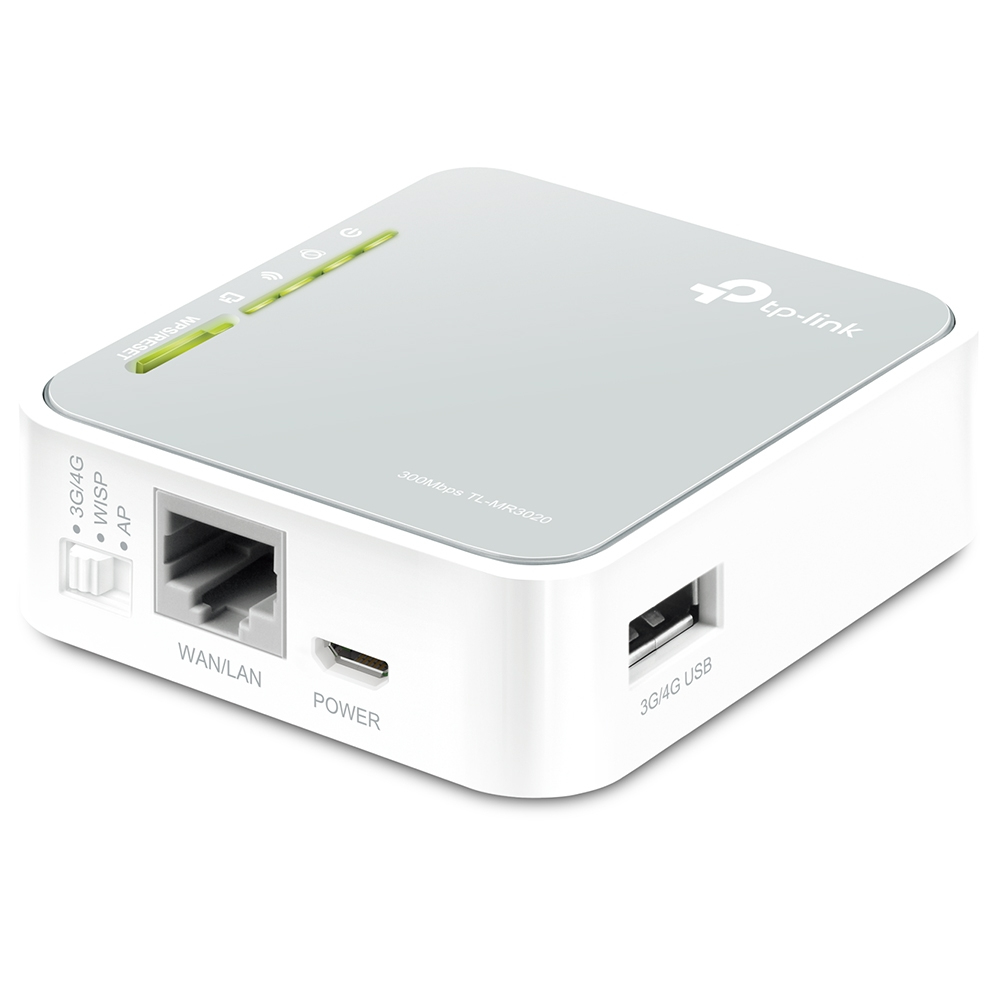

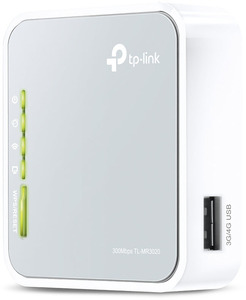

Product information for TP-Link TL-MR3020:
The TL-MR3020 allows users to share a 3G mobile connection. By connecting a UMTS/HSPA/EVDO USB modem to the router, a 3G Wi-Fi hotpot is instantly established.With its portable design, it is small and light enough to take on the road, and can be powered through a USB Cable connected to a laptop or adapter, allowing users to share a 3G mobile connection even when on the train, camping or at a construction site. With the TL-MR3020, you can share the 3G internet connection with your family or friends anywhere 3G coverage is available!
| Antenna | |
| Antenna design | Internal |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Design | |
| Product colour | Grey, White |
| Product type | Portable router |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Web-based management | |
| Reset button | |
| Mobile network | |
| 3G | |
| 4G | |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN | |
| Port forwarding | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Other features | |
| WLAN data transfer rates supported | 150 Mbit/s |
| Frequency range | 2.4 - 2.4835 GHz |
| Mobile network connection | |
| Packaging content | |
| Cables included | LAN (RJ-45), USB |
| AC adapter included | |
| Packaging data | |
| Package width | 110 mm |
| Package depth | 109 mm |
| Package height | 81.5 mm |
| Package weight | 210 g |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | |
| USB charging port | |
| Memory card slot(s) | |
| DC-in jack | |
| Power | |
| Power source type | AC, USB |
| Output voltage | 5 V |
| Output current | 1 A |
| Protocols | |
| DHCP client | |
| DHCP server | |
| Universal Plug and Play (UPnP) | |
| Security | |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Firewall | |
| Filtering | |
| MAC address filtering | |
| DMZ support | |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Win |
| Linux operating systems supported | |
| Mac operating systems supported | |
| WAN connection | |
| Ethernet WAN | |
| DSL WAN | |
| SIM card slot | |
| 3G/4G USB modem compatibility | |
| Weight & dimensions | |
| Width | 74 mm |
| Depth | 67 mm |
| Height | 22 mm |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 150 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
