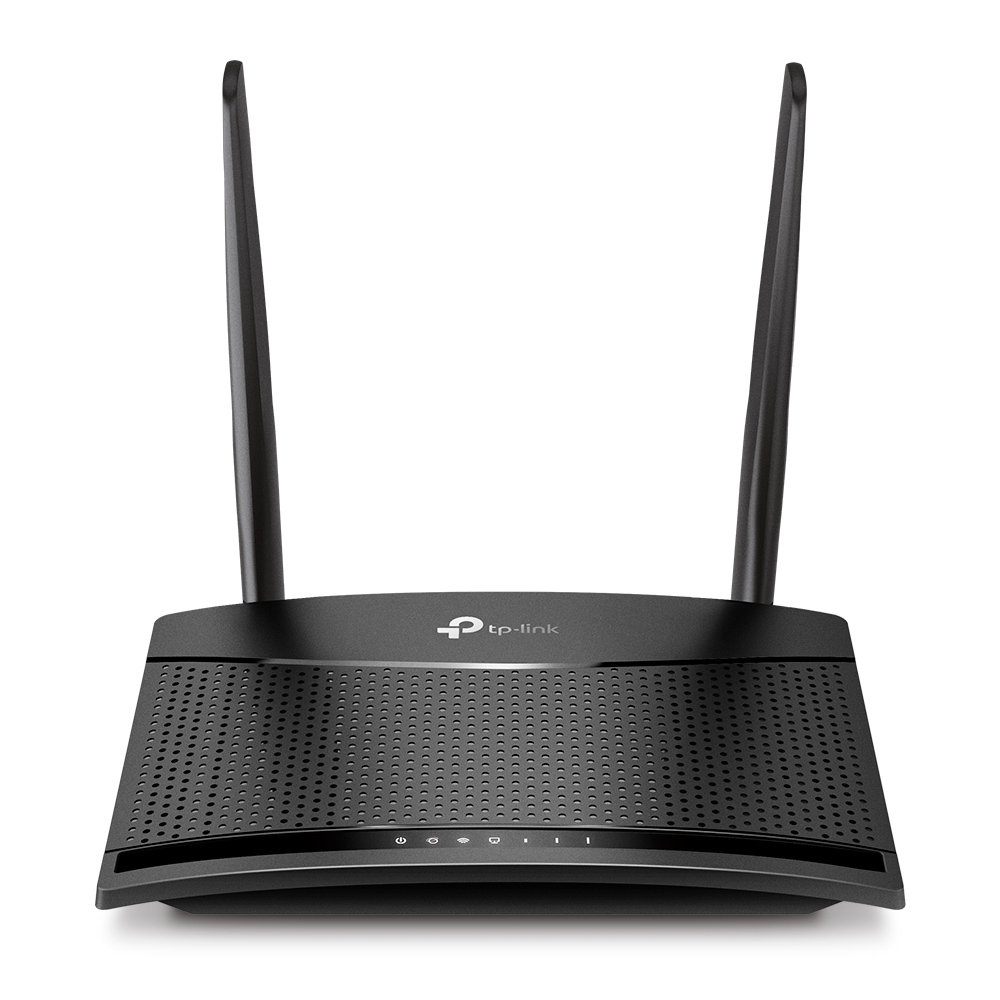

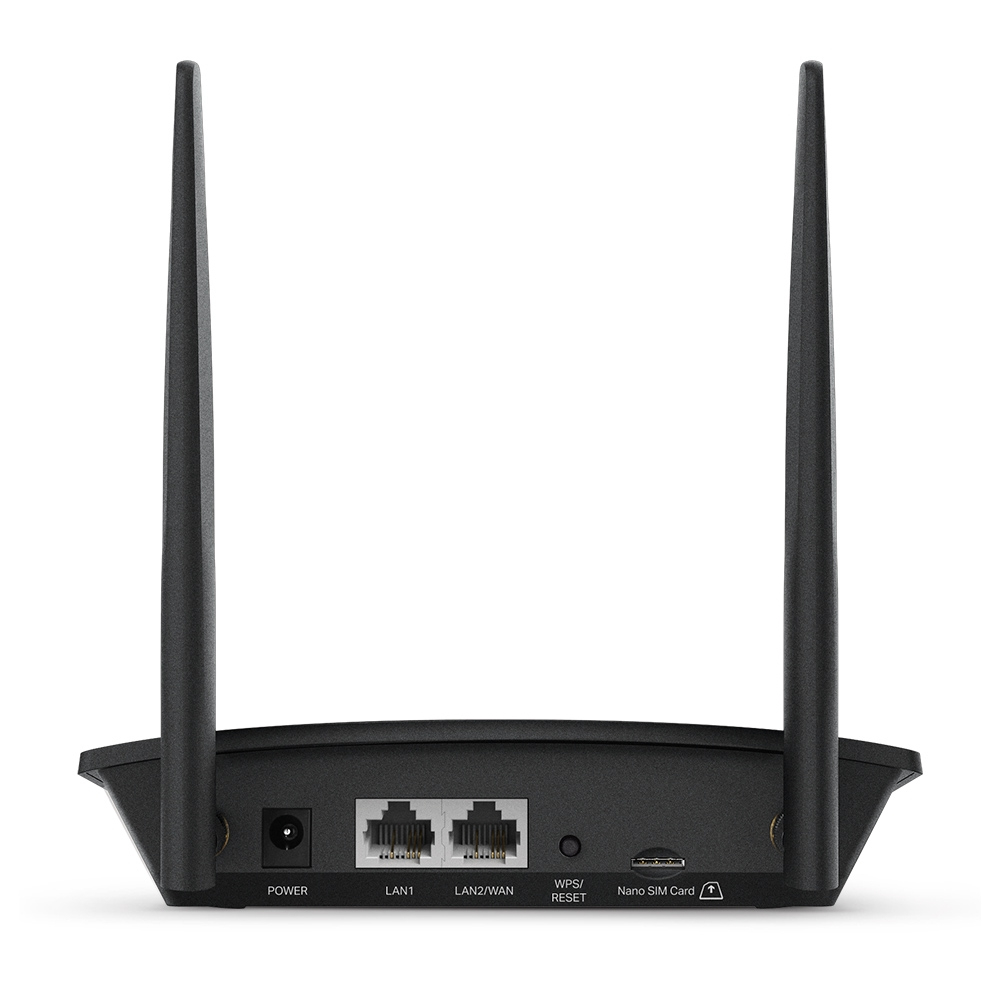

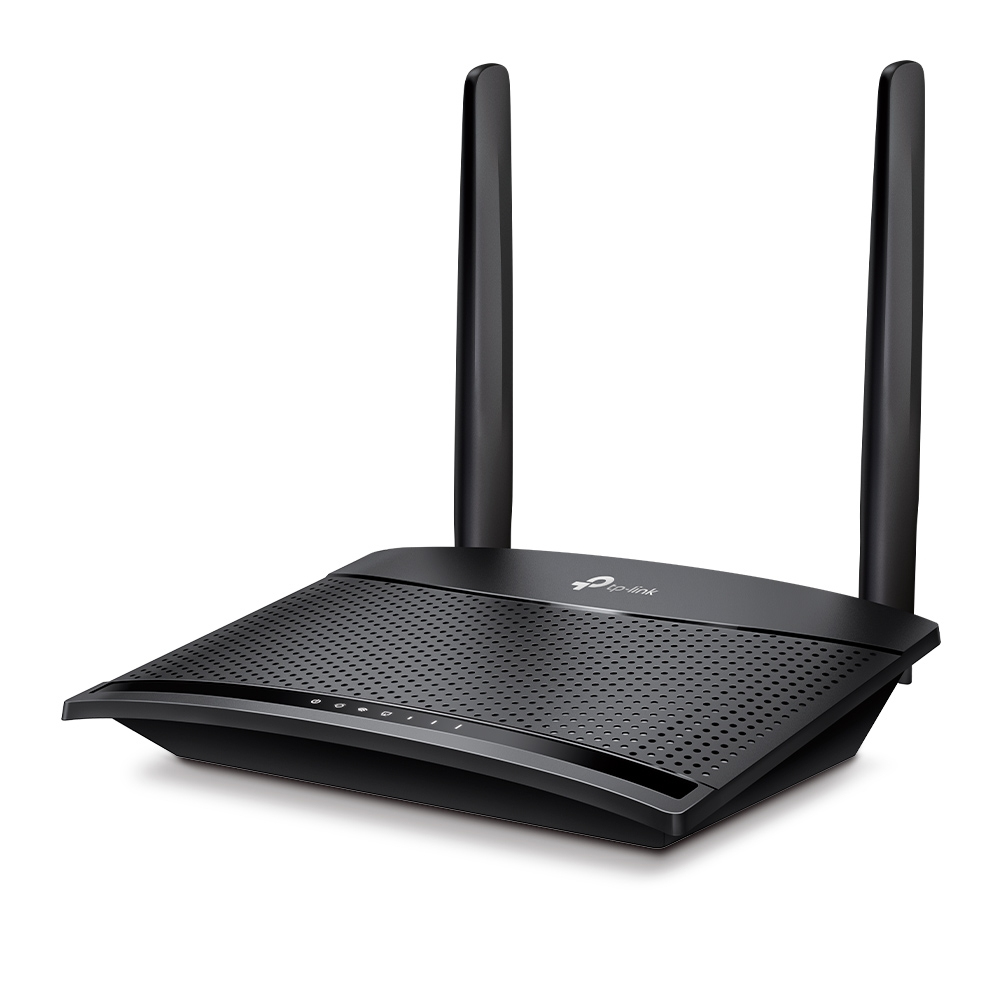

TP-Link TL-MR100 WLAN 300 Mbit Router 4G/LTE Dualband Plug and Play, Micro-SIM Slot
|
-48% 39,38 EUR 75,05 EUR |
|
|
( 46,86 EUR incl. VAT ) ≈ £33.16 | ≈ $44.22 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 29. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1554137 |
| Mfg Part No: | TL-MR100 |
| UPC/EAN: | 6935364088804 |
| Weight: | 0.493 kg |
| Type: | PERP |
Further Access Points from TP-LinkFurther products in category Access Points
All products of TP-Link
Product information for TP-Link TL-MR100:
The TL-MR100 supports the LTE/4G cellular standard with up to 150 Mbit/s download speed for uninterrupted video streaming and online gaming. It is also compatible with FDD-LTE and TDD-LTE, allowing it to support many operators around the world.
With an internal 4G modem and SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR100. A fast, stable WiFi connection is now available to you everywhere.
With an internal 4G modem and SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR100. A fast, stable WiFi connection is now available to you everywhere.
Highlights
- Supports the 4G/LTE cellular standard with download rates of up to 150 Mbit/s
- Connect for more than 32 devices at the same time
- No configuration required, compatible with more than 100+ SIM cards worldwide, simply insert the SIM card and LTE -Put the hotspot into operation
- Two removable antennas for a stable and efficient connection
- Also works as a WLAN router by simply plugging in a LAN cable via the freely configurable LAN/WAN port
- Stationary router
- ear category (ElektroG) : relevant, Category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C
- Area of application: Indoor
- Power supply: external
- WLAN
- WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
- Color: Black
- Height: 36 mm
- Length/Depth: 114 mm
- Width: 154 mm
- TP-Link TL-MR100 300Mbit/ s Wireless N 4G LTE Router
- Power Supply
- RJ45 Network Cable
- Quick Installation Guide
Product type
Specifications
Power supply
Data transmission
Basic features
Scope of delivery
| Antenna | |
| Antenna design | External |
| Antenna connector type | N-type |
| Antennas quantity | 2 |
| Certificates | |
| Certification | CE, RoHS |
| Design | |
| Product colour | Black |
| Product type | Tabletop router |
| On/off switch | |
| Features | |
| Firmware upgradeable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| Quality of Service (QoS) support | |
| Wireless statistics | |
| Reset button | |
| WPS push button | |
| Mobile network | |
| Mobile network generation | 4G |
| 3G standards | HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 800,900,1800,1900,2100,2300,2500,2600 MHz |
| 3G bands supported | 850,900,2100 MHz |
| SIM card type | MicroSIM |
| 3G | |
| 4G | |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Receiver sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Ethernet LAN | |
| Port forwarding | |
| Port triggering | |
| Dynamic DNS (DDNS) | |
| Wireless radio | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 293 mm |
| Package depth | 161 mm |
| Package height | 66 mm |
| Package weight | 480 g |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | |
| Memory card slot(s) | |
| DC-in jack | |
| Power | |
| Power source type | DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
| Protocols | |
| Supported network protocols | IPv4, IPv6 |
| DHCP client | |
| DHCP server | |
| Universal Plug and Play (UPnP) | |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | |
| Guest access | |
| Stateful Packet Inspection (SPI) | |
| Schedule access | |
| MAC address filtering | |
| IP address filtering | |
| DMZ support | |
| System requirements | |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | |
| Mac operating systems supported | |
| WAN connection | |
| WAN connection type | RJ-45 |
| Ethernet WAN | |
| SIM card slot | |
| 3G/4G USB modem compatibility | |
| Weight & dimensions | |
| Width | 154 mm |
| Depth | 114 mm |
| Height | 36 mm |
| Weight | 150 g |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
