TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit)

Your rating:
Average rating
product review for TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit)
( 4.6 / 5 ) 9 ratings
TP-Link TG-3468
This image may differ from the desired article.
TP-Link TG-3468TP-Link TG-3468TP-Link TG-3468
10,06 EUR 10,06 EUR
( 11,97 EUR incl. VAT )
≈ £8.42  |  ≈ $11.05
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >100 pieces
1x TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit)
Datasheet:file_download Download
Lieske Part No.:161184
Mfg Part No: TG-3468
UPC/EAN: 6935364001049
Weight:0.105 kg
Type:CARD

Product information for TP-Link TG-3468:

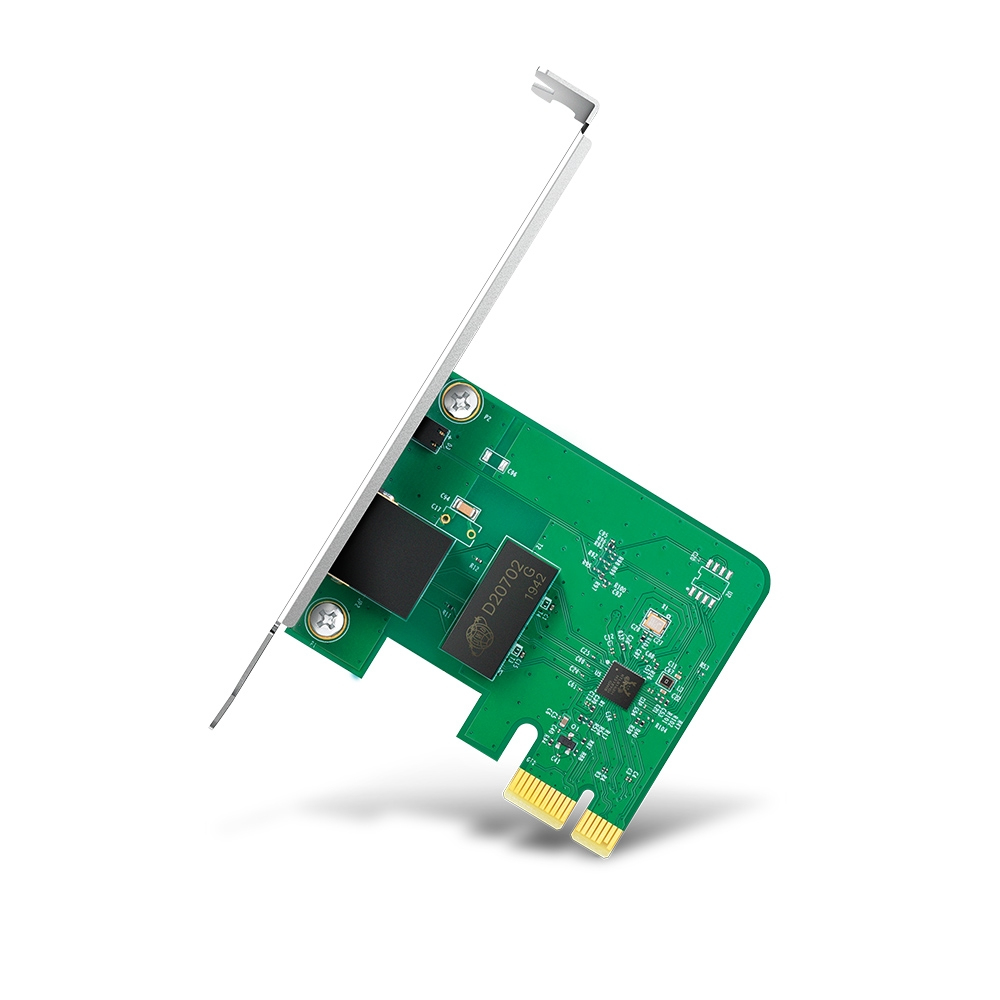

The TP-Link TG-3468 is a PCIe network card for use in PCs equipped with a PCI Express x1 slot. The device serves as a Gigabit Ethernet adapter and enables a wired network connection with a maximum data transfer rate of 1000 Mbit/s (1 Gbps). It is designed for use in office environments, home networks, or small server setups where a stable and fast LAN connection is required. The card is compact in size and also suitable for smaller computer housings such as mini-tower systems.

Applications

The adapter is designed for use in PCs equipped with a PCI Express bus. It is particularly suitable for systems requiring a Gigabit Ethernet connection where no such network interface is integrated into the motherboard. The card supports 10/100/1000BaseT(X), enabling flexible adaptation to various network environments. The maximum connection range is 100 meters over standard Ethernet cables (Cat5e or higher). The card is designed for indoor use, with an operating temperature of 0 to 40 °C and relative humidity of 10 to 90 % during operation.

Features and Specifications in Detail

The TP-Link TG-3468 features an RJ-45 connector for connection to a network cable. The card supports Auto-Negotiation, allowing the data transfer rate to be automatically adjusted to the network environment (10, 100, or 1000 Mbit/s). The Auto MDIX function enables automatic detection and adjustment of cable connections, eliminating the need for a special crossover cable. The card supports full-duplex transmission, enabling simultaneous bidirectional data transfer, and flow control (IEEE 802.3x) to prevent data loss during overload. Additionally, Wake-on-LAN (WOL) is integrated, allowing remote computer startup via the network – useful for remote administration and maintenance.

Technology Explained Simply

The card is based on the PCI Express x1 interface, which provides a direct connection to the computer’s system bus, ensuring high data transfer performance. The maximum data rate of 2000 Mbit/s (as stated in technical specifications) refers to the theoretical bandwidth of the PCIe interface, while the actual network transfer rate is 1000 Mbit/s. The card is fully compatible with the standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, and IEEE 802.3x. Support for VLAN tagging (IEEE 802.1Q) and Layer-2 priority coding (IEEE 802.1p) enables structured network management and prioritization of data traffic, for example for VoIP or video transmissions. The integrated LED indicator displays the connection status: “Solid On” indicates that the driver is installed and a connection is established.

Compatibility and Accessories

The adapter is certified for Windows 7, Windows 10 (including Home, Pro, Enterprise, Education, and IoT versions) as well as Linux and Novell NetWare. Drivers are available for the specified operating systems. The card is equipped with a Realtek RTL8168B chipset, providing a widely used and reliable hardware foundation. The card is designed for use in 32-bit PCIe systems and fits into any PCI Express x1 slot. The card’s color scheme is green and grey.

Installation and Mounting

Installation is performed by inserting the card into a free PCI Express x1 slot in the computer. The card is plug-and-play compatible, with driver installation possible via the included Resource CD or through the manufacturer’s download section. The quick installation guide supports installation and configuration. The card is installed internally and mounted inside the computer housing. Mounting is done using the included mounting brackets, designed for securing the card in the housing.

Operational Advantages

The TP-Link TG-3468 offers a cost-effective way to equip an existing system with Gigabit Ethernet capability. Support for Wake-on-LAN enables centralized network management and reduces energy consumption, as the computer is only activated when needed. Auto-Negotiation and Auto MDIX ensure simple and error-free setup without manual configuration. The card is certified to FCC, BSMI, VCCI, and CE, confirming compliance with applicable electromagnetic compatibility and safety standards. The card is designed for indoor use and meets requirements for sustainability compliance (RoHS).

Scope of Delivery

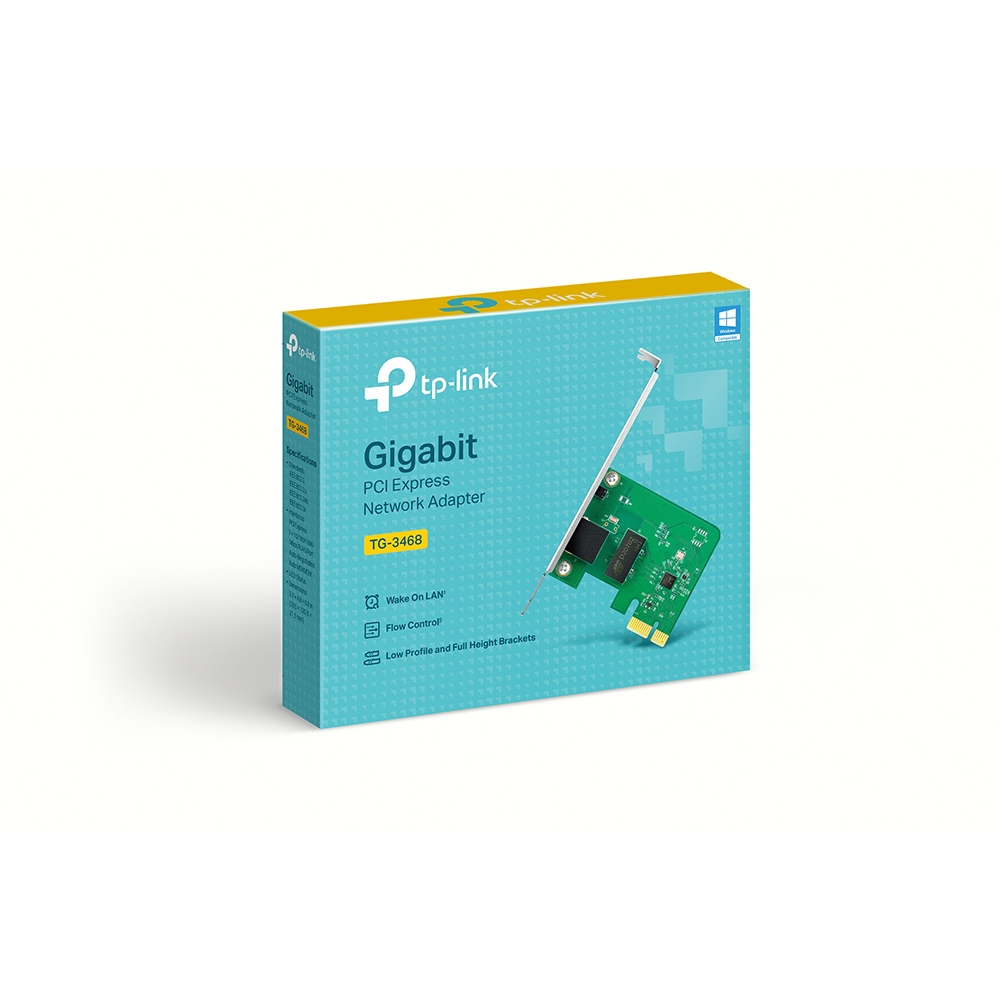

The delivery includes the TP-Link Gigabit PCI Express Network Adapter TG-3468, a Resource CD with drivers and documentation, and a quick installation guide. The mounting brackets are also included and are used to secure the card in the computer housing.

Certifications and Standards

The card complies with the standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Certifications FCC, BSMI, VCCI, CE, and RoHS confirm compliance with applicable technical and ecological standards. The card is designed for indoor use and meets requirements for sustainability compliance.

Operating Conditions

The card is designed for an operating temperature of 0 to 40 °C. Relative humidity during operation is 10 to 90 %. For storage, temperatures of -40 to 70 °C and humidity of 5 to 90 % are permissible.

Design and Form Factor

The card is a plug-in card with dimensions of 78.5 mm (width) × 120.8 mm (depth) × 21.5 mm (height). The color scheme is green and grey. The card is installed internally and mounted inside the computer housing. The LED indicator serves to display the network connection status.

System Requirements

The card is compatible with Windows 7, Windows 10 (including Home, Pro, Enterprise, Education, IoT) as well as Linux and Novell NetWare. Drivers are available for these operating systems.

Design
Component forPC
Product colourGreen, Grey
LED indicatorsStatus
CertificationFCC, BSMI, VCCI
InternalYes
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate2000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Maximum operating distance100 m
Ethernet LANYes
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Full duplexYes
Auto-negotiationYes
Quality of Service (QoS) supportYes
VLAN taggingYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Other features
Flow control supportYes
Packaging content
Mounting brackets includedYes
Resource CDYes
Quick installation guideYes
Packaging data
Package width160 mm
Package depth135 mm
Package height30 mm
Package weight100 g
Ports & interfaces
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
Sustainability
Sustainability complianceYes
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64,
Technical details
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width78.5 mm
Depth120.8 mm
Height21.5 mm


Product data sheet
Datasheet for TP-Link TG-3468, EAN: 6935364001049

Questions & answers

What is the delivery time of TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit)?

The article TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit) is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TG-3468 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit) always at the best possible price. We can give you a discount of 2% on TP-Link TG-3468 Nek PCI-Express (10/100/1000 MBit) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
