TP-LINK MiniGBIC Modul 10/25GBit SFP+ LC Multimode SX SM6110-SR +++ Up to 300m Distance
|
51,91 EUR |
|
|
( 61,77 EUR incl. VAT ) ≈ £43.71 | ≈ $58.29 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Lieske Part No.: | 1228083 |
| Mfg Part No: | SM6110-SR(UN) |
| UPC/EAN: | 8885020622331 |
| Weight: | 0.07 kg |
| Type: | PERP |

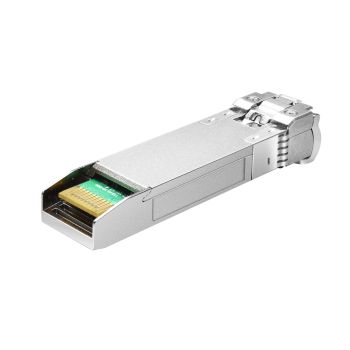

Product information for TP-Link SM6110-SR(UN):
Highlights
- Multimode SFP+/SFP28 LC transceiver
- Hot-pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low power consumption, no more than 1W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports such as SX6632YF; and 10G ports such as SG3428X and SG3452X
- Network switch module
- ear category (ElektroG): relevant, Category 6: small devices in IT and telecommunications technology, Small devices in IT and telecommunications technology B2C
- Area of application: Indoor
- Total number of fiber optic ports: 2
- Bandwidth: 25G-Base-T
- Main port type: Fiber optic
- SFP standard: SFP28
- Color: Silver
- Height: 13.45 mm
- Length/depth: 57 mm
- Width: 14 mm
- TP-Link SM6110-SR 10G/25Gbase-SR SFP+/SFP28 LC transceiver
Product type
Specifications
Connections
Data transmission
Basic properties
Scope of delivery
| Certificates | |
| Certification | FCC, CE |
| Features | |
| Hot-swap | |
| Operational conditions | |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Fiber optic connector | LC (UPC) |
| SFP transceiver standard | SR |
| Wavelength | 850 nm |
| Digital Diagnostics Monitoring (DDM) | |
| Power | |
| Input voltage | 3.3 V |
| Weight & dimensions | |
| Width | 61.3 mm |
| Depth | 14.5 mm |
| Height | 12.2 mm |
