TP-Link Switch fully managed Layer3 54 Port? 48x 1GbE ? 6x SFP+? PoE budget up to 1440 watts? 48x PoE at ? 19? ? Omada? SG6654XHP
|
3.799,05 EUR |
|
|
( 4.520,87 EUR incl. VAT ) ≈ £3,229.19 | ≈ $4,266.33 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Lieske Part No.: | 2122765 |
| Mfg Part No: | SG6654XHP(UN) |
| UPC/EAN: | 4895252501414 |
| Weight: | 12.17 kg |
| Type: | CPNT |
Product information for TP-Link SG6654XHP(UN):

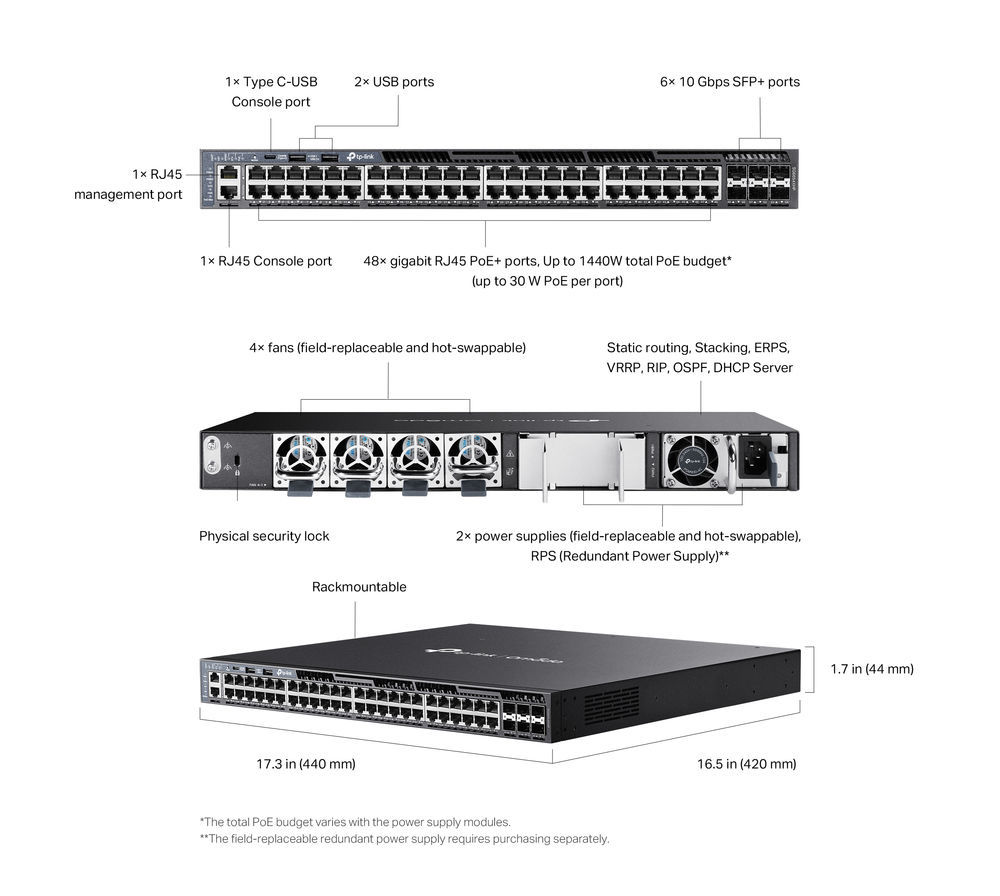

Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots 48× Gigabit RJ45 PoE+ ports 6× 10 Gbps SFP+ slots Up to 1440 W total PoE budget* Physical Stacking for built-in redundancy and performance L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay Security Strategies: ACL, Port Security, DoS Defend, 802.1X Highly Available with two field-replaceable power supplies, VRRP, and ERPS Centralized cloud management via the Omada SDN controller Standalone management via web, CLI, SNMP, and RMON
| Data transmission | |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.7 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Flow control support | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 6027.86 BTU/h |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Manual | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 1767.7 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 snooping |
| IGMP entries | 2048 |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| Loop protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-Link Switch fully managed Layer3 54 Port? 48x 1GbE ? 6x SFP+? PoE budget up to 1440 watts? 48x PoE at ? 19? ? Omada? SG6654XHP?
The article TP-Link Switch fully managed Layer3 54 Port? 48x 1GbE ? 6x SFP+? PoE budget up to 1440 watts? 48x PoE at ? 19? ? Omada? SG6654XHP is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link SG6654XHP(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link Switch fully managed Layer3 54 Port? 48x 1GbE ? 6x SFP+? PoE budget up to 1440 watts? 48x PoE at ? 19? ? Omada? SG6654XHP always at the best possible price. We can give you a discount of 2% on TP-Link Switch fully managed Layer3 54 Port? 48x 1GbE ? 6x SFP+? PoE budget up to 1440 watts? 48x PoE at ? 19? ? Omada? SG6654XHP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
