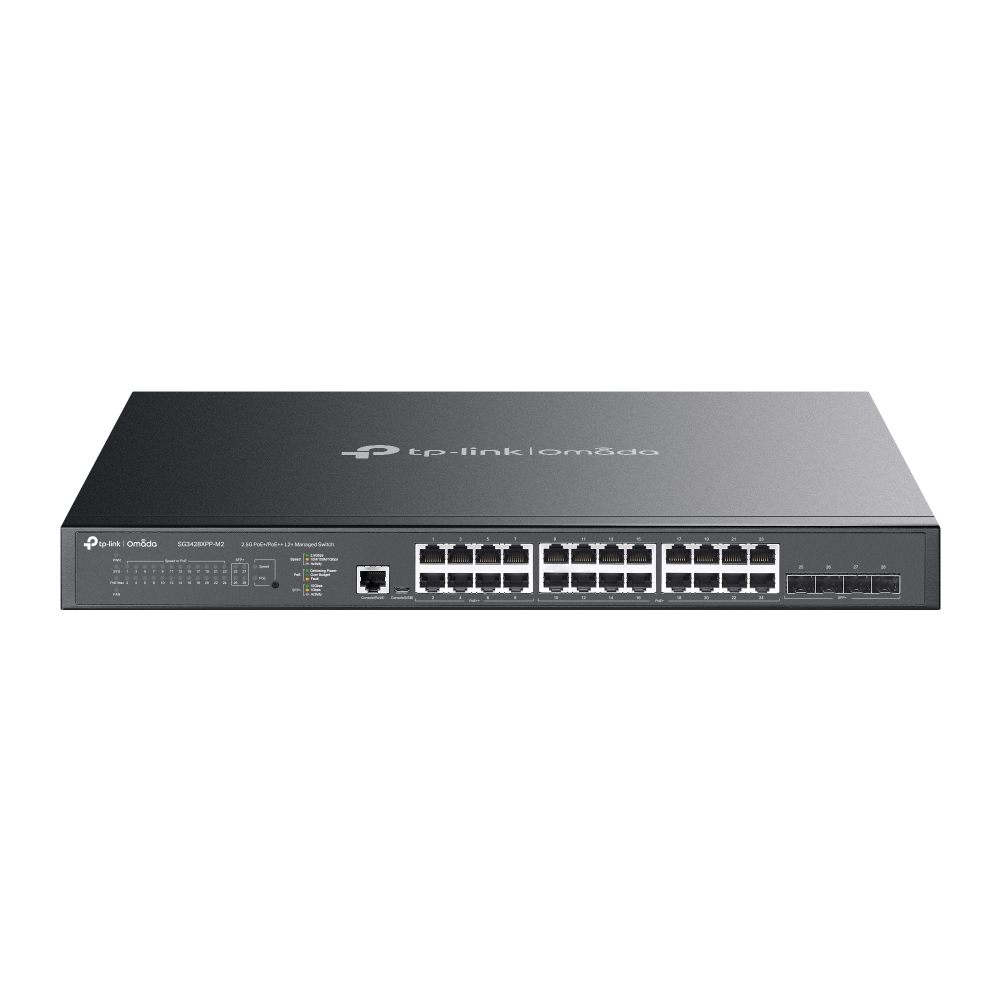

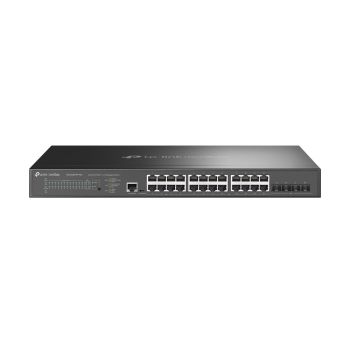

TP-LINK Switch SG3428XPP-M2 24x2.5GBit/4xSFP+ Managed 48,3 cm ( 19 inch ) Omada SDN, 500 W PoE, WiFi 7/6E/6 content_copy

Build and expand your lightning-fast network with the TP-Link TL-SG3428XPP-M2 - a fully managed switch with 24× 2.5 Gigabit ports with PoE support and 4× 10G SFP+ uplink ports. It is ideal for any corporate network and meets and exceeds the requirements for fast, reliable and secure corporate networks.

Highlights

• 24x 2.5 Gbit/s ports break the 2.5G barrier and unleash the full potential of WiFi 7/6E/6 access points
• 8x 802.3bt/at/af-compliant PoE++ ports and 16× 802.3at/af -Compliant PoE+ ports with a total power of 500W
• Blazing-fast 10G uplink: 4× 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capabilities
• Integrated into Omada SDN: Zero-touch provisioning ( ZTP), centralized cloud management and intelligent monitoring
• Central management: Cloud access and Omada app for ultra-convenient and easy management
• Static routing: Helps route internal traffic for more efficient use of network resources
• Robust security strategies: IP-MAC- Port binding, ACL, port security, DoS mitigation, storm control, DHCP snooping, 802.1X, Radius authentication and more
• Voice and video application optimization: L2/L3/L4 QoS and IGMP snooping
• Standalone management: Web, CLI ( Console port, Telnet, SSH), SNMP, RMON and Dual Image offer powerful management functions

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT devices and telecommunications technology B2C

Specifications

• Integrated fan
• Switch type: Access
• Switching capacity: 200 GBit/s (Gbps)

Connections

• Total number of copper ports: 24
• Total number of fiber optic ports: 4
• Connections Highlights: RJ45 Console Port; Micro-USB Console Port
• Bandwidth: 2.5G-Base-T
• PoE standard: PoE - 802.3af, PoE+ - 802.3at, PoE++ - 802.3bt (Type 3)
• PoE budget: 500W
• Console port
• Main port type: Copper
• Number of PoE+ (af/at) ports: 16
• Number of PoE++ (bt type 3) ports: 8
• Number of RJ45 Multi Gig ports (2.5G): 24
• Number of SFP+ ports (10G): 4

Functions

• Switch manageable : Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated > Basic features
• Color: Black
• Height: 44 mm
• Length/Depth: 330 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SG3428XPP-M2 24-Port Mgd. Switch 16x PoE+ 8x PoE++
• Power cable
• Quick installation guide
• Rackmount kit
• Rubber feet

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Data transmission
Switching capacity	200 Gbit/s
Forwarding rate	148.8 Mpps
MAC address table	32000 entries
Number of queues	8
Number of static routes	48
Number of IP interfaces	32
Jumbo frames	9000
Packet buffer memory	16 MB
Store-and-forward
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	3 fan(s)
Rack mounting
LED indicators
Redundant fans support
Management features
Switch type	Managed
Switch layer	L2+
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
IPv4 routes	48
IPv6 routes	48
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
10G support
Port mirroring
Full duplex
Half duplex
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	2153.45 BTU/h
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Performance
Memory type	DRAM
Internal memory	256 MB
Flash memory	32 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	629.1 W
Power supply included
Redundant power supply (RPS) support
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Total Power over Ethernet (PoE) budget	500 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP v1/v2c/v3
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, IEEE 802.1x, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Password protection
Sustainability
Sustainability compliance
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm

---
