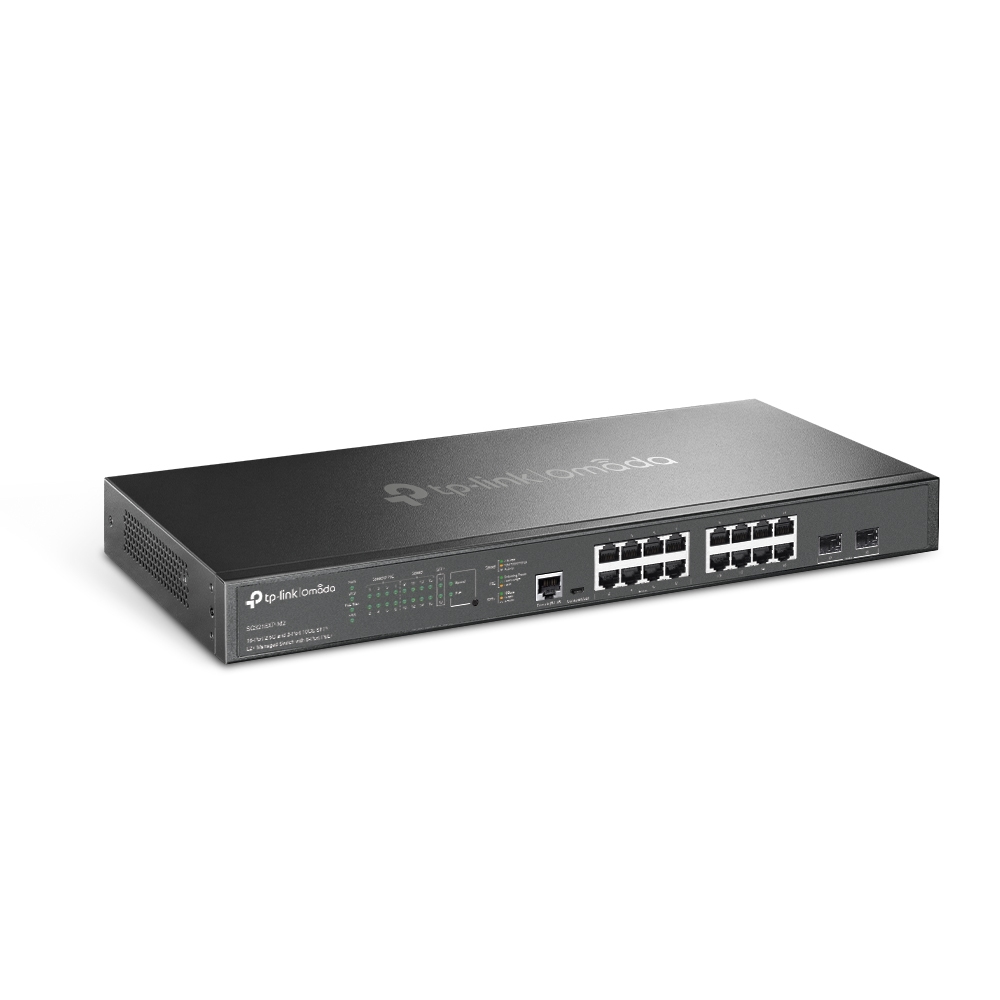

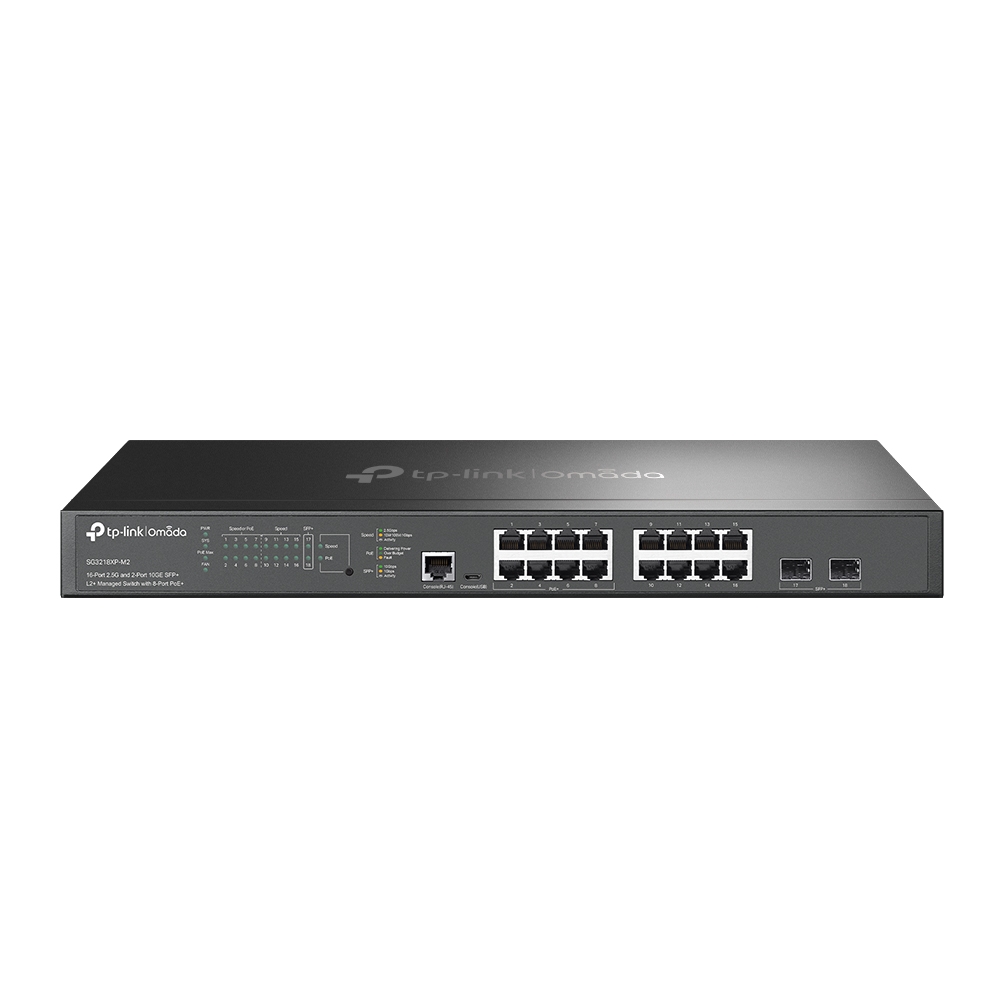

TP-LINK Switch SG3218XP-M2 16-Port Managed L2+ 8x 2.5G PoE+, 2x 10G SFP+ Slots content_copy

Immerse yourself in the world of high-speed networking with the SG3218XP-M2 New Omada Managed Switch. This switch offers a premium combination of high-performance connectivity, intelligent management and robust security to meet the needs of modern networks. With its advanced features, the SG3218XP-M2 New is the ideal choice for businesses that need a reliable and efficient network solution.

Highlights

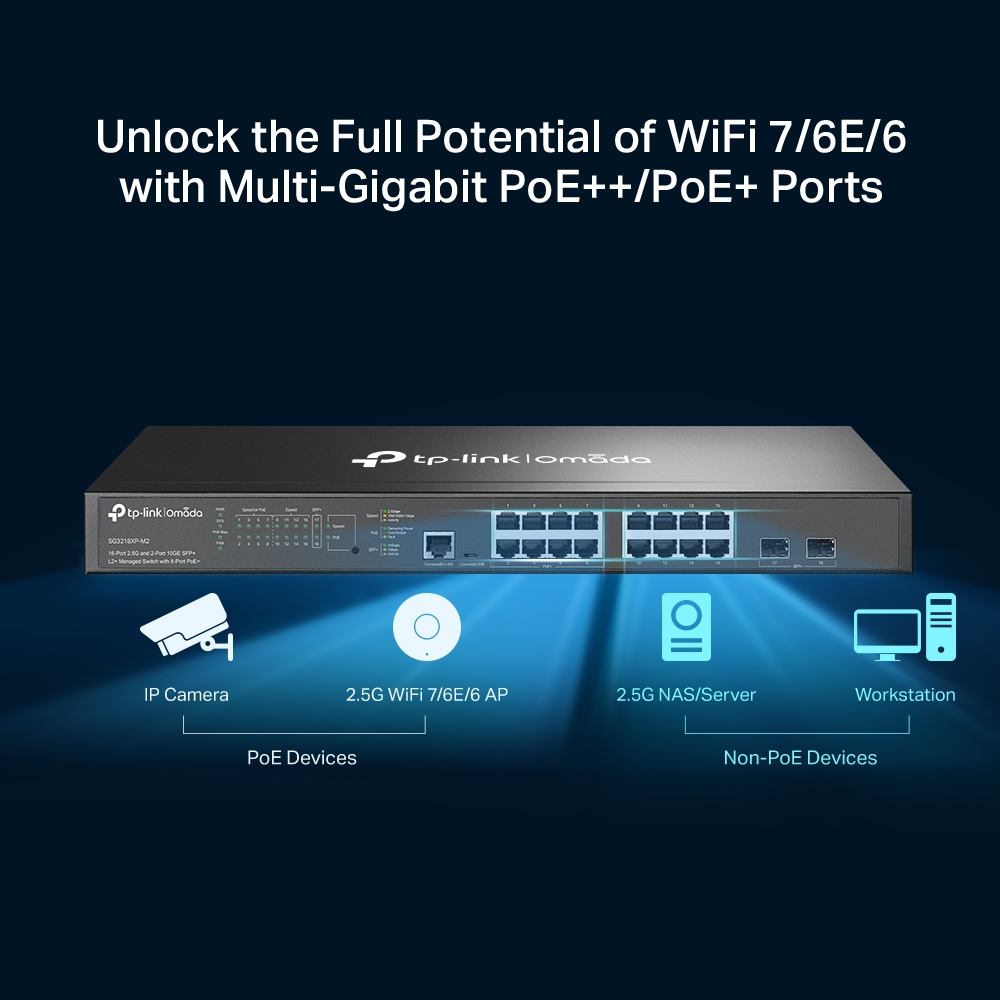

• 2.5G ports for WiFi 7/6E/6: 8x 2.5 Gbps PoE+ ports < 8× 2.5 Gbps non-PoE ports break the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs

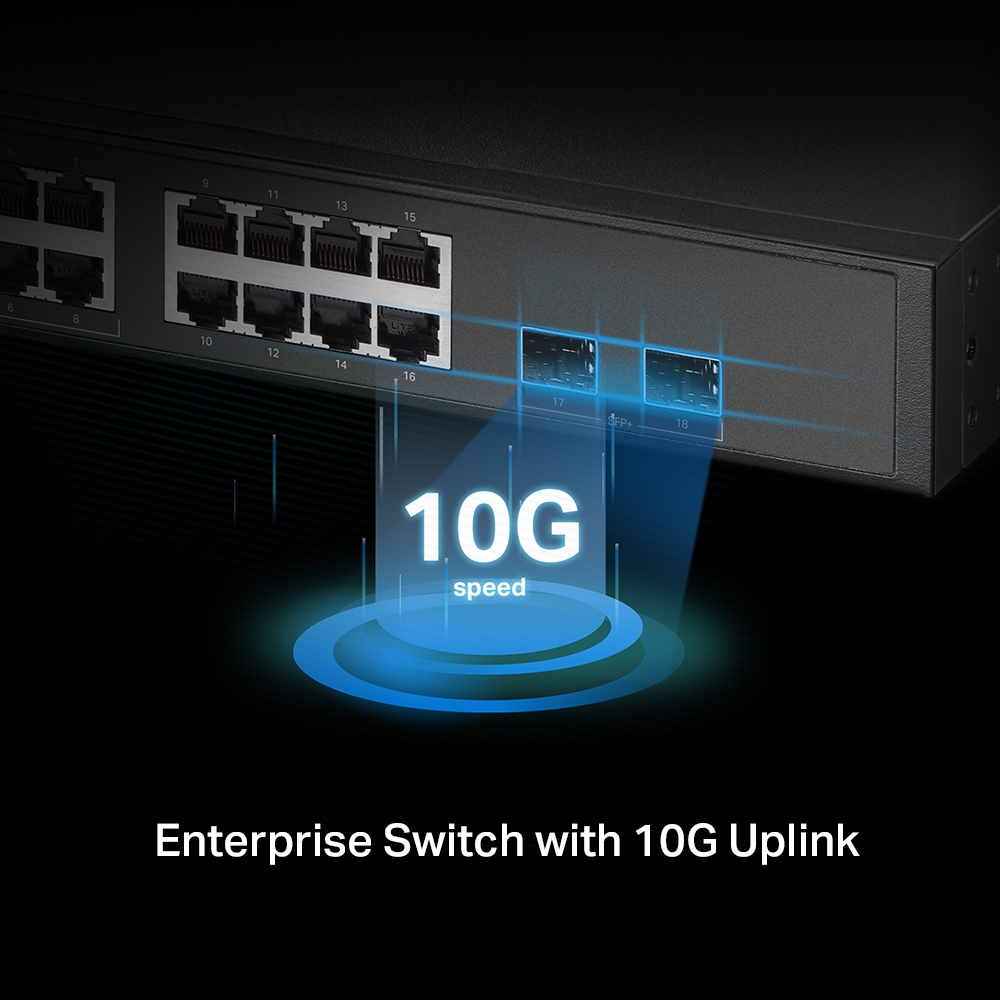

• 10G Lightning-fast uplinks: 2x 10 Gbps SFP+ slots enable high-bandwidth connection and non-blocking switching capacity
• 240 W PoE budget: 8x 802.3at/af compliant PoE+ ports with a total power supply of 250 W
• Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), central cloud management and intelligent monitoring
• Central management: Cloud access and Omada app for maximum convenience and easy management
• Static routing: Helps route internal traffic for more efficient use of network resources
• Robust security strategies: IP-MAC port binding, ACL, port security, DoS defense, storm control, DHCP snooping, 802.1X, Radius authentication and more
• Optimization of voice and video applications: L2/L3/L4 QoS and IGMP snooping

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, small IT and telecommunications equipment B2C

Specifications

• Switching capacity: 120 GBit/s (Gbps)

Shipping

• WEEE: 85565951

Connections

• Total number of copper ports: 16
• Total number of fiber optic ports: 2
• Total number of PoE ports: 8
• Bandwidth: 2.5G-Base-T
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 240 W
• Console port
• Main port type: Copper
• Number of PoE+ (af/at) ports: 8
• Number of RJ45 ports (1G): 16
• Number of SFP+ ports (10G): 2

Features

• Switch manageable: Yes
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 180 mm
• Width: 440 mm
• icecat Import: 2023/12/20

Scope of delivery

• TP-Link Omada SG3218XP-M2 Network Switch Managed L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	120 Gbit/s
Forwarding rate	89.28 Mpps
MAC address table	16000 entries
Number of static routes	48
Number of IP interfaces	32
Jumbo frames	9000
Packet buffer memory	12 MB
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
MIB support	MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Ethernet LAN data rates	100,1000,2500 Mbit/s
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
10G support
Port mirroring
IP routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1021.64 BTU/h
Packaging content
Cables included	AC
Quick start guide
Packaging data
Package type	Box
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	2
Console port	RJ-45/Micro-USB

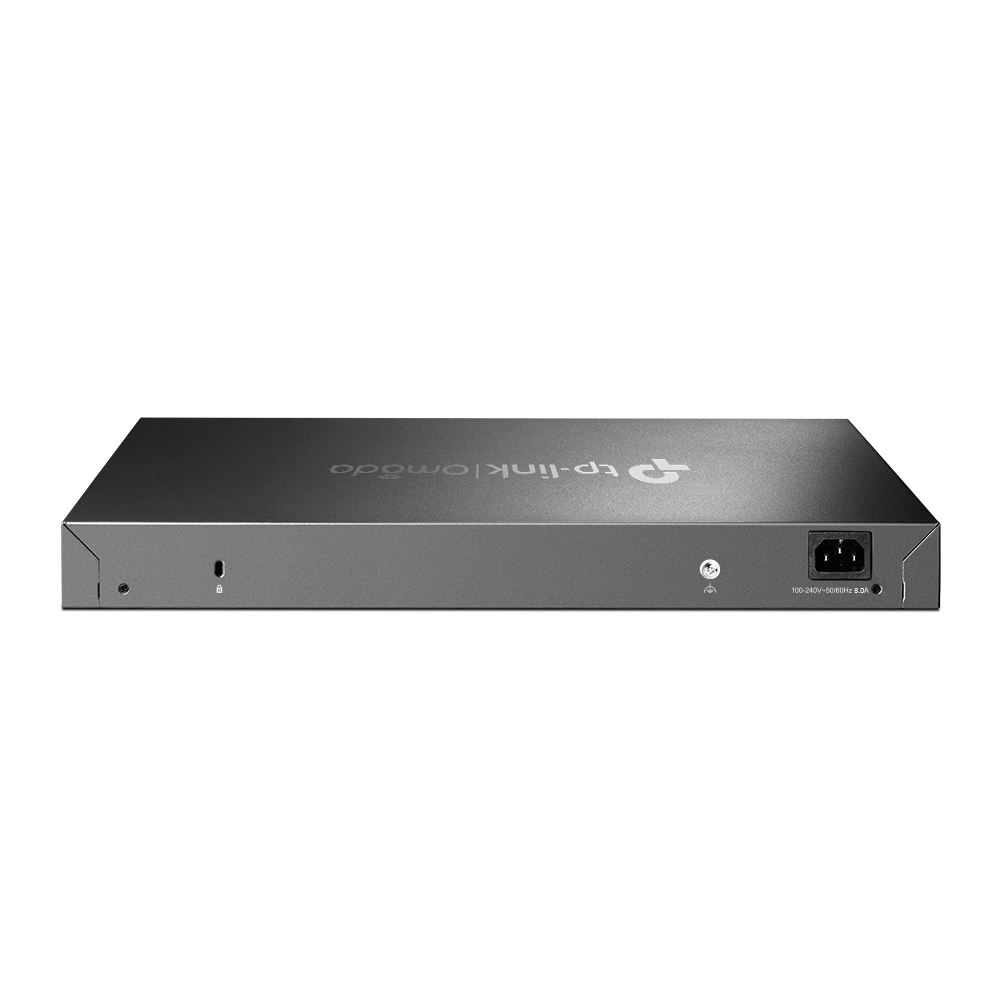

Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	299.4 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
Authentication	MAC-based authentication, Port-based authentication
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Password protection
Sustainability
Sustainability compliance
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
