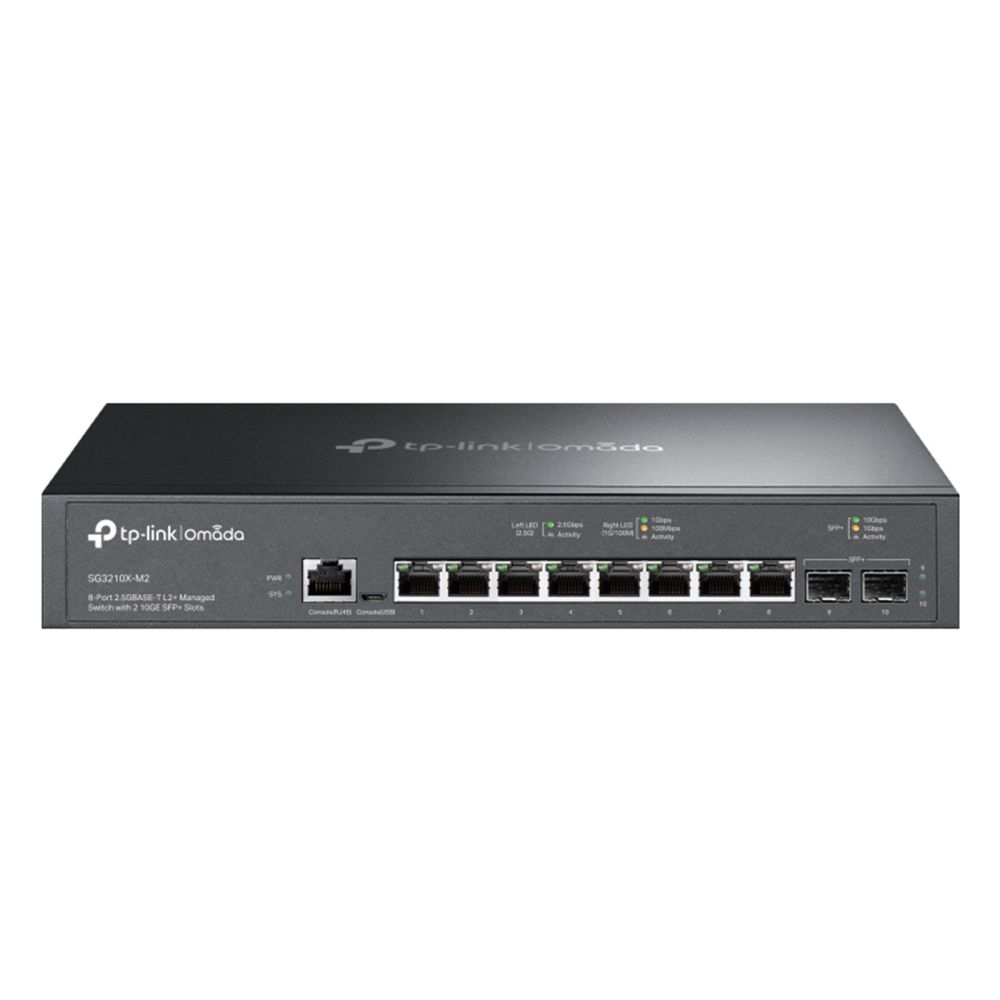

TP-LINK Switch SG3210X-M2 8-Port Managed L2+ 8x 2.5G Ports, 2x 10G SFP+ Slots content_copy

Immerse yourself in the future of network connectivity with the TP-Link SG3210X-M2!Experience 2.5 Gbps speeds: The 8× 2.5 Gbps RJ45 ports provide ultra-fast and reliable connections to other switches and devices.For lightning-fast uplinks, 2× 10 Gbps SFP+ slots are available, enabling high-speed connectivity and non-blocking switching capacity.The TP-Link SG3210X-M2 is seamlessly integrated with the Omada SDN and offers features such as Zero-Touch Provisioning (ZTP)*, centralized cloud management and intelligent monitoring for effortless setup and monitoring. Manage your network centrally via the cloud or the Omada app for ultimate convenience and ease of use.With features such as static routing, the SG3210X-M2 optimizes internal traffic to use network resources more efficiently. Robust security is provided by IP-MAC port binding, ACL, port security, DoS defense, storm control, DHCP snooping, 802.1X, Radius authentication and more.Optimize voice and video applications with L2/L3/L4 QoS and IGMP snooping. With various management options including Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image, the SG3210X-M2 offers powerful management capabilities in standalone operation.Get ready to revolutionize your network experience with the TP-Link SG3210X-M2!

Highlights

• 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports provide high-speed and reliable connections to other switches and devices
• 10G Lightning Fast Uplink: 2× 10 Gbps SFP+ slots enable high-speed connection and non-blocking switching capacity
• Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring
• Centralized Management: Cloud access and the Omada app for ultimate convenience and easy management
• Static Routing: Helps route internal traffic for more efficient use of network resources
• Robust Security Strategies: IP-MAC Port Binding, ACL, Port Security, DoS Defense, Storm Control, DHCP Snooping, 802.1X, Radius Authentication and more
• Optimization of Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
• Standalone management: Web, CLI (console, Telnet, SSH), SNMP, RMON and dual image provide powerful management functions

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, Small IT and telecommunications equipment B2C

Specifications

• Switching capacity: 80 GBit/s (Gbps)

Shipping

• WEEE: 85565951

Connections

• Bandwidth: 2.5G-Base-T
• Console port
• Number of RJ45 ports (1G): 8
• Number of RJ45 Multi Gig ports (2.5G): 8
• Number of SFP+ ports (10G): 2

Features

• Switch manageable: Yes
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 180 mm
• Width: 294 mm
• icecat Import: 2023/12/20

Scope of delivery

• TP-Link Omada SG3210X-M2 Network Switch Managed L2+ 2.5G Ethernet (100/1000/2500) 1U Black

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	80 Gbit/s
Forwarding rate	59.52 Mpps
MAC address table	16000 entries
Number of static routes	48
Number of IP interfaces	16
Jumbo frames	9000
Packet buffer memory	12 MB
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2+
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Quality of Service (QoS) support
Web-based management
Cloud-managed
Traffic classification
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Ethernet LAN data rates	100,1000,2500 Mbit/s
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	51.18 BTU/h
Packaging content
Cables included	AC
Quick start guide
Packaging data
Package type	Box
Package width	528 mm
Package depth	250 mm
Package height	80 mm
Package weight	2.84 kg
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	8
SFP+ module slots quantity	2
Console port	RJ-45/micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	15 W
Power supply included
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
Authentication	MAC-based authentication, Port-based authentication
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Password protection
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm

---
