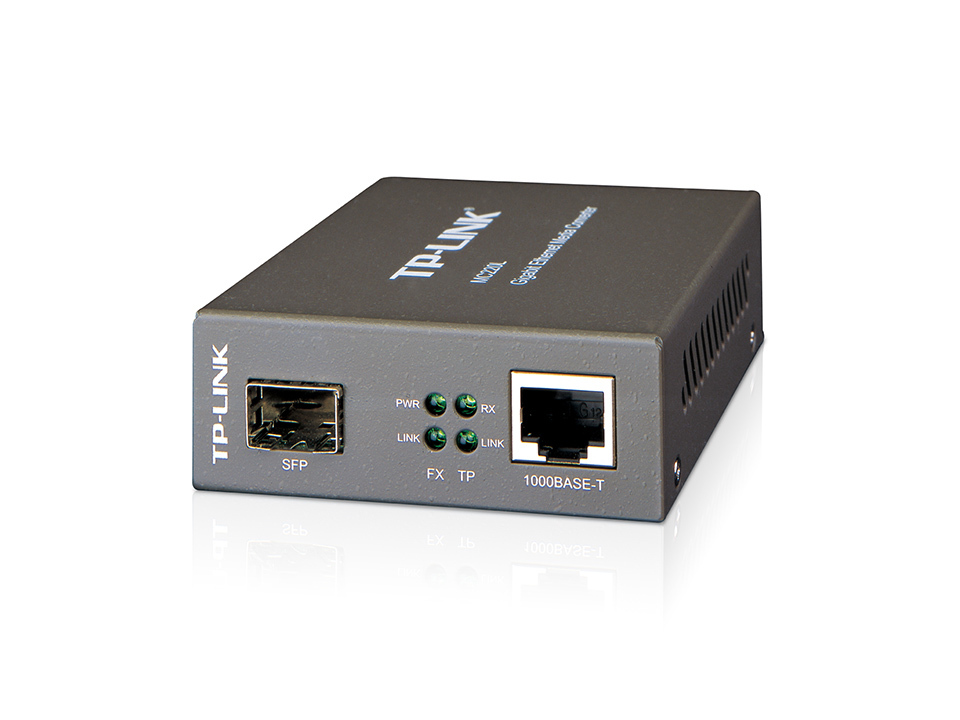

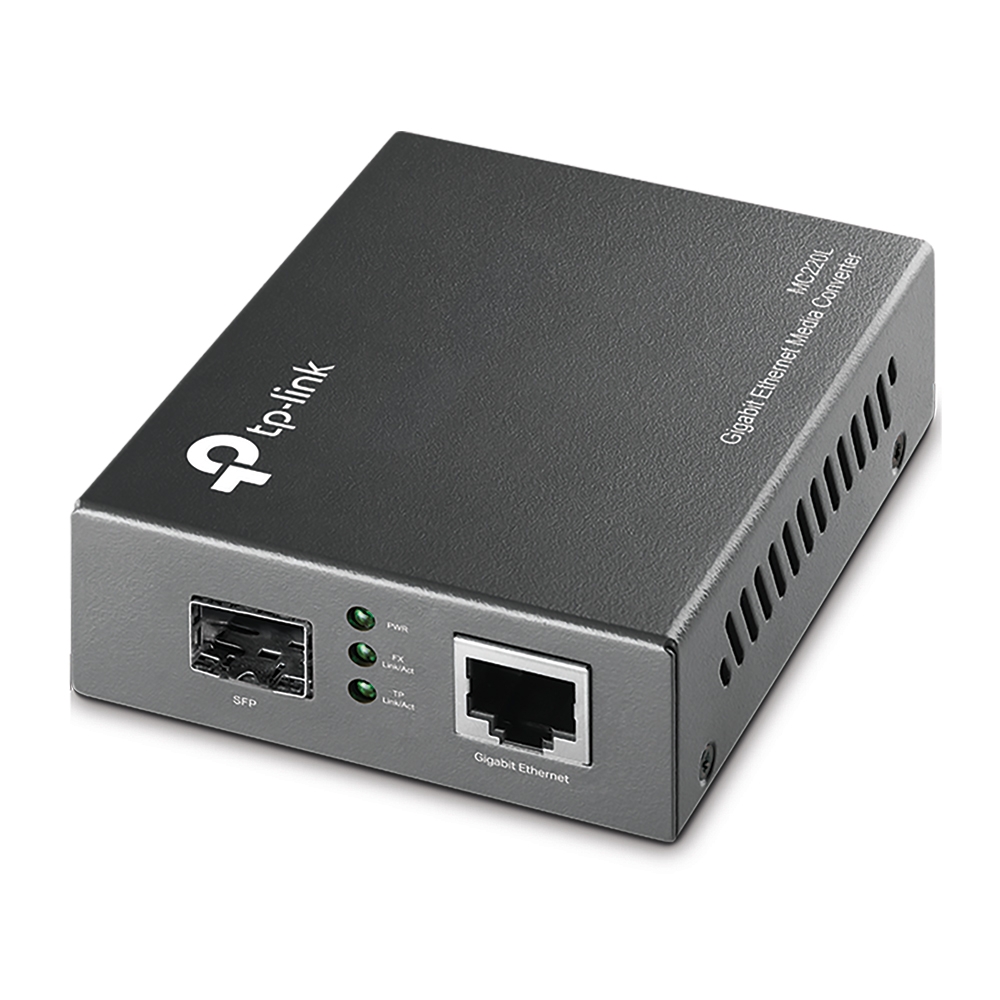

TP-LINK MC220L Transceiver/Media Converter - 1 Port(s) - 1 x Network (RJ-45) - 1000Base-T
|
-10% 17,76 EUR 19,78 EUR |
|
|
( 21,13 EUR incl. VAT ) ≈ £15.06 | ≈ $19.91 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| End-Of-Life: | 16. Aug 2026 |
|---|---|
| Lieske Part No.: | 920825 |
| Mfg Part No: | MC220L |
| UPC/EAN: | 6935364030476 |
| Weight: | 0.45 kg |
Further Media-Converters from TP-LinkFurther products in category Media-Converters
All products of TP-Link
Product information for TP-Link MC220L:
The MC220L is a media converter which is designed to 1000BASE-SX / LX / LH fiber media in 1000Base-T copper media or to convert vice versa. The MC220L was designed according to the 1000Base-T standard (IEEE802.3ab) and 1000Base-SX / LX / LH standard (IEEE802.3z) and for use with multimode / single mode fiber optic cable and the SC / LC connectors provided.
Highlights
- Operates at 1000Mbps for both TX port and the FX port in full-duplex mode
- TX port with support auto MDI / MDIX
- Looks switch configuration for the Force Mode and Auto-transfer modes for the FX port before
- FX port supports hot swap
- optical fiber transmission distance up to 0,55km in multimode and 10km on single mode
- Easy to seeing LED indicators show the status, so the network can be monitored easily
- External Power Supply > System Connections - Number of Ethernet ports 10/100/1000 Mbit / s: 1
- Color: Black
- Height: 27 mm
- Width: 94.5 mm
- Depth: 73 mm
- Product Type: Media Converter
- Converters
- Power Supply
- Documentation
Basic Properties
Delivery
| Certificates | |
| Certification | FCC, CE |
| Features | |
| LED indicators | Link |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Internal | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | UTP 5e, 5 |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Other features | |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
| Full duplex | |
| Packaging data | |
| Package width | 204 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
| Package weight | 420 g |
| Performance | |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power consumption (max) | 1.7 W |
| External power adapter | |
| Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
