TP-LINK Omada 8-Port Gigabit Industrial content_copy

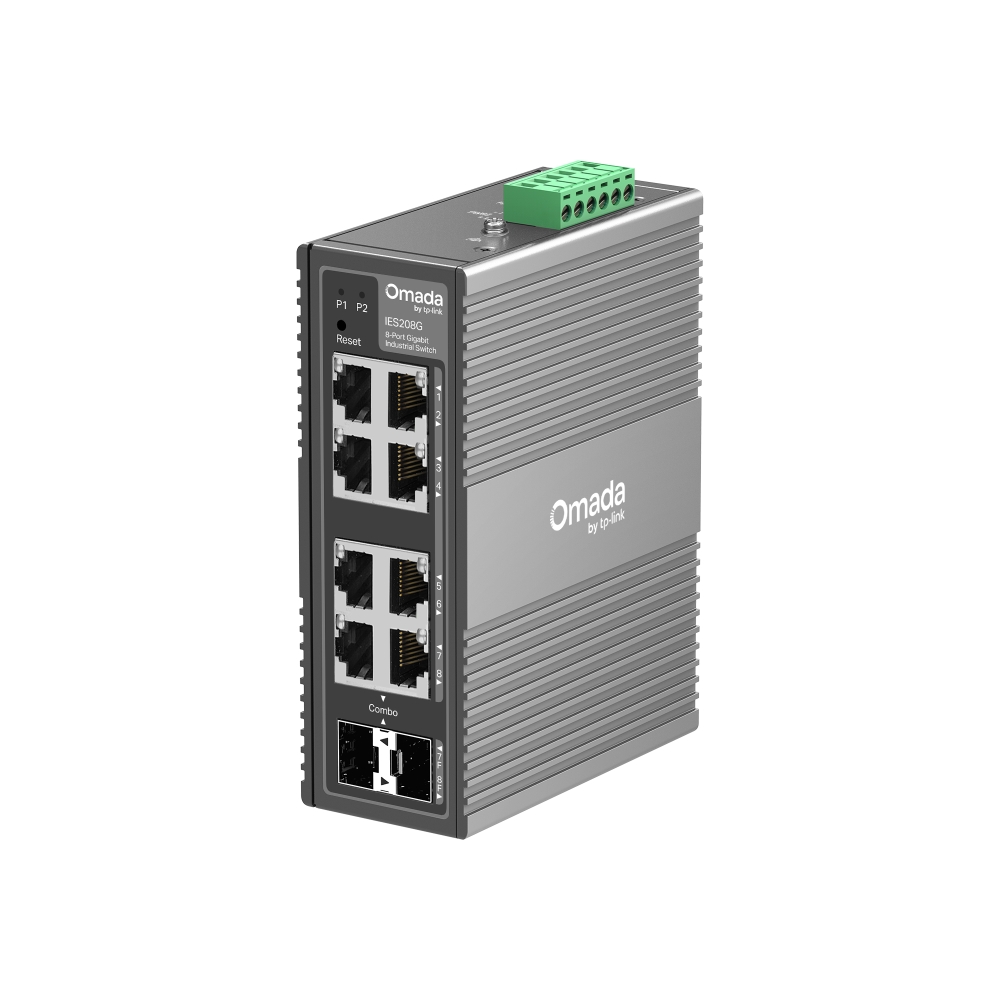

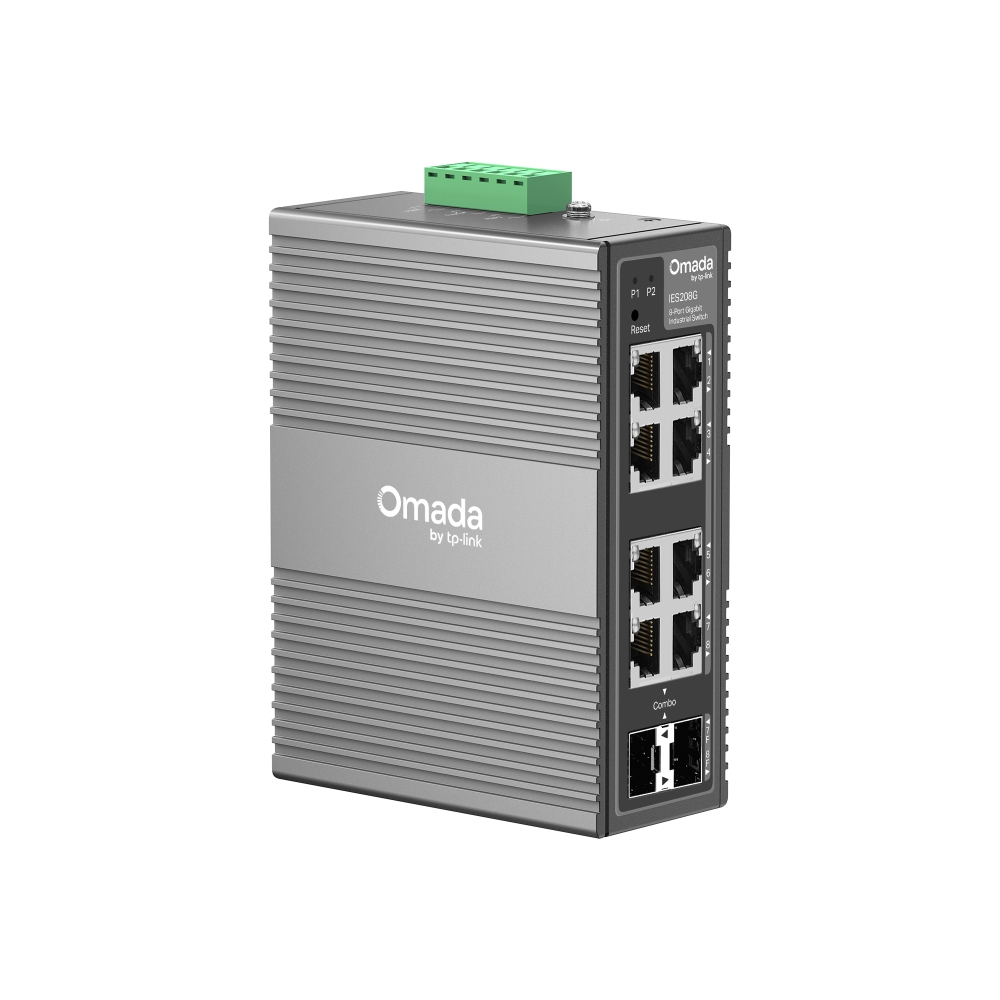

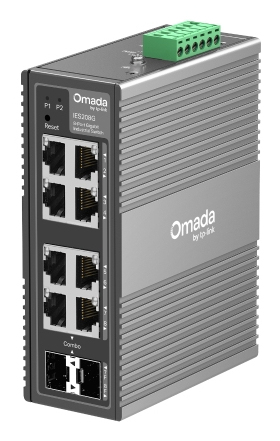

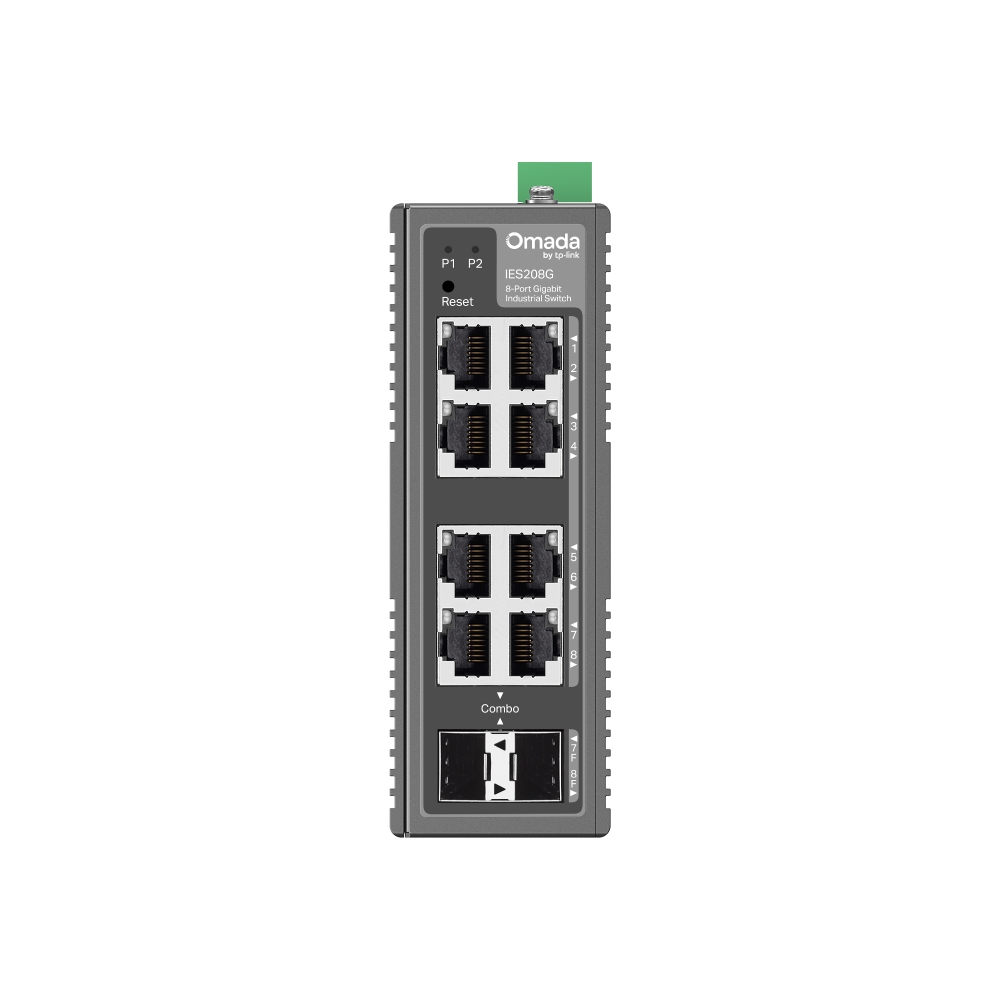

The TP-Link Omada IES208G is a managed Gigabit network switch for industrial applications. It features a robust aluminium housing with IP40 protection rating, making it suitable for use in production environments, automation systems, and surveillance networks. The compact design enables flexible mounting on DIN rails or on walls, allowing integration into various industrial infrastructures. The switch offers 6 RJ45 ports for Gigabit Ethernet (10/100/1000 MBit/s) as well as 2 combo ports, which can be used either as RJ45 ports or as SFP module interfaces. This combination enables flexible network configuration, especially when optical connections via SFP modules are required.

Applications

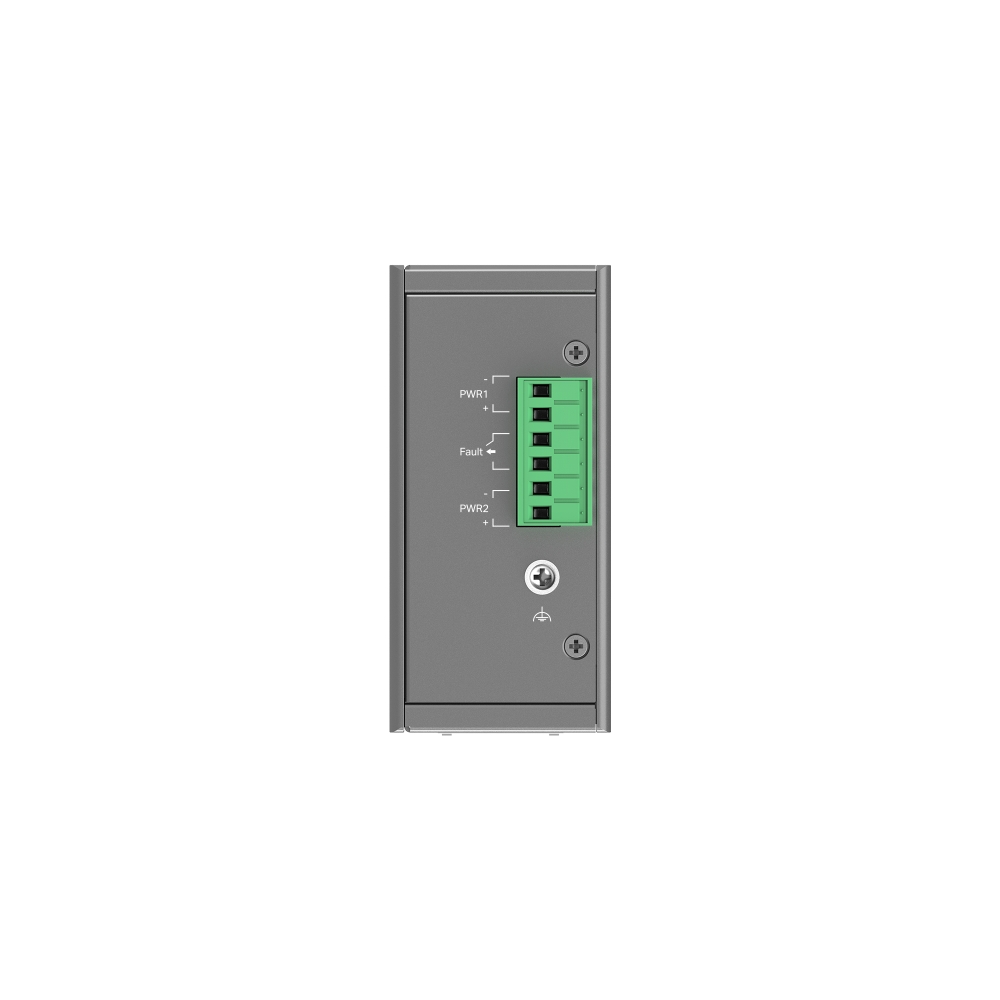

The IES208G is specifically designed for use in industrial environments that require high reliability and operational safety. It is designed for operating temperatures from -40 °C to +75 °C, making it suitable for harsh use in factories, warehouses, or outdoor areas. The integrated 6-kV surge protection function increases immunity to interference and protects devices from transient voltage spikes. Support for redundant power supply with 1+1 backup and a wide input voltage range of 9.6 to 60 V DC ensures continuous network availability even during power supply disruptions.

Functions and Equipment in Detail

The switch offers comprehensive management functions, including web-based management and cloud-based administration via the Omada platform. This enables central control and monitoring of multiple switches from a single access point. Support for Quality of Service (QoS) allows prioritisation of data traffic to protect critical applications such as video surveillance or industrial control systems. Additional features include VLAN support, port mirroring, link aggregation, broadcast storm control, Auto MDI/MDI-X, and auto-negotiation. The MAC address table holds 8000 entries, sufficient for efficient management of network devices in larger environments.

Technology Explained Simply

The switching capacity is 16 Gbit/s, enabling high data processing performance for connecting 8 ports. The forwarding rate is 11.9 Mpps (millions of packets per second), ensuring fast packet processing. Support for Jumbo frames up to 15000 bytes reduces the number of packets during large data transfers and improves network efficiency. The network standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x are supported, ensuring compatibility with a wide range of network devices. The spanning tree protocols STP and RSTP prevent loops in the network and ensure a stable topology.

Compatibility and Accessories

The combo ports allow the use of SFP modules, enabling optical connections. Compatible modules include, for example, the Omada SM311LM (multimode) or SM311LS (singlemode), suitable for various transmission distances. Using these modules extends the range and flexibility of the network, especially in larger or distributed installations.

Mounting and Installation

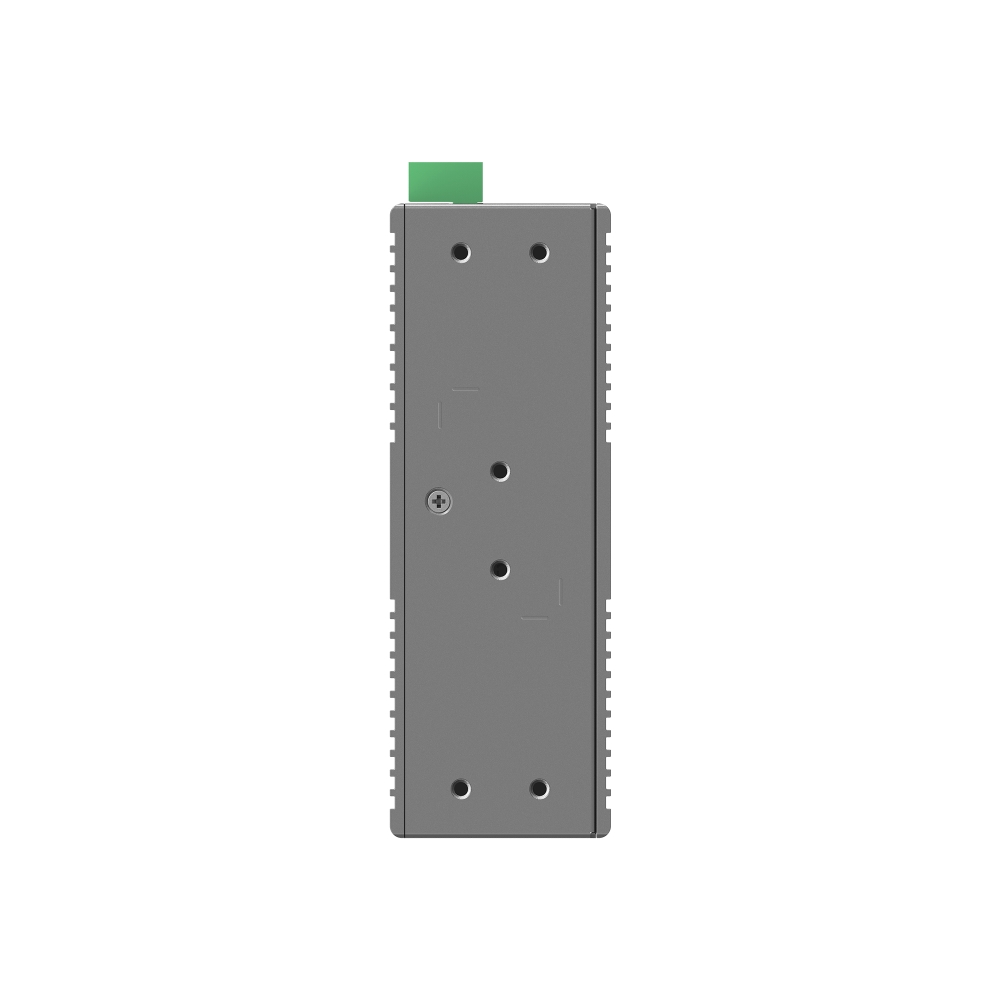

The switch can be mounted on DIN rails or on walls. The delivery includes the necessary mounting brackets, including a DIN rail mounting bracket and wall mounting plates, as well as an installation manual. Installation is tool-free, as the mounting components can be attached directly to the device. The fanless design ensures disturbance-free operation without additional noise.

Advantages in Operation

The IES208G offers high operational reliability through redundant power supply, robust construction, and comprehensive network functions. Cloud-based management enables central control, reducing maintenance and configuration effort. Support for Jumbo frames and QoS optimises network performance for demanding applications. The IP40 protection rating protects against dust and splashing water, making it suitable for use in harsh environments. The combination of compact design and versatile mounting options facilitates integration into existing infrastructures.

Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Jumbo frames	15000
Jumbo frames support
Design
Wall mountable
DIN rail mounting
Management features
Switch type	Managed
Quality of Service (QoS) support
Web-based management
Cloud-managed
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Auto MDI/MDI-X
Spanning tree protocol
Auto-negotiation
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Power
Power source	DC
DC input voltage	9.6 - 60 V
Redundant power supply (RPS) support
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
IGMP snooping
Static port security
Weight & dimensions
Width	129 mm
Depth	95 mm
Height	45 mm

---
