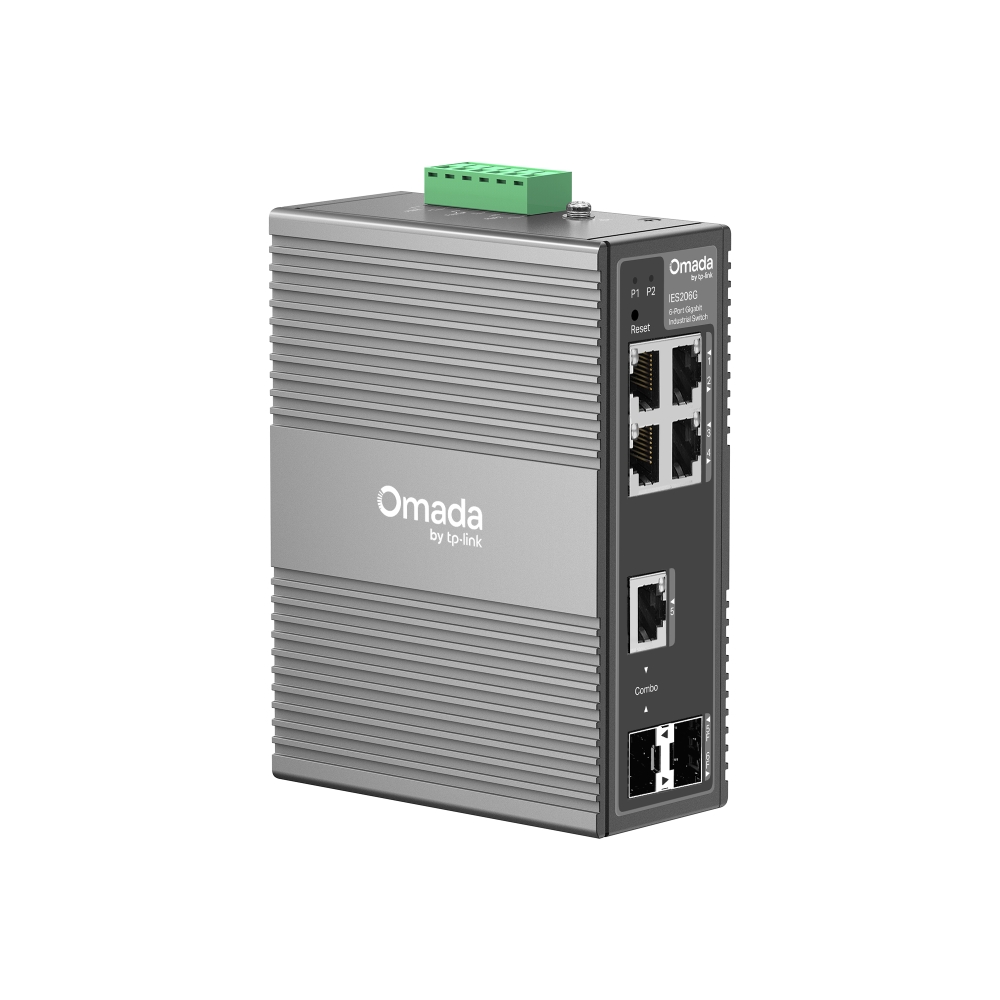

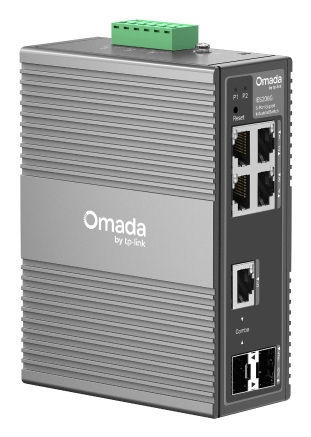

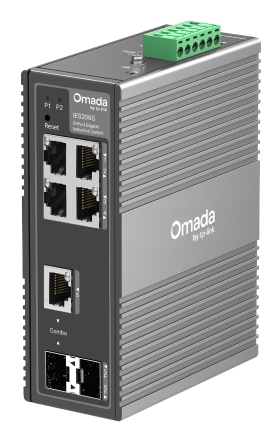

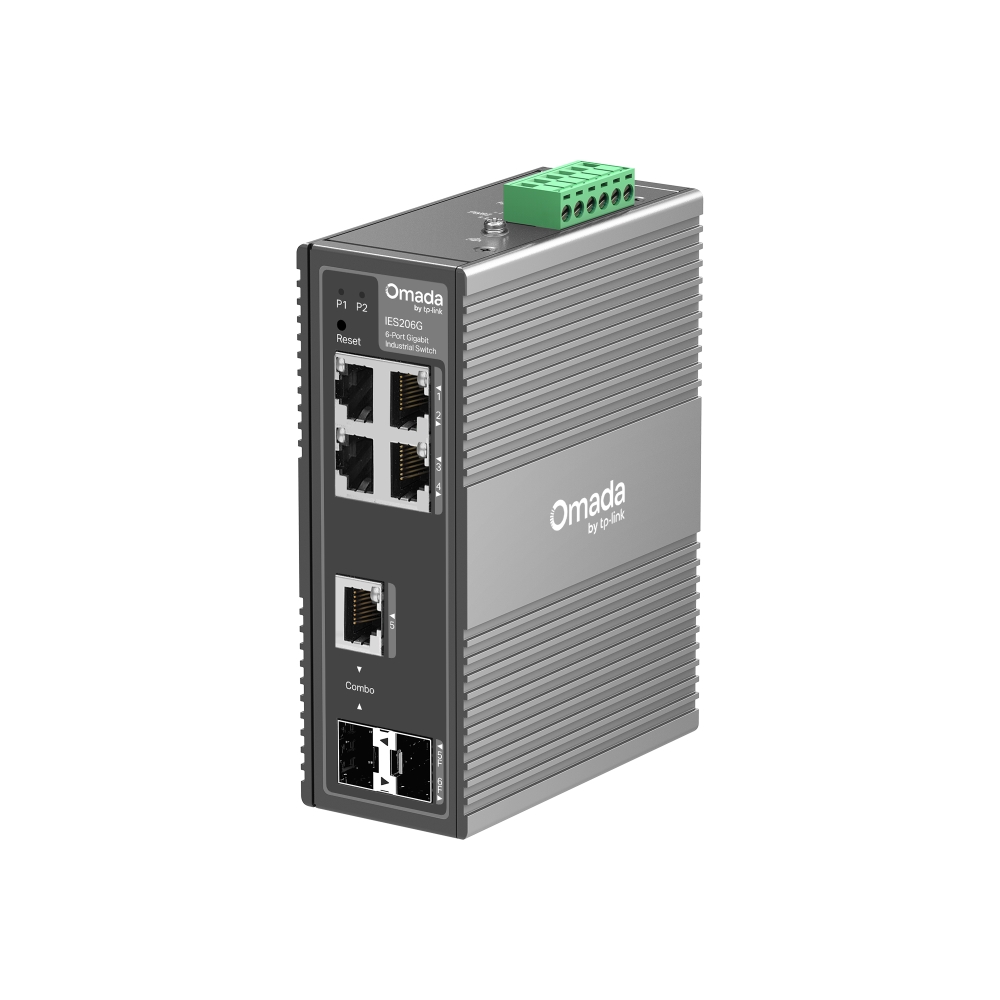

TP-LINK Omada 6-Port Gigabit Industrial
|
145,15 EUR |
|
|
( 172,73 EUR incl. VAT ) ≈ £123.38 | ≈ $163.00 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Lieske Part No.: | 598683 |
| Mfg Part No: | IES206G(UN) |
| UPC/EAN: | 1210002602075 |
| Weight: | 0.822 kg |
| Type: | CPNT |
Product information for TP-Link IES206G(UN):
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 12 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Anzahl RJ45 Ports (1G): 4
- Anzahl SFP Ports (1G): 1
- Combo Ports gesamt: 1
Funktionen
- Switch managebar: Ja
Stromversorgung
- Netzteil: extern
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 45 mm
- Länge/Tiefe: 95 mm
- Breite: 129 mm
Lieferumfang
- TP-Link Omada IES206G Netzwerk-Switch Managed Gigabit Ethernet (10/100/1000) Schwarz
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.93 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Wall mountable | |
| DIN rail mounting | |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Performance | |
| Fanless | |

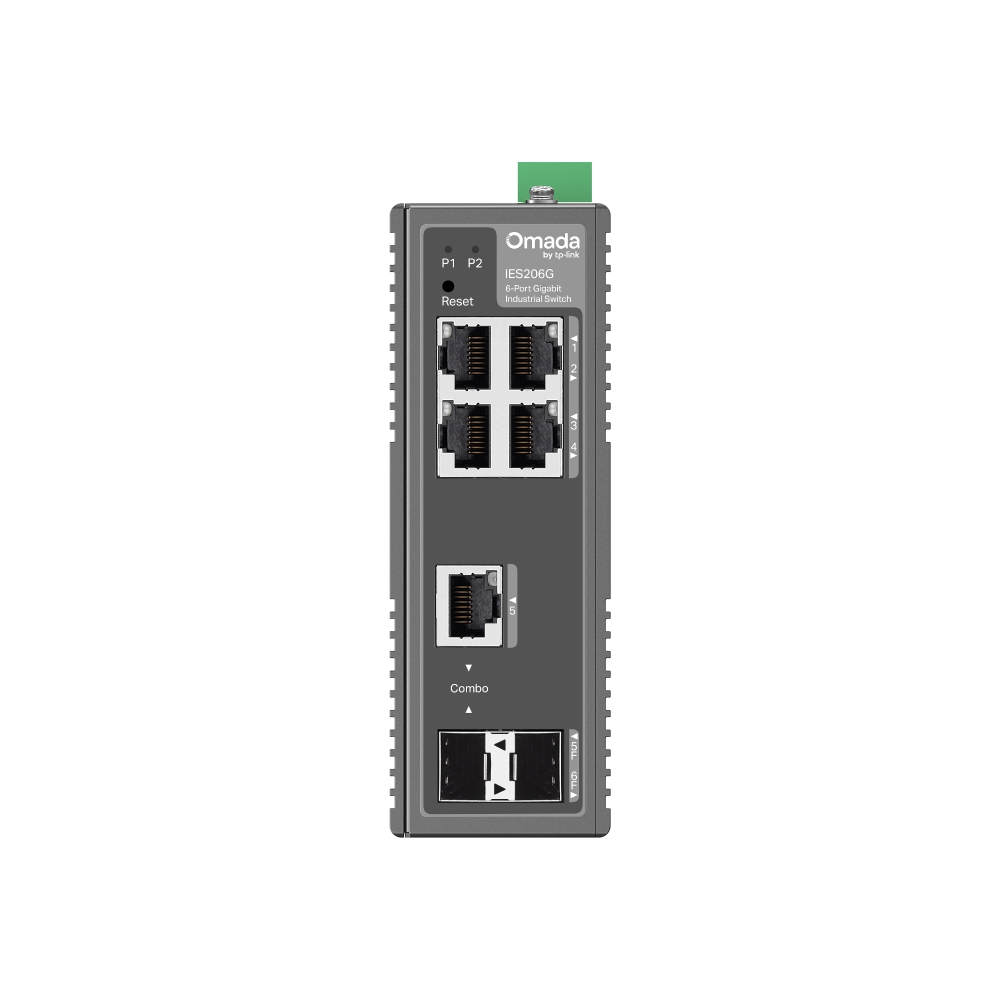

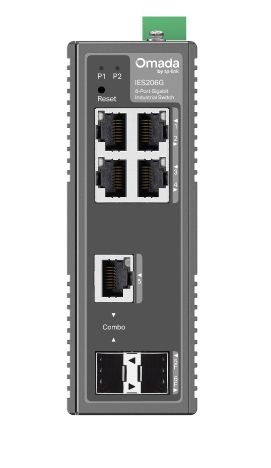

| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |

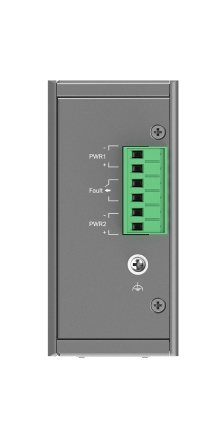

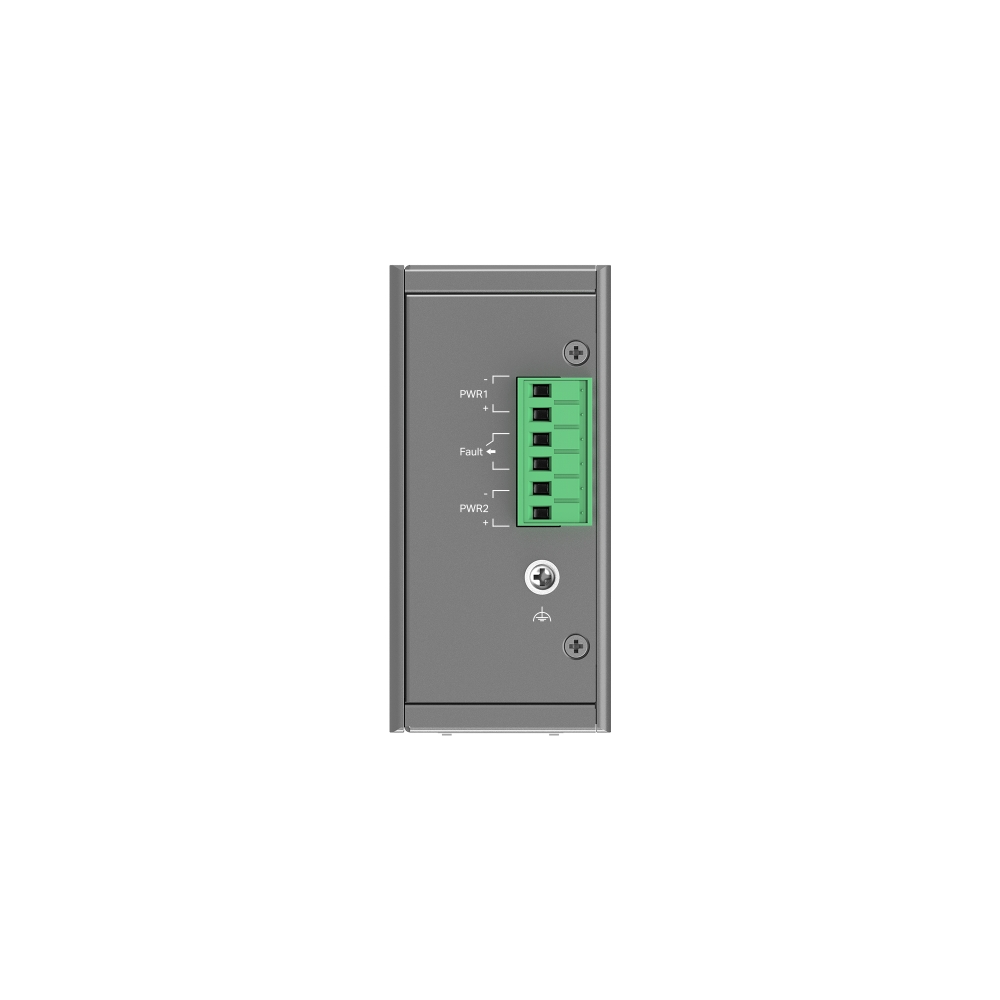

| Power | |
| Power source | DC |
| DC input voltage | 9 - 60 V |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 129 mm |
| Depth | 95 mm |
| Height | 45 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-LINK Omada 6-Port Gigabit Industrial?
The article TP-LINK Omada 6-Port Gigabit Industrial is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link IES206G(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK Omada 6-Port Gigabit Industrial always at the best possible price. We can give you a discount of 2% on TP-LINK Omada 6-Port Gigabit Industrial if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
