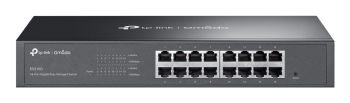

TP-LINK Switch Omada ES216G 16xGBit Managed
|
73,02 EUR 75,24 EUR |
|
|
( 86,89 EUR incl. VAT ) ≈ £61.48 | ≈ $82.00 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 20. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 583023 |
| Mfg Part No: | ES216G(UN) |
| UPC/EAN: | 1210002600682 |
| Weight: | 1.88 kg |
| Type: | CPNT |
Product information for TP-Link ES216G(UN):
Der TP-Link Omada ES216G ist ein leistungsstarker, aber dennoch benutzerfreundlicher 16-Port Gigabit „Agile“ Switch – ideal für kleine bis mittlere Firmen oder Überwachungsnetzwerke. Sein vollständig geräuschloser, lüfterloser Betrieb macht ihn perfekt für Büroumgebungen oder sensible Einsatzbereiche. Die zentrale Cloud-Verwaltung per Omada-App oder Weboberfläche ermöglicht Plug-&-Play-Setup, VLAN-Trennung, QoS, Kabeltest und automatische Schleifenvermeidung selbst in verteilten Netzwerkinfrastrukturen. Robuste Metallbauweise sowie Desktop- und Rack-Montagemöglichkeiten sorgen für Stabilität und Flexibilität in jeder Umgebung.
Highlights
- 16x 10/100/1000Mbps RJ45-Ports
- Einfach zu bedienen: Unterstützt Plug-and-Play für sofortige Konnektivität und einfache Konfiguration für zusätzliche Funktionen
- Zentralisiertes Cloud-Management über das Web oder die Omada-App
- VLAN, Port-Isolation, Kabeltest, QoS für zuverlässige Überwachungsnetzwerke
- Automatische Schleifenverhinderung und IGMP-Snooping
- Lüfterloses Design für geräuschlosen Betrieb
- Robustes Metallgehäuse und Design zur Desktop-/Rackmontage
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 32 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Kupferports (RJ45) gesamt: 16
- Bandbreite: 10/100/1000 MBit/s
- Hauptporttyp: Kupfer
- Anzahl RJ45 Ports (1G): 16
Funktionen
- Switch managebar: Ja
- Montageart: Desktop, 48,3 cm ( 19 inch ) Rackmontage
- IGMP
Stromversorgung
- Netzteil: extern
- Steckertyp: Schukostecker (Typ F CEE 7/4)
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 44 mm
- Länge/Tiefe: 140 mm
- Breite: 294 mm
Lieferumfang
- TP-Link Omada ES216G 16-Port Gigabit Easy Managed Switch
- Netzkabel
- Gummifüße
- Montagehalterungen
- Schrauben
- Installationsanleitung
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| Unified static configuration | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Zero Touch Provisioning (ZTP) | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Fast leave | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 28.52 BTU/h |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Performance | |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 2131140 h |
| Firmware upgradeable | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 8.4 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 140 mm |
| Height | 44 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-LINK Switch Omada ES216G 16xGBit Managed?
The article TP-LINK Switch Omada ES216G 16xGBit Managed is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link ES216G(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK Switch Omada ES216G 16xGBit Managed always at the best possible price. We can give you a discount of 2% on TP-LINK Switch Omada ES216G 16xGBit Managed if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
