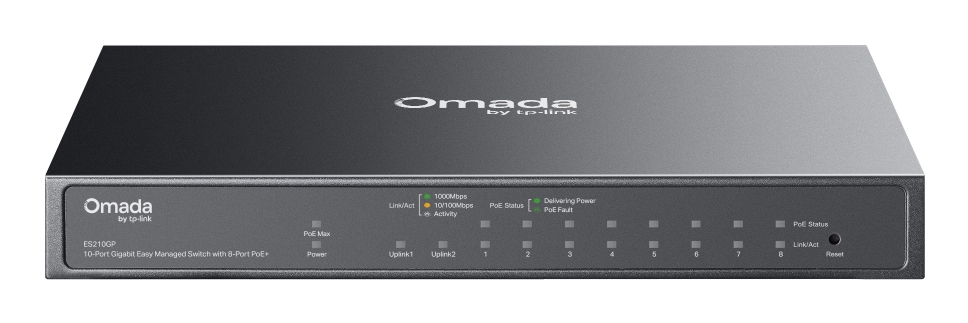

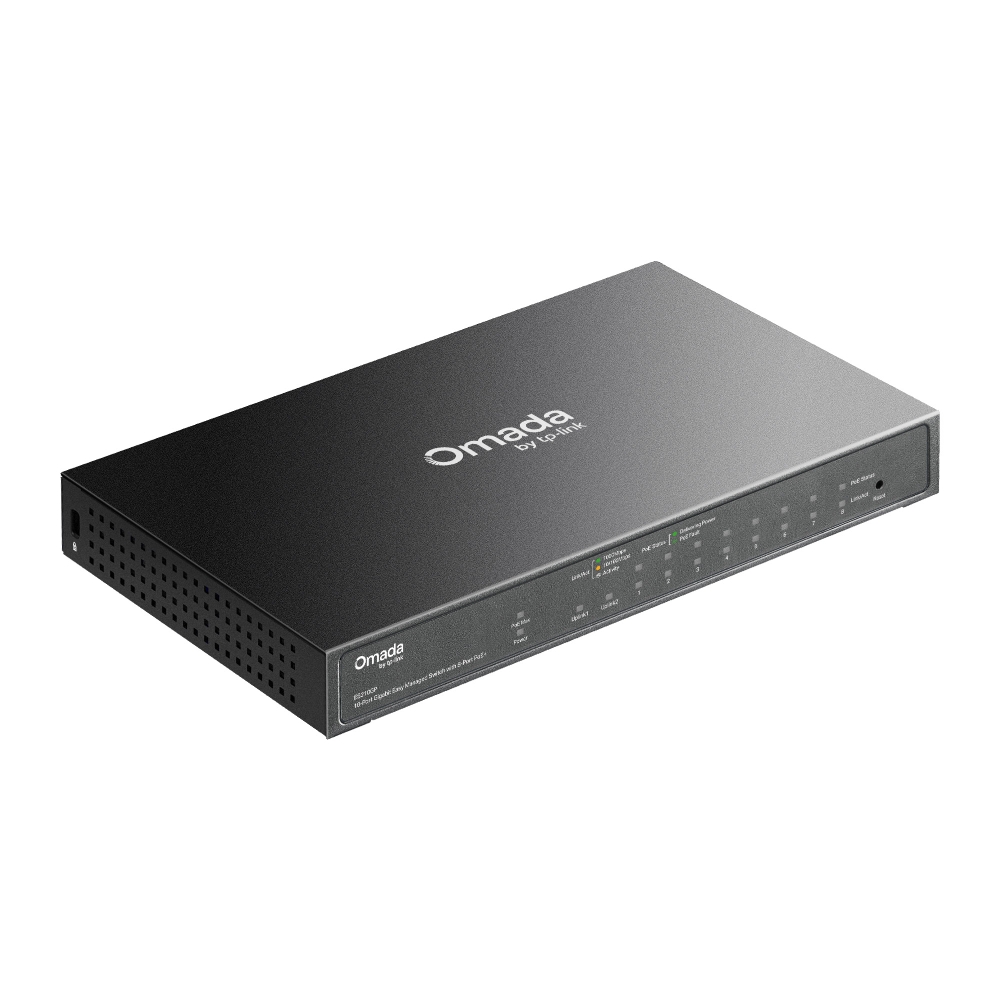

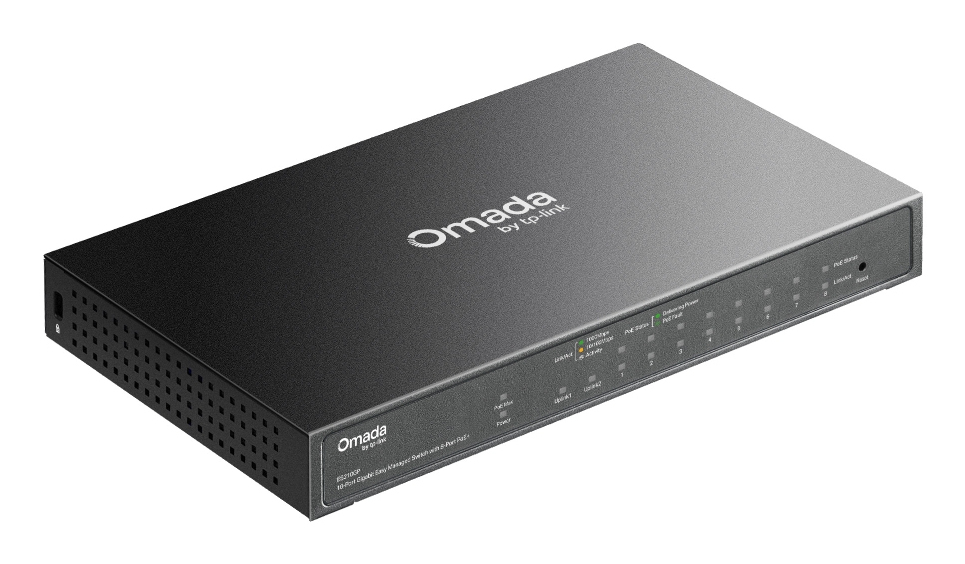

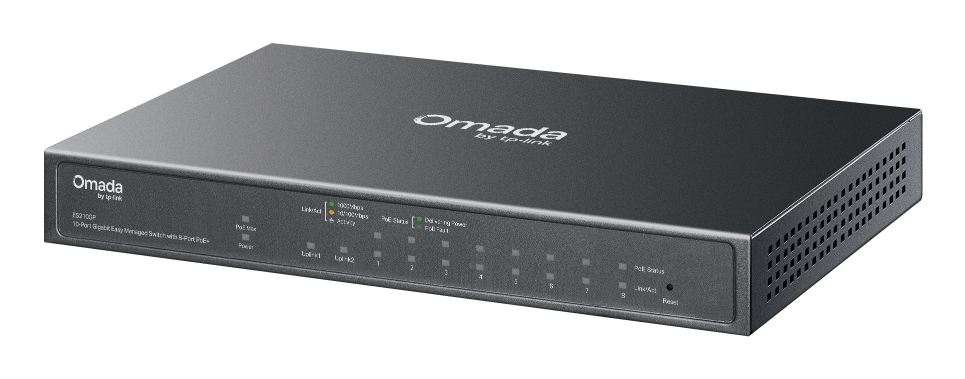

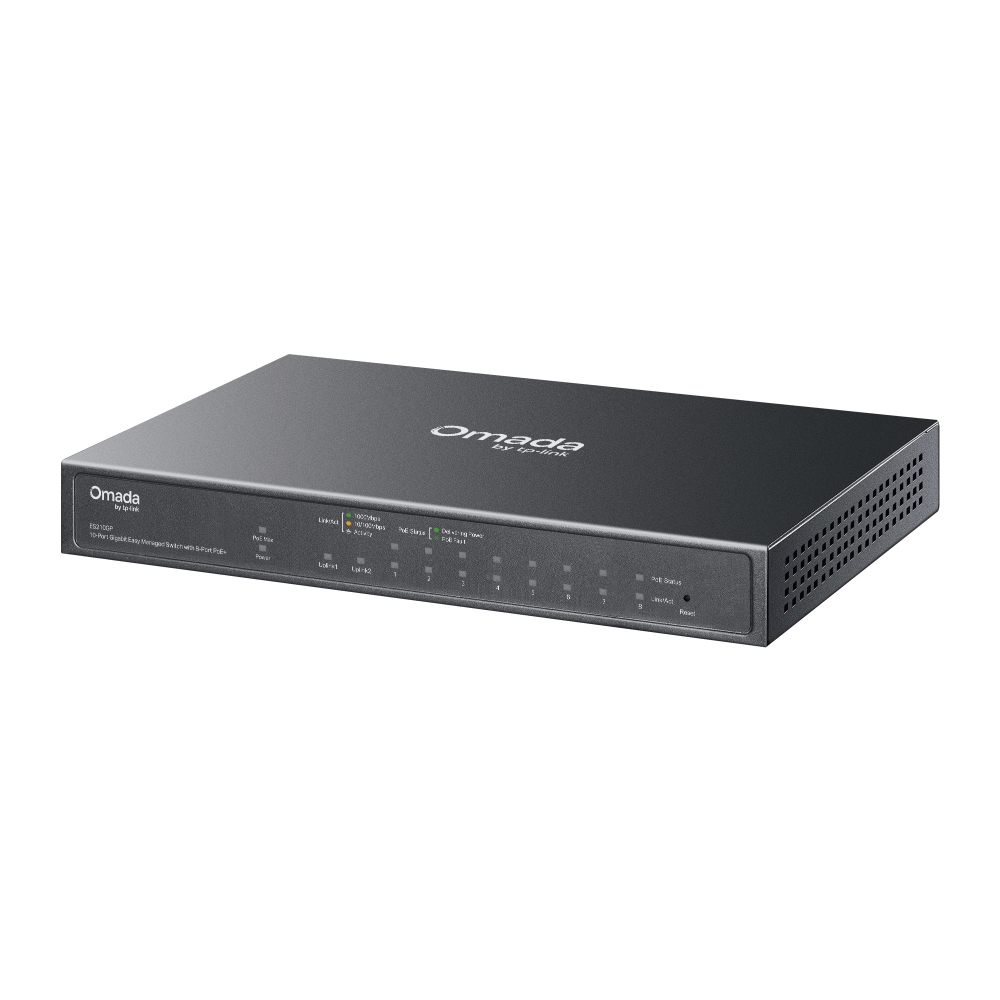

TP-LINK Switch Omada ES210GP 10xGBit 8xPoE+ Managed
|
82,15 EUR 84,69 EUR |
|
|
( 97,76 EUR incl. VAT ) ≈ £69.83 | ≈ $92.25 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 598680 |
|---|---|
| Mfg Part No: | ES210GP(UN) |
| UPC/EAN: | 1210002609722 |
| Weight: | 3 kg |
| Type: | CPNT |
Product information for TP-Link ES210GP(UN):
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 20 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Davon PoE-fähige Ports: 8
- Bandbreite: 10/100/1000 MBit/s
- PoE-Budget: 63 W
- Anzahl PoE+ (af/at) Ports: 8
- Anzahl RJ45 Ports (1G): 10
- Combo Ports gesamt: 1
Funktionen
- Switch managebar: Ja
Stromversorgung
- Netzteil: extern
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 26 mm
- Länge/Tiefe: 126 mm
- Breite: 209 mm
Lieferumfang
- TP-Link Omada ES210GP Netzwerk-Switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Schwarz
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | DIN rail |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Optical fiber | |
| Transmission distance (max) | 0.25 km |
| Packaging content | |
| Cables included | Power |
| Quick start guide | |

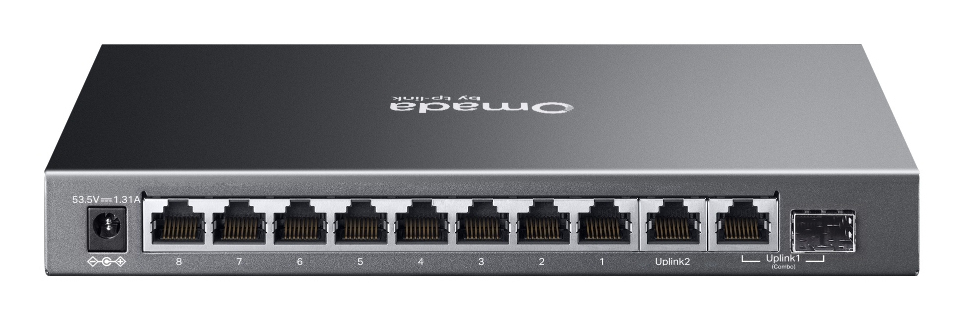

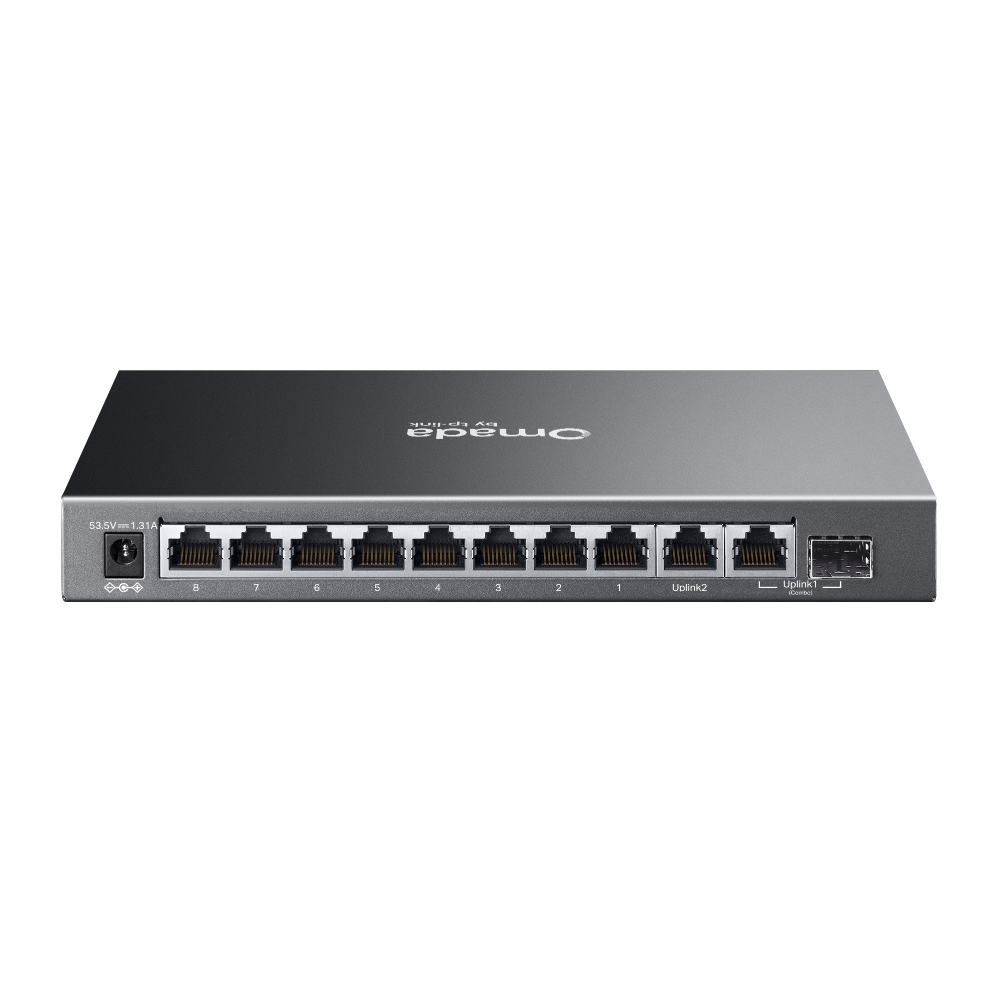

| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Power | |
| Power source | DC |
| DC input voltage | 53 V |
| Input current | 1.31 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 63 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
