TP-LINK 5 Port Gigabit Multi-WAN Router (bis 4xWAN/LAN) 1xSFP High-speed performance,Wifi 6, content_copy

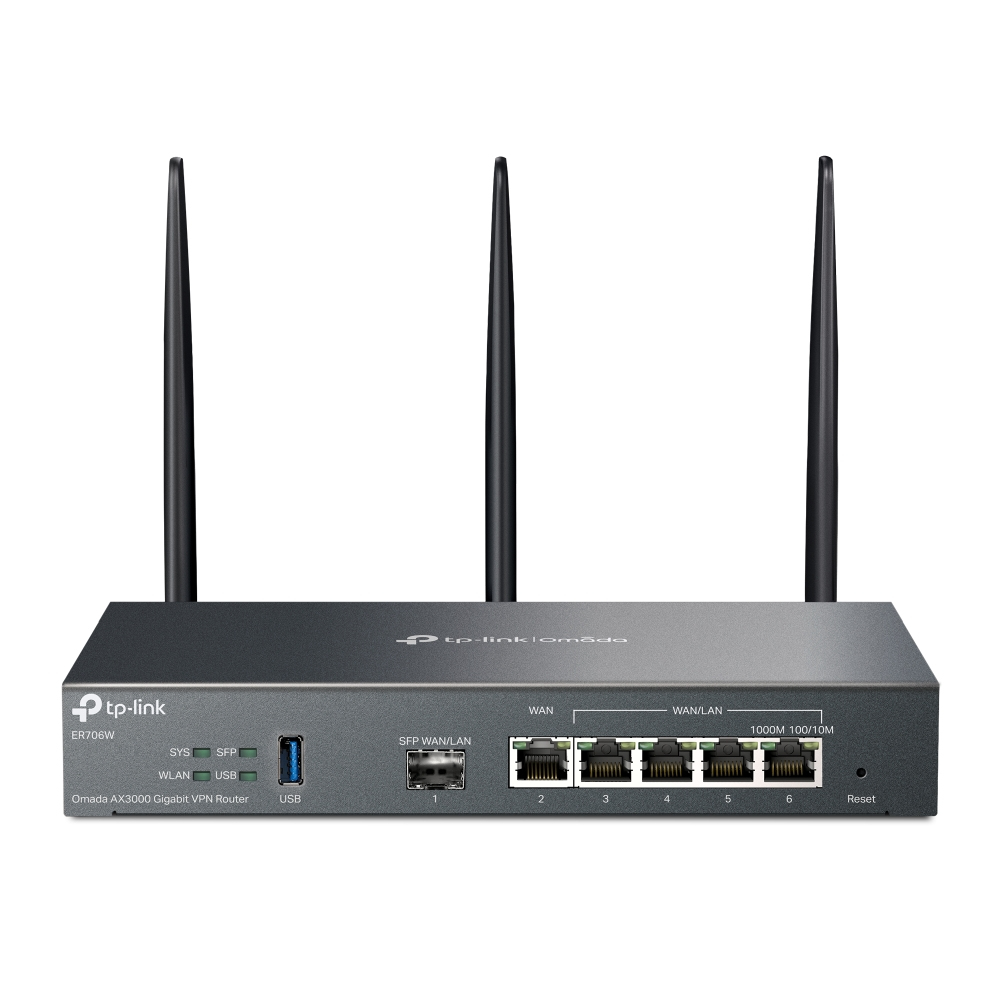

The TP-Link ER706W is a professional VPN router from the Omada series, designed for use in small and medium-sized enterprises as well as environments requiring a reliable, secure, and high-performance network connection. The device features a dual-core ARM Cortex-A53 processor and 512 MB DDR4 memory, enabling high processing speed and simultaneous handling of multiple network functions. It is designed as a desktop/pole router and can optionally be wall-mounted, allowing flexible use in various installation scenarios.

Applications

The router is designed for indoor use and is particularly suitable for offices, retail environments, educational institutions, and other settings requiring a stable, scalable network infrastructure. Support for Omada Software Defined Networking (SDN) enables centralized management via the cloud, allowing multiple devices to be controlled from a single interface. This is especially beneficial for decentralized locations where uniform network control and monitoring are required.

Functions and Features in Detail

The ER706W offers extensive connectivity options: it includes five Gigabit Ethernet ports in total, comprising one SFP port for fiber connections, one RJ45 WAN port, and four RJ45 LAN/WAN ports. This configuration enables flexible network architectures, including Multi-WAN connections. The integrated USB 3.0 port supports USB LTE dongles and external storage devices, expanding its use as a file server or for mobile internet connections. The Wi-Fi functions include dual-band support (2.4 GHz and 5 GHz) with a maximum combined data rate of 3000 Mbit/s (574 Mbit/s on the 2.4-GHz band and 2402 Mbit/s on the 5-GHz band), with the 5-GHz band supporting HE160 bandwidth. The Wi-Fi 6 technology (IEEE 802.11ax) ensures higher capacity, lower latency, and better performance with multiple simultaneous devices.

Technology Explained Simply

The MU-MIMO technology (Multi-User MIMO) enables the router to transmit data simultaneously to multiple devices, increasing network efficiency. The MIMO technology (Multiple Input, Multiple Output) uses multiple antennas to improve signal quality and range. The router features three external antennas, with the 5-GHz antennas having a maximum gain of 4.5 dBi. The security features include support for WPA, WPA2, and WPA3-Enterprise, access control lists, URL filtering, DMZ support, and network address translation (NAT). A Captive Portal enables controlled guest authentication, preventing unauthorized access to the network. Port forwarding and port triggering support the setup of services on the local network that need to be accessible over the internet.

Compatibility and Accessories

The router is compatible with various SFP modules, including single-mode and multi-mode modules used for fiber connections. Suitable modules such as the MiniGBIC module 1 GBit SFP LC single-mode LX TL-SM311LS or the MiniGBIC module 1 GBit SFP LC multi-mode SX TL-SM311LM can be used to extend network connectivity. Additionally, the device is compatible with the Omada SDN Controller (OC200/OC300), enabling centralized network control via the cloud. For integration into existing infrastructures, ISP Bridge Modem GPON GBIC ONT ALL-BM510-GPON-GBIC SC/APC connector or Omada Nek SM331T 1000Mbps RJ45 copper transceiver can also be used.

Management and Installation

Management is performed via a web-based management interface, providing an intuitive user experience. An integrated reset button allows the device to be restored to factory settings if needed. Installation is carried out using the included AC power adapter (12 V / 2 A) and the user manual, both of which are part of the delivery. LED indicators for system, USB, WAN, WLAN, and SFP support visual monitoring of the operational status.

Operational Advantages

The router supports up to 50 VPN tunnels and multiple VPN protocols, including SSL, WireGuard, OpenVPN, GRE VPN, IPSec, PPTP, L2TP, and L2TP over IPSec, enabling flexible setup of secure connections. Features such as load balancing, bandwidth control, and access control support efficient network management. An integrated 4 kV surge protection protects the device and connected equipment from voltage surges. The operating temperature ranges from 0 °C to 40 °C, and the relative humidity during operation is 10 to 90 %, making the device suitable for use in environments with moderate climatic conditions. Power supply is via DC, with a maximum power consumption of 16.8 W (with USB 3.0).

Certifications and Design

The device complies with CE, FCC, and RoHS certifications and is black in color. Dimensions are 226 mm (width) × 131 mm (depth) × 35 mm (height). The combination of compact design, extensive features, and professional security makes the ER706W a powerful router for business applications.

Antenna
Antenna design	External
Antenna gain level (max)	4.5 dBi
Antennas quantity	3
Certificates
Certification	CE, FCC, RoHS
Design
Product colour	Black
LED indicators	System, USB, WAN, WLAN
Product type	Desktop/pole router
Wall mountable
Features
Internal memory	512 MB
Internal memory type	DDR4
Flash memory	128 MB
Management features
Web-based management
Reset button
MU-MIMO technology
MIMO
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
VPN tunnels quantity	50
Ethernet LAN
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
AC adapter included
Manual
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB port
DC-in jack
Power
Power source type	DC
Output voltage	12 V
Output current	2 A
Protocols
Routing protocols	OSPF, RIP
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	WPA, WPA2, WPA3-Enterprise
Guest access
Access Control List (ACL)
Schedule access
Filtering
URL filtering
System event log
DMZ support
Network address translation (NAT)
WAN connection
WAN connection type	SFP
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	226 mm
Depth	131 mm
Height	35 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	3000 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s

---
