TP-LINK Auranet EAP245 IEEE 802.11ac 1.71 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz content_copy

Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds Free EAP Controller Software lets administrators easily manage hundreds of EAPs Support Power over Ethernet(802.3at) for convenient and affordable installation Captive portal provides a convenient method for guest authentication Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections Load balance ensures large numbers of users have smooth network experiences in high density business networks An Affordable Business-Class 802.11ac Wi-Fi Solution

Superior Wi-Fi Speeds with 3x3 11ac MIMO technology
The latest generation of 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands. The EAP245 achieves Wi-Fi speeds of up to 1.75Gbps, with 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band. The EAP225 provides speeds of up to 867Mbps and 300Mbps on the 5GHz and 2.4GHz respectively. EAP Controller Software

Easy for Centralized Management Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Auranet Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective. Captive Portal

Efficient Guest Authentication Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can Control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons. Easy Mount Design and PoE

Flexible Deployment The EAP's low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible. Unified Wi-Fi for Multi-user Business Environment The Auranet business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi
Certificates
Certification	CE, FCC, RoHS
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot type	Kensington
LED indicators	Power
Cable lock slot
Reset button
Features
Maximum data transfer rate	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
MIMO type	Multi User MIMO
Virtual LAN features	SSID-based VLAN assignment
Transmitting power	27 dBmW
2.4 GHz
5 GHz
Automatic channel selection
MIMO
Rate limiting
Wireless isolation
Airtime Fairness (ATF)
Quality of Service (QoS) support
Logistics data
Harmonized System (HS) code	85176990
Management features
Web-based management
Syslog
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
PoE adapter included
Mounting kit
Quick start guide
Performance
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Ports & interfaces

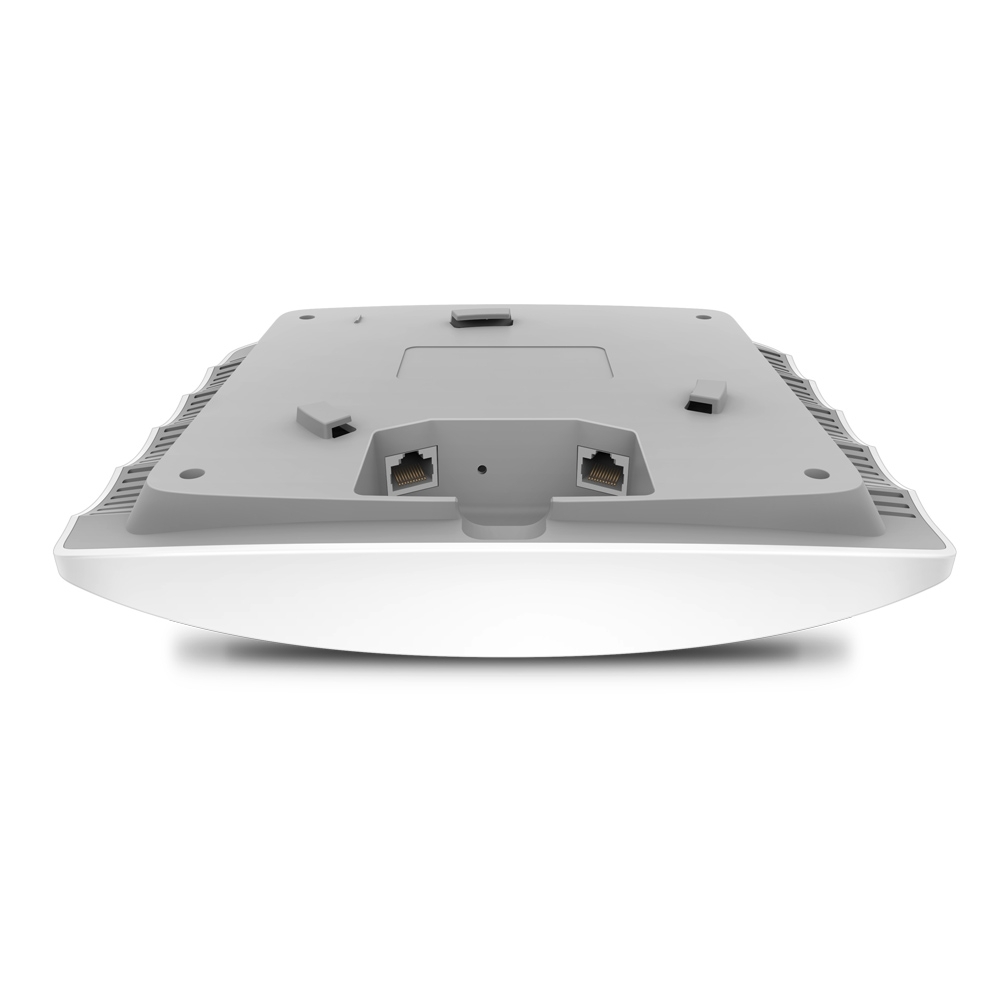

Ethernet LAN (RJ-45) ports	2
DC-in jack
Power
AC input voltage	12 V
Input current	1.5 A
Power consumption (typical)	12.3 W
Power over Ethernet (PoE)
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	16
MAC address filtering
Port-based Network Access Control (PNAC)
Access Control List (ACL)
Weight & dimensions
Width	205.4 mm
Depth	181.6 mm
Height	37.4 mm

---
